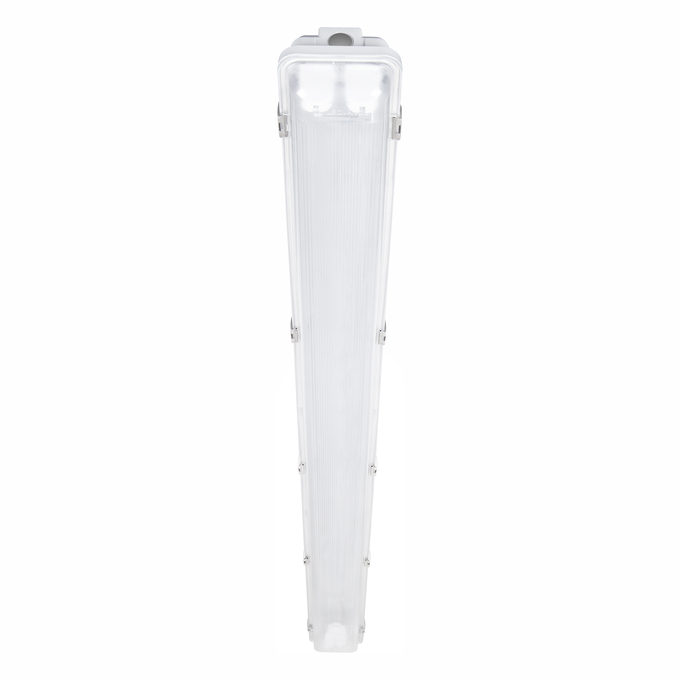

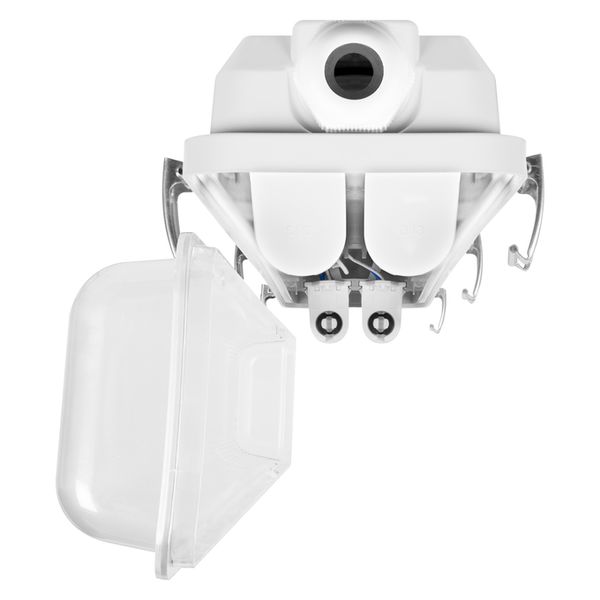

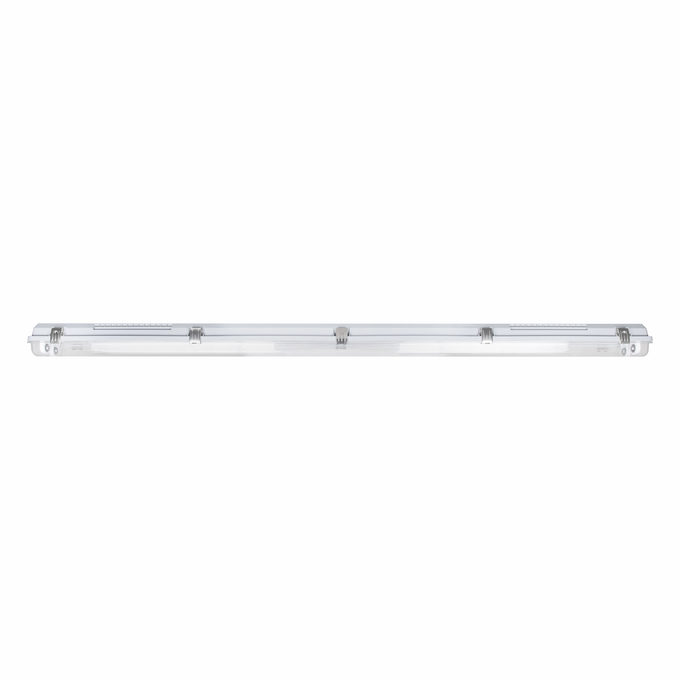

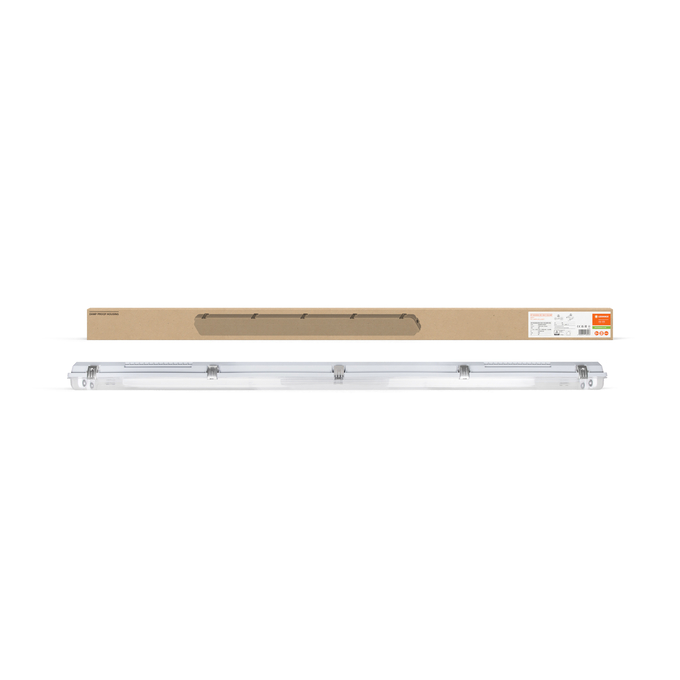

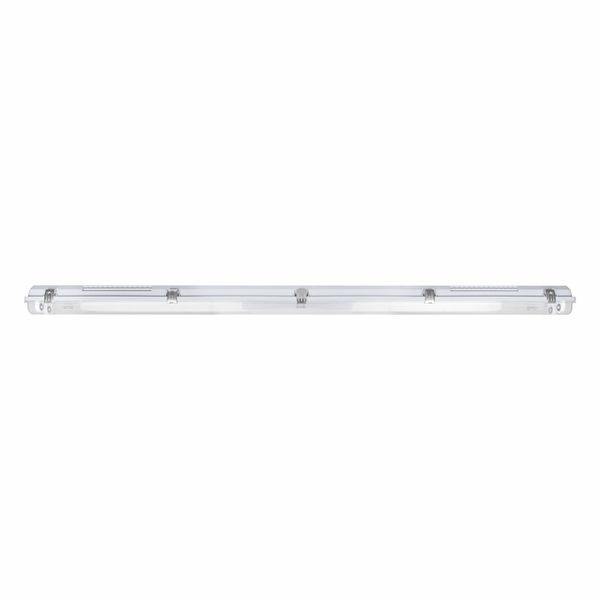

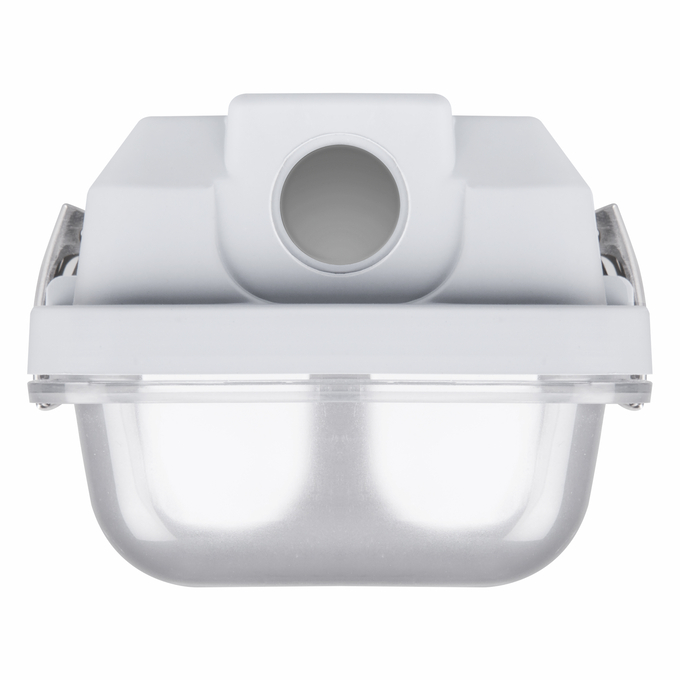

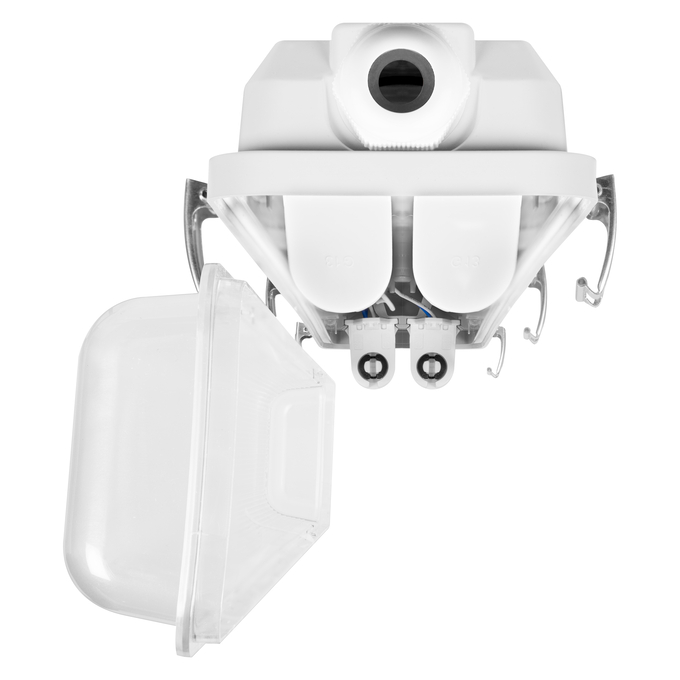

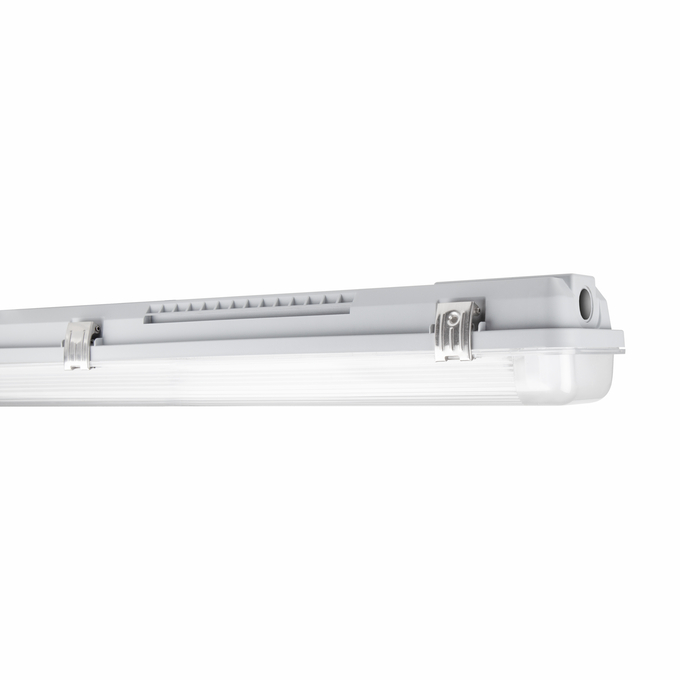

DP HOUSING EM 1200 P 2XLAMP IP65
4099854148903
Product benefits
- Easy and quick installation
- Prewired for easy installation of LED TUBE T8 EXTERNAL SYSTEM
- Toolless installation
- Robust housing
- Sustainable solution thanks to exchangeable light sources
- 5 years guarantee
Areas of application
- Parking lots, warehouses, production areas
- Emergency lighting for single battery systems
- Dimmable installations
- Car parks and underpasses
- Garages
Product features
- Luminaire housing, available for 1 or 2 T8 LED tubes
- Dimmable EXTERNAL SYSTEM Driver, Emergency unit and Battery are already installed
- Suitable for LEDVANCE LED TUBE T8 EXTERNAL SYSTEM
- DALI 2.0 interface for light management system integration
- Integrated electrical fuse
- Type of protection: IP65
Equipment / Accessories
- Stainless steel clamps and M20 cable gland included
References / Links
- For Guarantee see
Ambient temperature range
+5…+40 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
>12 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
ECG - Output ripple current
≤ 5 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854148903
Height
70.00 mm
Holder designation
G13
Housing color
Gray
Length
1280.00 mm
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous flux in emergency operation mode
320 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product remark
When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Product weight
1489.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
RAL Color (most similar)
RAL 7040
Replaceable light source
No
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Type of Battery
LiFePO4
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of emergency light operation
Maintained
Type of emergency operation test
Automatic
Type of protection
IP65
Wattage in emergency operation mode
3,0 W
Width
95.00 mm
With light source
No
