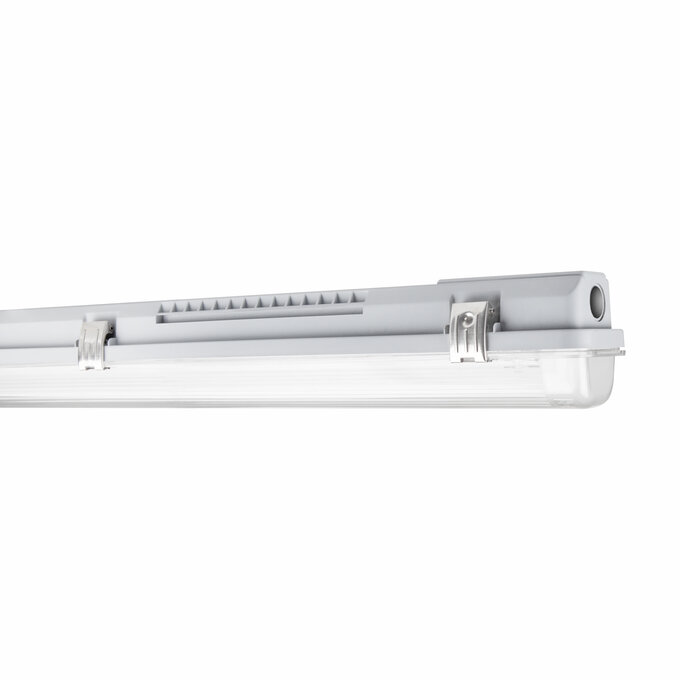

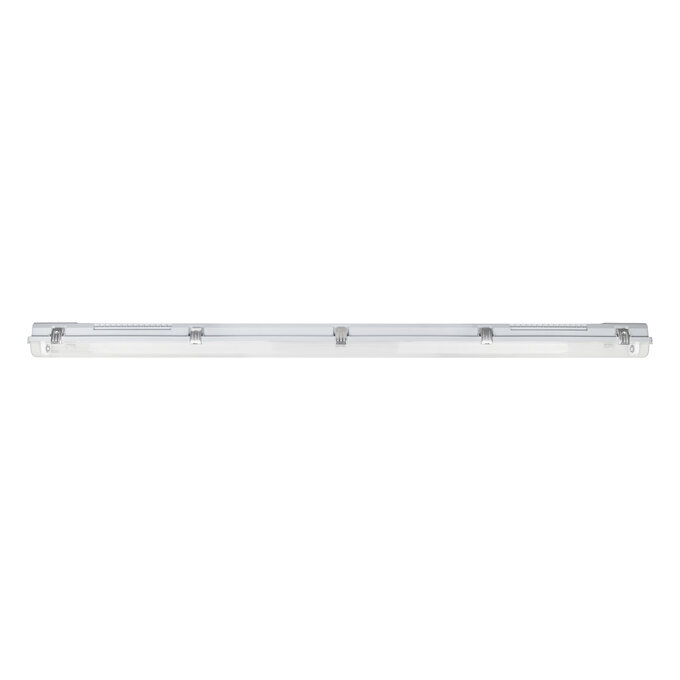

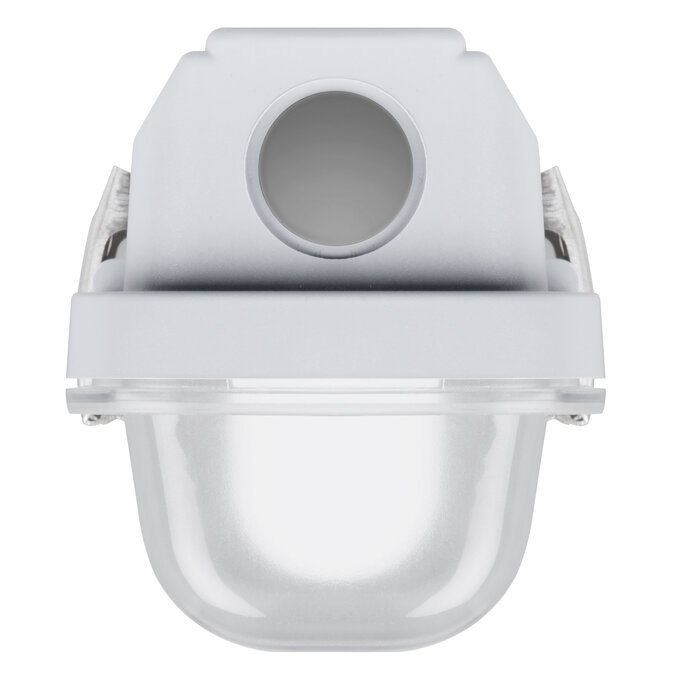

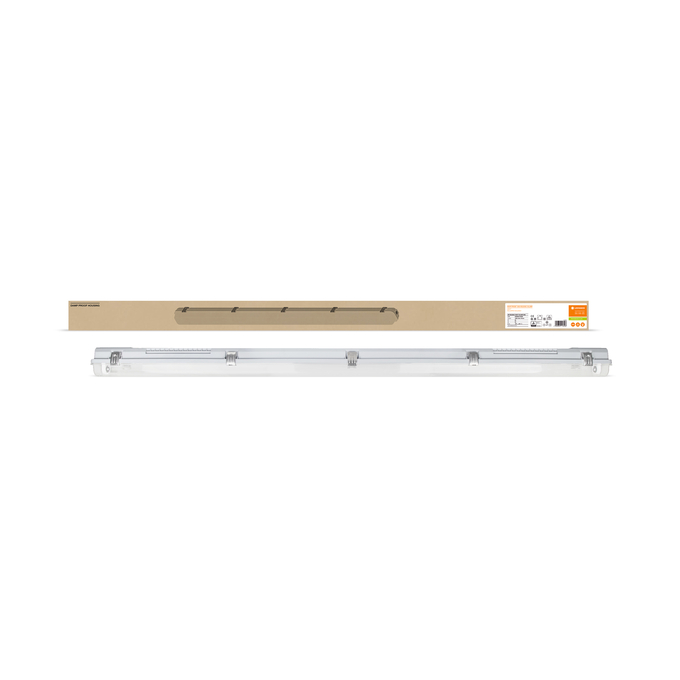

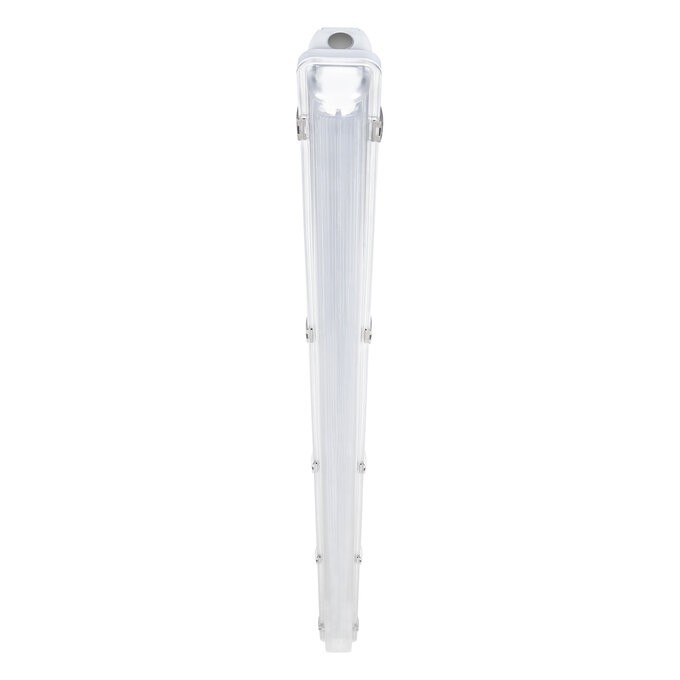

DP HOUSING 1200 P 1XLAMP IP65
4099854118098
Product benefits
- Easy and quick installation
- Prewired for easy installation of tubular AC LED lamps
- Toolless installation
- Robust housing
- Sustainable solution thanks to exchangeable light sources
- 5 years guarantee
Areas of application
- Parking lots, warehouses, production areas
- Car parks and underpasses
- Garages
Product features
- Luminaire housing, available for 1 or 2 T8 LED tubes
- Suitable for LED TUBE T8 EM and LED TUBE T8 CONNECTED
- Type of protection: IP65
- Integrated electrical fuse
Equipment / Accessories
- All required accessories included
- Through-wiring cable kit available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-30…+40 °C
Application environment
Indoor
Ball shot safe
No
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854118098
Height
70.00 mm
Holder designation
G13
Housing color
Gray
Length
1280.00 mm
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal voltage
220…240 V
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product remark
When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Product weight
739.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
RAL Color (most similar)
RAL 7040
Replaceable light source
No
Temperature range at storage
-20…+80 °C
Type of connection
Screwless terminal, 3-Pole (N, E, L)
Type of protection
IP65
Width
65.00 mm
With light source
No
