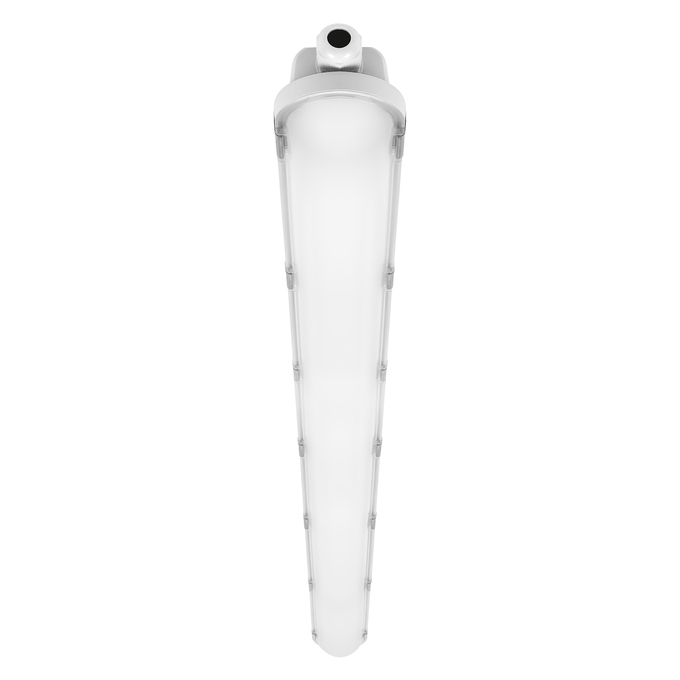

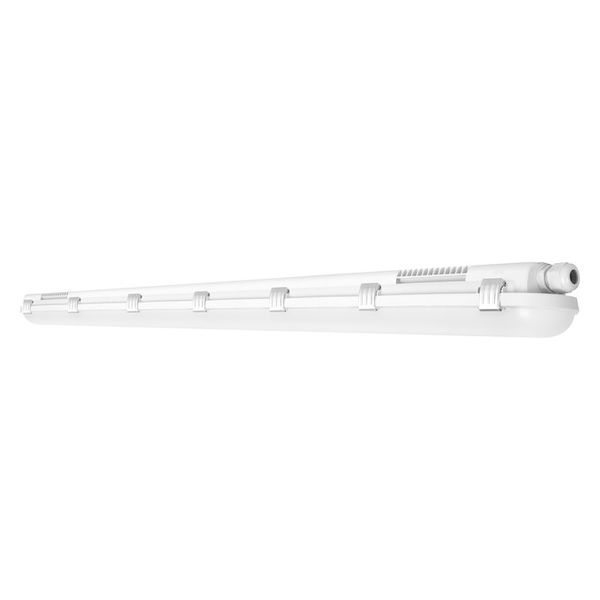

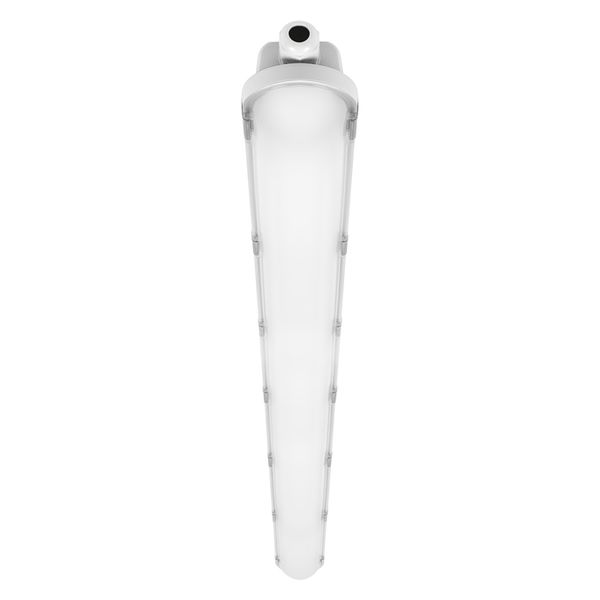

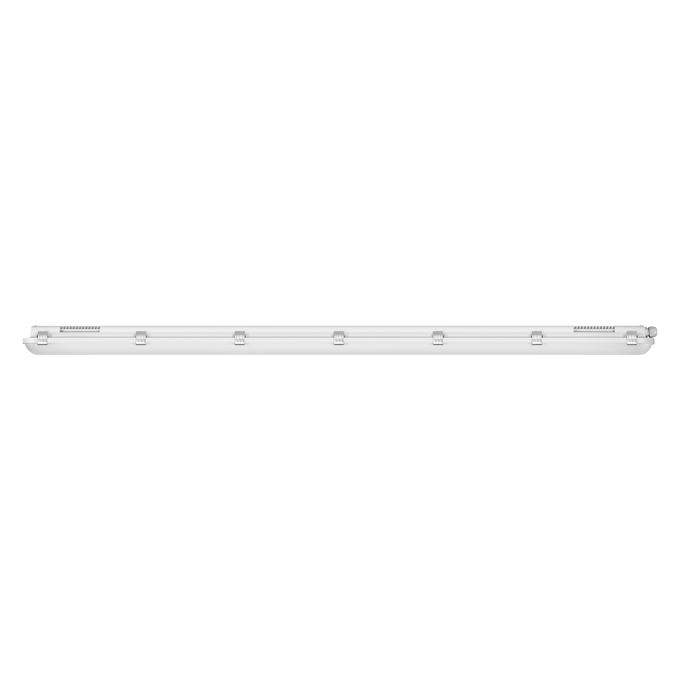

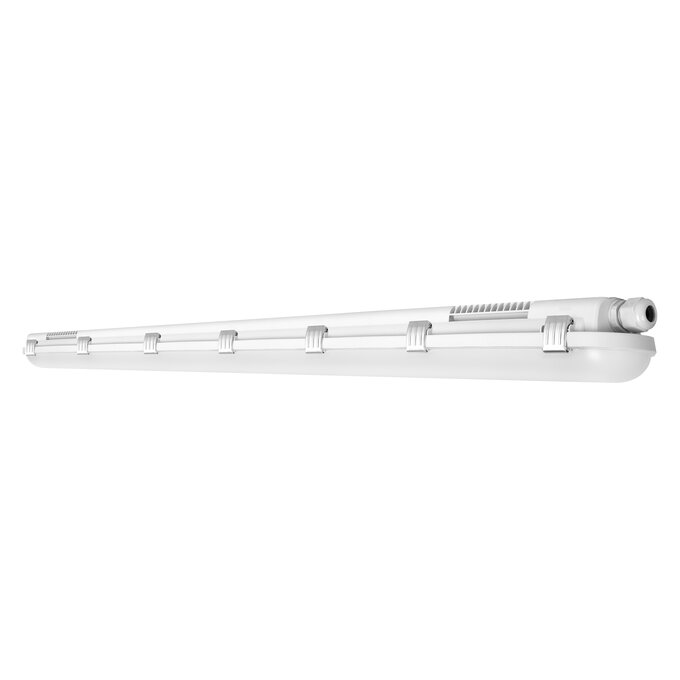

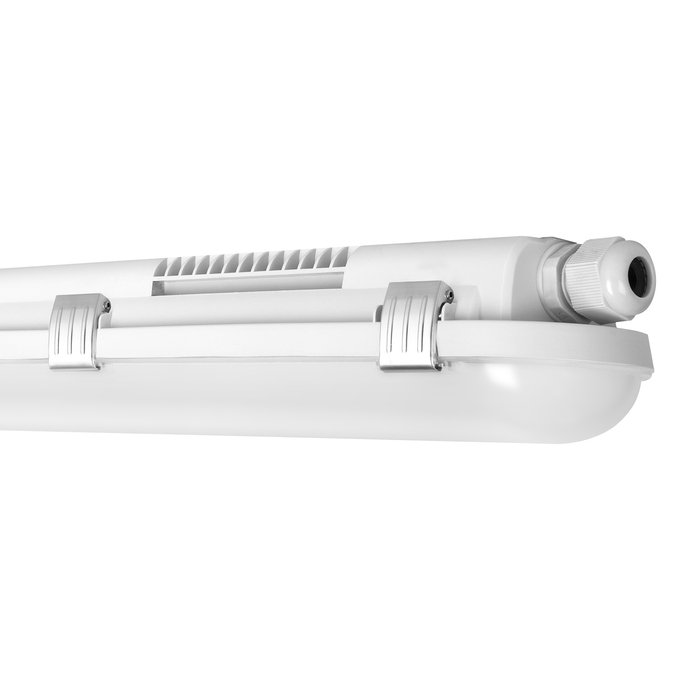

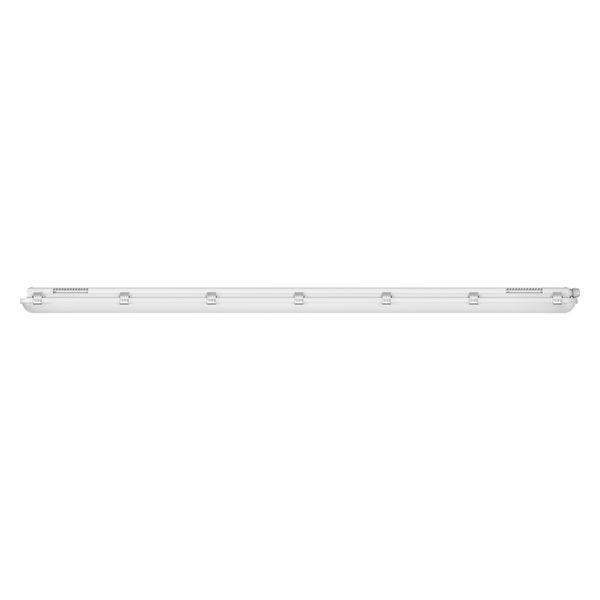

DP HE EL 1500 P 40W ML 840 IP65
4099854407079
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Uniform light distribution
- Enables participation in funding programs in certain countries to replace light source and driver
- Easy installation, no tools required for connection
- Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- Luminaire suitable for normal lighting and emergency lighting
- Certified according to European norms (EN 60598-1:2020; EN 60598-2-22:2021)
- Self-contained luminaires
- Luminous flux in emergency operation mode: 450 lm
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Housing and diffuser material: polycarbonate (PC)
- Multi Lumen function: lumen steps selectable
- Compatible to Zhaga Book 26 LED light sources
- Beam angle: 120°
- Protection rating: IP65
Equipment / Accessories
- Mounting brackets, Antitheft protection, triangle, 2nd cable gland and 2 grommets included
- EVERLOOP luminaire: upgrades and replacements available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
16.6 W
156 lm/W
20.6 W
157 lm/W
24.0 W
159 lm/W
27.5 W
159 lm/W
31.7 W
160 lm/W
35.6 W
160 lm/W
39.8 W
161 lm/W
Added function
EVERLO
Ambient temperature range
+5…+35 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854407079
Height
68.00 mm
Housing color
Grey
Inrush current
9.8 A
Inrush current time Th50
565 µs
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
59000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
161 lm/W / 160 lm/W / 159 lm/W / 157 lm/W / 156 lm/W
Luminous flux
6400 lm / 5700 lm / 5070 lm / 4360 lm / 3810 lm / 3240 lm / 2590 lm
Luminous flux in emergency operation mode
450 lm
Luminous flux in maintained operation mode
6400 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
14
Max. number of luminaires per miniature circuit breaker C10
15
Max. number of luminaires per miniature circuit breaker C16
25
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal capacity of battery
6000 mAh
Nominal current
175/165/150/130/115/100/85 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
39.8 W / 35.6 W / 31.7 W / 27.5 W / 24.0 W / 20.6 W / 16.6 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
250 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
1930.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9018
Replaceable light source
Yes
Replaceable light source (EPREL)
By the end consumer
Standard deviation of color matching
< 4 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal, 5-Pole
Type of emergency light operation
Maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP65
Wattage in emergency operation mode
3 W
Wattage in maintained operation mode
40 W
Width
82.00 mm
With light source
Yes
