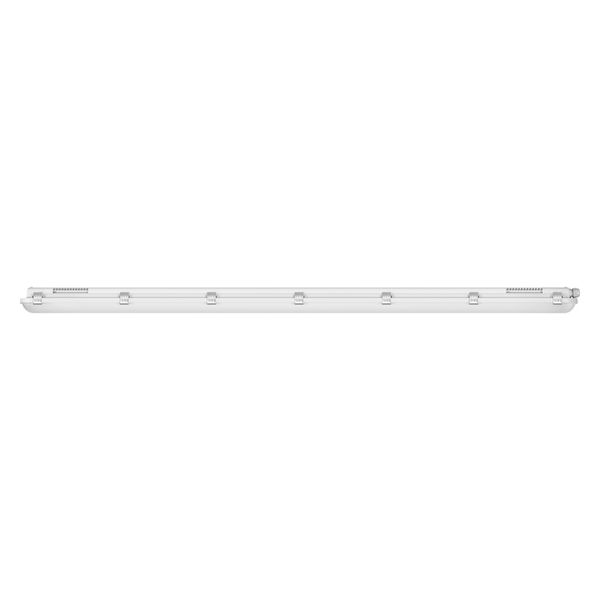

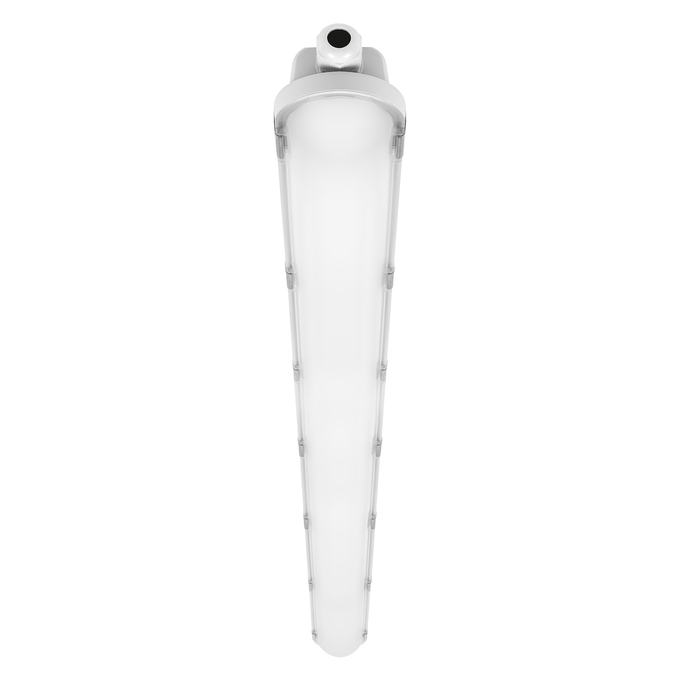

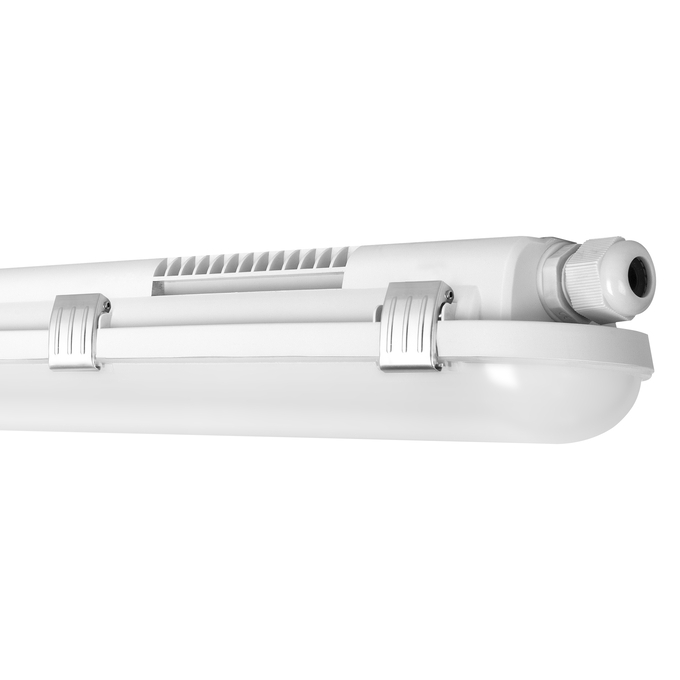

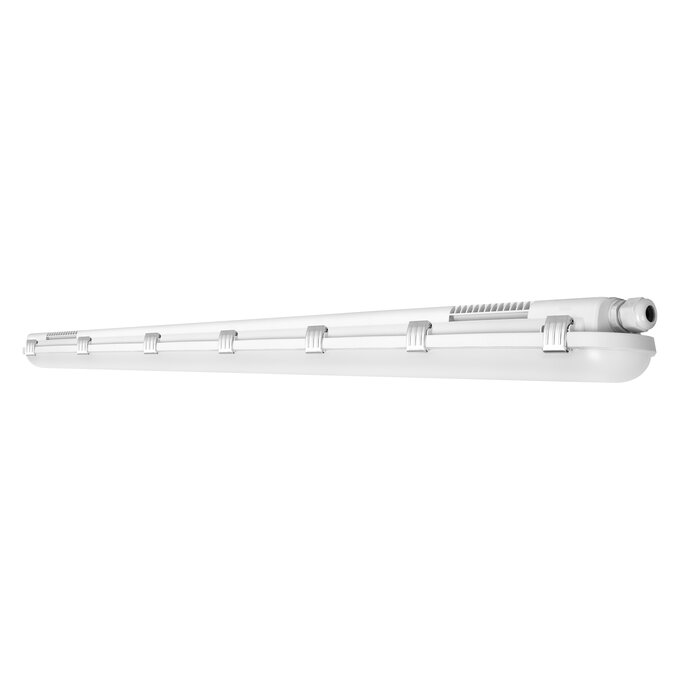

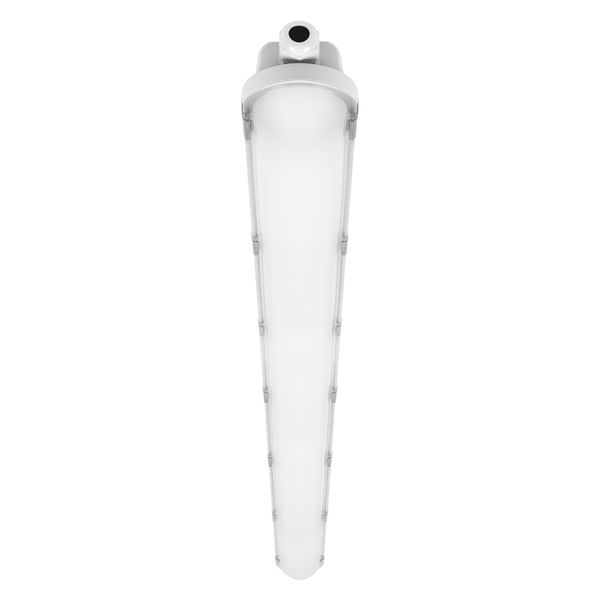

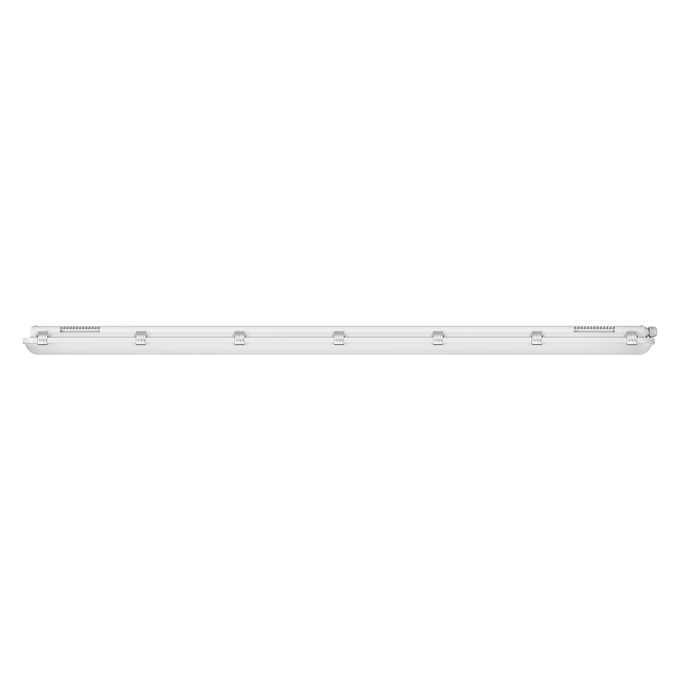

DP HE 1500 P 73W ML 840 IP65
4099854406836
Product benefits
- Uniform light distribution
- Easy upgradeability of light source and driver (EVERLOOP design)
- Enables participation in funding programs in certain countries to replace light source and driver
- Easy installation, no tools required for connection
- Low flicker ≤ 5 %
- Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- Very high luminous efficacy: up to 164 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 25 °C)
- Housing and diffuser material: polycarbonate (PC)
- Multi Lumen function: lumen steps selectable
- Compatible to Zhaga Book 26 LED light sources
- Beam angle: 120°
- Protection rating: IP65
- Impact resistance: IK08
Equipment / Accessories
- Mounting brackets, Antitheft protection, triangle, 2nd cable gland and 2 grommets included
- EVERLOOP luminaire: upgrades and replacements available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
47,6 W
163 lm/W
55,2 W
163 lm/W
63,3 W
163 lm/W
72,2 W
162 lm/W
Added function
EVERLO
Ambient temperature range
-25…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854406836
Height
68.00 mm
Housing color
Grey
Inrush current
10.6 A
Inrush current time Th50
889 µs
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
58000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
162 lm/W / 163 lm/W
Luminous flux
11680 lm / 10300 lm / 9010 lm / 7780 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
14
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
23
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal current
450/400/350/300 mA
Nominal voltage
220…240 V
Nominal wattage
72.2 W / 63.3 W / 55.2 W / 47.6 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
450 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product remark
When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Product weight
1636.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9018
Replaceable light source
Yes
Standard deviation of color matching
< 4 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-25…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal, 3-Pole
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP65
Width
82.00 mm
With light source
Yes
