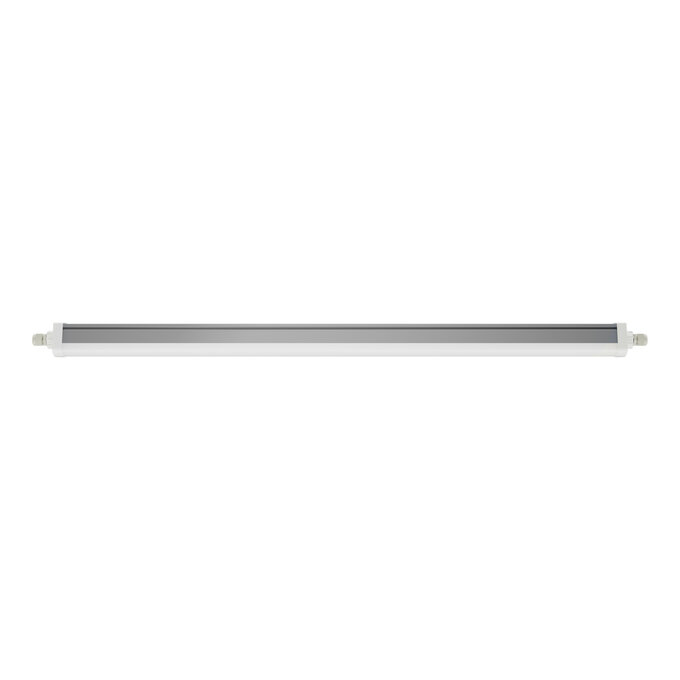

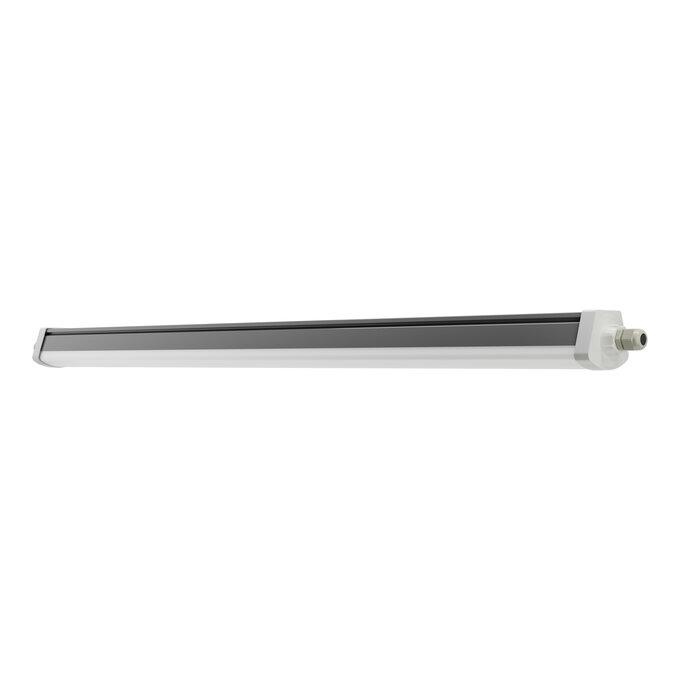

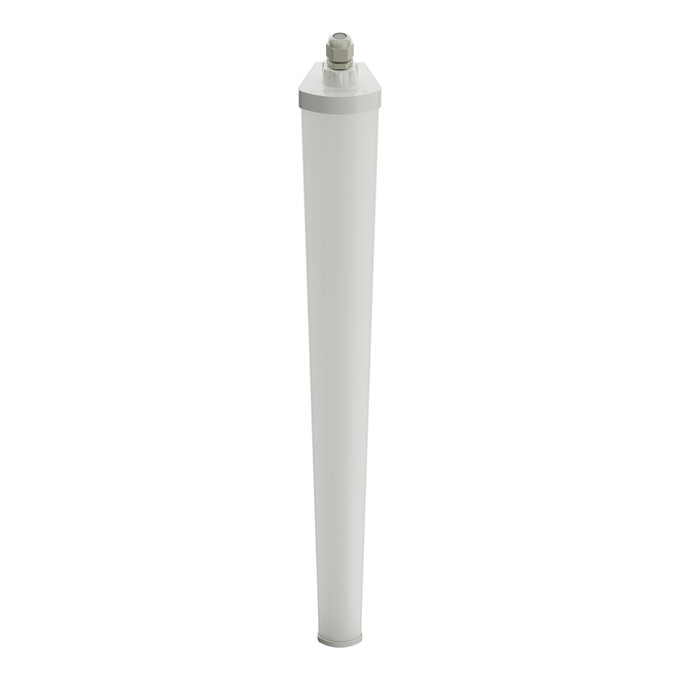

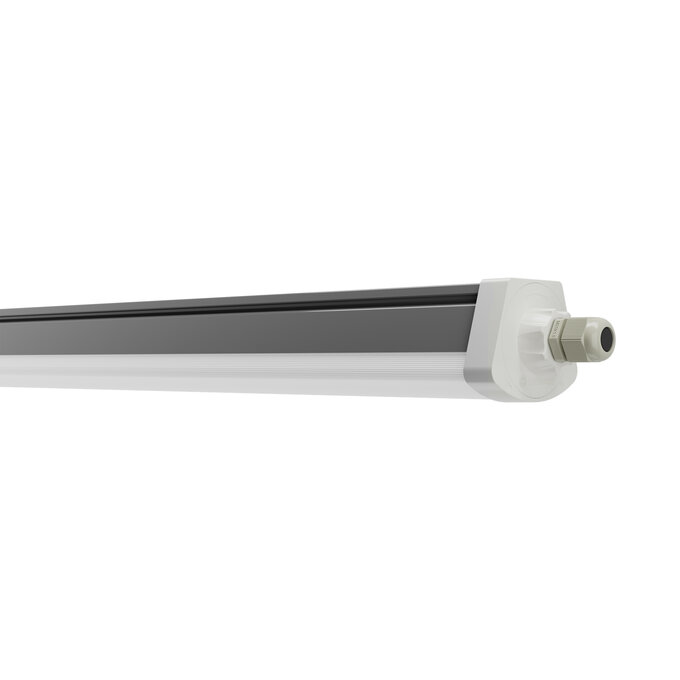

DP FLEX TH 1200 P 34W ML 830 IP66
4099854440588
Product benefits
- Uniform light distribution
- Easy upgradeability of light source and driver (EVERLOOP design)
- Enables participation in funding programs in certain countries to replace light source and driver

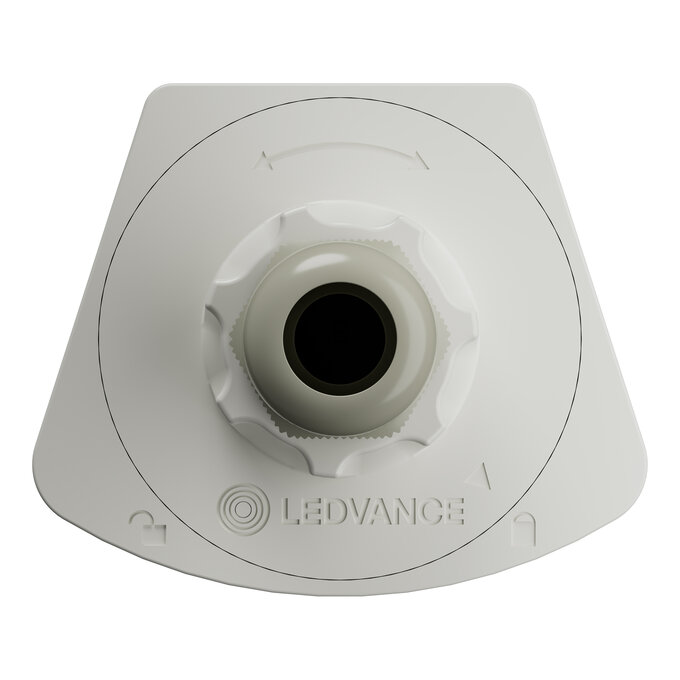

- Easy access to electrical terminal thanks to end caps with twist and lock mechanism
- Easy installation as mounting brackets can be positioned freely on the luminaire
- Tool-free electrical connection due to push button connector
- Energy savings of up to 66 % (compared to luminaires that use fluorescent lamps)
- Low flicker ≤ 5 %
Areas of application
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- High luminous efficacy: up to 165 lm/W
- Lifetime (L80/B50): up to 100,000 h (at 25 °C)
- Housing and diffuser material: polycarbonate (PC)
- Multi Lumen function: lumen steps selectable
- Through-wiring 3x1.5mm² already installed
- Beam angle: 120°
- Protection rating: IP66
- Impact resistance: IK08
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
- EVERLOOP luminaire: upgrades and replacements available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
19 W
158 lm/W
26 W
162 lm/W
31 W
158 lm/W
34 W
162 lm/W
Added function
EVERLO
Ambient temperature range
-30…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
5 %
Flickering metric (Pst LM)
≤ 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854440588
Height
73.00 mm
Housing color
Grey
Inrush current
20 A
Inrush current time Th50
187 µs
Length
1290.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
61000 h
Light color (designation)
Warm White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
162 lm/W / 158 lm/W
Luminous flux
5500 lm / 4900 lm / 4200 lm / 3000 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
26
Max. number of luminaires per miniature circuit breaker C10
28
Max. number of luminaires per miniature circuit breaker C16
42
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal current
153/136/118/90 mA
Nominal voltage
220…240 V
Nominal wattage
34 W / 31 W / 26 W / 19 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
225/125 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product remark
When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Product weight
1225.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 7045
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
≤ 23 %
Type of connection

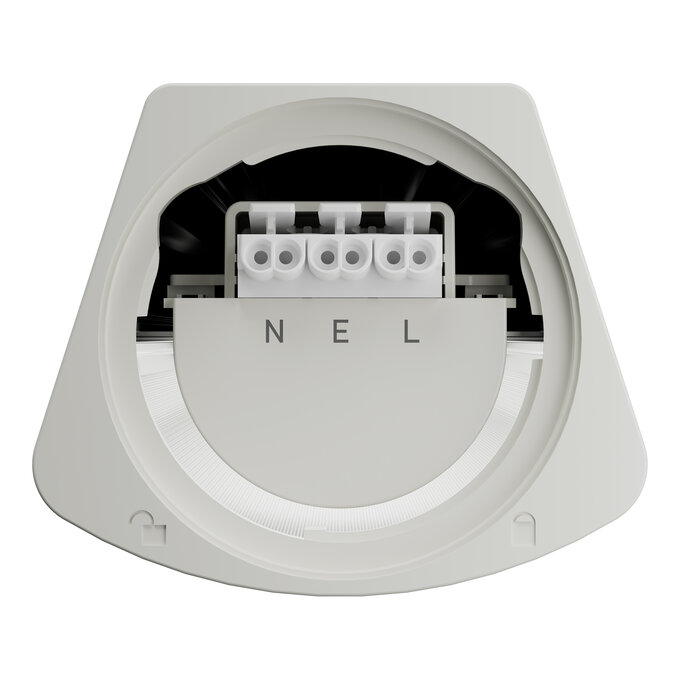

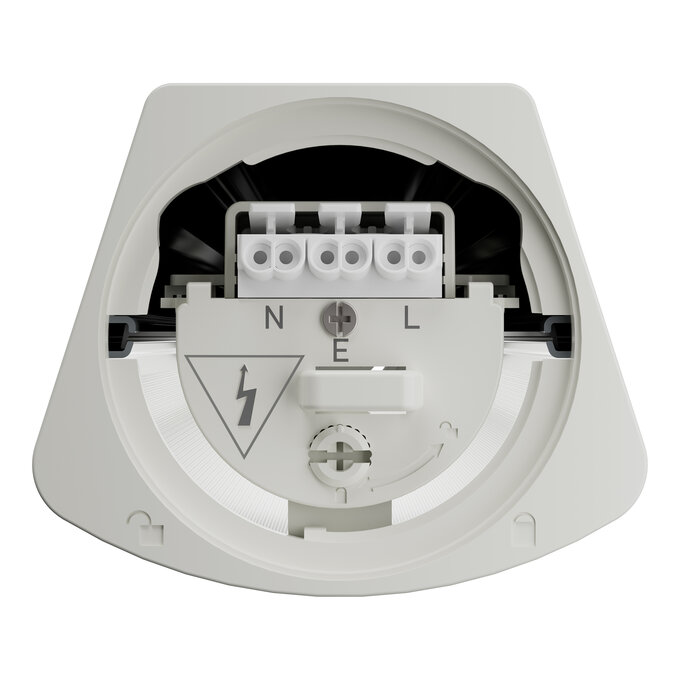

Screwless terminal, 3-Pole (N, E, L)
Type of emergency operation test
None
Type of protection
IP66
UGR
≤ 25.4
Width
88.00 mm
With light source
Yes
