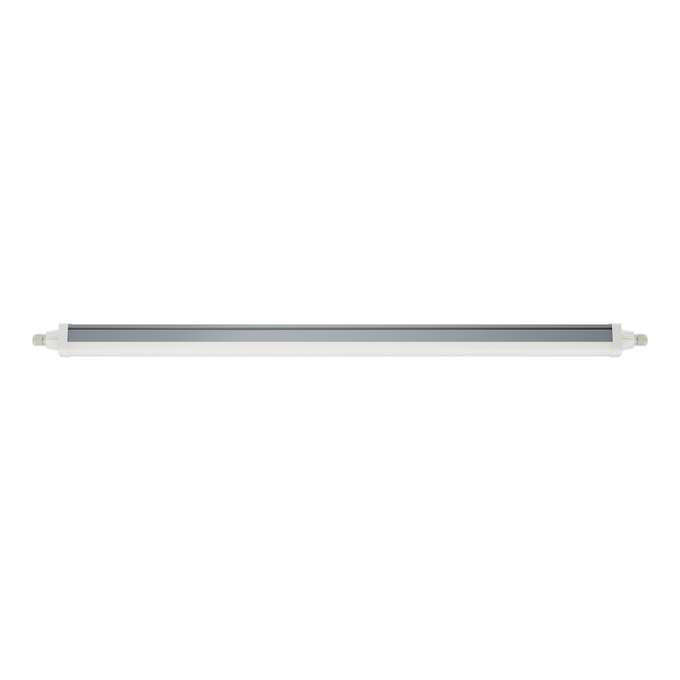

DP FLEX EL 1200 P 34W ML 865 IP66
4099854717833
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Uniform light distribution in normal operation
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Industrial and storage facilities
- Workshops, assembly lines
- Passages, underpasses
- Parking garages
- Underground parking
Product features
- High luminous efficacy: up to 165 lm/W
- Luminaire suitable for normal lighting and emergency lighting
- Suitable for emergency central battery installations acc. to EN 60598-2-22
- Self-contained luminaires
- Luminous flux in emergency operation mode: 500 lm
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Protection rating: IP66
- Impact resistance: IK08
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
- EVERLOOP luminaire: upgrades and replacements available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
20 W
155 lm/W
26 W
165 lm/W
31 W
165 lm/W
34 W
165 lm/W
Added function
EVERLO
Ambient temperature range
+5…+35 °C
Application environment
Indoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
5 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854717833
Height
73.00 mm
Housing color
Grey
Inrush current
20 A
Inrush current time Th50
187 µs
Length
1320.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
83000 h
Light color (designation)
Cool Daylight
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
165 lm/W / 155 lm/W
Luminous flux
5600 lm / 5100 lm / 4300 lm / 3100 lm
Luminous flux in emergency operation mode
500 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
26
Max. number of luminaires per miniature circuit breaker C10
28
Max. number of luminaires per miniature circuit breaker C16
42
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Suspended/Surface
Nominal capacity of battery
6000 mAh
Nominal current
158mA / 145mA / 126mA / 97 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
34 W / 31 W / 26 W / 20 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
225/125 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
1585.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 7045
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
1000 V
Temperature range at storage
+5…+35 °C
Total harmonic distortion
≤ 25 %
Type of Battery
LiFePO4

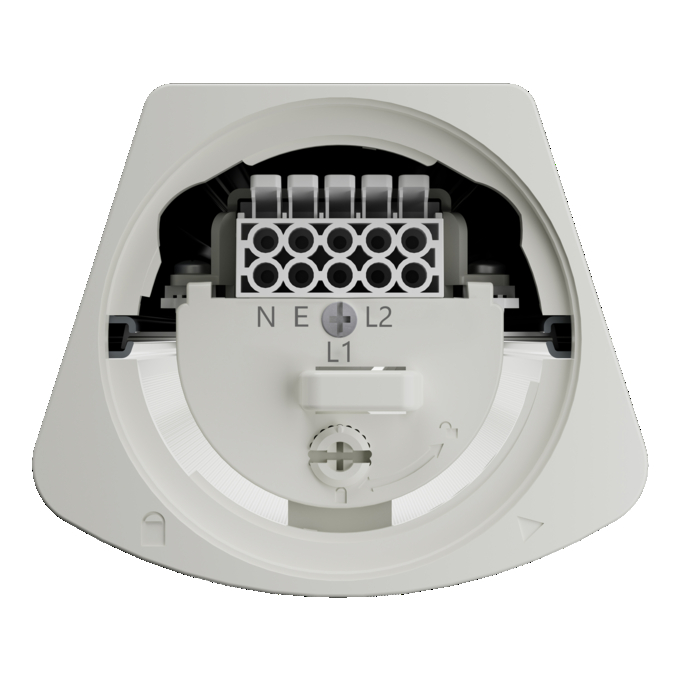

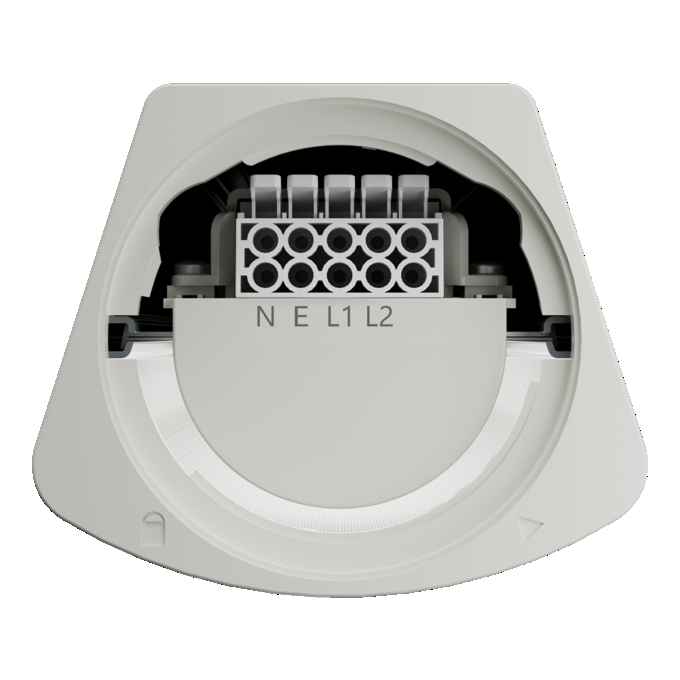

Type of connection
Screwless terminal, 5-Pole
Type of emergency light operation
Maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP66
UGR
≤ 25.4
Wattage in emergency operation mode
3.2 W
Width
88.00 mm
With light source
Yes
