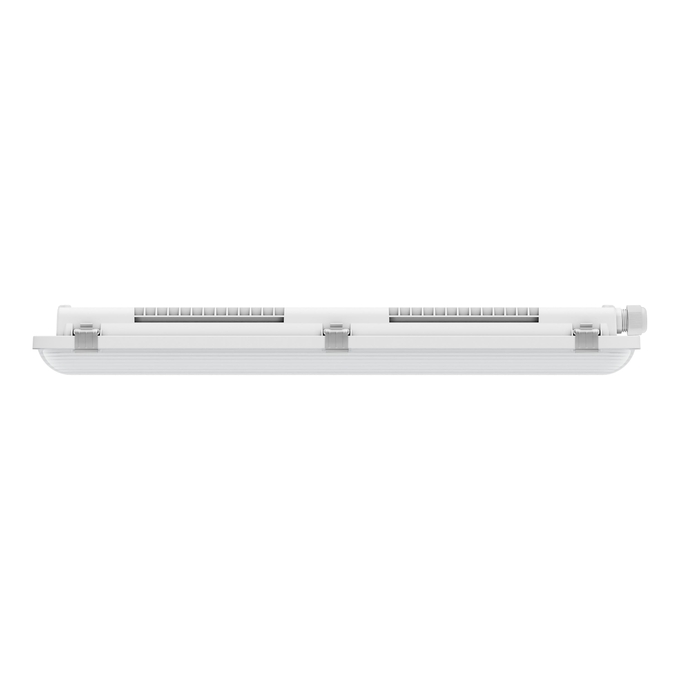

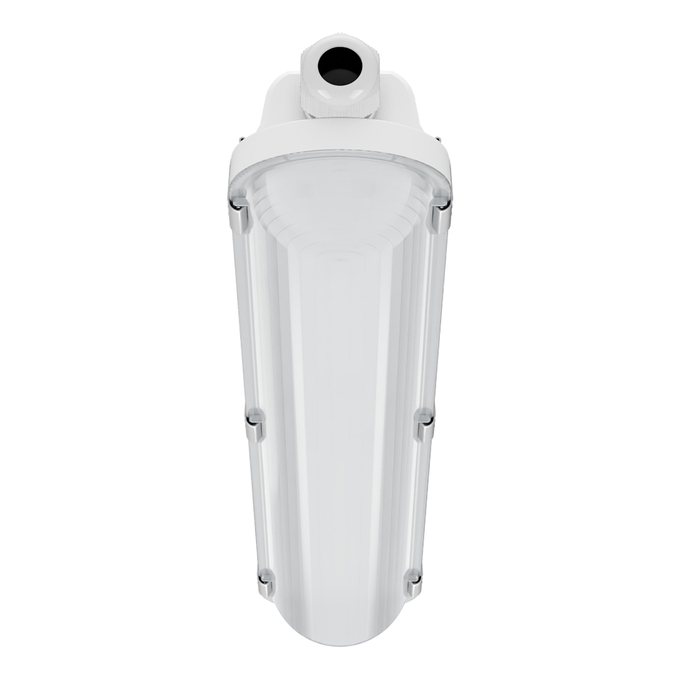

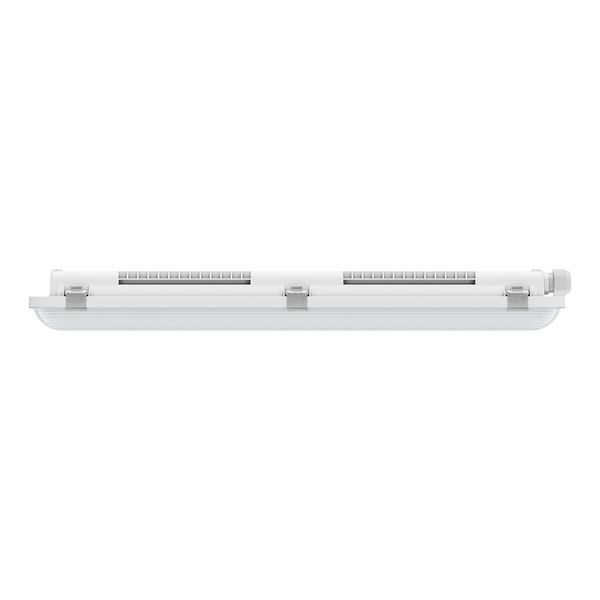

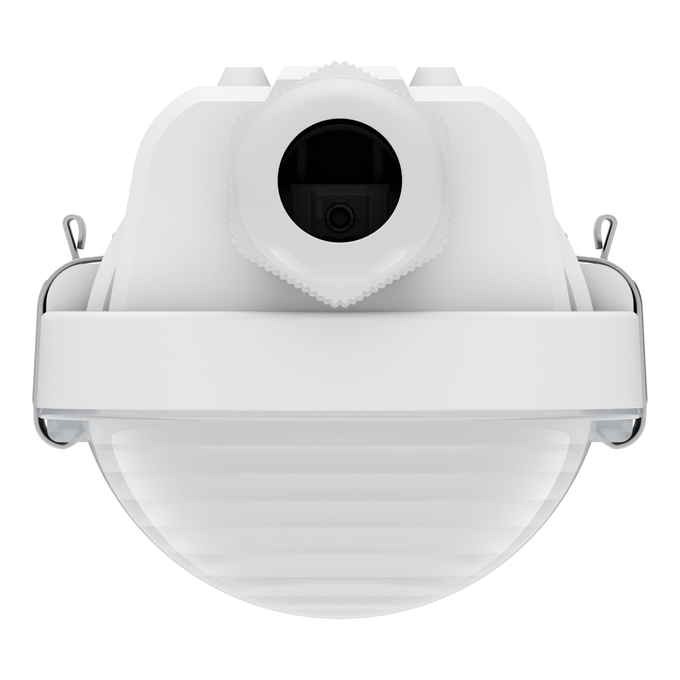

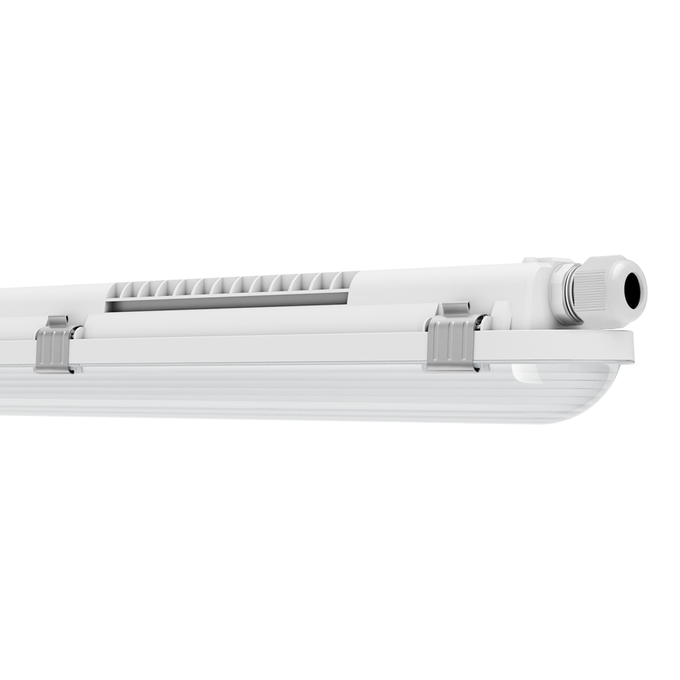

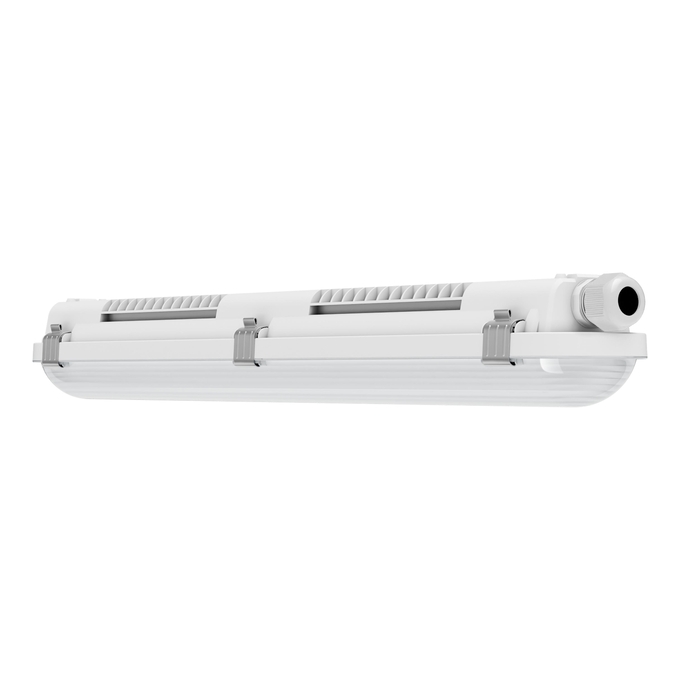

DP FIT 600 V 15W ML 8405065 IP65
4099854725647
Product benefits
- Uniform light distribution
- Highly versatile due to selectable lumen levels and light colors (Multi Select)
- Energy savings up to 69 % (compared to luminaires that use fluorescent lamps)
- Easy installation, no tools required for connection
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
- High luminous efficacy: up to 160 lm/W
- Multi Lumen function: lumen steps selectable
- Multi Color function: 4000 K, 5000 K and 6500 K
- Type of protection: IP65
- Beam angle: 115°
- Through-wiring possible
- Polycarbonate housing
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit, cable gland)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
15 W
150 lm/W
9 W
150 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
115 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
4000 K / 5000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 5 %
EPD
LEDV-00080-V01.01-EN
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854725647
Height
68.00 mm
Housing color
Grey
Inrush current
9.5 A
Inrush current time Th50
165 µs
Length
600.00 mm
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
75000 h 1)
Lifespan L90/B10 at 25 °C
61000 h
Light color (designation)
Cool Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
160 lm/W / 150 lm/W
Luminous flux
2400 lm / 2250 lm / 1440 lm / 1350 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
53
Max. number of luminaires per miniature circuit breaker C10
42
Max. number of luminaires per miniature circuit breaker C16
68
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting height
0 m
Mounting location
Ceili
Mounting type
Surface
Nominal current
70.000 mA
Nominal voltage
220…240 V
Nominal wattage
15 W / 9 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
75/45 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product remark
Available from March 20
Product weight
610.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9018
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Surge capability (L-N)
1 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal, 3-Pole
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP65
Width
78.00 mm
With light source
Yes
