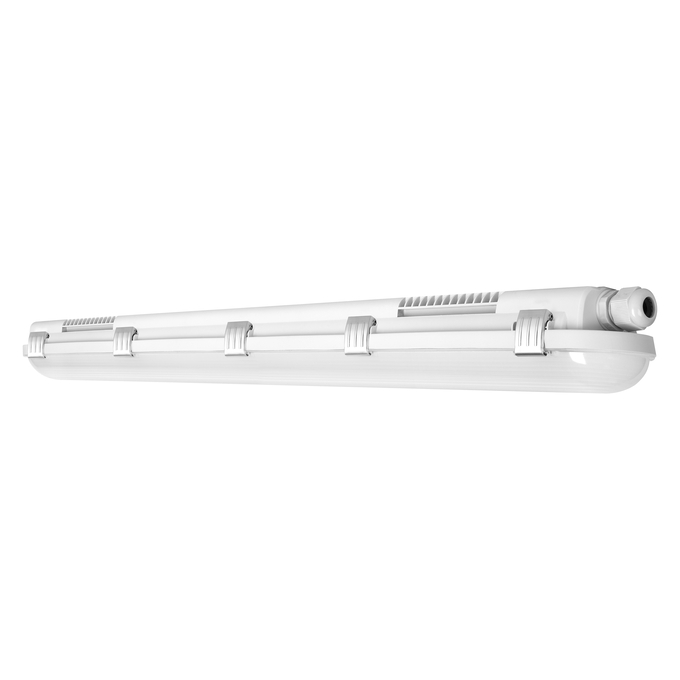

DP DALI 1200 32W 830 IP65 GY
4058075541689
Product benefits
- High compatibility thanks to DALI-2 certification
- Premium driver with up to 100,000 h lifetime
- Driver suitable for Emergency escape lighting systems acc. to EN 50172
- Driver configuration and dimming possible via mains
- Low flicker ≤ 3 %
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- DALI installations
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 139 lm/W
- Type of protection: IP65
- Beam angle: 110°

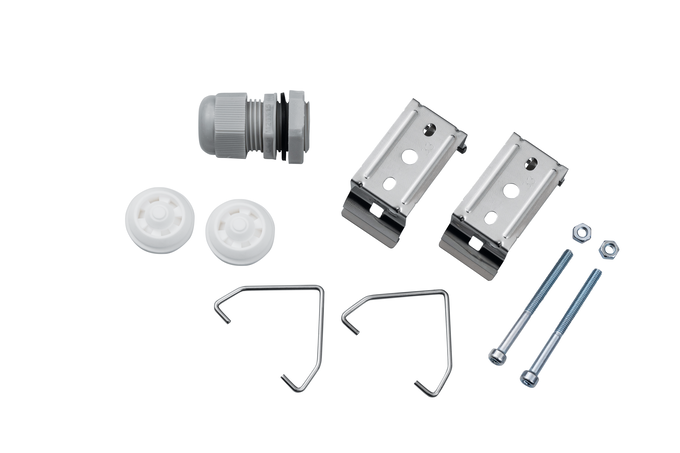

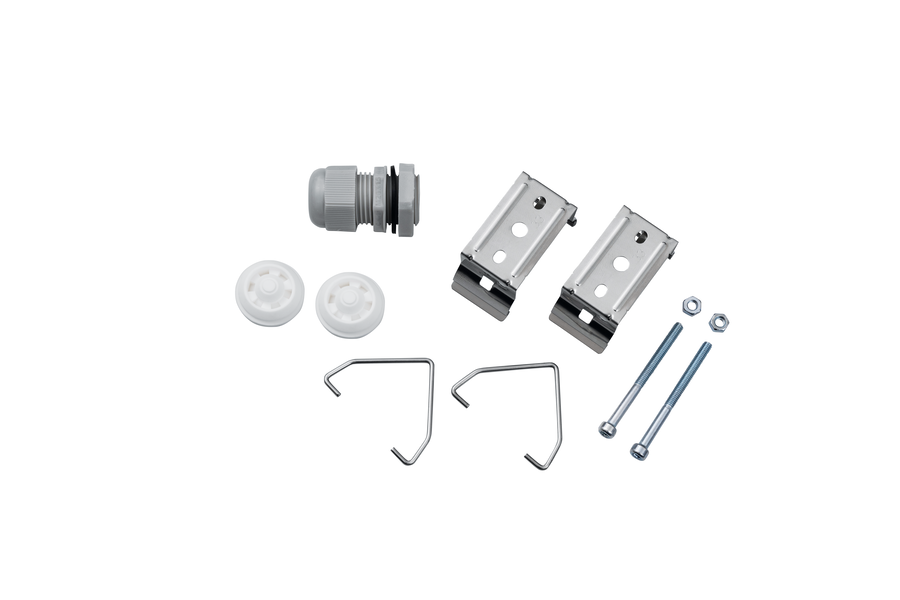

Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-25…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
ECG - Output voltage
79 V
Flickering metric (Pst LM)
≤ 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075541689
Height
68.00 mm
Housing color
Gray
Inrush current
29 A
Inrush current time Th50
180 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1200.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
44000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
125 lm/W
Luminous flux
4000 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C10
21
Max. number of luminaires per miniature circuit breaker C16
36
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Suspended/Surface
Nominal current
155 mA
Nominal voltage
220…240 V
Nominal wattage
32.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
370 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product remark
When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Product weight
1430.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9018
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
4 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-25…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 5-Pole
Type of dimming
DALI
Type of protection
IP65
Width
82.00 mm
With light source
Yes
