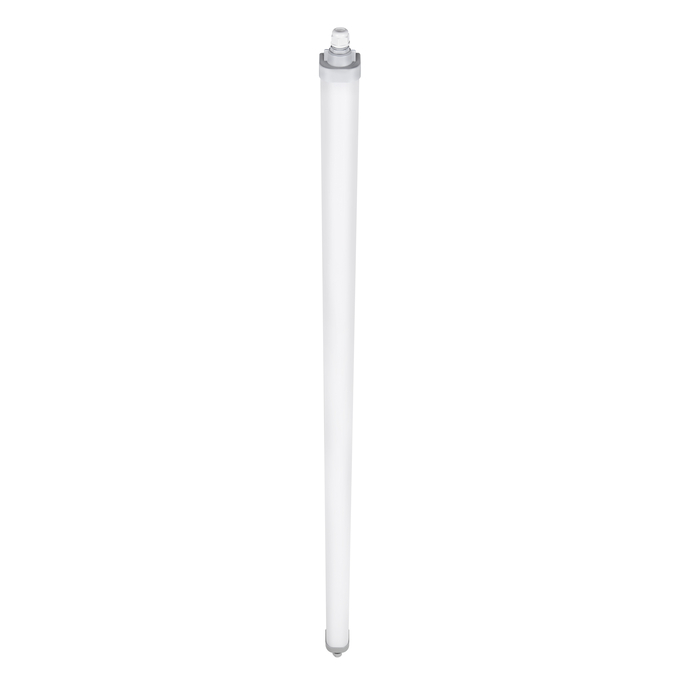

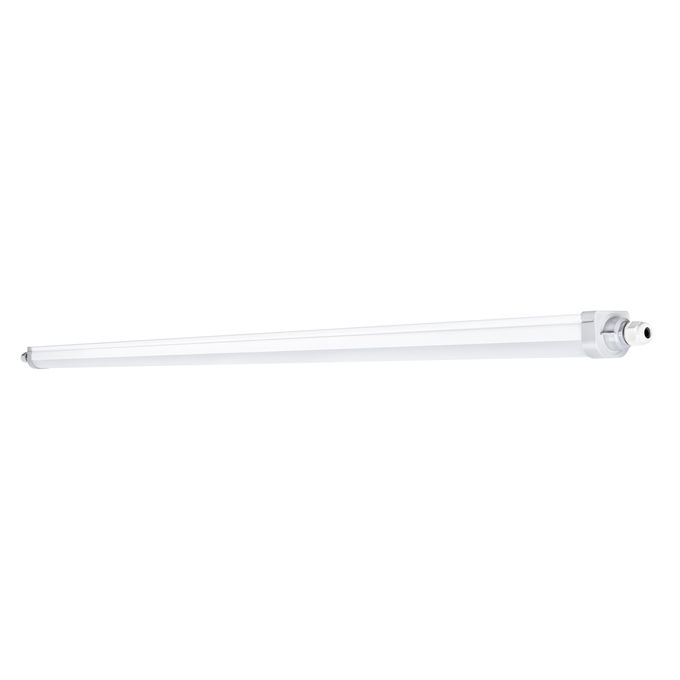

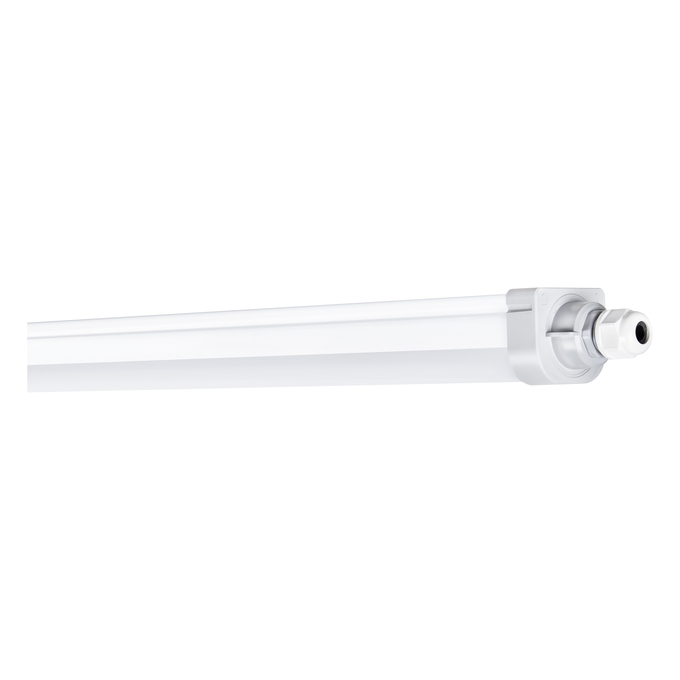

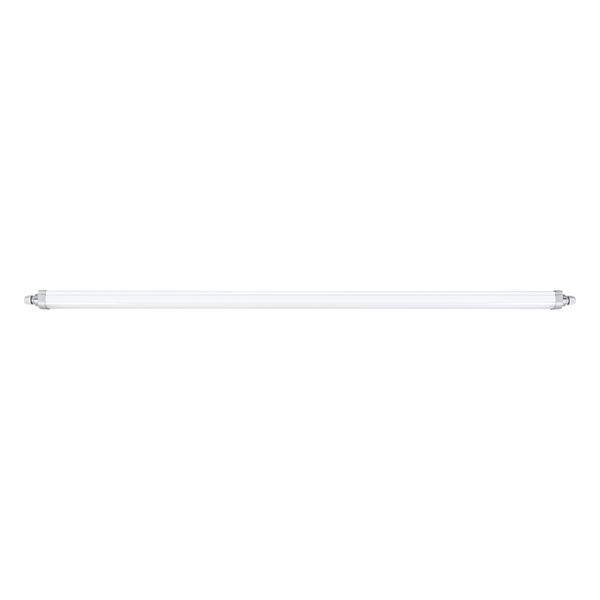

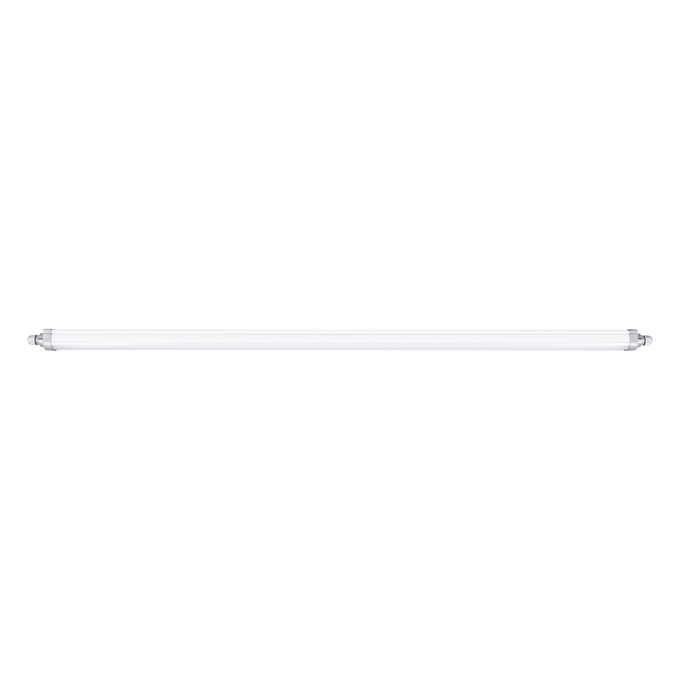

DP COMP TH 1500 V 44W ML 8405065 IP66
4099854794650
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Easy installation as mounting brackets can be positioned freely on the luminaire

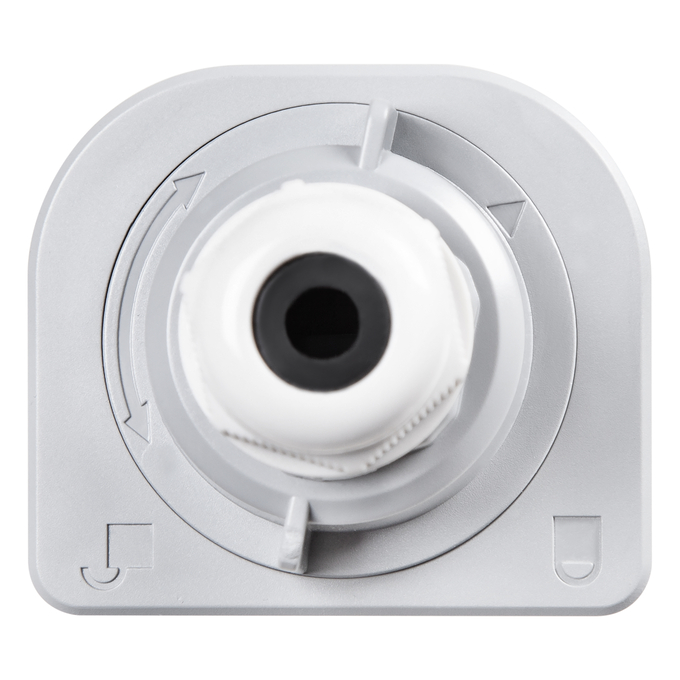

- Easy access to electrical terminal thanks to end caps with twist and lock mechanism

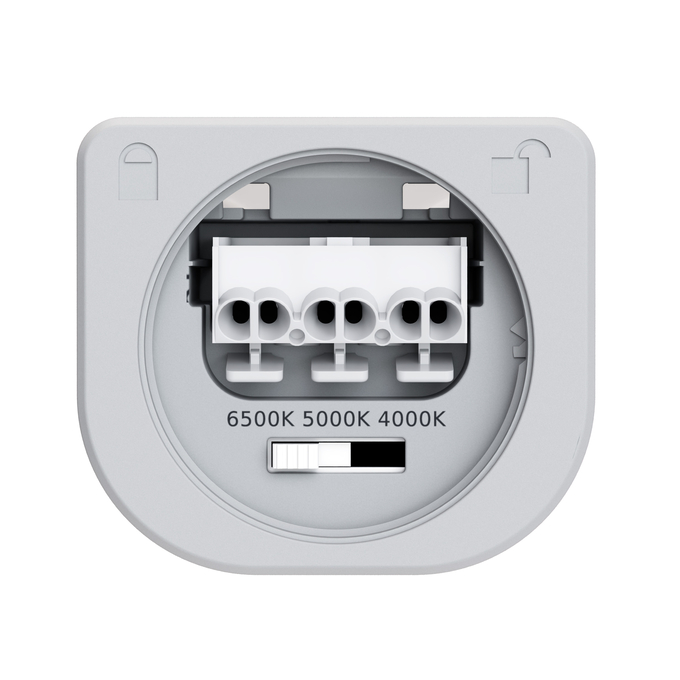

- Tool-free electrical connection due to push button connector
- Uniform light distribution
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- Multi Lumen function: lumen steps selectable
- Multi Color function: 4000 K, 5000 K and 6500 K
- High luminous efficacy: up to 140 lm/W
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- Through-wiring 3x1.5mm² already installed
- Polycarbonate housing IP66 and IK08
- Beam angle: 120°
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
30 W
140 lm/W
44 W
140 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K / 5000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 20 %
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854794650
Height
53.00 mm
Housing color
White
Inrush current
5.6 A
Inrush current time Th50
1600 µs
Length
1585.00 mm
Lifespan L70/B50 at 25 °C
75000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Cool Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
140 lm/W
Luminous flux
6160 lm / 4200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
15
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
25
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface/Suspended
Nominal current
197mA / 140 mA
Nominal voltage
220…240 V
Nominal wattage
44 W / 30 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
97 mA / 67 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
970.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9016
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
Surge capability (L-N)
1 kV
Temperature range at storage
-40…+80 °C
Total harmonic distortion
≤ 20 %
Type of connection
Screwless terminal, 3-Pole
Type of emergency operation test
None
Type of protection
IP66
Width
60.00 mm
With light source
Yes
