DP COMP 600 V 16W 840 IP66
4058075740853
Product benefits
- Highly versatile due to available Multi Lumen versions that allow 2 different lumen packages
- Easy installation as mounting brackets can be positioned freely on the luminaire

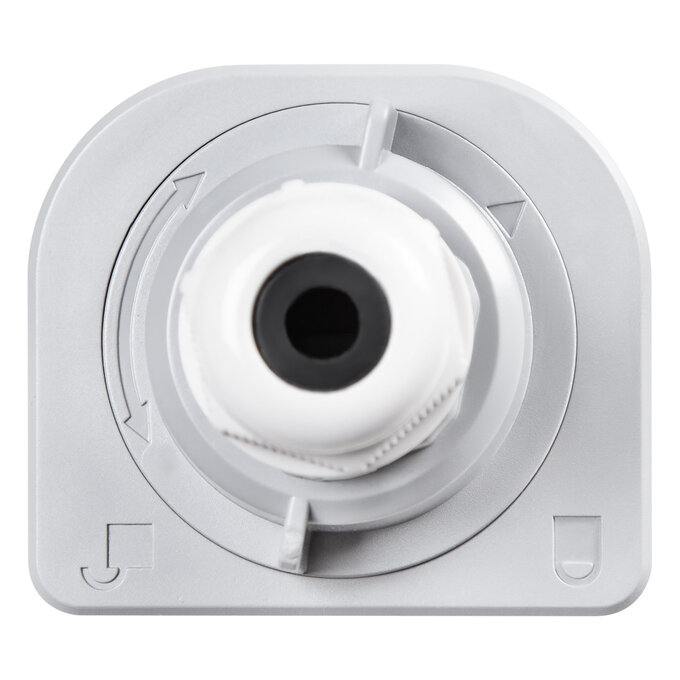

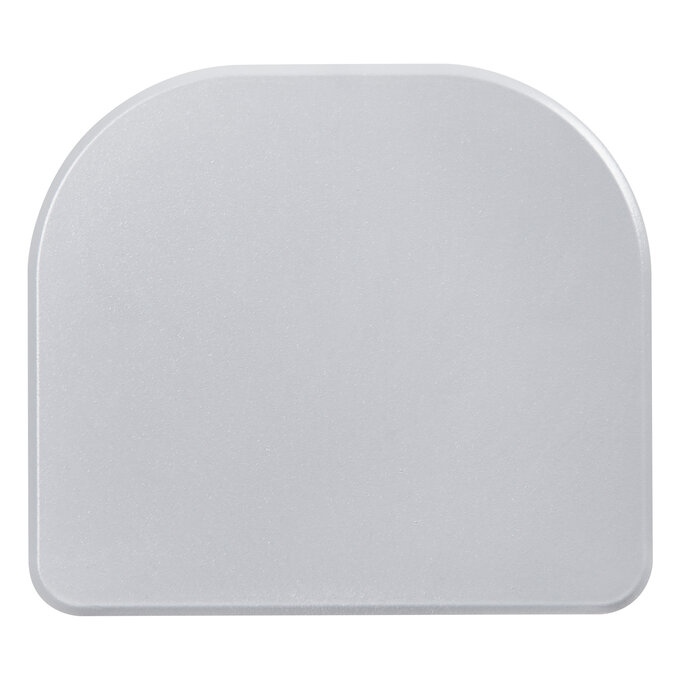

- Easy access to electrical terminal thanks to end caps with twist and lock mechanism
- Tool-free electrical connection due to push button connector
- Uniform light distribution
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- Multi Lumen option available to select between 2 lumen packages
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
- High luminous efficacy: up to 123 lm/W
- Polycarbonate housing IP66 and IK08
- Beam angle: 120°
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 20 %
EPD
LEDV-00004-V01.01-EN
Flickering metric (Pst LM)
≤ 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075740853
Height
53.00 mm
Housing color
White
Inrush current
22.4 A
Inrush current time Th50
3.92 µs
Length
643.00 mm
Lifespan L70/B50 at 25 °C
75000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
32000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
120 lm/W
Luminous flux
1920 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
109
Max. number of luminaires per miniature circuit breaker C10
90
Max. number of luminaires per miniature circuit breaker C16
145
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface/Suspended
Nominal current
69.000 mA
Nominal voltage
220…240 V
Nominal wattage
16.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
170 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
410.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-40…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 3-Pole
Type of protection
IP66
Width
60.00 mm
With light source
Yes
