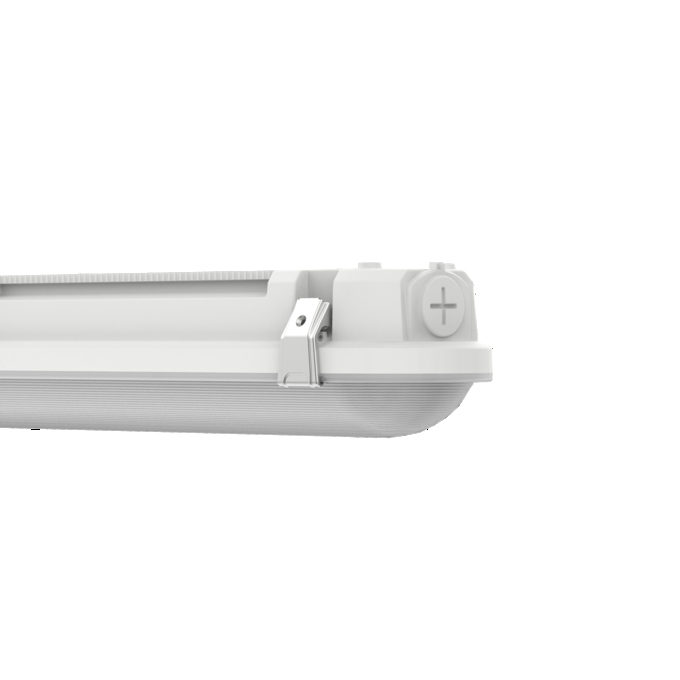

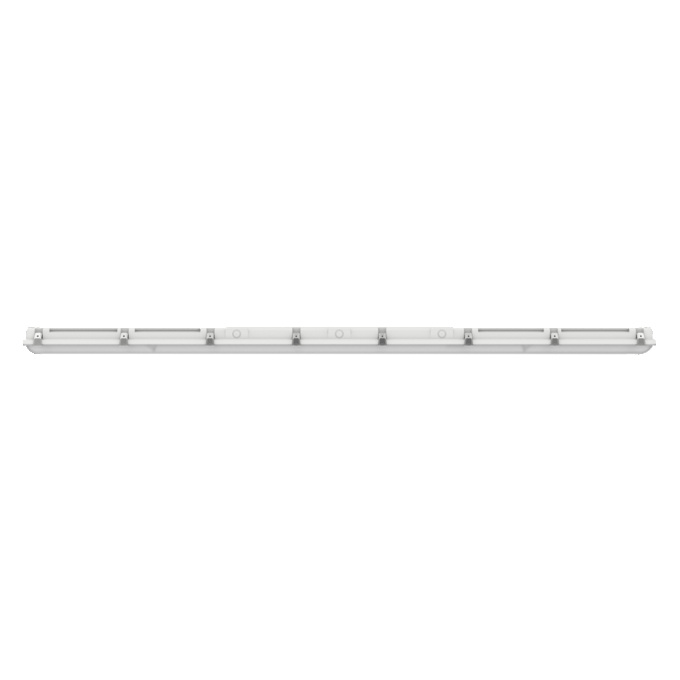

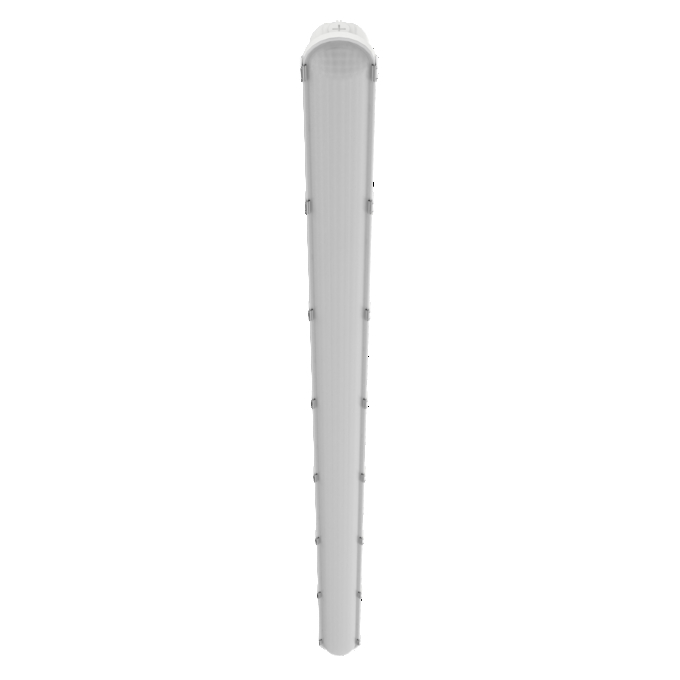

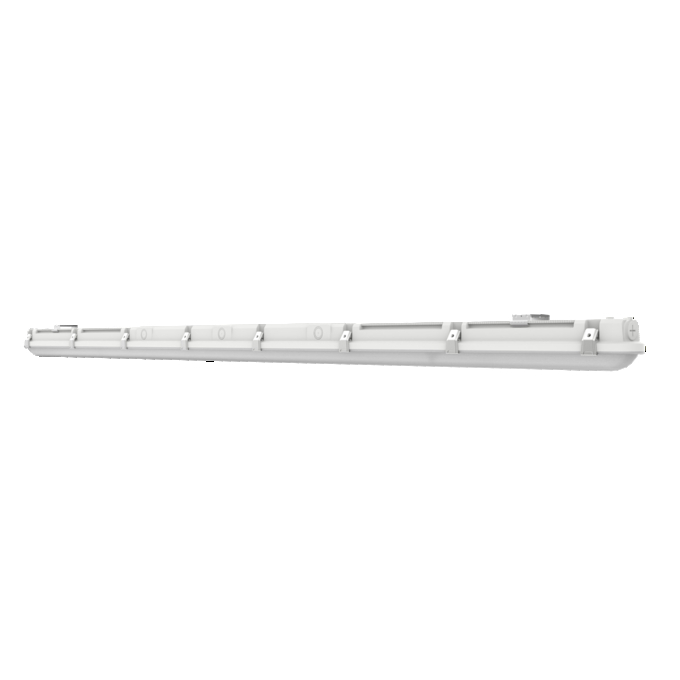

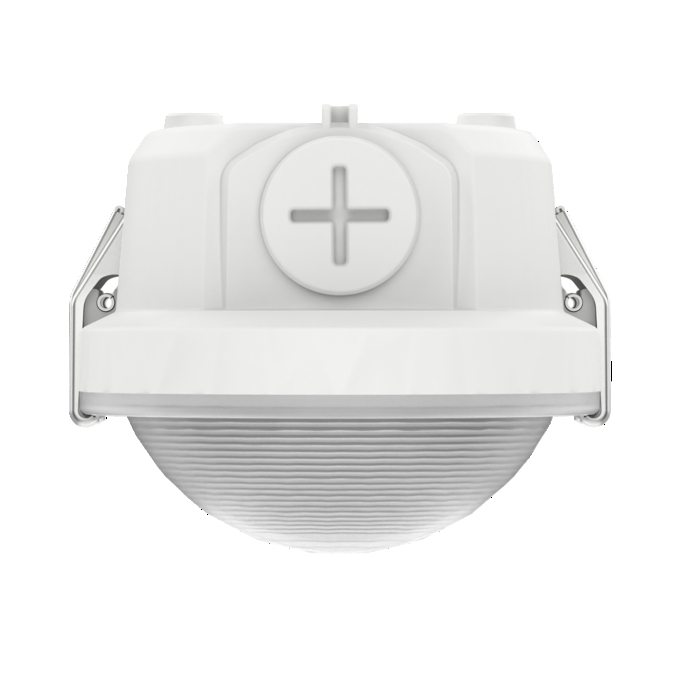

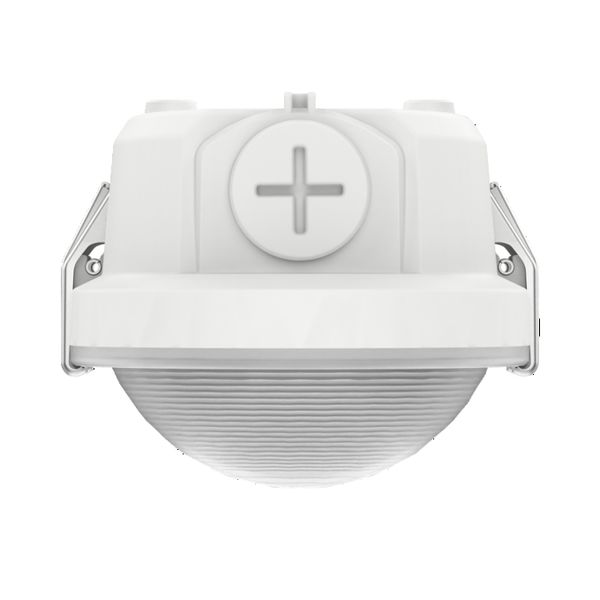

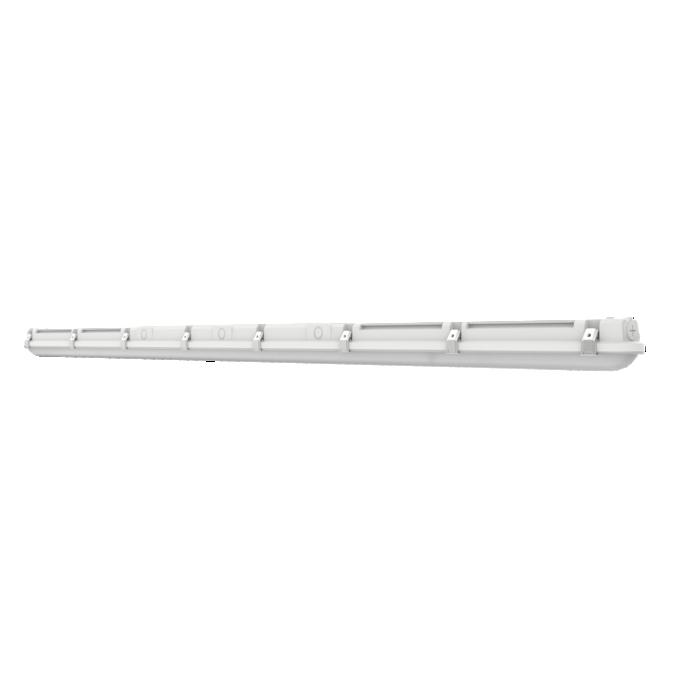

DP CBO 1800 V 60W ML 84065 IP66 GY
4099854521416
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 153 lm/W
- Type of protection: IP66
- Impact resistance: IK10
- Luminous flux: up to 9,000 lm
- Push wire terminal for tool-free connection
- Lifetime (L70/B50) up to 50,000 h (at 25 °C)
- Ambient temperature in operation: -20…+40 °C
- Through wiring possible
Equipment / Accessories
- Plug & Upgrade high frequency sensor and emergency kit separately available
- Mounting screws and dowels included
Safety advice
- Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
References / Links
- For Guarantee see
30 W
153 lm/W
40 W
152 lm/W
50 W
151 lm/W
60 W
150 lm/W
Added function
MULTI SELECT
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
EPD
LEDV-00064-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854521416
Height
78.00 mm
Housing color
Gray
Inrush current
20 A
Inrush current time Th50
118 µs
Length
1870.00 mm
Lifespan L70/B50 at 25 °C
60000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Cool Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
150 lm/W / 151 lm/W / 152 lm/W / 153 lm/W
Luminous flux
9000 lm / 7550 lm / 6080 lm / 4590 lm
Luminous flux in emergency operation mode
300 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
33
Max. number of luminaires per miniature circuit breaker C10
25
Max. number of luminaires per miniature circuit breaker C16
40
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Suspended/Surface
Nominal current
260mA / 222mA / 178mA / 141 mA
Nominal voltage
220…240 V
Nominal wattage
60 W / 50 W / 40 W / 30.0 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
190mA / 250mA / 310mA / 360 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
2120.00 g
Protection class
I
Protection class IK (shock resistance)
IK10 1)
RAL Color (most similar)
RAL 830-1
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Push-in
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of protection
IP66
Wattage in emergency operation mode
2 W
Width
97.00 mm
With light source
Yes
