DP BATTEN CBO SENSOR LS PD 8 MW INT
4099854521461
Product benefits
- Plug & Upgrade concept to extend the On/Off luminaire to a sensor luminaire

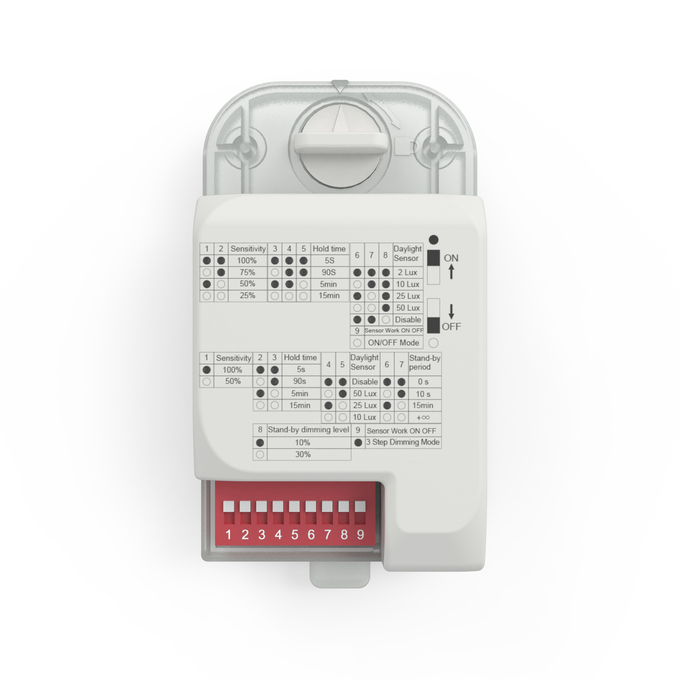

- Multiple settings for sensor range, daylight detection, hold time and DIM-level /-period by DIP switches

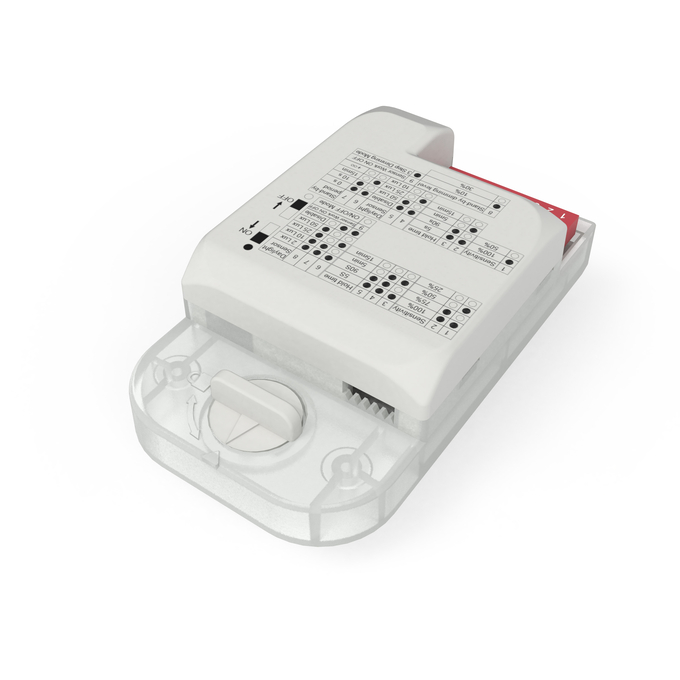

- Simple tool-free mounting in the luminaire
Areas of application
- Plug & Upgrade high frequency sensor for converting DP / BATTEN / LN SF COMBO luminaires into sensor luminaires
Product features
- Type of protection: IP20
- Impact resistance: IK06
- Ambient temperature in operation: -20…+40 °C
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
-20…+50 °C
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Detection range of motion sensor
4 m
Detection threshold of daylight sensor
10…50 lx
Dimmable
No
ECG lifetime
60000 h
EPD
LEDV-00063-V01.01-EN
GTIN
4099854521461
Height
35.00 mm
Length
82.00 mm
Lifespan L70/B50 at 25 °C
60000 h 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
< 2 mA
Nominal voltage
220…240 V
Nominal wattage
0.36 W
Number of switching cycles
25000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
40.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Sensor controlled switching time
5 s…15 min
Sensor detection angle
120 °
Sensor technology
Microwave
Temperature range at storage
-20…+80 °C
Type of connection
Screwless terminal
Type of protection
IP20
Type of sensor
Motion
Width
43.50 mm
