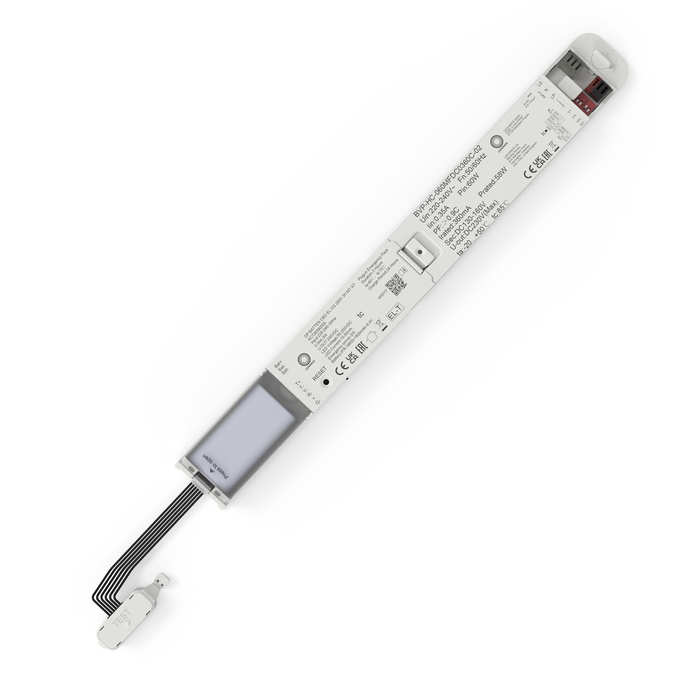

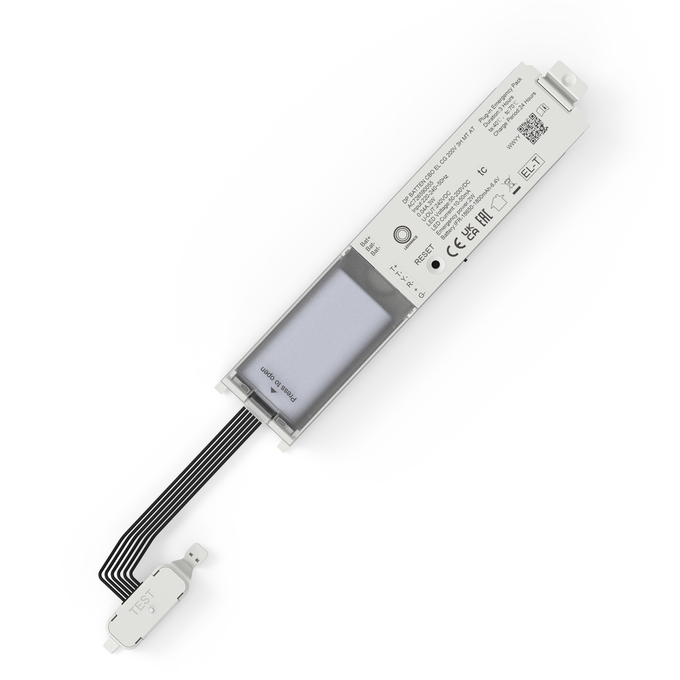

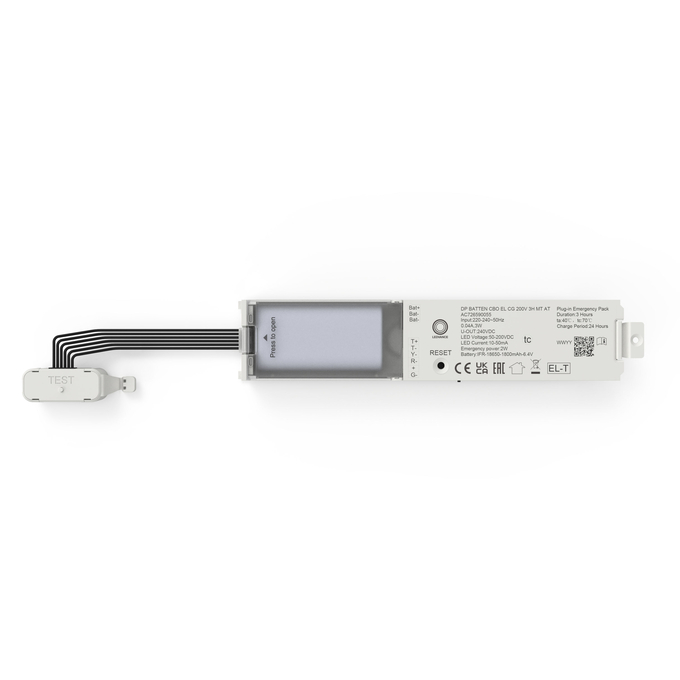

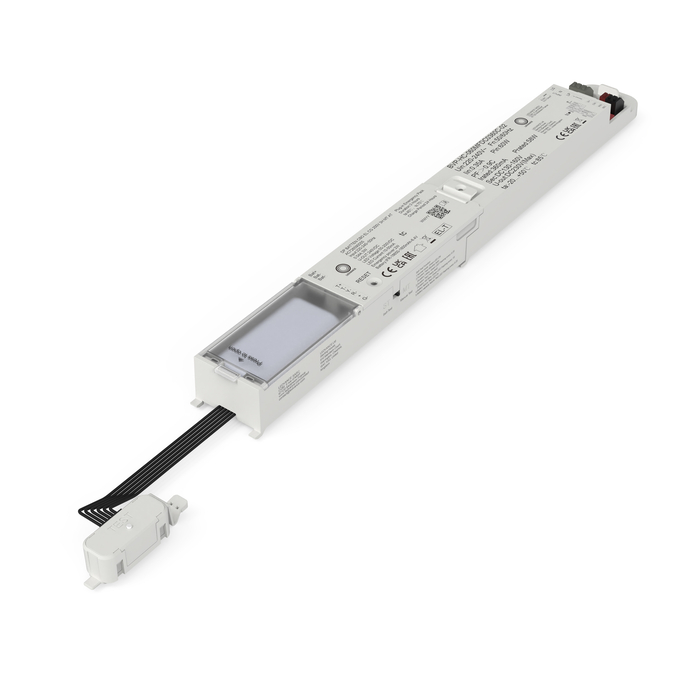

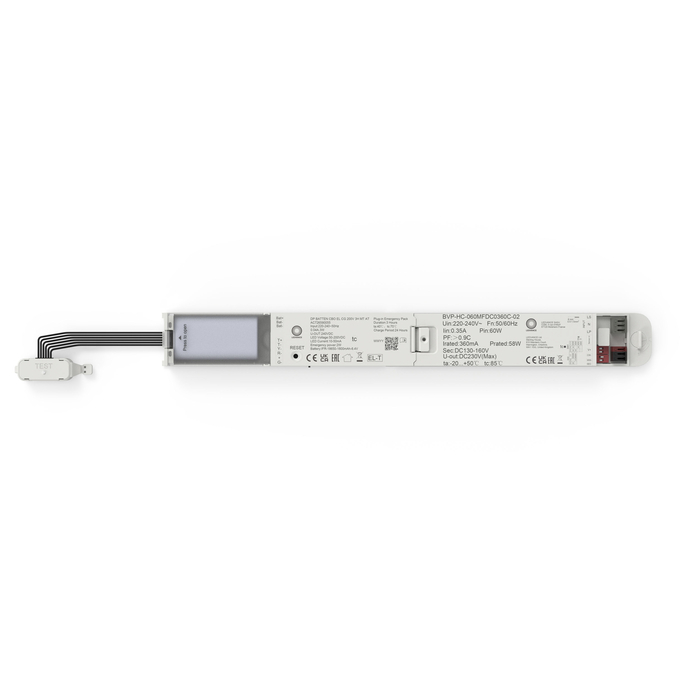

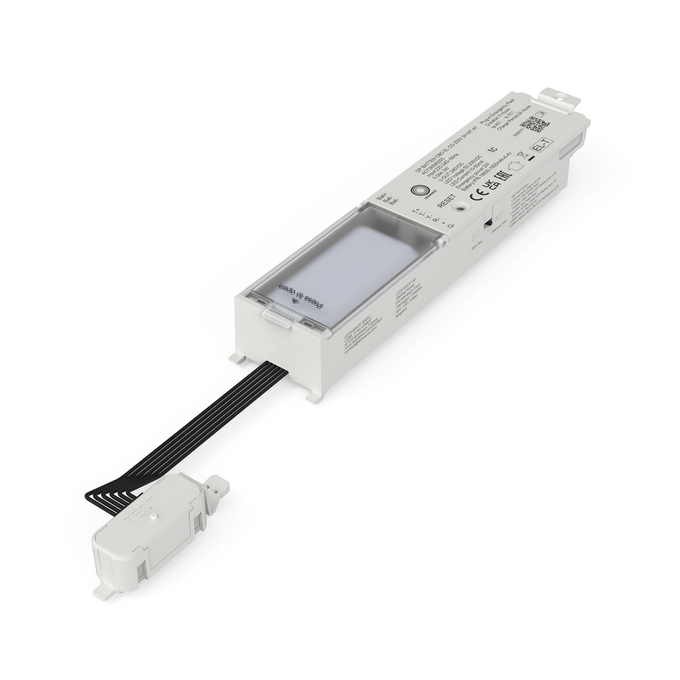

DP BATTEN CBO EL CG 200V 3H MT AT
4099854521430
Product benefits
- Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
- Easy maintenance thanks to manual or self-test function of the emergency lighting
- Easy battery replacement possible
Areas of application
- Plug & Upgrade emergency kit for converting DP / BATTEN / LN SF COMBO luminaires into emergency luminaires
Product features
- Type of protection: IP20
- Impact resistance: IK06
- Operation mode: maintained (M) or non-maintained (NM)
- Battery technology: LiFePO4
- Ambient temperature in operation: 0…+40 °C
Equipment / Accessories
- Battery included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
Ambient temperature range
0…+40 °C
Battery life in emergency operation mode
>3h
Battery size [GMS]
Others
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG lifetime
40000 h
GTIN
4099854521430
Height
31.00 mm
Inrush current
6.8 A
Length
217.00 mm
Lifespan L70/B50 at 25 °C
40000 h 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
23 mA
Nominal voltage
220…240 V
Nominal wattage
3.00 W
Number of switching cycles
25000
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.3
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
219.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Temperature range at storage
-20…+60 °C
Type of Battery
LiFePO4
Type of connection
Screwless terminal
Type of emergency operation test
Manual
Type of protection
IP20
Wattage in maintained operation mode
3 W
Width
44.00 mm
