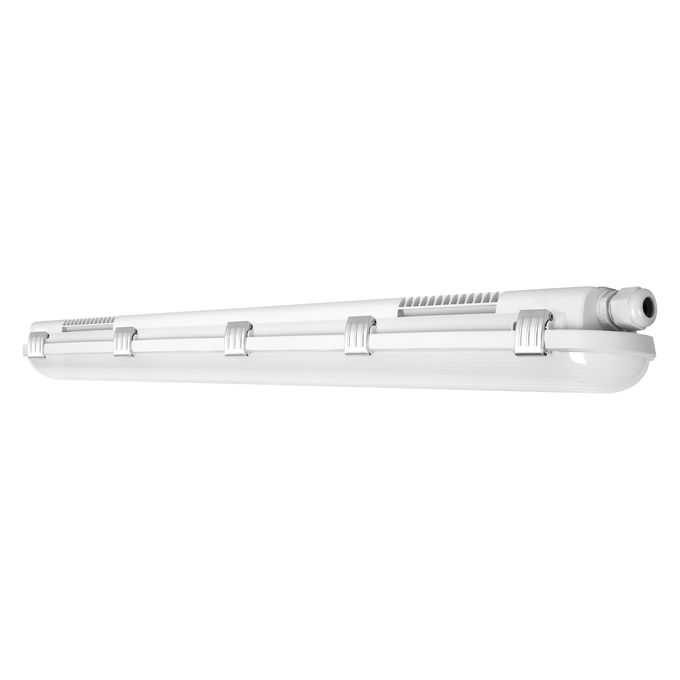

DP 1200 18W 865 IP65 GY
4058075541061
Product benefits
- Low flicker ≤ 10 %
- Uniform light distribution
- Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
- Easy installation, no tools required for connection
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 139 lm/W
- Beam angle: 110°
Equipment / Accessories
- Stainless steel clamps with safety screws included

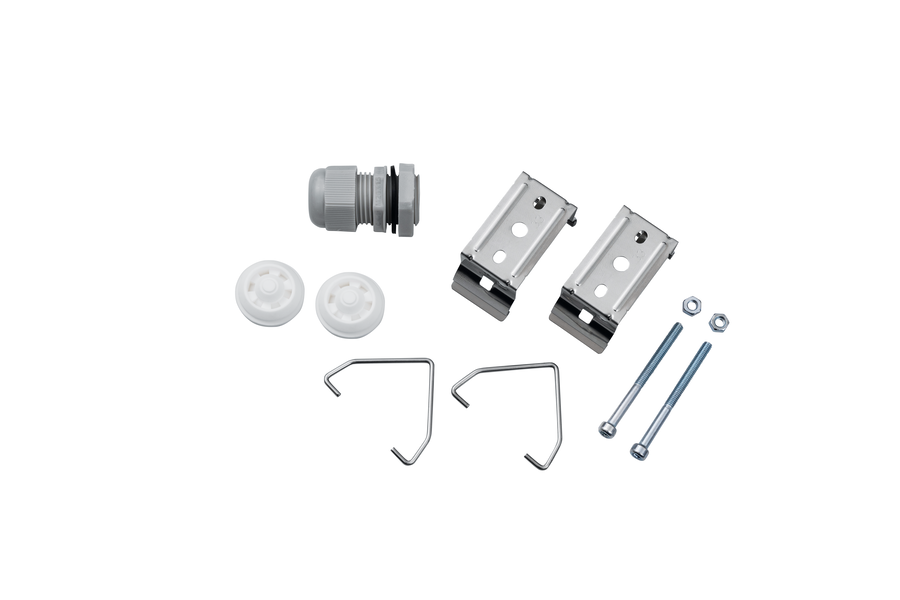

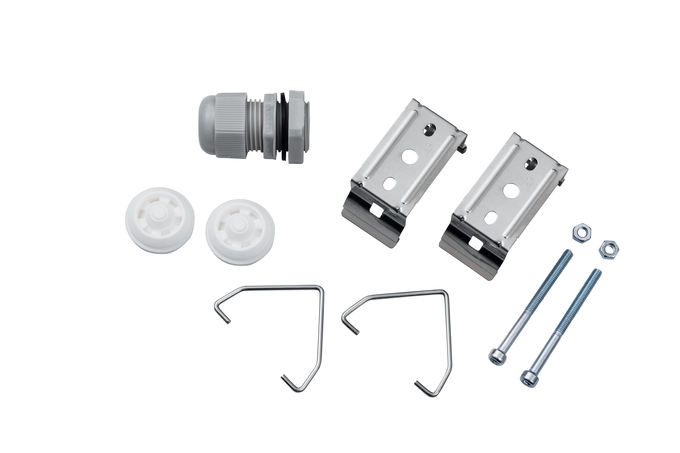

- Mounting accessories included (suspension kit, theft protection kit)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Ambient temperature range
-25…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Dimmable
No
EPD
LEDV-00002-V01.01-EN
Flickering metric (Pst LM)
≤ 1
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4058075541061
Height
68.00 mm
Housing color
Gray
Inrush current
10.4 A
Inrush current time Th50
154 µs
Length
1200.00 mm
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
33000 h
Light color (designation)
Cool Daylight
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
Yes
Luminous efficacy
133 lm/W
Luminous flux
2400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
58
Max. number of luminaires per miniature circuit breaker C10
46
Max. number of luminaires per miniature circuit breaker C16
73
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Suspended/Surface
Nominal current
90.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
180 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product remark
When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Product weight
1343.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9018
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
4 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-25…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Terminal, 3-pin
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP65
Width
82.00 mm
With light source
Yes
