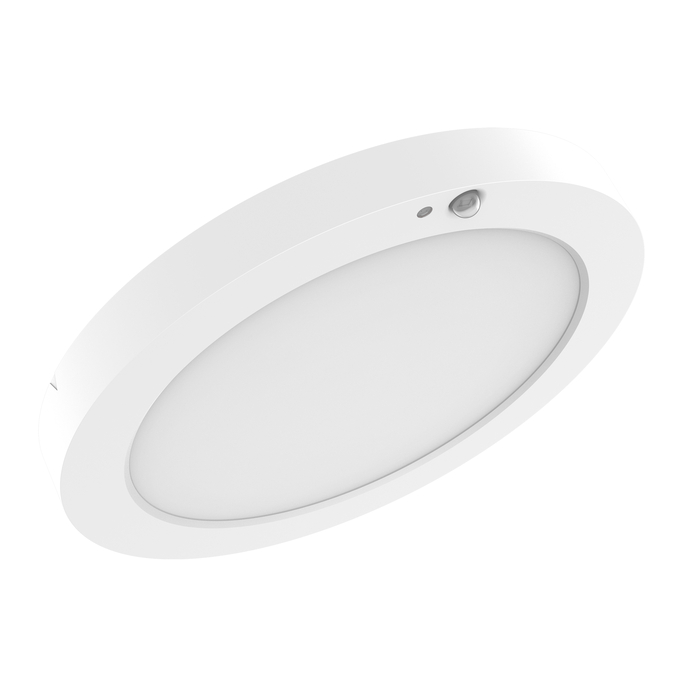

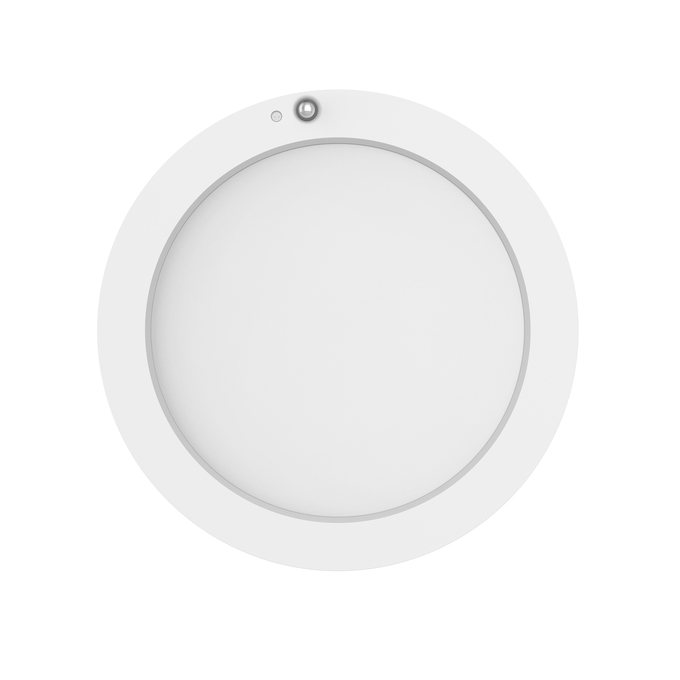

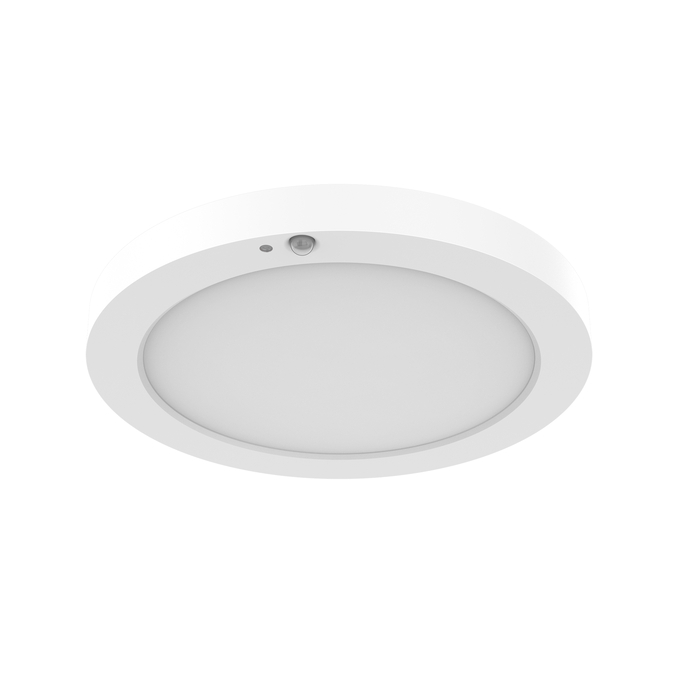

DL UNIV SN D200 V 18W ML 83040 WT
4099854541414
Product benefits
- The solution for convenient refurbishment: universal fitting to existing ceiling cut-outs
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Simple installation thanks to integrated driver
- Energy savings thanks to high system efficacy: up to 145 lm/W
- Very homogenous light distribution
- Further variants with on/off and DALI-2 driver available
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Reception areas, foyers, corridors, common areas
Product features
- Presence and daylight sensor control (PIR)
- Multi Color function: 3000 K and 4000 K
- Multi Lumen function: 2 lumen steps selectable

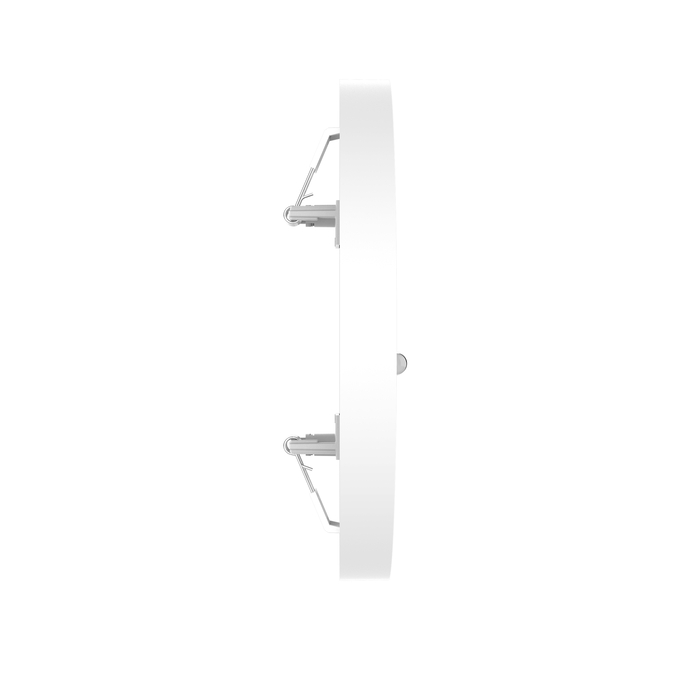

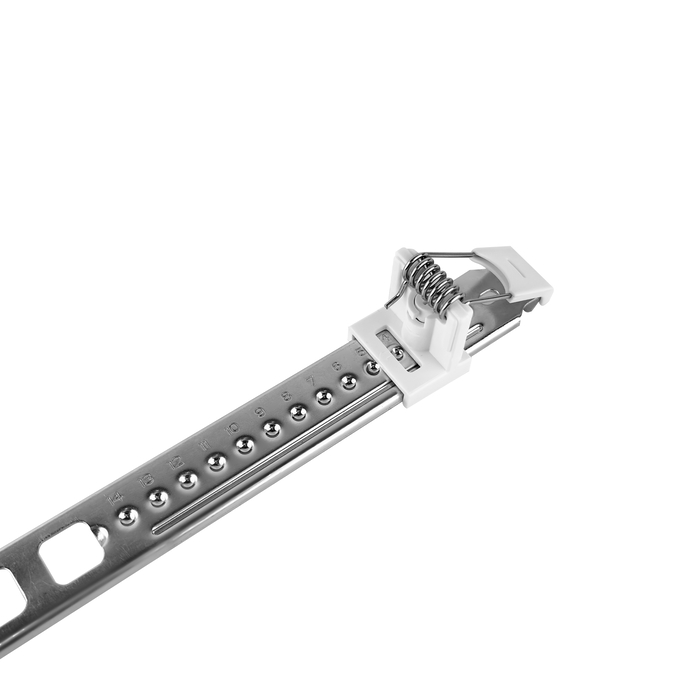

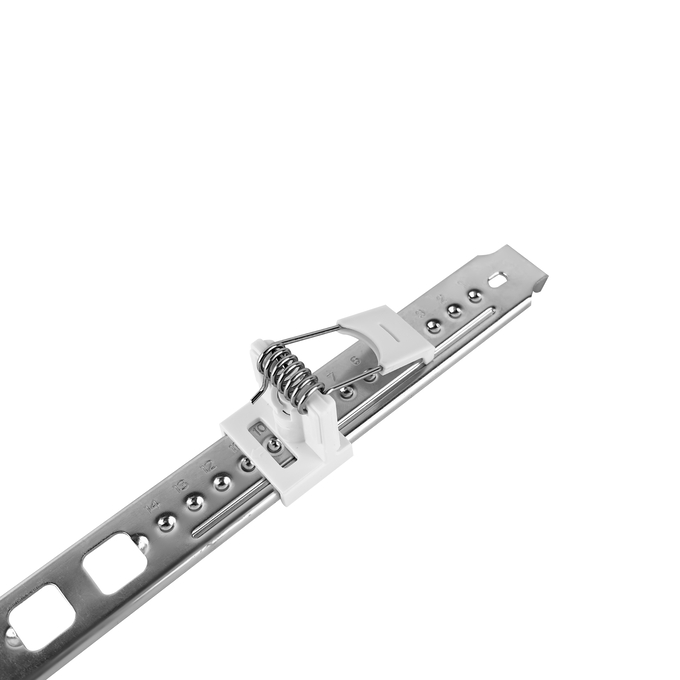

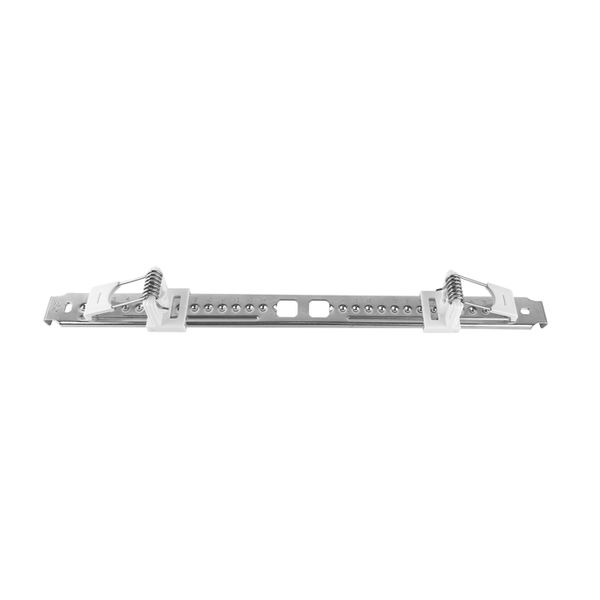

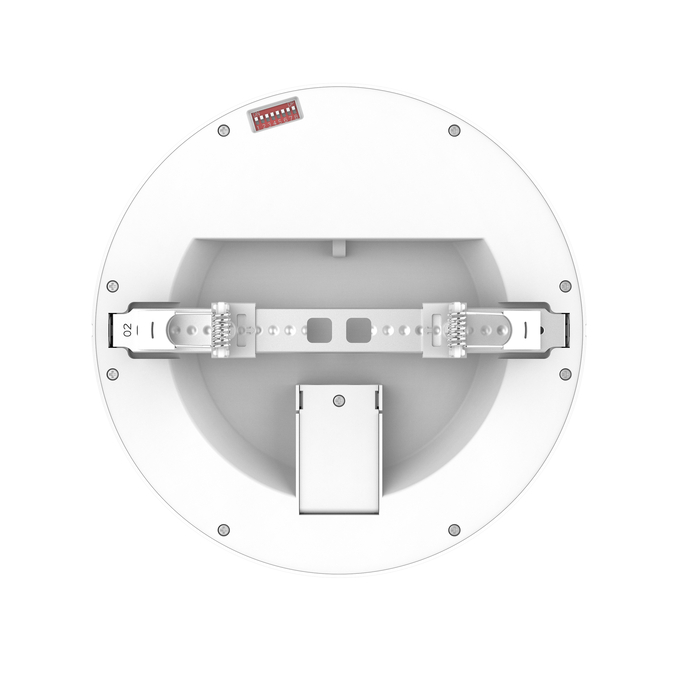

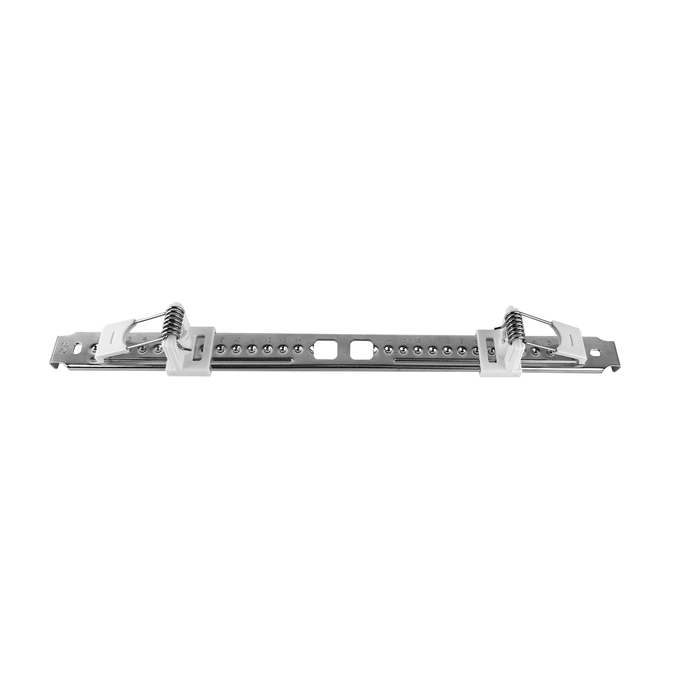

- Multi Cut-out: adjustable mounting springs for ceiling cut-outs from 65 mm up to 260 mm
- Available in two sizes: 200 mm and 300 mm diameter
- High color consistency: < 4 SDCM
- Type of protection: IP44 (room side)
- Suitable for through wiring
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Additional cover rings separately available in round shape and in different colors
- Safety rope for luminaire included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
18 W
125 lm/W
9 W
130 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection range of motion sensor
3…6 m
Detection threshold of daylight sensor
10…40 lx
Diameter
227.00 mm
Dimmable
No
ECG - Height
25 mm
ECG - Output ripple current
< 10 %
EPD
LEDV-00068-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854541414
Height
22.00 mm
Housing color
White
Inrush current
19.8 A
Inrush current time Th50
2.4 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Tripnehyl Phosphate (115-86-6)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
130 lm/W / 125 lm/W / 135 lm/W
Luminous flux
2300 lm / 2220 lm / 1180 lm / 1150 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
39
Max. number of luminaires per miniature circuit breaker C10
31
Max. number of luminaires per miniature circuit breaker C16
50
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
22,0 mm
Mounting diameter
65…185 mm
Mounting location
Ceiling
Mounting type
Surface/Recessed
Nominal current
83 mA
Nominal voltage
220…240 V
Nominal wattage
18 W / 9 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
180mA / 90 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
470.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
5 s…3 min
Sensor detection angle
120 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 4 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 40 %
Type of connection
Screwless terminal
Type of emergency operation test
None
Type of protection
IP44/IP20
Type of sensor
Moti
With light source
Yes
