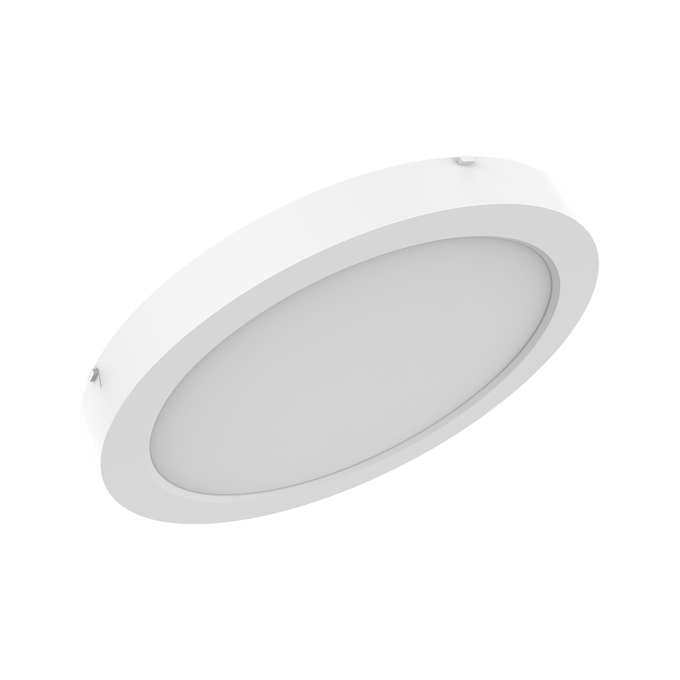

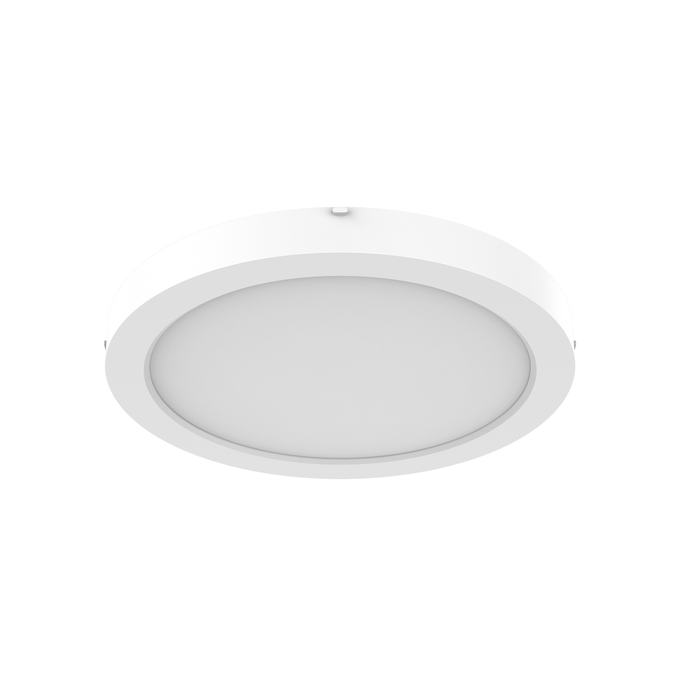

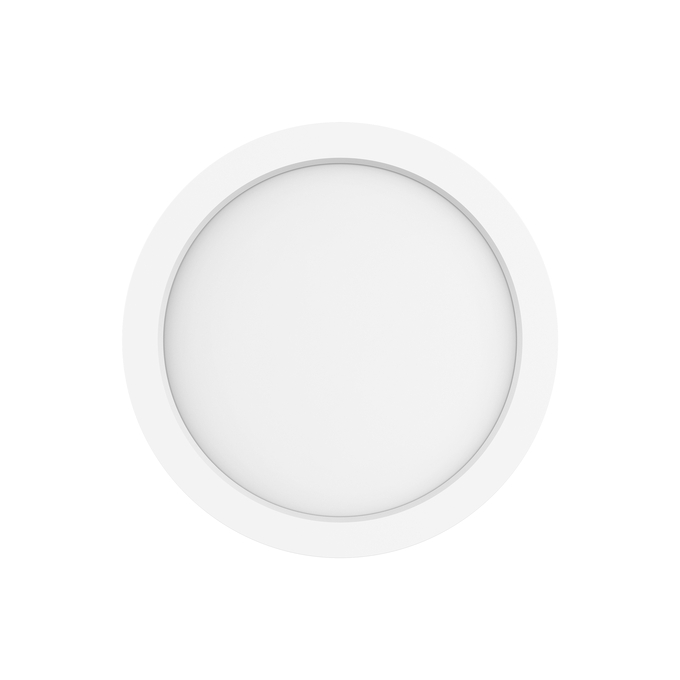

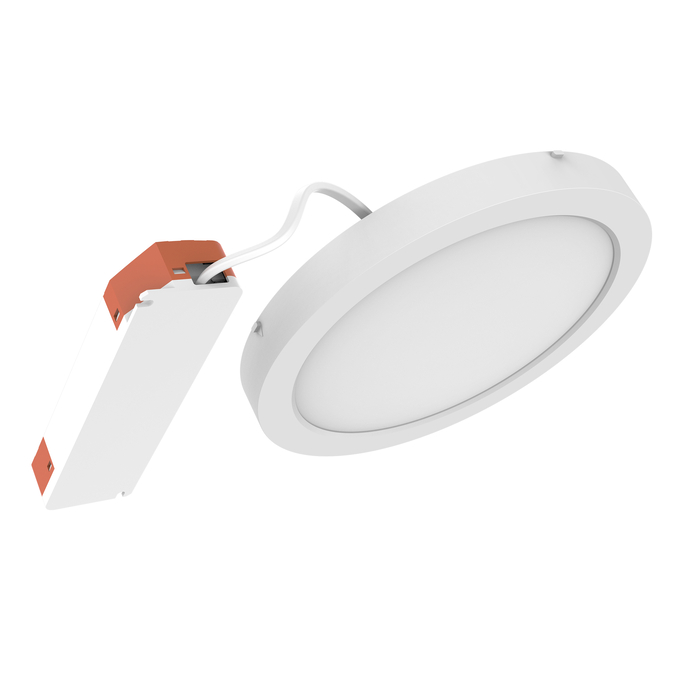

DL UNIV DA D300 V 22W ML 83040 WT
4099854541377
Product benefits
- The solution for convenient refurbishment: universal fitting to existing ceiling cut-outs
- Highly versatile due to selectable CCT and lumen steps (Multi Select)

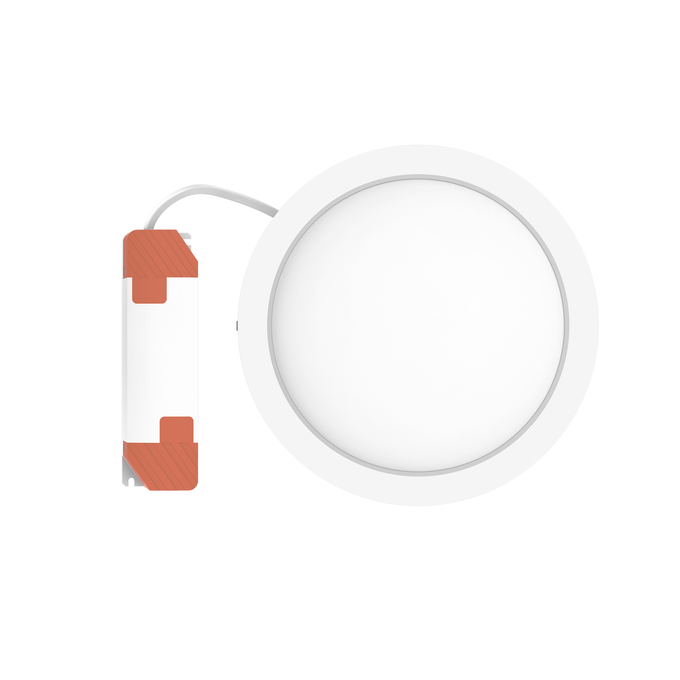

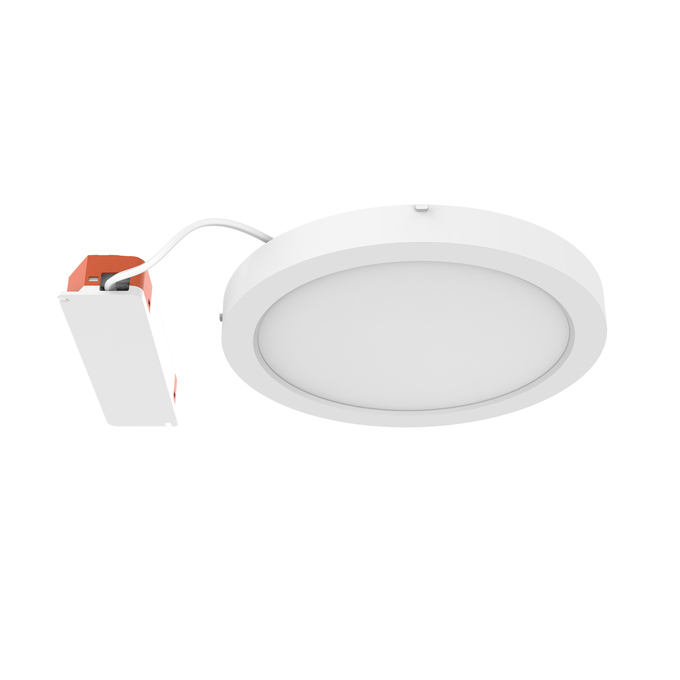

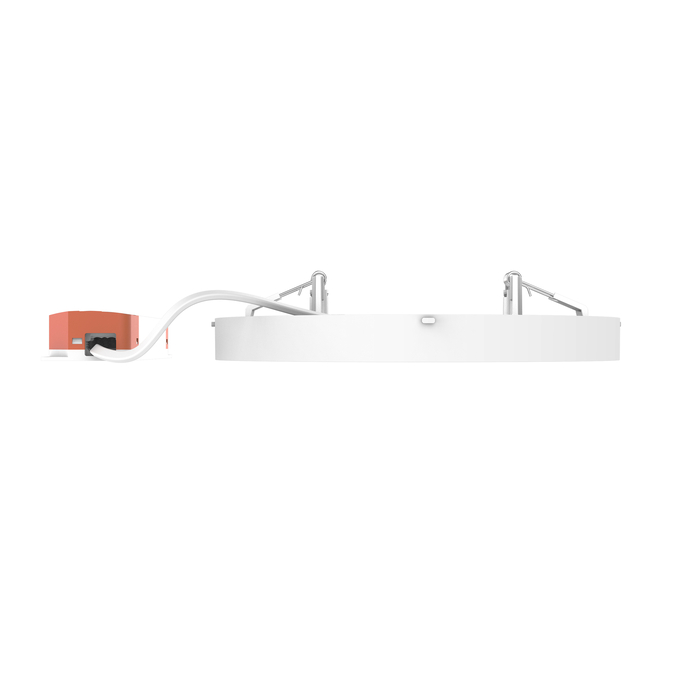

- External DALI-2 driver included for flexible lumen settings via dip switch on device
- Energy savings thanks to high system efficacy: up to 140 lm/W
- Very homogenous light distribution
- Further variants with on/off and sensor available
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Reception areas, foyers, corridors, common areas
Product features
- Multi Color function: 3000 K and 4000 K
- Multi Lumen function: 2 lumen steps selectable

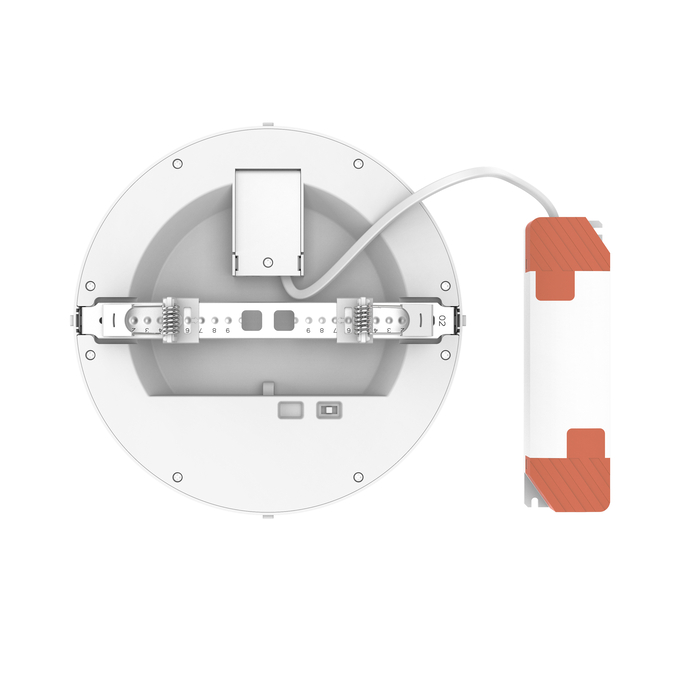

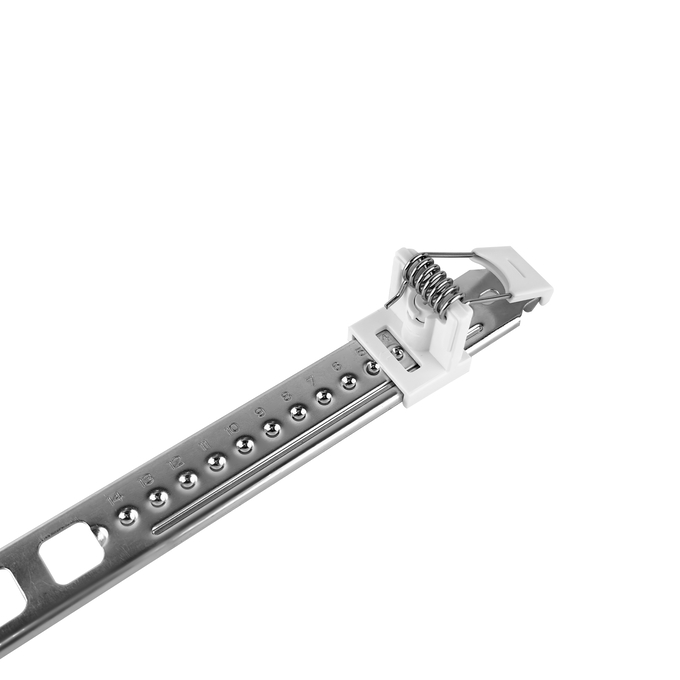

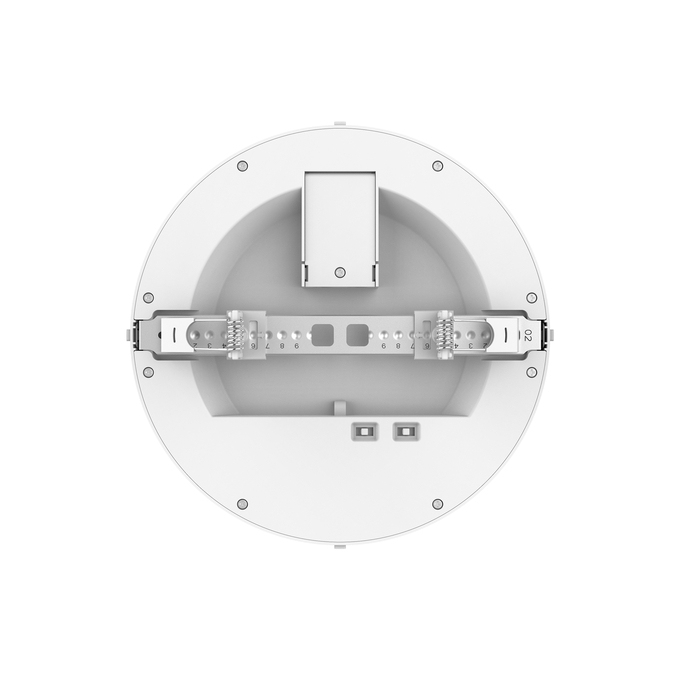

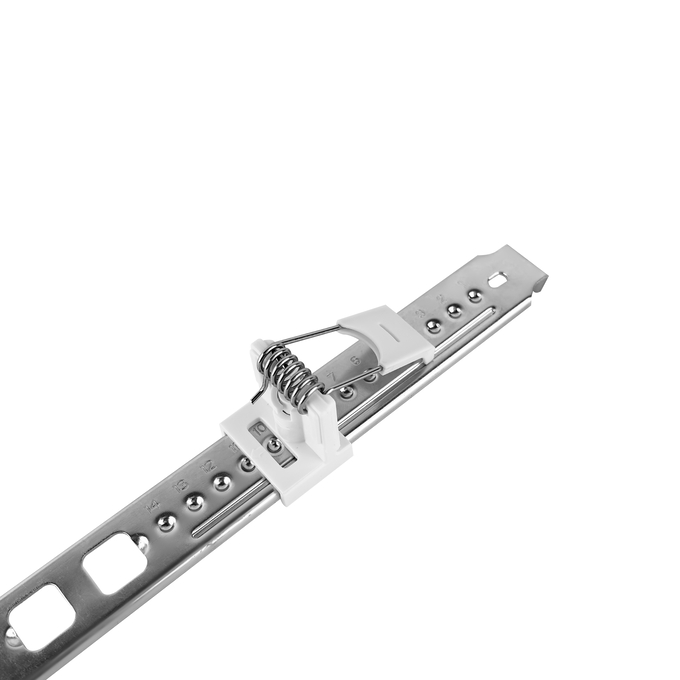

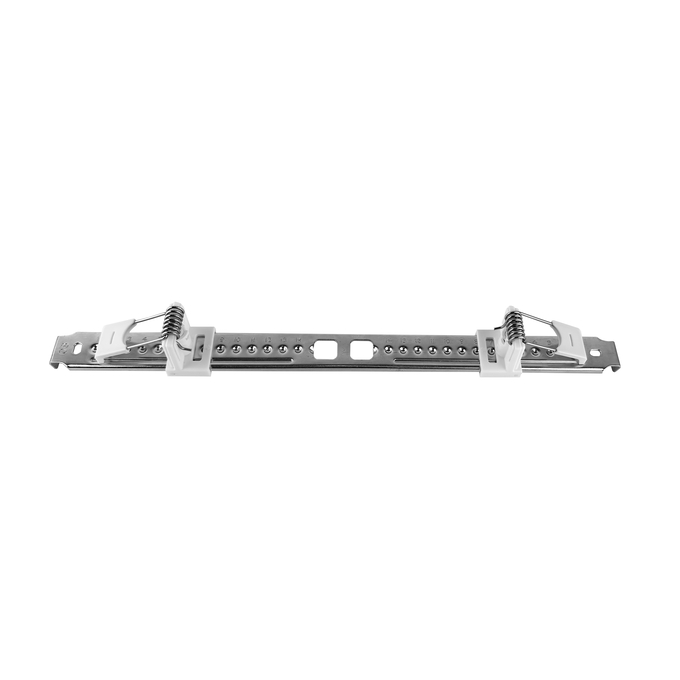

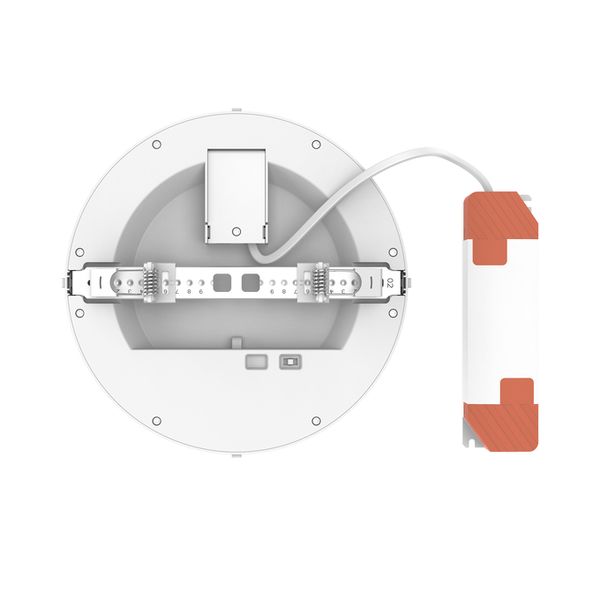

- Multi Cut-out: adjustable mounting springs for ceiling cut-outs from 65 mm up to 260 mm
- Available in two sizes: 200 mm and 300 mm diameter
- High color consistency: < 4 SDCM
- Type of protection: IP44 (room side)
- Suitable for through wiring
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Additional cover rings separately available in round shape and in different colors
- Safety rope for luminaire included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
15 W
135 lm/W
22 W
130 lm/W
Added function
MULTI SELE
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
290.00 mm
Dimmable
Yes
ECG - Height
25 mm
ECG - Length
105.00 mm
ECG - Output ripple current
< 10 %
ECG - Width
45.00 mm
EPD
LEDV-00068-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854541377
Height
22.00 mm
Housing color
White
Inrush current
39.2 A
Inrush current time Th50
7.44 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Tripnehyl Phosphate (115-86-6)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
135 lm/W / 130 lm/W / 140 lm/W
Luminous flux
3000 lm / 2850 lm / 2100 lm / 2020 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
19
Max. number of luminaires per miniature circuit breaker C10
15
Max. number of luminaires per miniature circuit breaker C16
24
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
22,0 mm
Mounting diameter
65…260 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
98 mA
Nominal voltage
220…240 V
Nominal wattage
22 W / 15 W
Number of switching cycles
25000
Operating mode
External LED driver
Output current
500mA / 350 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
835.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Recommended control gear
DR DALI-P-30 220-240 700
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 4 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal
Type of dimming
DALI
Type of emergency operation test
None
Type of protection
IP44/IP20
With light source
Yes
