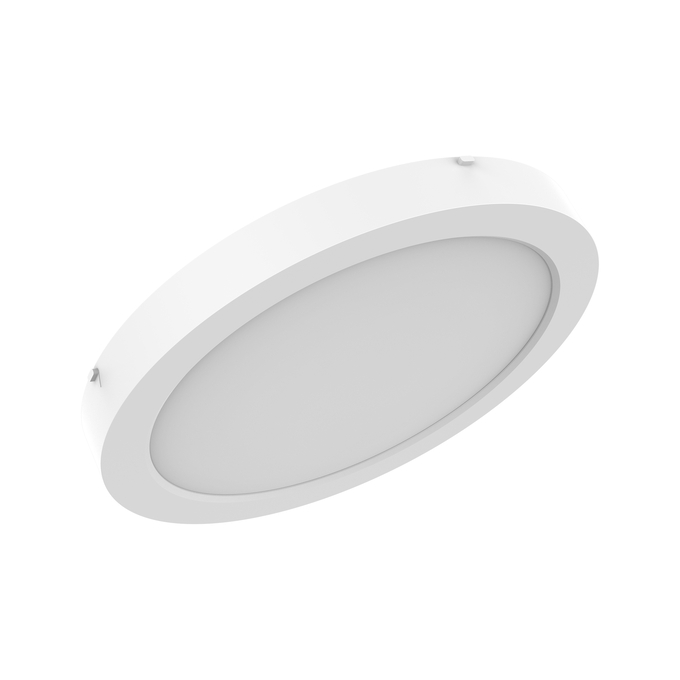

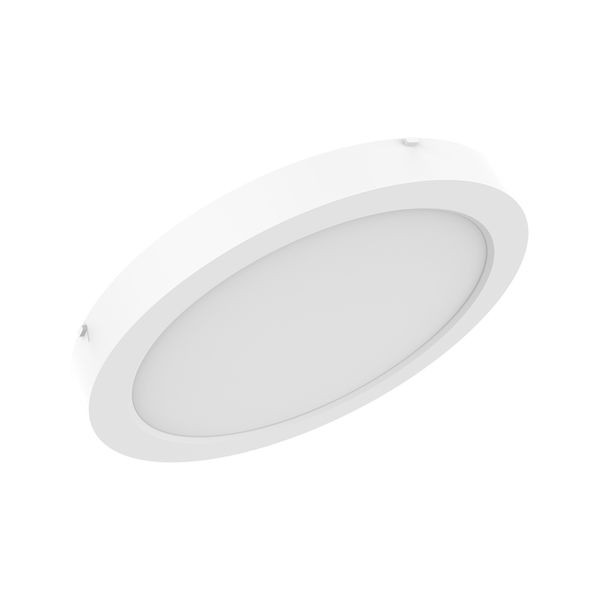

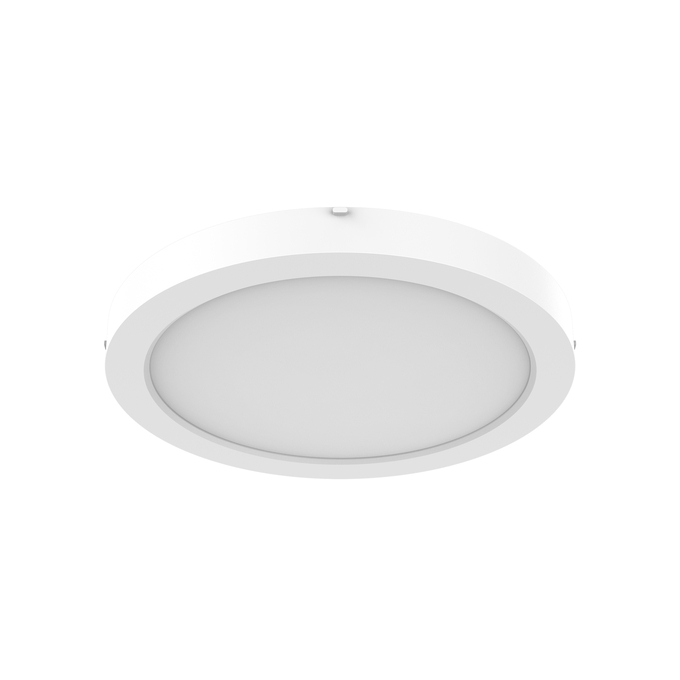

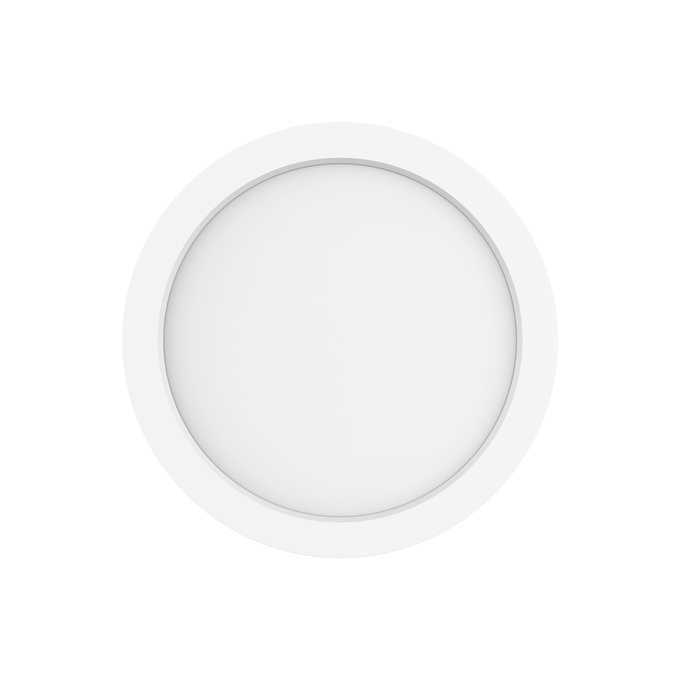

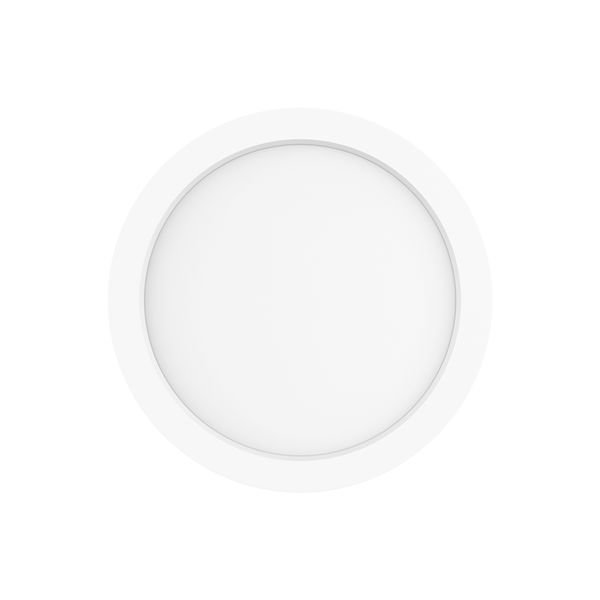

DL UNIV D200 V 18W ML 83040 WT
4099854541094
Product benefits
- The solution for convenient refurbishment: universal fitting to existing ceiling cut-outs
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Simple installation thanks to integrated driver
- Energy savings thanks to high system efficacy: up to 145 lm/W
- Very homogenous light distribution
- Further variants with DALI-2 driver and sensor available
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Reception areas, foyers, corridors, common areas
Product features
- Multi Color function: 3000 K and 4000 K
- Multi Lumen function: 2 lumen steps selectable

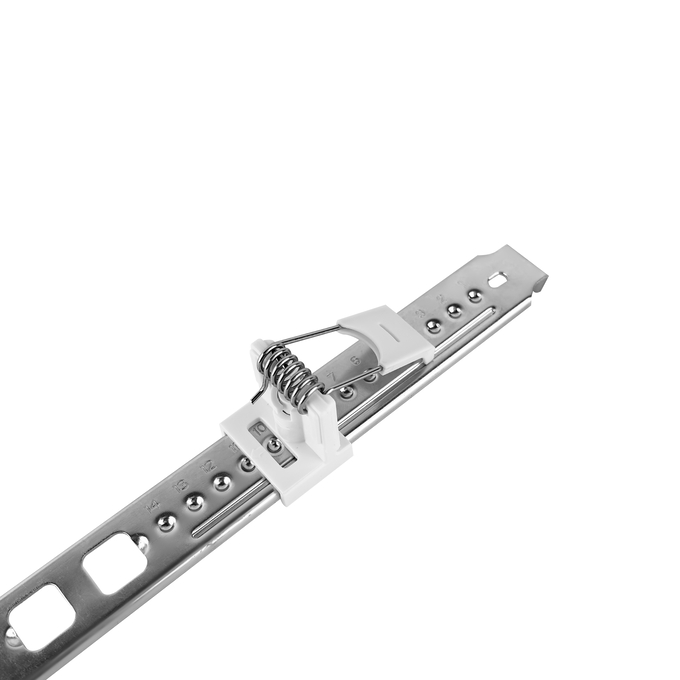

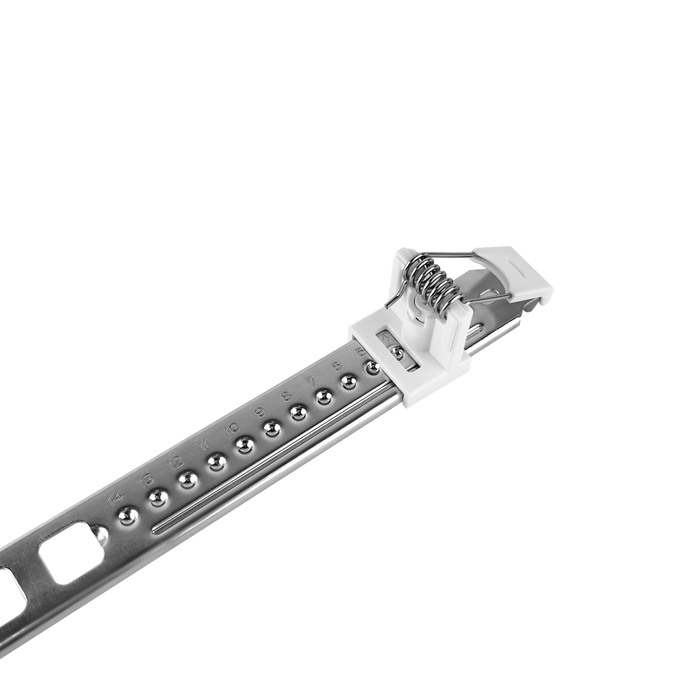

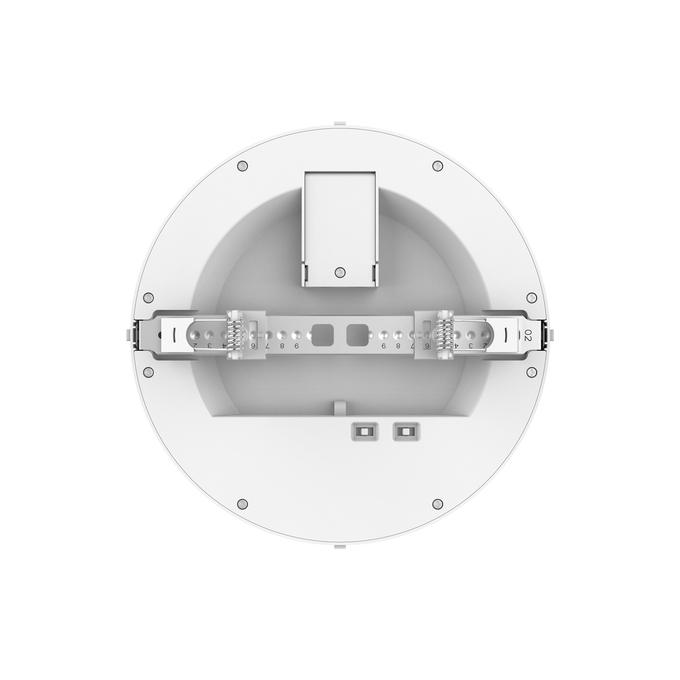

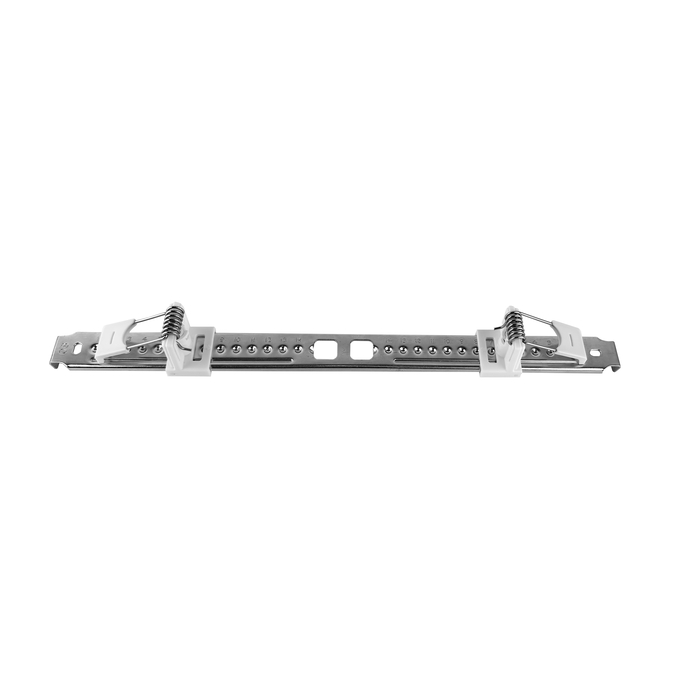

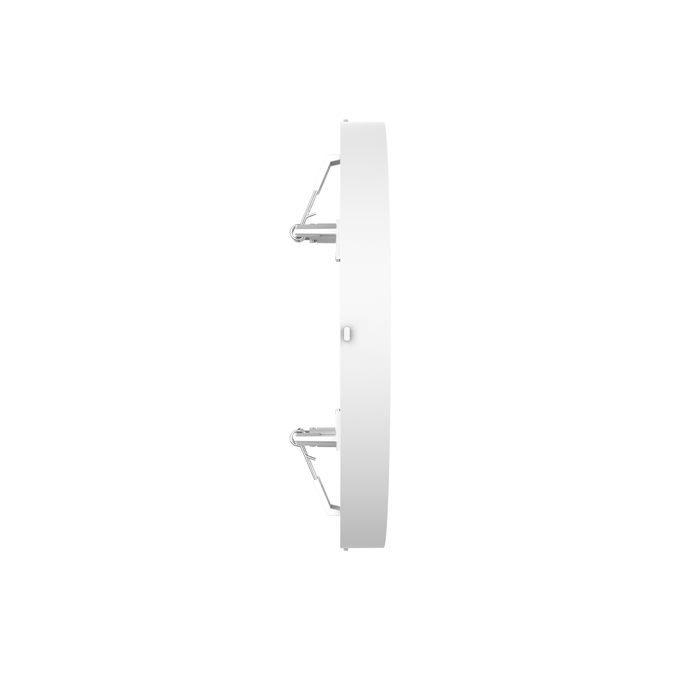

- Multi Cut-out: adjustable mounting springs for ceiling cut-outs from 65 mm up to 260 mm
- Available in two sizes: 200 mm and 300 mm diameter
- High color consistency: < 4 SDCM
- Type of protection: IP44 (room side)
- Suitable for through wiring
- Lifetime (L80/B10): up to 50,000 h (at 25 °C)
Equipment / Accessories
- Additional cover rings separately available in round shape and in different colors
- Safety rope for luminaire included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
18 W
130 lm/W
9 W
135 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
217.00 mm
Dimmable
No
ECG - Height
25 mm
ECG - Output ripple current
< 10 %
EPD
LEDV-00068-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854541094
Height
22.00 mm
Housing color
White
Inrush current
17.4 A
Inrush current time Th50
1.8 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Tripnehyl Phosphate (115-86-6)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
135 lm/W / 130 lm/W / 140 lm/W
Luminous flux
2420 lm / 2300 lm / 1260 lm / 1200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
42
Max. number of luminaires per miniature circuit breaker C10
34
Max. number of luminaires per miniature circuit breaker C16
54
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
22,0 mm
Mounting diameter
65…185 mm
Mounting location
Ceiling
Mounting type
Surface/Recessed
Nominal current
79 mA
Nominal voltage
220…240 V
Nominal wattage
18 W / 9 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
190mA / 100 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
445.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 4 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 40 %
Type of connection
Screwless terminal
Type of emergency operation test
None
Type of protection
IP44/IP20
With light source
Yes
