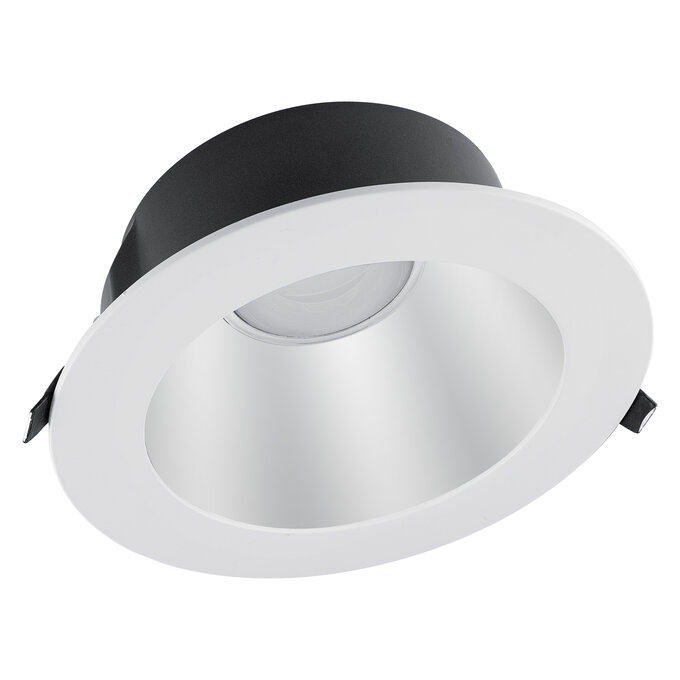

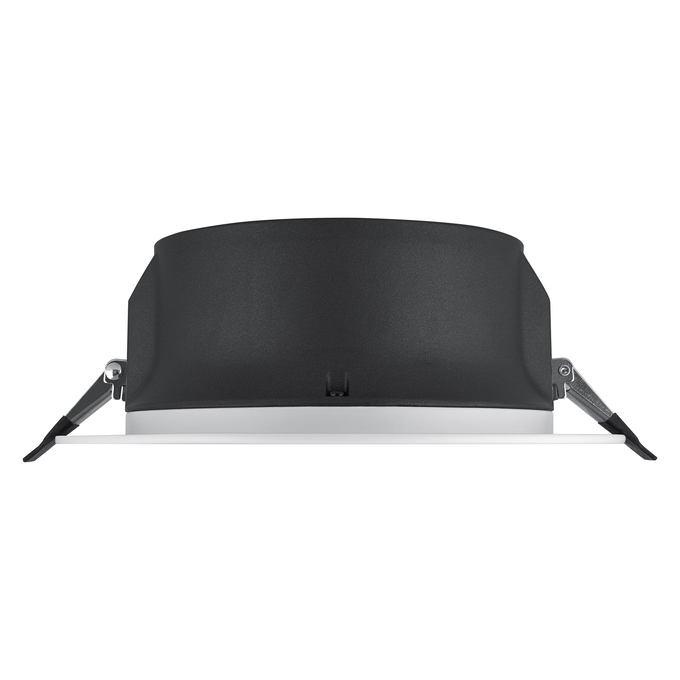

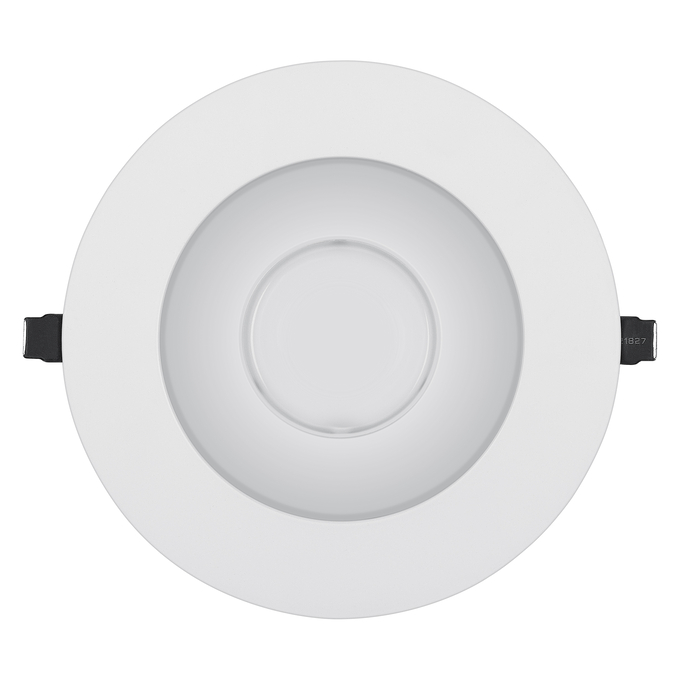

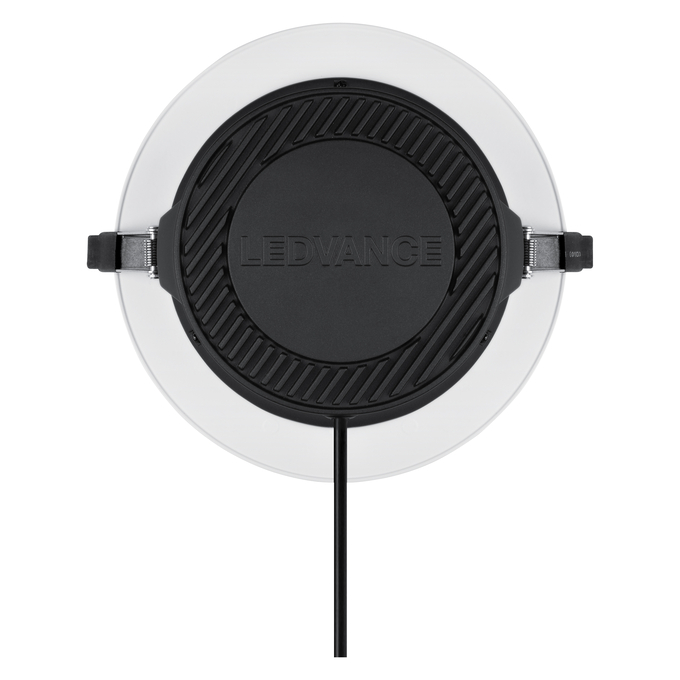

DL UGR19 PFM DN155 14 W 840 WT IP54 DALI
4058075459311
Product benefits
- Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
- Good glare reduction (UGR < 19) and cut off angle up to 30° for comfortable indoor lighting
- Easy and quick installation thanks to connector box with 5-pole toolless terminal
- Low flicker light
- Suitable for use in dusty and damp locations thanks to high IP rating
- 5 years guarantee
Areas of application
- Suitable for office applications, especially for computer screen workplaces
- Direct replacement for luminaires with compact fluorescent lamps
- Entrances / Hallways
- Bathrooms, kitchens and sheltered outdoor areas
- General illumination
Product features
- IoT-ready luminaire with DALI-2 technology
- Housing material: Aluminum mirror-finished reflector
- Type of protection: IP54 (room side) / IP20 (back side)
- Connector box with push wire terminal for tool-free connection
- Through-wiring possible
Equipment / Accessories
- External control gear included
References / Links
- For Guarantee see
Added function
VIVARES
Ambient temperature range
-20…+45 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
65 °
Body material
Aluminum
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
180.00 mm
Dimmable
Yes
ECG - Height
30 mm
ECG - Length
119 mm
ECG - Output ripple current
< 10 %
ECG - Width
52.0 mm
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075459311
Height
65.00 mm
Housing color
White
Inrush current
5 A
Inrush current time Th50
200 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
60000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Cool White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
115 lm/W
Luminous flux
1600 lm
Luminous intensity
-
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
120
Max. number of luminaires per miniature circuit breaker C10
80
Max. number of luminaires per miniature circuit breaker C16
120
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
100 mm
Mounting diameter
155,0 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
154 mA
Nominal voltage
220…240 V
Nominal wattage
14.00 W
Number of illuminants
Not relevant
Number of switching cycles
100000
Operating mode
External LED driver
Output current
450 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
650.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤5 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI
Type of protection
IP54/IP20
UGR
< 19
With light source
Yes
