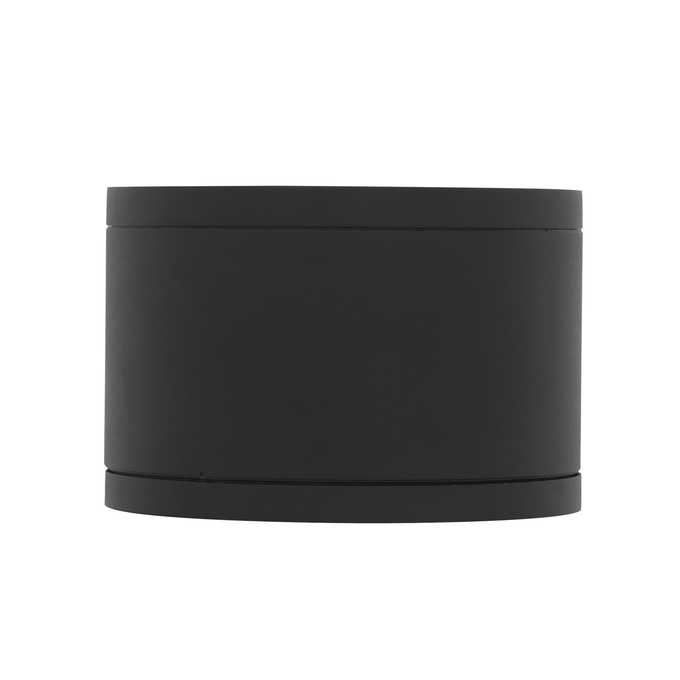

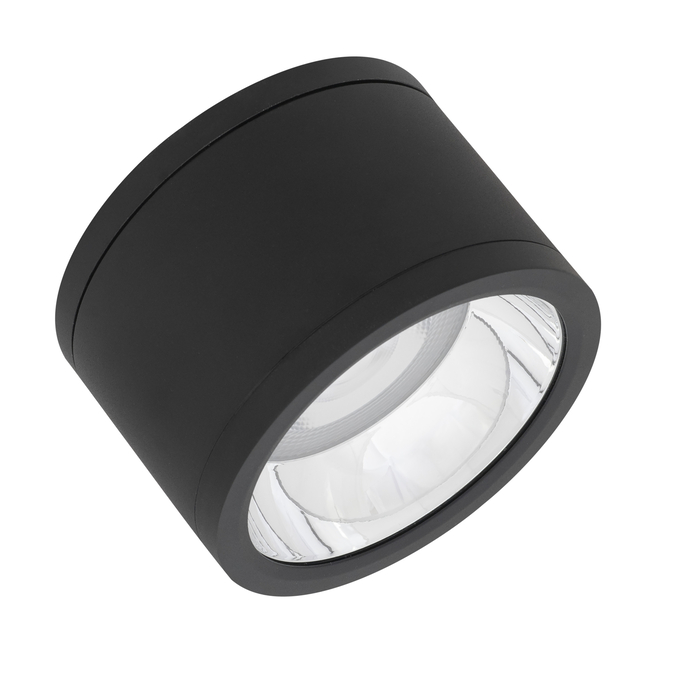

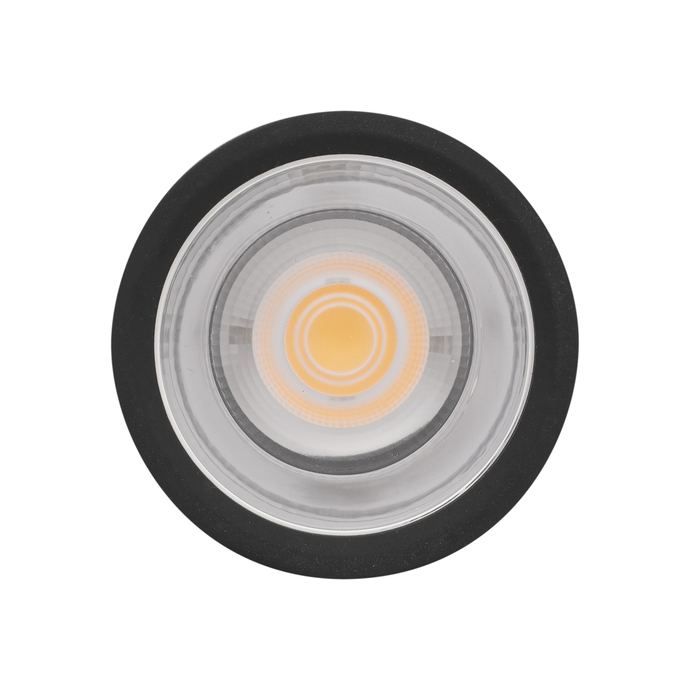

DL SURFACE IP65 DN 160 P 30W 840 36D BK
4058075769113
Product benefits
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- 5 years guarantee
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Suitable for indoor and outdoor installations
- Corridors, stairways, entrance areas
- Passages, underpasses
- Public areas
Product features
- Impact resistance: IK06
- Push wire terminal for tool-free connection
- Through wiring possible
- Type of protection: IP65
- Luminous flux: up to 4,950 lm
- High luminous efficacy: up to 110 lm/W
- Lifetime (L70/B50): 100,000 h (at 25 °C)
- Ambient temperature in operation: -30…+40 °C
References / Links
- For Guarantee see
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
36 °
Body material
Aluminum|Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
160.00 mm
Dimmable
No
ECG - Output ripple current
< 15 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075769113
Height
110.00 mm
Housing color
Black
Inrush current
31.1 A
Inrush current time Th50
510.3 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
60000 h
Light color (designation)
Warm White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
3300 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
32
Max. number of luminaires per miniature circuit breaker C10
20
Max. number of luminaires per miniature circuit breaker C16
32
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
150.000 mA
Nominal voltage
220…240 V
Nominal wattage
30.00 W
Number of switching cycles
50000
Operating mode
Integrated driver
Output current
750 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1300.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-30…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP65/IP65
UGR
< 19
With light source
Yes
