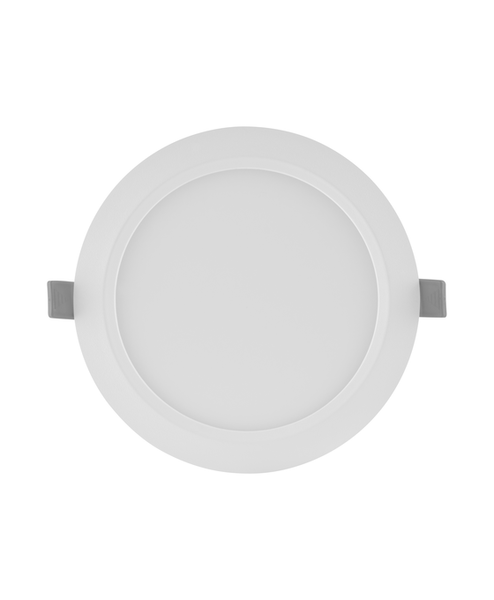

DL SLIM DN 105 6 W 6500 K WT
4058075079014
Product benefits
- Very slim housing
- Low installation depth
- High luminous efficacy
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
- Very homogenous light
- Functional design
- Easy installation with fast connection
- Simple installation thanks to integrated driver
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features
- Small visible bezel
- Connector box with push wire terminal for tool-free connection
- Light guide made of non-yellowing PMMA for long lifetime
Equipment / Accessories
- Surface mounting frames available as accessories
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
Ambient temperature range
-20…+50 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
118.00 mm
Dimmable
No
ECG - Output ripple current
< 6.5 %
EPD
LEDV-00043-V01.01-EN
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075079014
Height
30.00 mm
Housing color
White
Inrush current
6 A
Inrush current time Th50
120 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Lifespan L80/B10 at 25 °C
20000 h 1)
Lifespan L90/B10 at 25 °C
12000 h
Light color (designation)
Cool Daylight
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
70 lm/W
Luminous flux
430 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
72
Max. number of luminaires per miniature circuit breaker C10
60
Max. number of luminaires per miniature circuit breaker C16
96
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting diameter
105.00 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
58 mA
Nominal voltage
220…240 V
Nominal wattage
6.00 W
Number of illuminants
Not relevant
Number of switching cycles
50000
Operating mode
Integrated LED driver
Output current
180 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.50
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
158.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-30…+70 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 2-Pole
Type of protection
IP20
With light source
Yes
