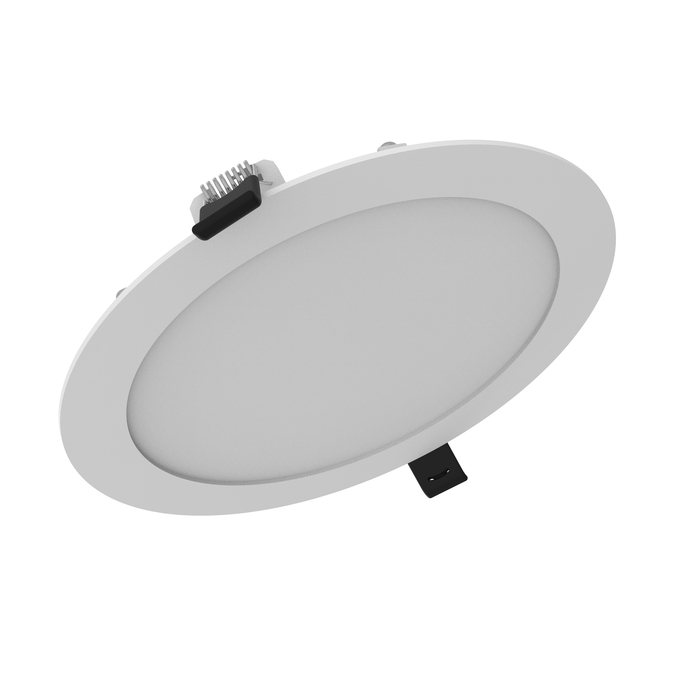

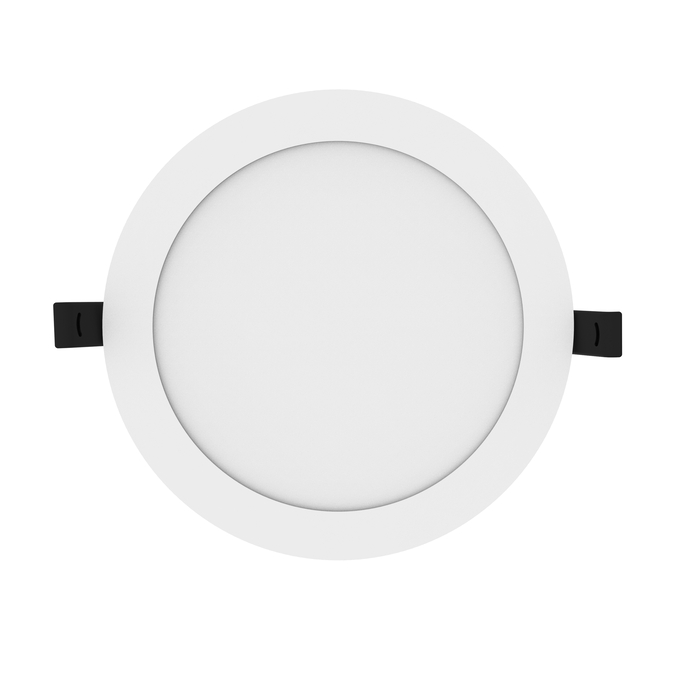

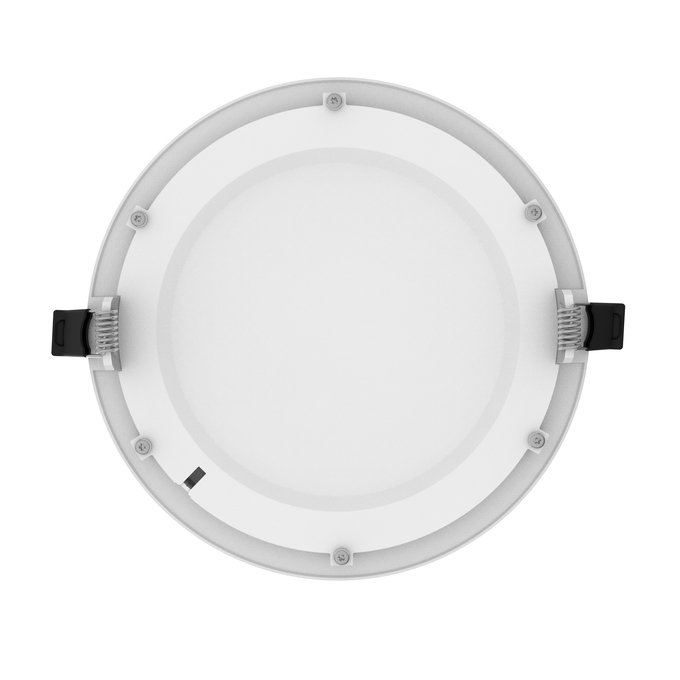

DL SLIM ALU D175 V 16W ML 83040 WT
4099854441813
Product benefits
- Low installation depth
- Highly versatile due to selectable CCT and lumen steps (Multi Select)
- Very homogenous light distribution
- External driver with 3-pole through-wiring feature for flexibility and easy installation
- Emergency lighting possible with LEDVANCE Emergency Conversion Box
- Energy savings up to 60 % (compared to luminaires that use CFL lamps)
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Foyers
- Shops
Product features

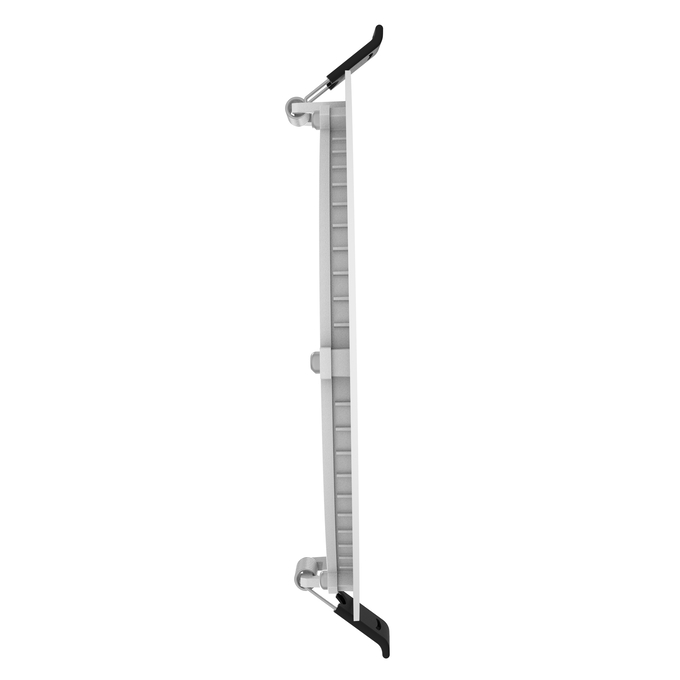

- Very slim aluminum housing with only 23 mm height
- High luminous efficacy: up to 100 lm/W
- Multi Lumen function: lumen steps selectable
- Multi Color function: 3000 K and 4000 K
- Type of protection: IP44
- Luminaire available in 5 sizes for different cut-outs
- Lifetime (L70/B50): 50,000 h (temperature at Ta = 40 °C)
Equipment / Accessories
- Accessories for surface mounting available
References / Links
- For Guarantee see
12 W
100 lm/W
16 W
100 lm/W
8 W
100 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
187.00 mm
Dimmable
No
ECG - Height
26 mm
ECG - Length
100 mm
ECG - Output ripple current
< 10 %
ECG - Width
49 mm
EPD
LEDV-00050-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854441813
Height
23.00 mm
Housing color
White
Inrush current
6 A
Inrush current time Th50
33 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
35000 h 1)
Lifespan L90/B10 at 25 °C
15000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
1600 lm / 1200 lm / 800 lm
Luminous flux in emergency operation mode
350 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
70
Max. number of luminaires per miniature circuit breaker C10
55
Max. number of luminaires per miniature circuit breaker C16
80
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
23.0 mm
Mounting diameter
175 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
70/55/39 mA
Nominal voltage
220…240 V
Nominal wattage
16.0 W / 12 W / 8 W
Number of switching cycles
25000
Operating mode
External LED driver
Output current
320 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
330.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+85 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 3-Pole (N, E, L)
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test
None
Type of protection
IP44/IP20
Wattage in emergency operation mode
2,5 W
With light source
Yes
