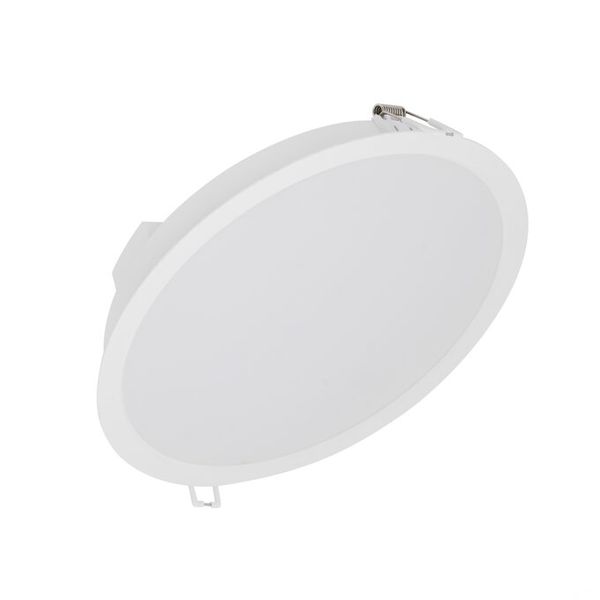

DL IP44 DN 215 30W 830 WT
4058075703285
Product benefits
- High luminous efficacy
- Very homogenous light
- Simple installation thanks to integrated driver
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- General illumination
- Public areas
- Stairways
- Corridors
- Shops
- Bathrooms
Product features
- Type of protection: IP44
- Luminous efficacy: 100 lm/W
Equipment / Accessories
- Surface mounting frames available as accessories
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
100 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
215.00 mm
Dimmable
No
ECG - Output ripple current
< 5 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075703285
Height
42.00 mm
Housing color
White
Inrush current
4.4 A
Inrush current time Th50
250 µs
Lifespan L70/B50 at 25 °C
20000 h 1)
Lifespan L80/B10 at 25 °C
18000 h 1)
Lifespan L90/B10 at 25 °C
15000 h
Light color (designation)
Warm White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
3000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
86
Max. number of luminaires per miniature circuit breaker C10
46
Max. number of luminaires per miniature circuit breaker C16
73
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
41 mm
Mounting diameter
200 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
130.000 mA
Nominal voltage
220…240 V
Nominal wattage
30.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
62 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
290.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Cable, 2-pole
Type of protection
IP44
With light source
Yes
