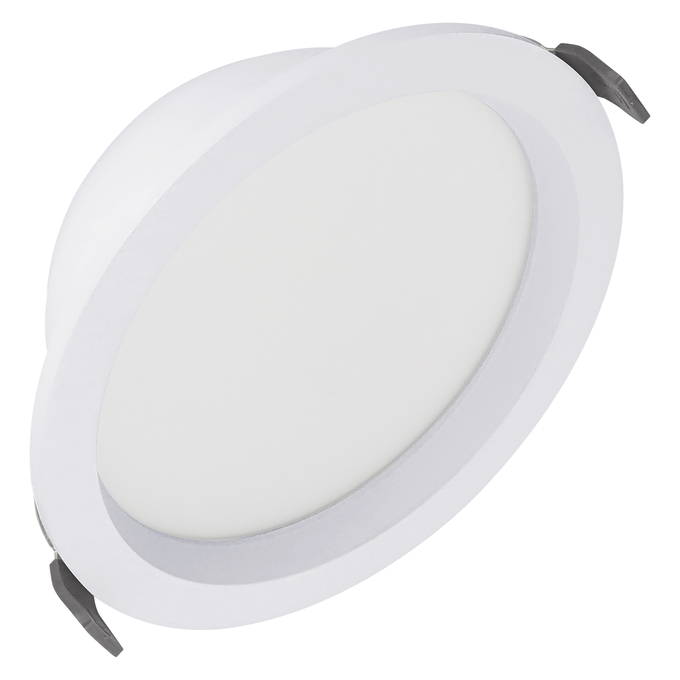

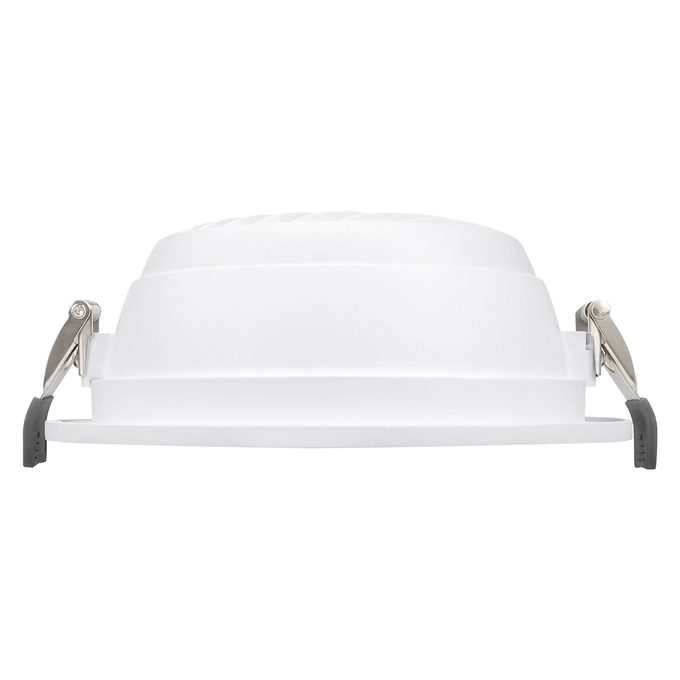

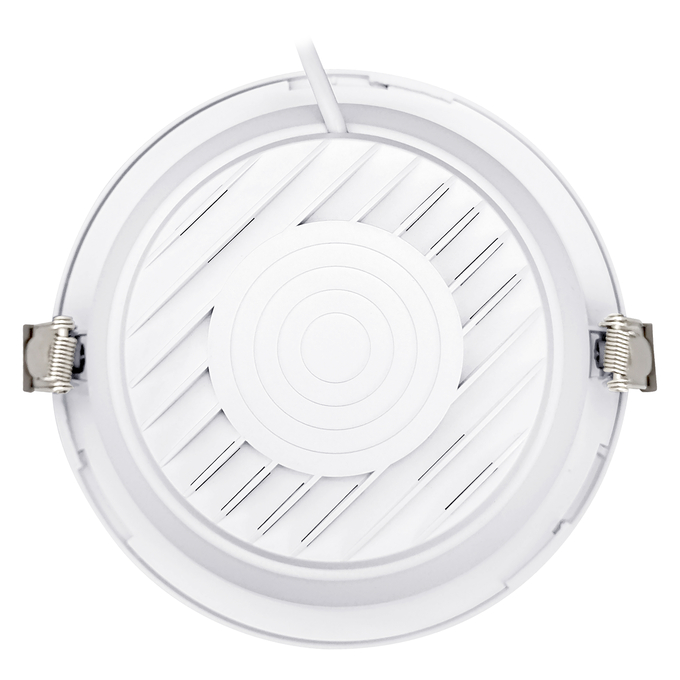

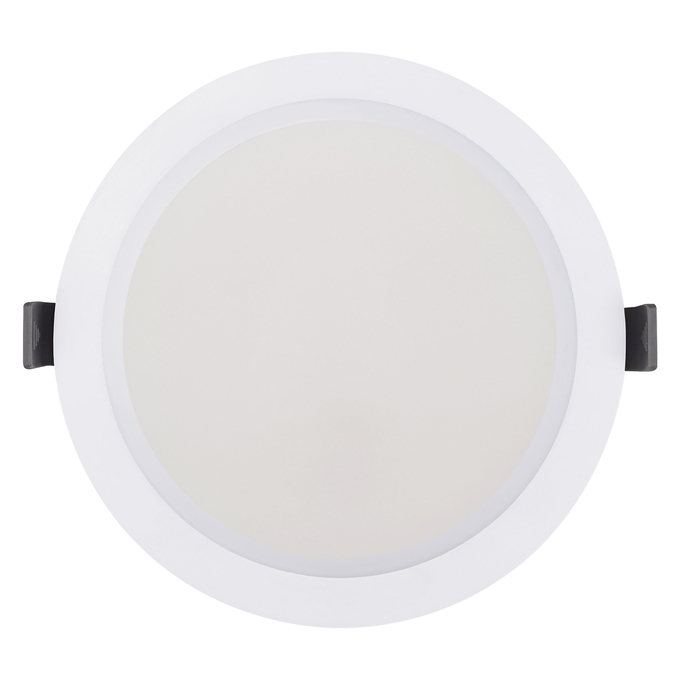

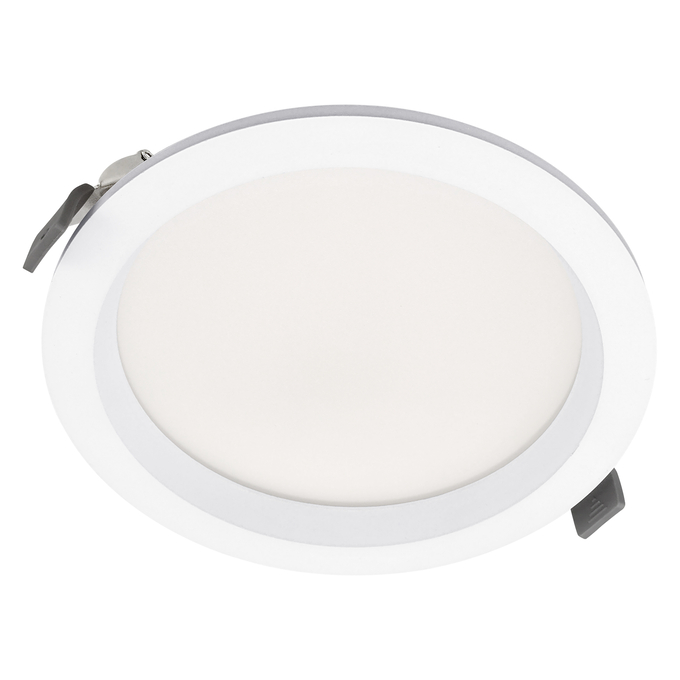

DL CMFT HE DA D150 P 15W 830 OP WT
4099854687372
Product benefits
- Energy savings thanks to high system efficacy: up to 155 lm/W
- Through wiring possible via included connector box
- High grade polycarbonate front frame for reduced overall luminaire weight
- Uniform light with minimized glare thanks to included reflector and diffuser
- Well suited for retrofitting using an extension ring as separate accessory
- DALI-2 certified incl. Parts 251, 252, 253
- Push-DIM application for easy control
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
Product features
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Consistent lighting color ≤ 3 SDCM
- External driver with Multi Lumen function of up to 5580 lm
- Aluminum luminaires with 3 different cut-outs and opal diffuser
- Very homogenous light distribution
Equipment / Accessories
- Security rope for luminaire included

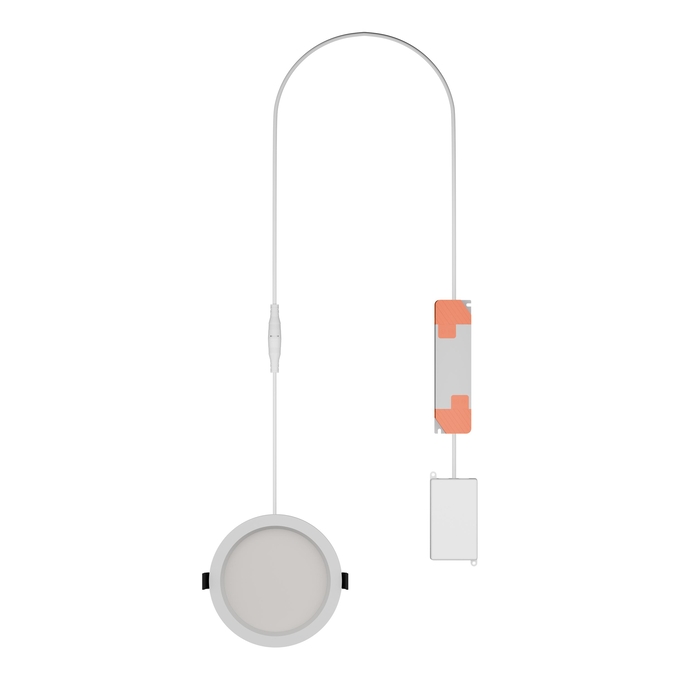

- External control gear included
- Connector box with 5-pole terminal included
- Surface mounting frame only available for DALI versions D200 and D250 as separate accessory
- Gray and black exchangeable rings available as separate accessory
- Extension rings are available as separate accessory
- Extension ring D190 for retrofitting D150 luminaire, extension ring D240 for retrofitting D200 luminaire
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
10 W
140 lm/W
12 W
140 lm/W
15 W
135 lm/W
Added function
MULTI SELE
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
95 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
160.00 mm
Dimmable
Yes
ECG - Output ripple current
≤ 10 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854687372
Height
57.10 mm
Housing color
White
Inrush current
25.2 A
Inrush current time Th50
6.8 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
65000 h
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
135 lm/W / 140 lm/W
Luminous flux
2025 lm / 1680 lm / 1400 lm
Luminous flux in emergency operation mode
375 lm
Luminous intensity
840 lm / 730 lm / 600 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
29
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
57,0 mm
Mounting diameter
150 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
68mA / 59mA / 50 mA
Nominal voltage
220…240 V
Nominal wattage
15 W / 12 W / 10 W
Number of switching cycles
100000
Output current
350mA / 300mA / 250 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥ 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
380.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Recommended control gear
DR DALI-P-30/220-240/700
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Standards
EN
Stroboscope effect metric (SVM)
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1800 lm
Type of connection
Screwless terminal, 5-Pole
Type of dimming
DALI-2
Type of emergency operation test
None
Type of protection
IP44/IP20
Wattage in emergency operation mode
3 W
With light source
Yes
