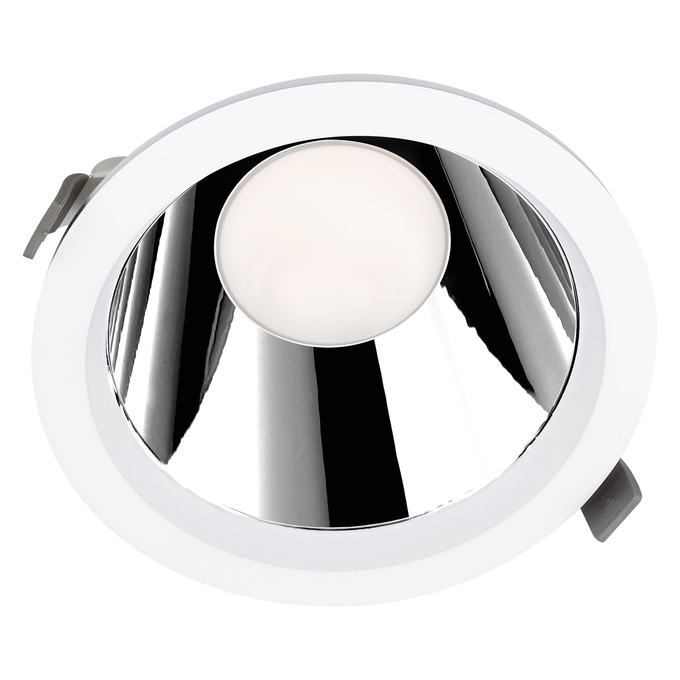

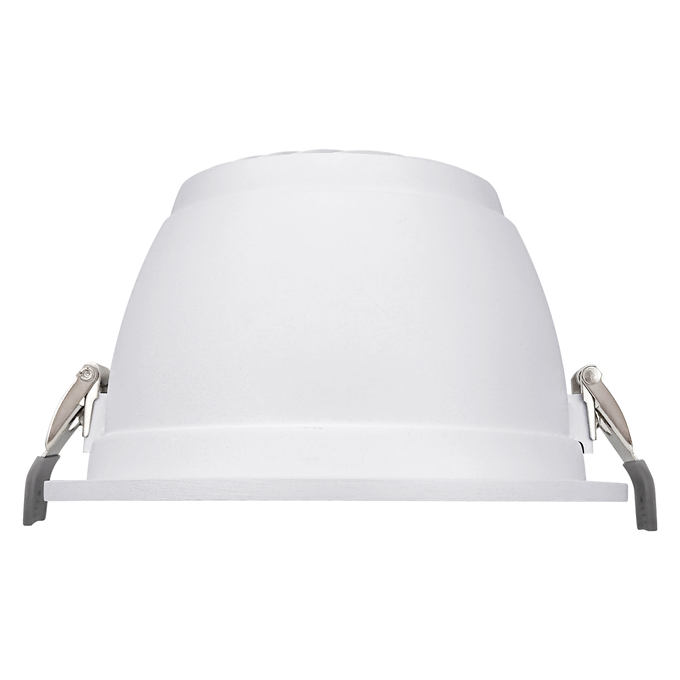

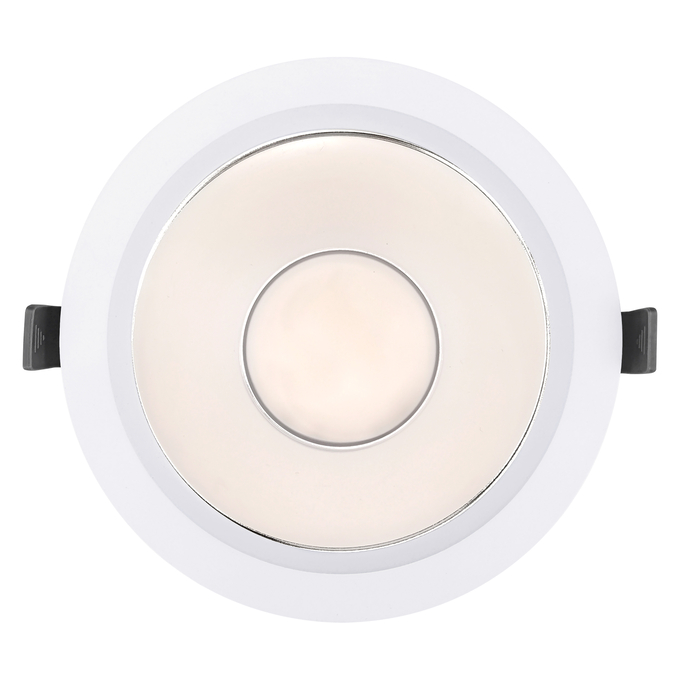

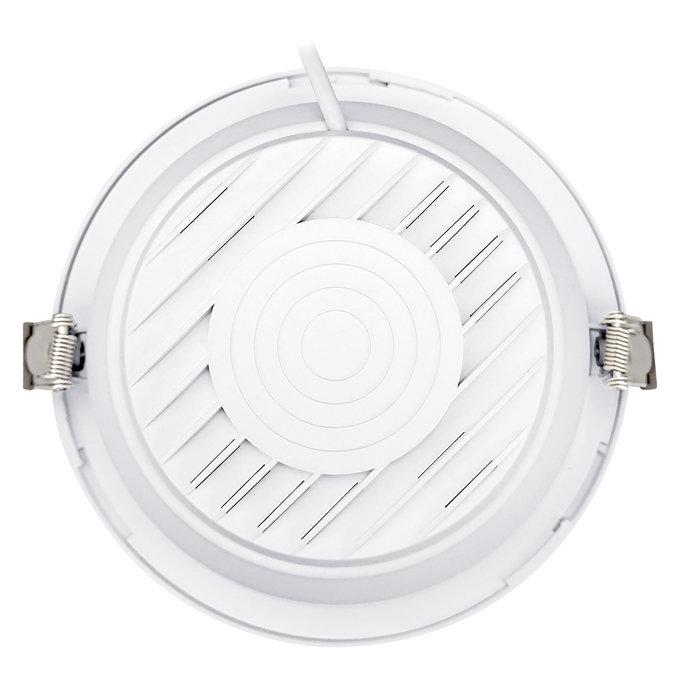

DL CMFT HE D150 P 15W ML 840 U19 WT
4099854686986
Product benefits
- Energy savings thanks to high system efficacy: up to 145 lm/W
- Through wiring possible via included connector box
- High grade polycarbonate front frame for reduced overall luminaire weight
- Easy and quick installation thanks to connector box with 3-pole toolless terminal
- Uniform light with minimized glare thanks to included reflector and diffuser
- Highly versatile due to selectable lumen steps (Multi Lumen) via dip switches on the driver
- Well suited for retrofitting using an extension ring as separate accessory
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
Product features
- Lifetime (L80/B10): up to 100,000 h (at 25 °C)
- Consistent lighting color ≤ 3 SDCM
- External driver with Multi Lumen function of up to 5220 lm

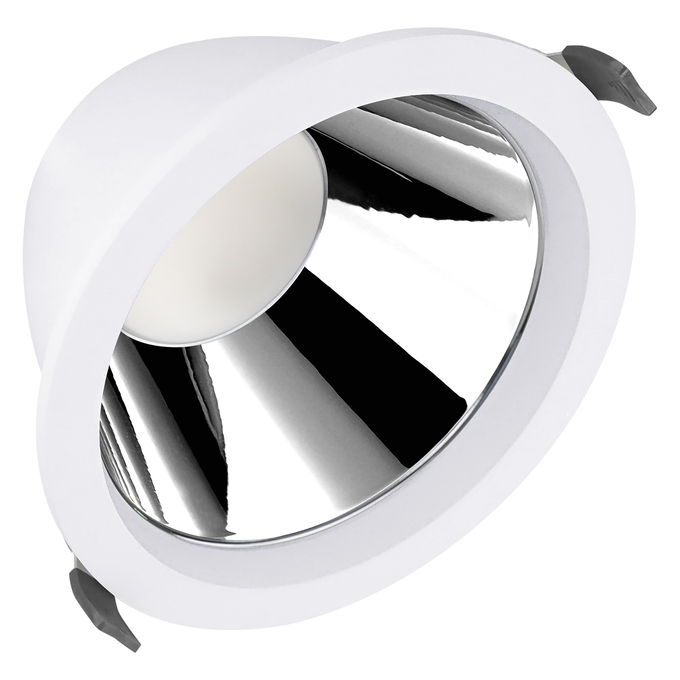

- Aluminum luminaires with 3 different cut-outs and mirror-finished reflector UGR ≤ 19
- Very homogenous light distribution and reduced glare of UGR ≤ 19
Equipment / Accessories
- Security rope for luminaire included

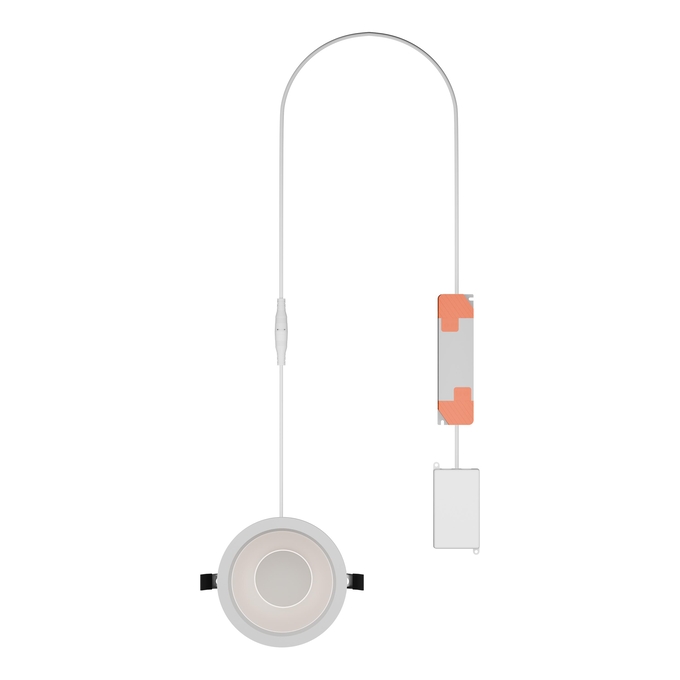

- External control gear included
- Connector box with 3-pole terminal included
- Surface mounting frame available as separate accessory
- Gray and black exchangeable rings available as separate accessory
- Extension rings are available as separate accessory
- Extension ring D190 for retrofitting D150 luminaire, extension ring D240 for retrofitting D200 luminaire
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
10 W
140 lm/W
12 W
140 lm/W
15 W
140 lm/W
Added function
MULTI SELECT
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
55 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
160.00 mm
Dimmable
No
ECG - Output ripple current
≤ 10 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854686986
Height
91.80 mm
Housing color
White
Inrush current
25.2 A
Inrush current time Th50
6.8 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
100000 h 1)
Lifespan L90/B10 at 25 °C
63000 h
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
140 lm/W
Luminous flux
2100 lm / 1680 lm / 1400 lm
Luminous flux in emergency operation mode
360 lm
Luminous intensity
2300 lm / 2000 lm / 1600 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
29
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
92 mm
Mounting diameter
150 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
68mA / 59mA / 50 mA
Nominal voltage
220…240 V
Nominal wattage
15 W / 12 W / 10 W
Number of switching cycles
100000
Output current
350mA / 300mA / 250 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥ 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
330.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Recommended control gear
P0-PB18ML-4035
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Standards
EN
Stroboscope effect metric (SVM)
Surge capability (L-N)
1000 V
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1600 lm
Type of connection
Screwless terminal, 3-Pole
Type of emergency operation test
None
Type of protection
IP44/IP20
UGR
< 19
Wattage in emergency operation mode
3 W
With light source
Yes
