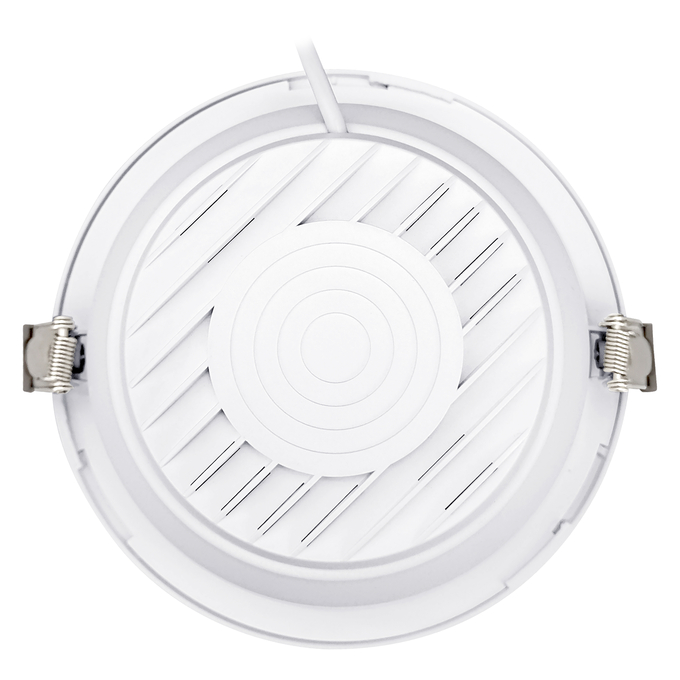

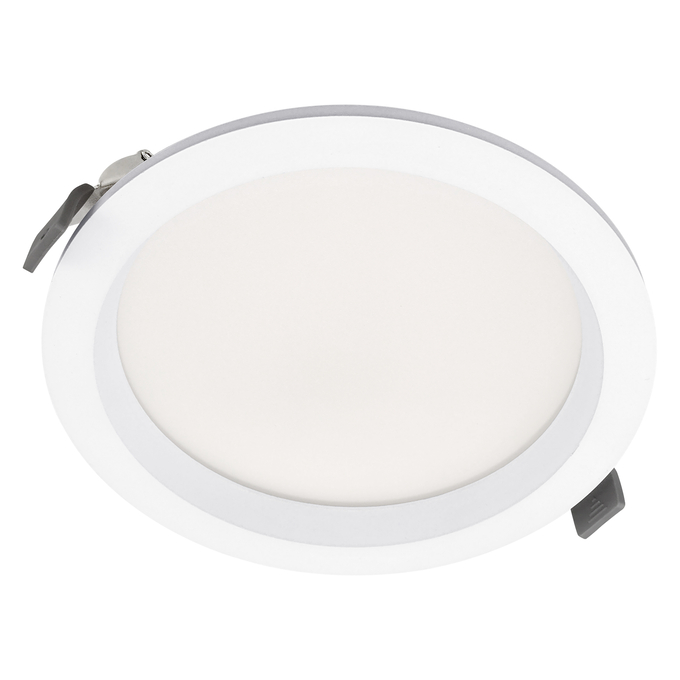

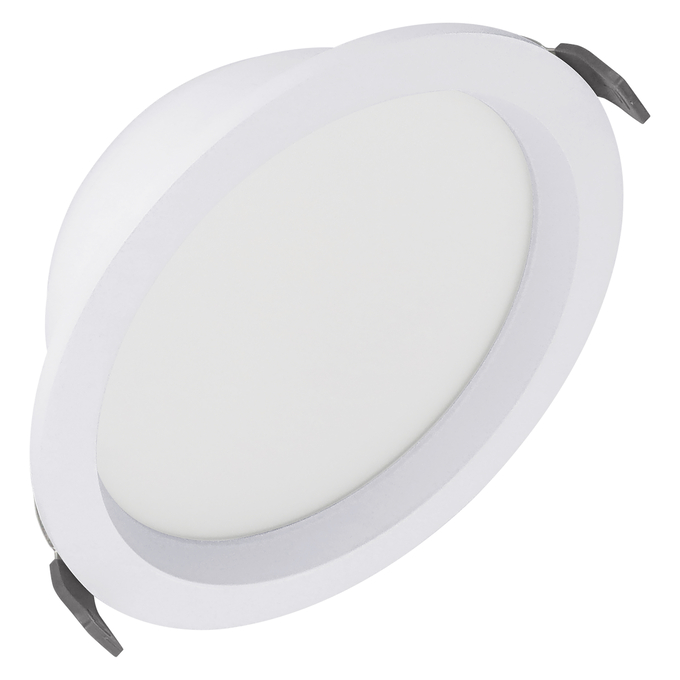

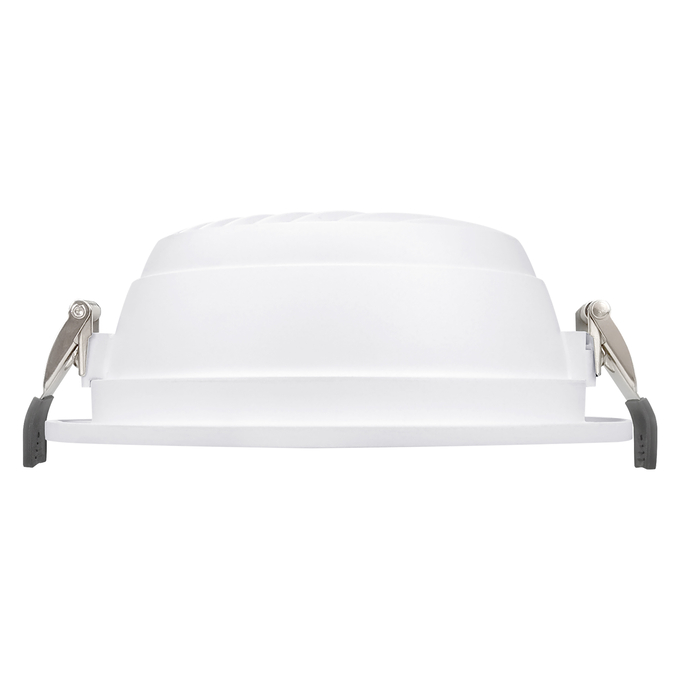

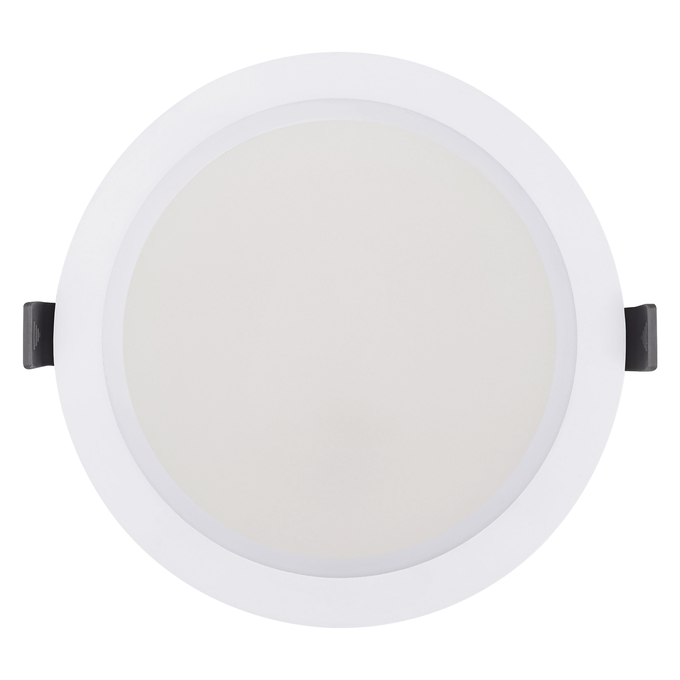

DL CMFT D150 P 18W ML 93040 OP WT
4099854490941
Product benefits
- Energy savings thanks to high system efficacy: up to 120 lm/W
- Highly versatile due to Multi Select functions
- High color rendering index CRI > 90
- External driver for extended flexibility and easy installation
- Through wiring possible via additional connector box accessory
- Type of protection: IP44
- Easy installation with fast connection
- Further variants with DALI-2 driver, Zigbee driver or Emergency Conversion Kit available
Areas of application
- Direct replacement for recessed luminaires with fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers, corridors, elevators
Product features
- Aluminum luminaires with 4 different cut-outs and opal diffuser
- Very homogenous light distribution
- External driver with Multi Lumen function of up to 5000 lm
- Multi Color function
- Consistent lighting color ≤ 3 SDCM
- Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
- Surface mounting frame available as separate accessory
- Security rope for luminaire included
- External control gear included
- Suitable for use with separate Emergency Conversion Box
- Gray and black exchangeable rings available as separate accessory
- Extension rings are available as separate accessory
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
References / Links
- For Guarantee see
12 W
110 lm/W
15 W
110 lm/W
18 W
110 lm/W
Added function
MULTI SELECT
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
95 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
160.00 mm
Dimmable
No
ECG - Height
28,5 mm
ECG - Length
95 mm
ECG - Output ripple current
≤ 10 %
ECG - Width
41 mm
EPD
LEDV-00053-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854490941
Height
57.00 mm
Housing color
White
Inrush current
24.8 A
Inrush current time Th50
6.34 µs
Lifespan L70/B50 at 25 °C
100000 h 1)
Lifespan L80/B10 at 25 °C
70000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
1980 lm
Luminous flux in emergency operation mode
373 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
30
Max. number of luminaires per miniature circuit breaker C10
24
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
57 mm
Mounting diameter
160 mm
Mounting location
Ceiling
Mounting type
Recessed
Mounting width
150 mm
Nominal current
82 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
100000
Operating mode
External LED driver
Output current
450/365/300 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
320.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Standards
EN
Stroboscope effect metric (SVM)
Surge capability (L-N)
1 kV
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 15 %
Type of connection
Screwless terminal, 2-Pole (L, N)
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test
None
Type of protection
IP44/IP20
Wattage in emergency operation mode
3 W
With light source
Yes
