BLKH RD EL 250 P 12W ML 83040 WT
4099854286346
Product benefits
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Convenient visualization of results of automatic test with an included control LED
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver

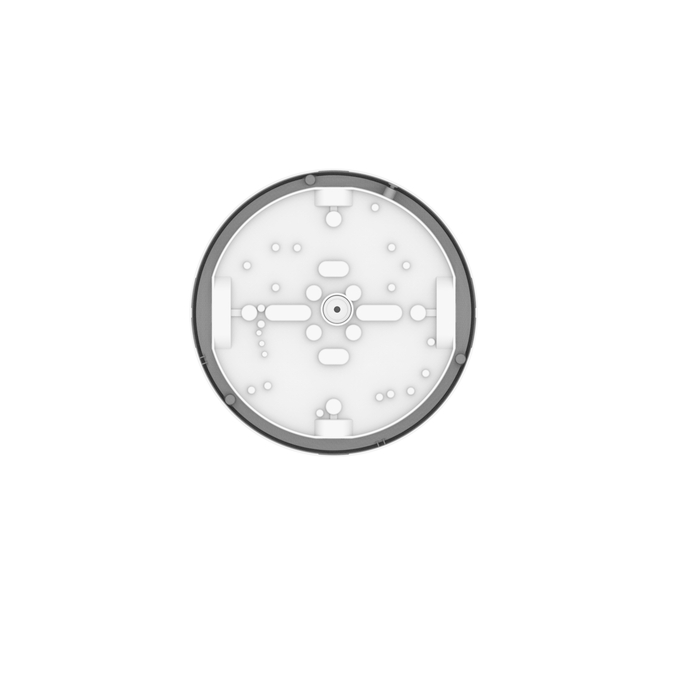

- Flexible mounting patterns for convenient installation
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- Separate decor element available for an aesthetic and functional product design
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Corridors, stairways, entrance areas
- Passages, underpasses
- Public areas
Product features
- Certified according to European norms (EN 60598-2-22)
- Luminaire suitable for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Ambient temperature in operation: 0…+35 °C
- UV-stabilized polycarbonate (PC) housing, PC-diffuser
- Impact resistance: IK10
- Type of protection: IP65
Equipment / Accessories

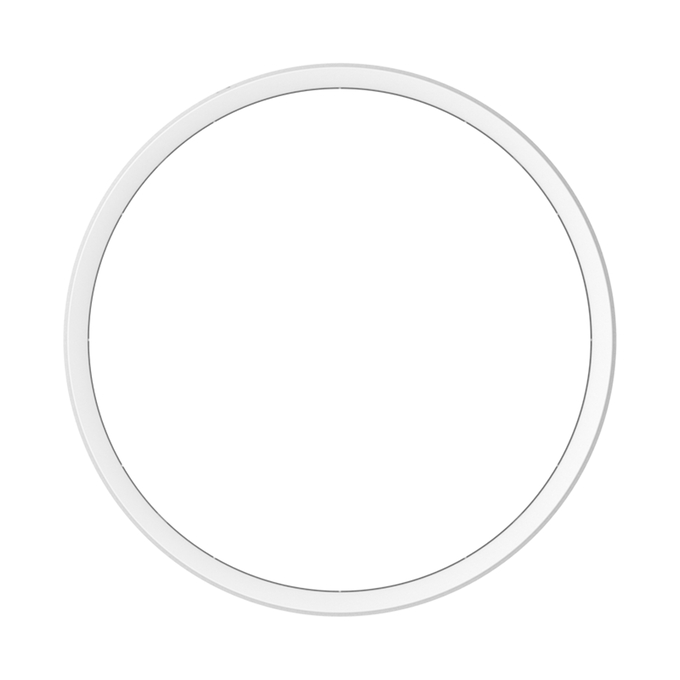

- Additional cover rings in different designs available
- Mounting screws and dowels included
- Anti-theft screw included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
11 W
94 lm/W
12 W
96 lm/W
8.5 W
81 lm/W
9.5 W
88 lm/W
Added function
EVERLO
Ambient temperature range
0…+35 °C
Application environment
Outdoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
262.00 mm
Dimmable
No
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854286346
Height
73.00 mm
Housing color
White
Inrush current
3.38 A
Inrush current time Th50
21.2 µs
Integrated test switch
No
Lifespan L70/B50 at 25 °C
97000 h 1)
Lifespan L80/B10 at 25 °C
72000 h 1)
Lifespan L90/B10 at 25 °C
46000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
102 lm/W / 98 lm/W / 90 lm/W / 84 lm/W 1)
Luminous flux
1230 lm / 1080 lm / 860 lm / 710 lm 1)
Luminous flux in emergency operation mode
380 lm
Luminous flux in maintained operation mode
1230 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
213
Max. number of luminaires per miniature circuit breaker C10
133
Max. number of luminaires per miniature circuit breaker C16
213
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal capacity of battery
4500 mAh
Nominal current
59mA / 54mA / 49mA / 45 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
12 W / 11 W / 9.5 W / 8.5 W 1)
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
350…300…250…200 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.80
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
930.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal
Type of emergency light operation
Non-maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP65
Wattage in emergency operation mode
2.3 W
Wattage in maintained operation mode
12 W
With light source
Yes
