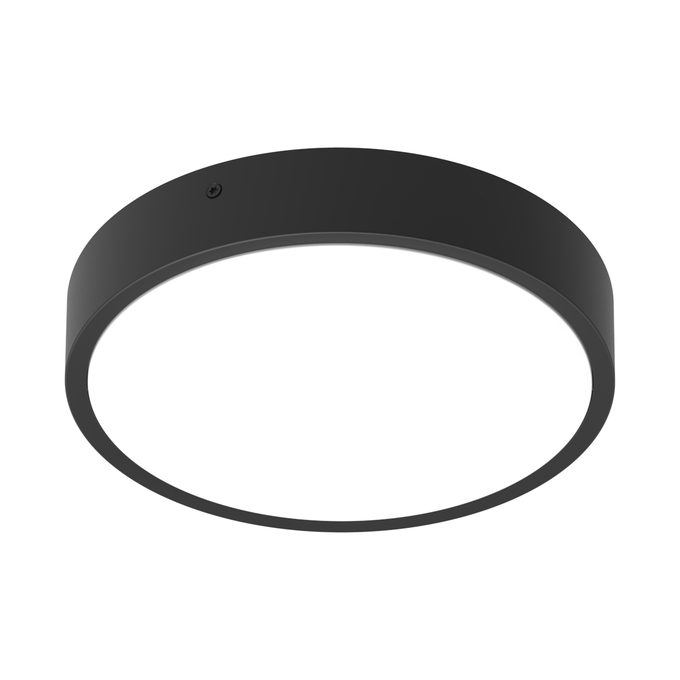

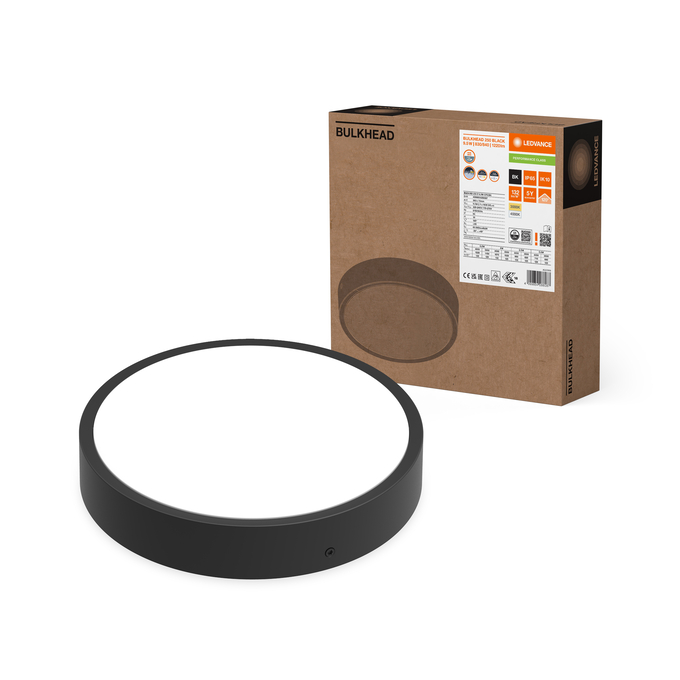

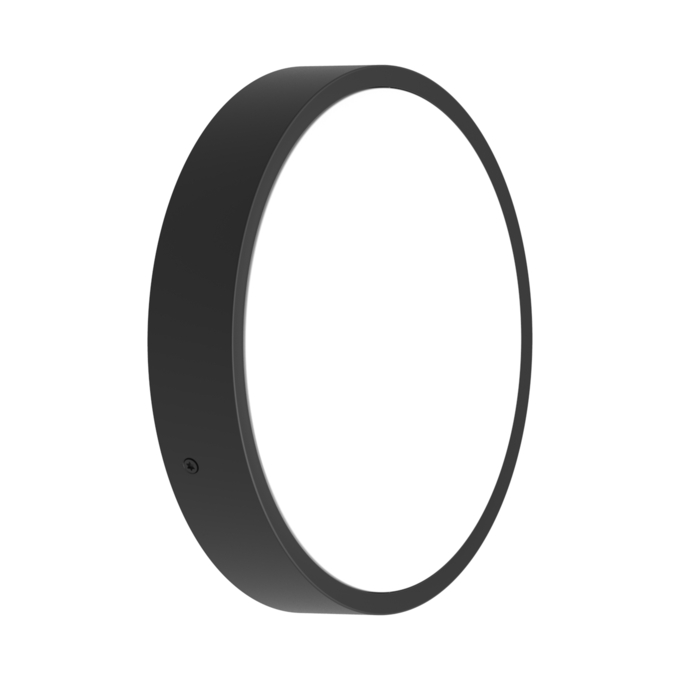

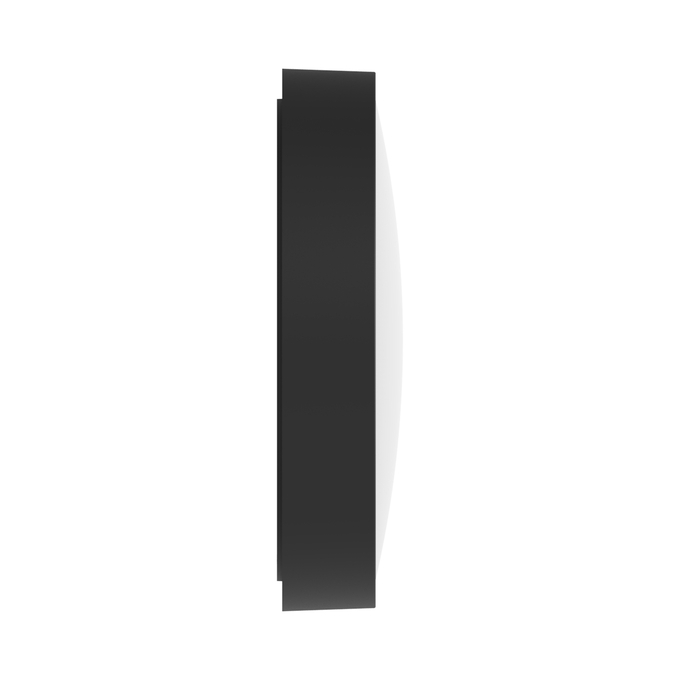

BLKH RD 250 P 9.5W ML 83040 BK
4099854286087
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver

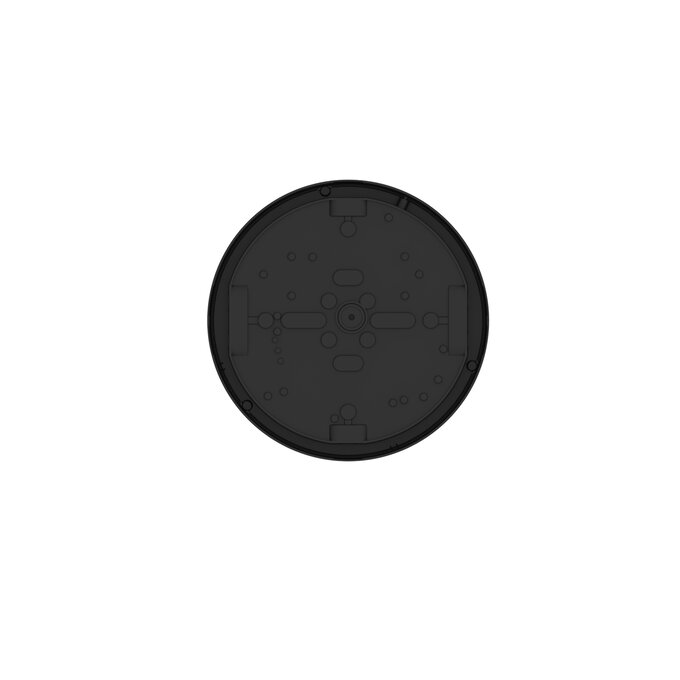

- Flexible mounting patterns for convenient installation
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- Suitable for use in emergency lighting systems (DC capable)
- Separate decor element available for an aesthetic and functional product design
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors, stairways, entrance areas
- Passages, underpasses
- Public areas
Product features
- UV-stabilized polycarbonate (PC) housing, PC-diffuser
- High luminous efficacy: > 120 lm/W for 3000 K and 4000 K
- Impact resistance: IK10
- Type of protection: IP65
- Push wire terminal for tool-free connection
- Through-wiring possible
Equipment / Accessories

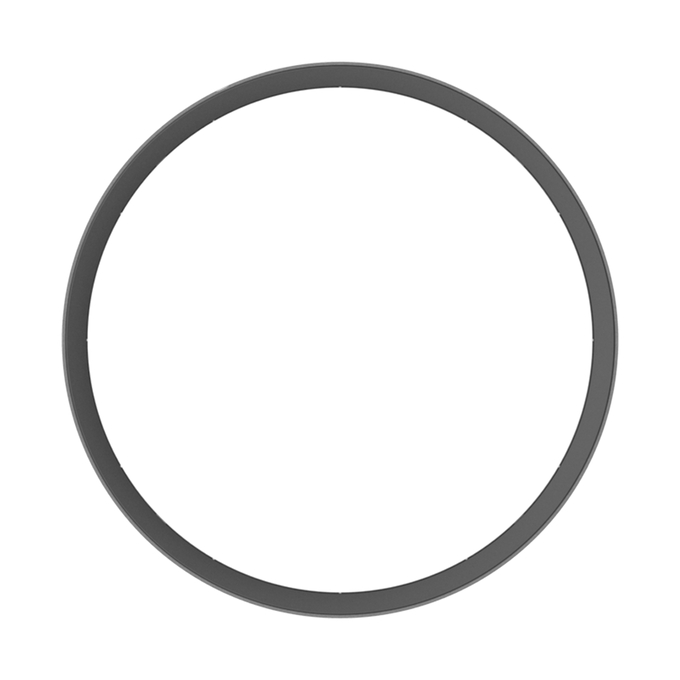

- Additional cover rings in different designs available
- Mounting screws and dowels included
- Anti-theft screw included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
5.5 W
129 lm/W
6.5 W
132 lm/W
8 W
132 lm/W
9.5 W
128 lm/W
Added function
EVERLO
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
262.00 mm
Dimmable
No
ECG - Output ripple current
< 5 %
EPD
LEDV-00029-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854286087
Height
73.00 mm
Housing color
Black
Inrush current
3.44 A
Inrush current time Th50
3.284 µs
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
55000 h 1)
Lifespan L90/B10 at 25 °C
40000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
128 lm/W / 132 lm/W / 129 lm/W 1)
Luminous flux
1220 lm / 1070 lm / 860 lm / 710 lm 1)
Luminous flux in emergency operation mode
1220 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
248
Max. number of luminaires per miniature circuit breaker C10
155
Max. number of luminaires per miniature circuit breaker C16
248
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
42…37…30…25 mA
Nominal voltage
220…240 V
Nominal wattage
9.5 W / 8 W / 6.5 W / 5.5 W 1)
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
350…300…250…200 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.80
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
680.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9005
Replaceable light source
Yes
Replaceable light source (EPREL)
Only by an expert
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Type of connection
Screwless terminal
Type of Emergency Lighting (EL)
EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test
None
Type of protection
IP65
Wattage in emergency operation mode
9.5 W
With light source
Yes
