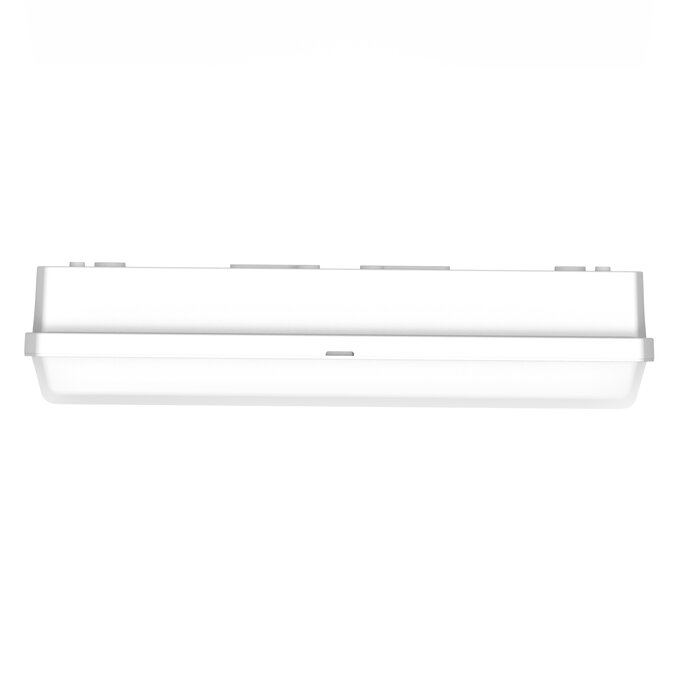

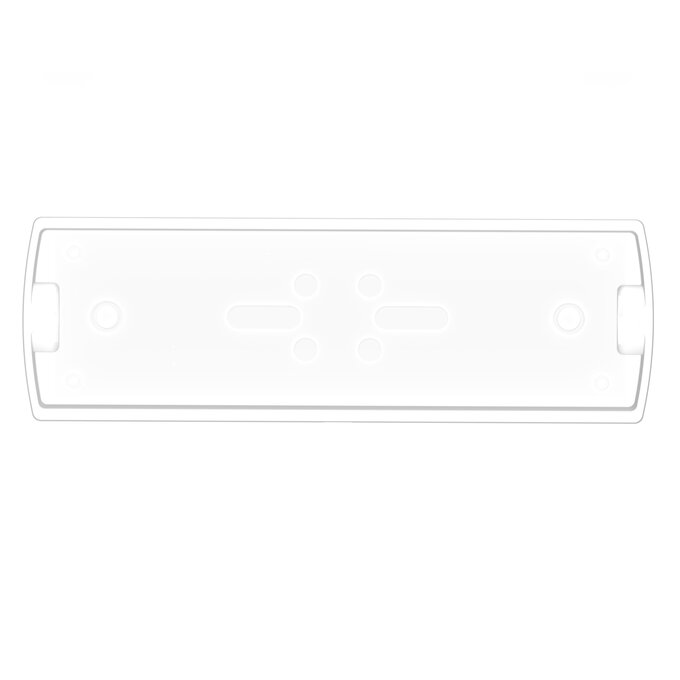

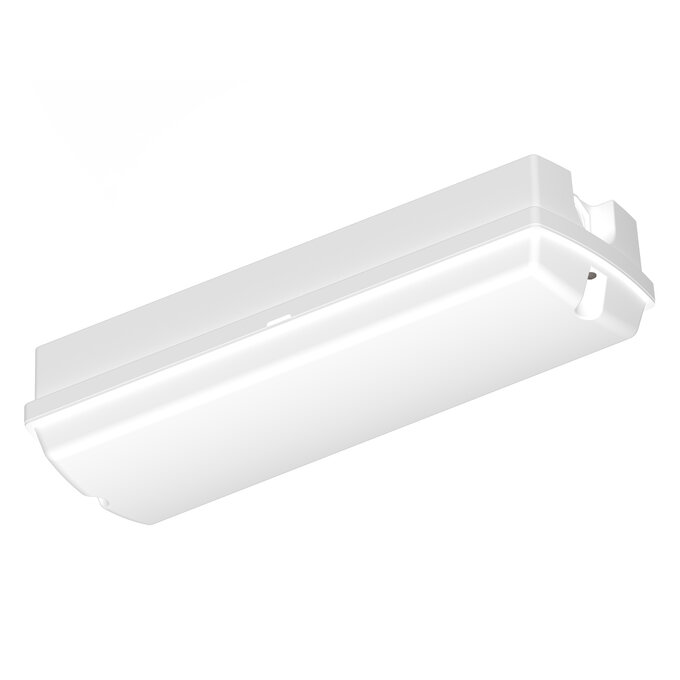

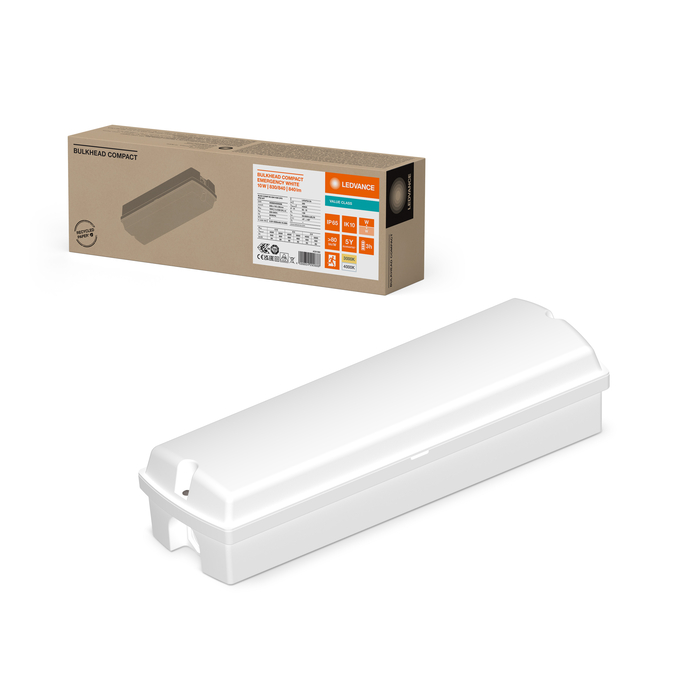

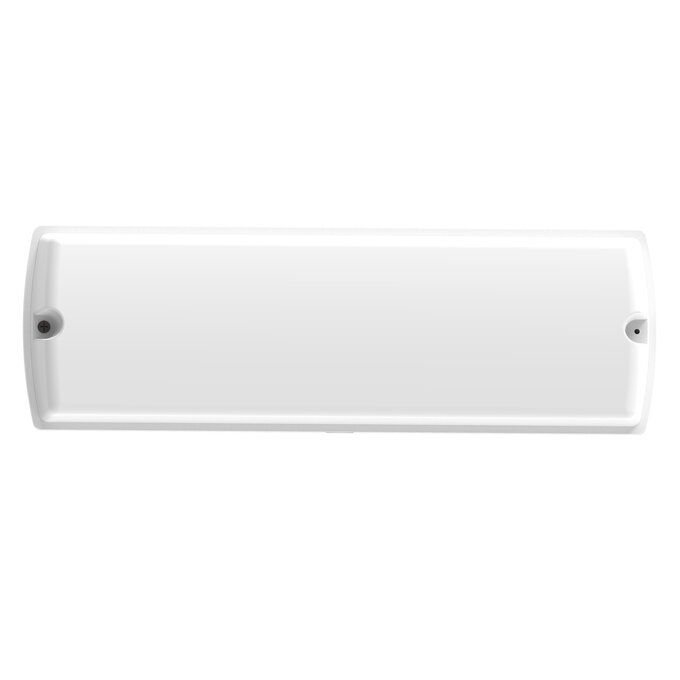

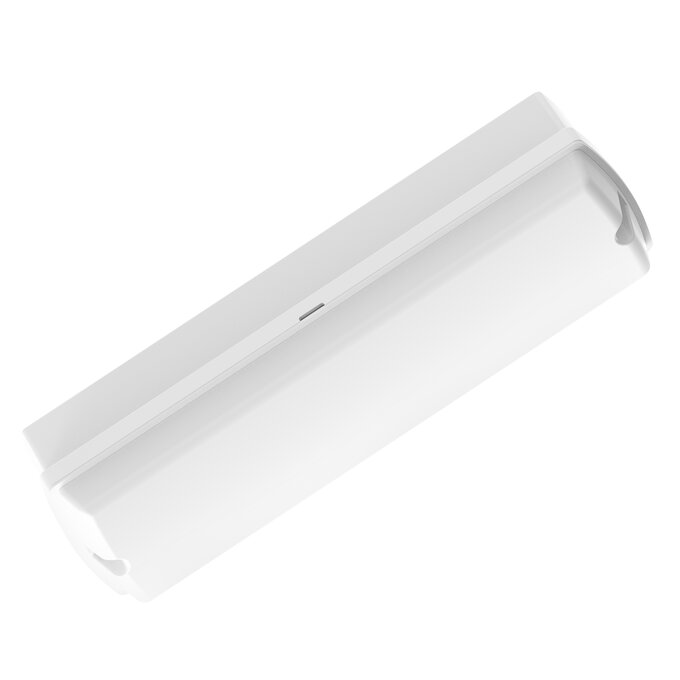

BLKH COMP RC EL V 10W ML 83040 WT
4099854290688
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- Seamless integration of luminaires with emergency lighting function into general lighting
- Easy wiring thanks to included prewired driver and battery for Emergency lighting function
- Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
- Convenient visualization of results of automatic test with an included control LED
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
Areas of application
- Emergency illumination of escape routes
- Antipanic lighting
- Buildings requiring up to 3 h emergency light operation
- Direct replacement for luminaires with fluorescent lamps
- Corridors, stairways, entrance areas
- Passages, underpasses
- Public areas
Product features
- Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
- Luminaire suitable for normal lighting and emergency lighting
- Self-contained luminaires
- Emergency lighting function: battery discharge time of 3 h
- Function test of emergency lighting: automatic (AT)
- Battery technology: LiFePO4
- Ambient temperature in operation: +5...+45 °C
- Type of protection: IP65
- Impact resistance: IK10
- Lifetime (L70/B50): 50,000 h (at 25 °C)
Equipment / Accessories
- Mounting screws and dowels included
- Anti-theft screw included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
10 W
80 lm/W
6 W
83 lm/W
8 W
82 lm/W
Added function
MULTI SELECT
Ambient temperature range
+5…+45 °C
Application environment
Outdoor
Area of emergency application
Anti-panic lighti
Ball shot safe
No
Battery charging time
24 h
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Beam angle
125 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 5 %
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854290688
Height
80.00 mm
Housing color
White
Inrush current
4 A
Inrush current time Th50
180 µs
Integrated test switch
No
Length
356.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
40000 h 1)
Lifespan L90/B10 at 25 °C
20000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
84 lm/W / 86 lm/W / 83 lm/W 1)
Luminous flux
840 lm / 690 lm / 500 lm 1)
Luminous flux in emergency operation mode
300 lm
Luminous flux in maintained operation mode
840 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
104
Max. number of luminaires per miniature circuit breaker C10
87
Max. number of luminaires per miniature circuit breaker C16
140
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal capacity of battery
4500 mAh
Nominal current
56…48…39 mA
Nominal voltage
220…240 V
Nominal voltage of battery
3.2 V
Nominal wattage
10 W / 8 W / 6 W 1)
Number of switching cycles
100000
Operating mode
Integrated LED driver
Output current
220…165…115 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.7
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
750.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 64 %
Type of Battery
LiFePO4
Type of connection
Screwless terminal
Type of emergency light operation
Non-maintain
Type of Emergency Lighting (EL)
EL unit (battery and controller) for decentral operation included
Type of emergency operation test
Automatic
Type of protection
IP65
Wattage in emergency operation mode
3 W
Wattage in maintained operation mode
10 W
Width
115.00 mm
With light source
Yes
