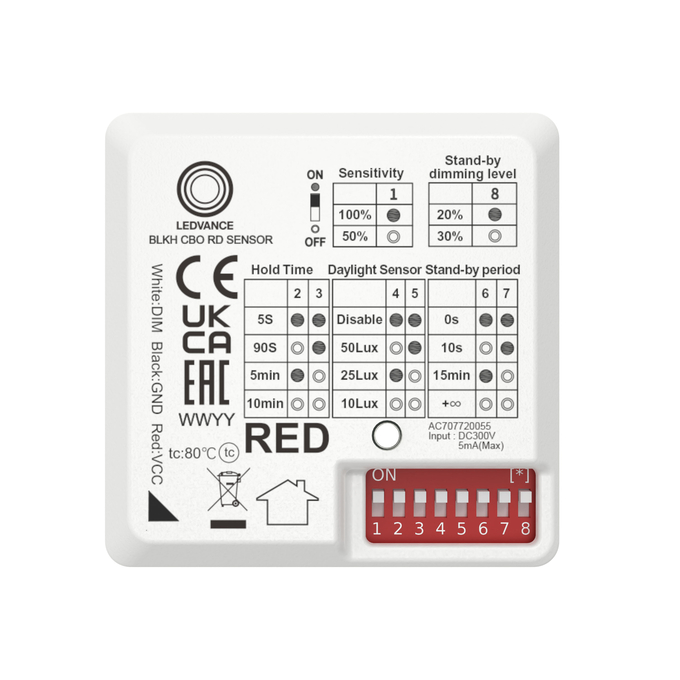

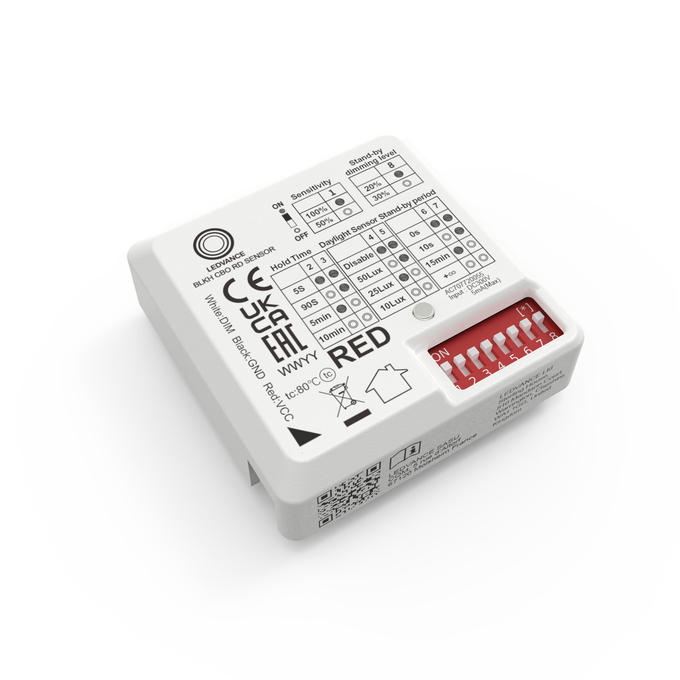

BLKH CBO RD SENSOR
4099854481093
Product benefits
- Plug & Upgrade concept to extend the On/Off luminaire to a sensor luminaire
- Multiple sensor settings by DIP switch: range, daylight detection, hold time and DIM-level /-period
Areas of application
- Suitable for BULKHEAD COMBO ROUND
References / Links
- For Guarantee see
Added function
PLUG & UPGRADE
Ambient temperature range
-20…+50 °C
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection range of motion sensor
4 m
Detection threshold of daylight sensor
10…50 lx
Dimmable
No
EPD
LEDV-00051-V01.01-EN
GTIN
4099854481093
Height
20.00 mm
Length
54.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
1.75 mA
Nominal voltage
300 V
Nominal wattage
0.60 W
Number of switching cycles
25000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
32.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Sensor controlled switching time
0 s…15 min
Sensor detection angle
30 ° x 150 °
Sensor technology
Microwave/Photocell
Temperature range at storage
-20…+80 °C
Type of connection
Screwless terminal
Type of protection
IP20
Type of sensor
Moti
Width
54.00 mm
