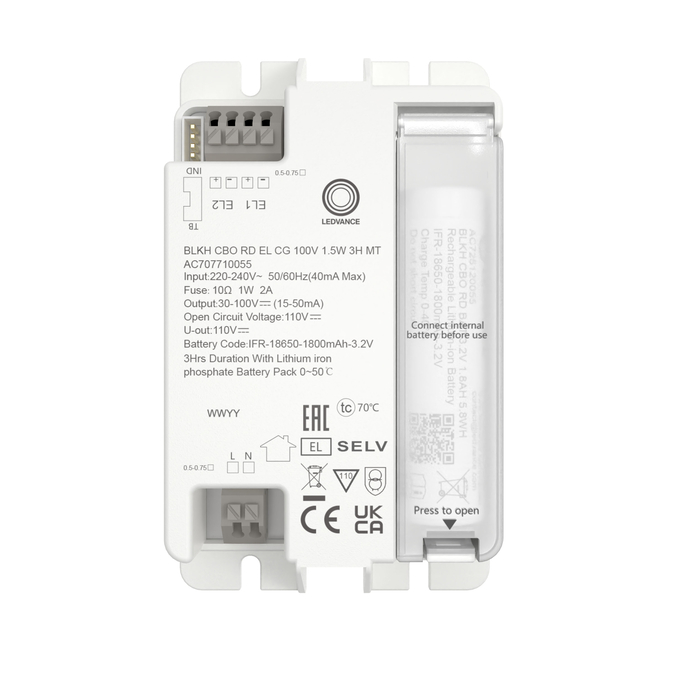

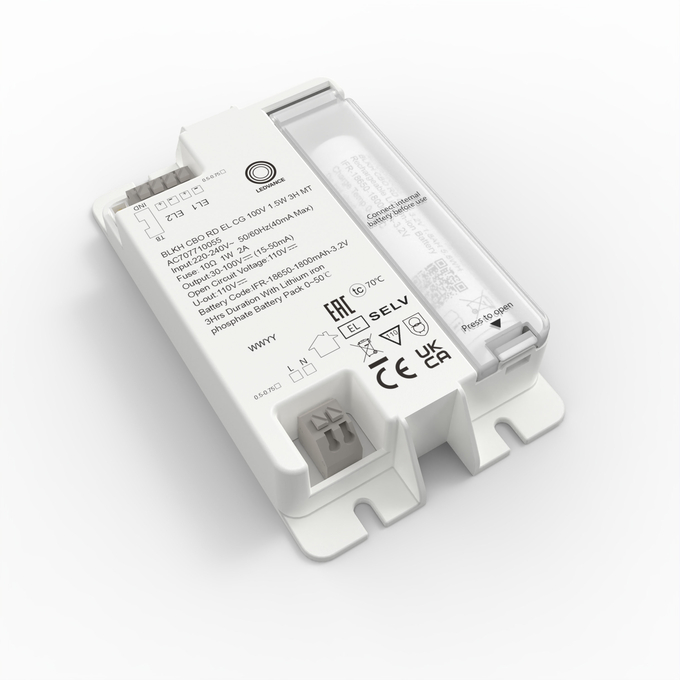

BLKH CBO RD EL CG 100V 1.5W 3h MT
4099854481055
Product benefits
- Plug & Upgrade concept to extend the On/Off luminaire to an emergency luminaire
- Easy maintenance due to manual self test function for emergency lighting
- Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h discharge time
- Easy battery replacement possible
- Modularly upgradeable Emergency kit reduces stock keeping complexity
Areas of application
- Suitable for BULKHEAD COMBO ROUND
- Buildings requiring up to 3 h emergency light operation
Product features
- Operation mode: maintained (M) or non-maintained (NM)
- Battery technology: LiFePO4
Equipment / Accessories
- Battery included
- Control LED with a retainer for recessed installation included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
References / Links
- For Guarantee see
Added function
PLUG & UPGRADE
Ambient temperature range
0…+40 °C
Battery life in emergency operation mode
3 h
Battery size [GMS]
Others
Body material
Polycarbonate (PC)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
ECG lifetime
40000 h
GTIN
4099854481055
Height
23.00 mm
Inrush current
4.2 A
Length
116.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
20 mA
Nominal voltage
220…240 V
Nominal wattage
1.50 W
Number of switching cycles
25000
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
> 0.3
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
145.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Surge capability (L/N-Ground)
1000 V
Temperature range at storage
-20…+80 °C
Type of Battery
LiFePO4
Type of connection
Screwless terminal
Type of emergency operation test
Test button
Type of protection
IP20
Wattage in maintained operation mode
1.5 W
Width
68.00 mm
