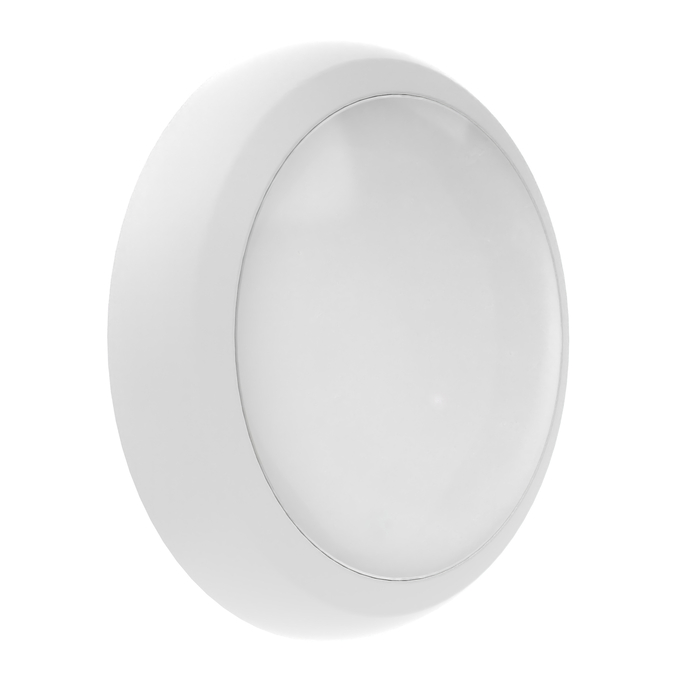

BLKH CBO RD 325 V 16W ML 8304057 WT
4099854480997
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver
- Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
- Suitable for use in dusty and damp locations thanks to high IP rating
- Suitable for use in public areas thanks to high IK rating
- Separate decor element available for an aesthetic and functional product design
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors, stairways, entrance areas
- Passages, underpasses
- Public areas
Product features
- High luminous efficacy: up to 125 lm/W
- Type of protection: IP65
- Impact resistance: IK10
- Luminous flux: up to 1920 lm
- Push wire terminal for tool-free connection
- Lifetime (L70/B50) up to 50,000 h (at 25 °C)
- Ambient temperature in operation: -20…+40 °C
- Through-wiring possible
Equipment / Accessories

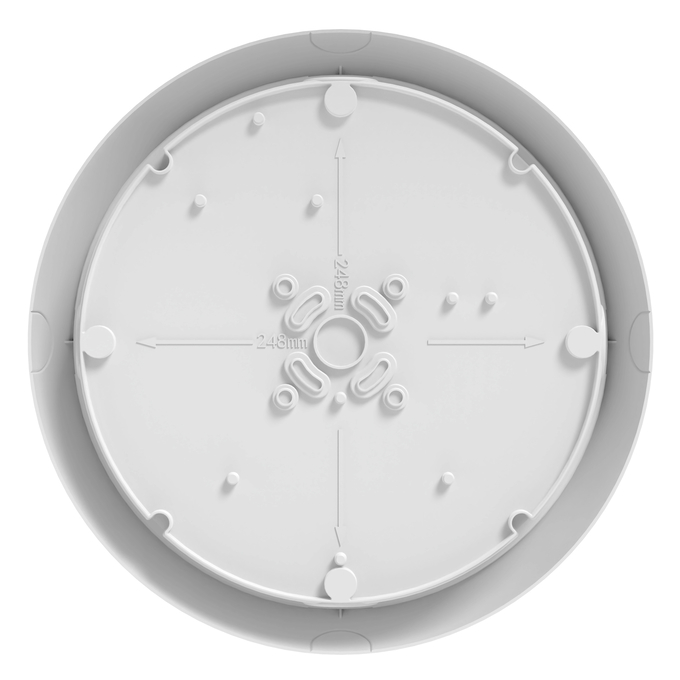

- Mounting screws and dowels included
- Plug & Upgrade high frequency sensor and emergency kit separately available
- Attachable half visor ring available separately
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see
13 W
116 lm/W
16 W
110 lm/W
9 W
120 lm/W
Added function
MULTI SELE
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
3000 K / 4000 K / 5700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Acrylonitrile butadiene styrene (ABS)

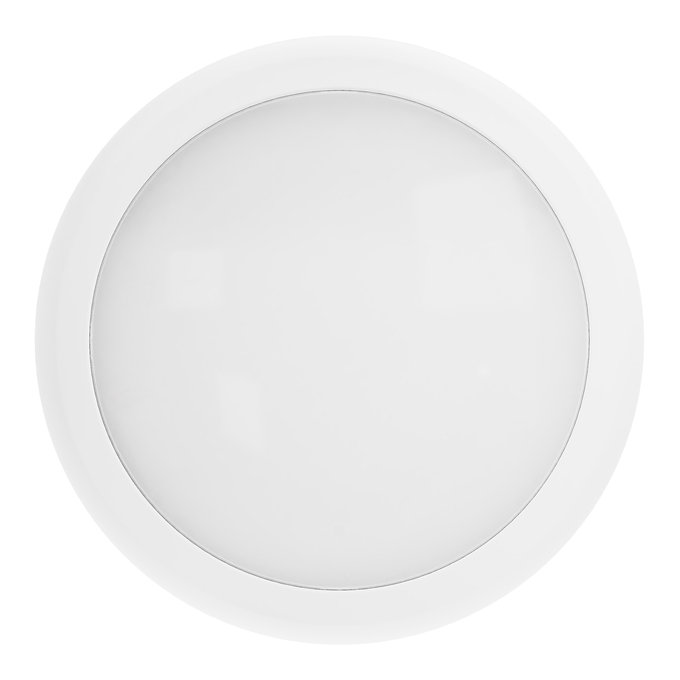

Diameter
325.00 mm
Dimmable
No
ECG - Output ripple current
5 %
EPD
LEDV-00051-V01.01-EN
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854480997

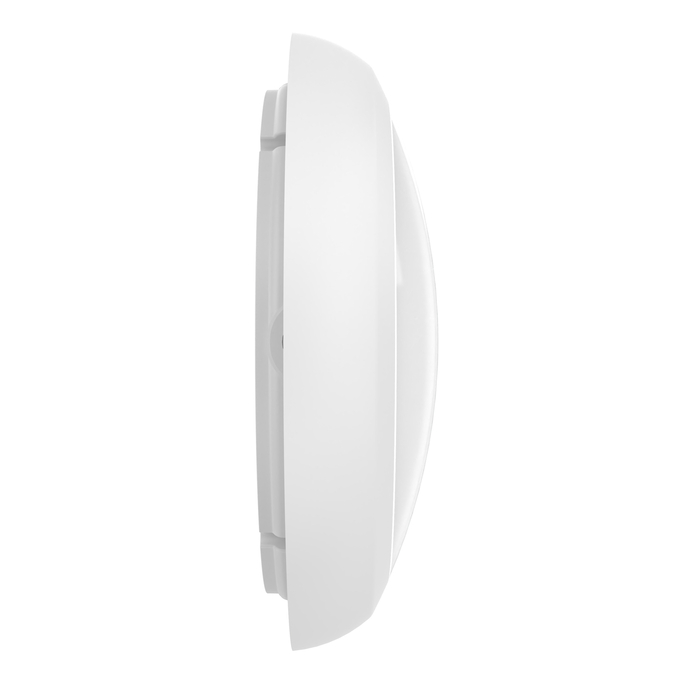

Height
90.00 mm
Housing color
White
Inrush current
2 A
Inrush current time Th50
400 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
50000 h 1)
Lifespan L90/B10 at 25 °C
20000 h
Light color (designation)
Warm Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W / 124 lm/W / 125 lm/W
Luminous flux
1920 lm / 1612 lm / 1125 lm
Luminous flux in emergency operation mode
150 lm
Luminous intensity
700 cd
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
40
Max. number of luminaires per miniature circuit breaker C10
24
Max. number of luminaires per miniature circuit breaker C16
40
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceili
Mounting type
Surface
Nominal current
90mA / 75mA / 55 mA
Nominal voltage
220…240 V
Nominal wattage
16.0 W / 13 W / 9 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Output current
170mA/140mA/95 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.70
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
710.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
RAL Color (most similar)
RAL 9003
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
42.2 %
Type of connection
Screwless terminal
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Type of emergency operation test
None
Type of protection
IP65
Wattage in emergency operation mode
1.5 W
With light source
Yes
