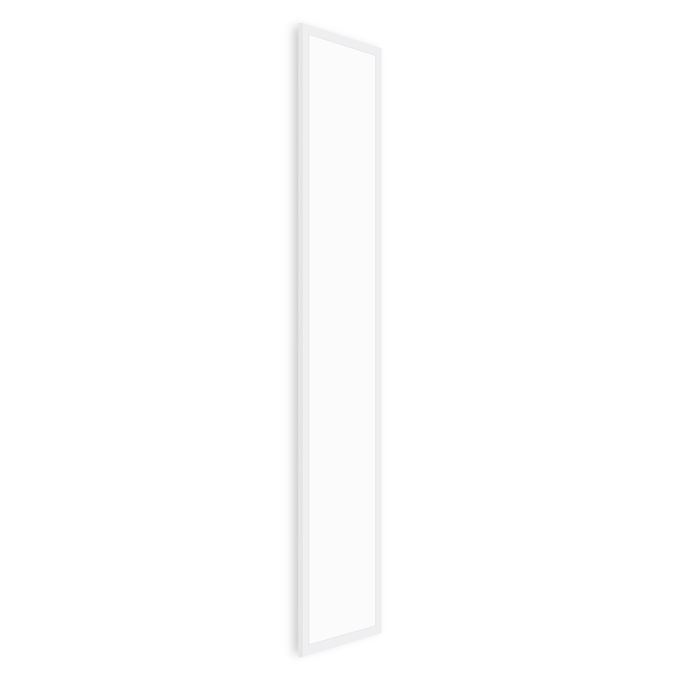

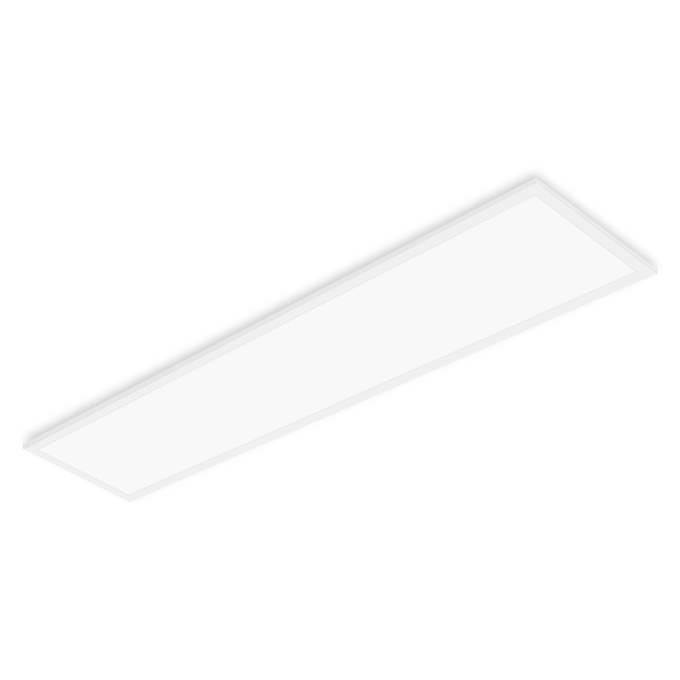

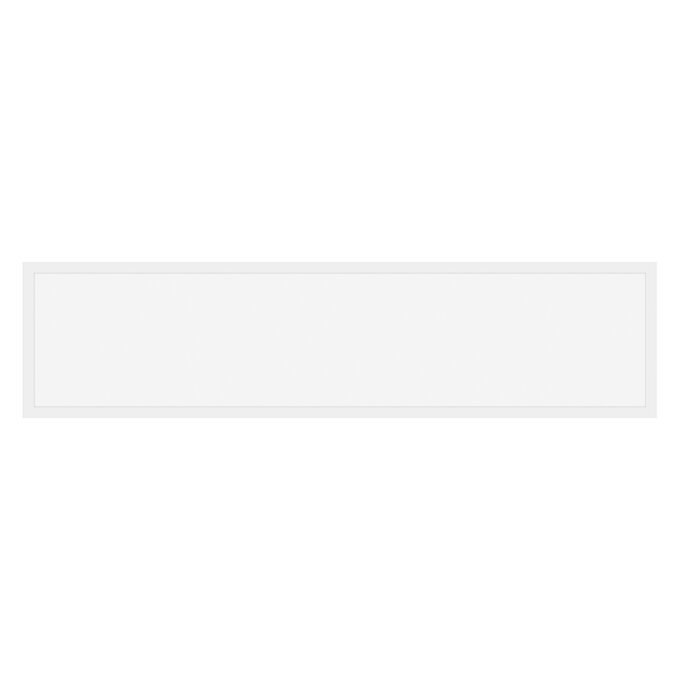

BIOLUX HCL PL 1200 S 37W TW ZB
4058075724587
Product benefits
- Suitable luminaire for BIOLUX, VIVARES and other Zigbee 3.0 light management systems for simple integration into partner systems
- Compatible with VIVARES cloud services
- Through-wiring possible with included connector box
- Good glare reduction (UGR ≤ 19)
- Low flicker light thanks to special electronic control gear
- 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
Areas of application
- Available for grid sizes of 600 x 600 mm, 625 x 625 mm and 1200 x 300 mm
- BIOLUX HCL system: Lighting solution for single office areas with up to 48 BIOLUX HCL products
- VIVARES Zigbee system: Open-plan office solution for up to 200 BIOLUX HCL products
- Hotel and office rooms with little daylight
- Nursery and elderly homes
Product features
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Very high color rendering index Ra: > 90
- Initial color consistency: 3 SDCM
- High luminous efficacy: up to 110 lm/W
Equipment / Accessories
- Connector box with 5-pole terminal included
- External control gear included
- LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
- LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
- Accessories for several mounting options available
Legal advice
- The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
- Important operating notice and legal disclaimer: This product is intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
- For Guarantee see
Added function
VIVAR
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
2700…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
Dimming range
0…100 %
ECG - Height
35 mm
ECG - Length
160 mm
ECG - Output ripple current
< 20 %
ECG - Width
70,0 mm
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075724587
Height
11.00 mm
Housing color
White
Inrush current
8.8 A
Inrush current time Th50
88 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Length
1195.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
40000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Tunable White
Light emitting surface material
PMMA
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
4100 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
74
Max. number of luminaires per miniature circuit breaker C10
46
Max. number of luminaires per miniature circuit breaker C16
74
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
50,0 mm
Mounting length
1190 mm
Mounting location
Ceiling
Mounting type
Recessed
Mounting width
290,0 mm
Nominal current
190.000 mA
Nominal voltage
220…240 V
Nominal wattage
37.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
1100 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
3220.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9016
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
ZIGBEE
Type of protection
IP20/IP20
UGR
< 19
Width
295.00 mm
With light source
Yes
