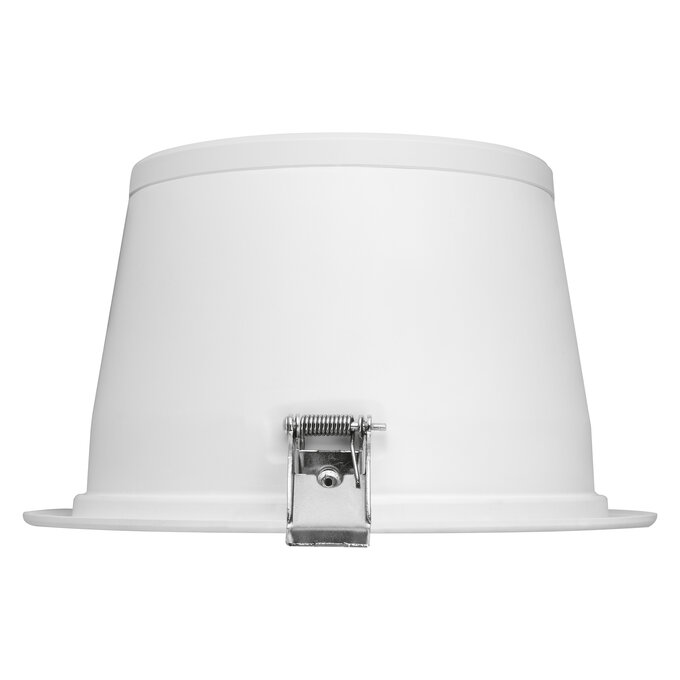

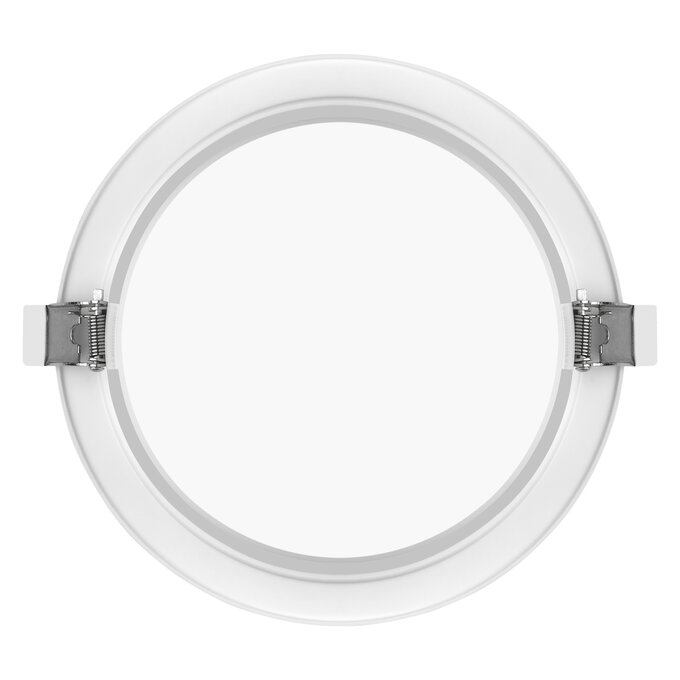

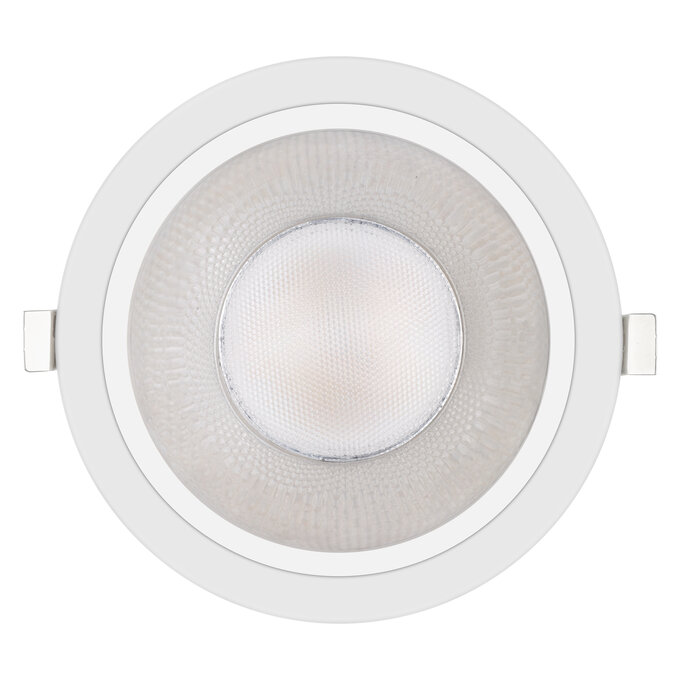

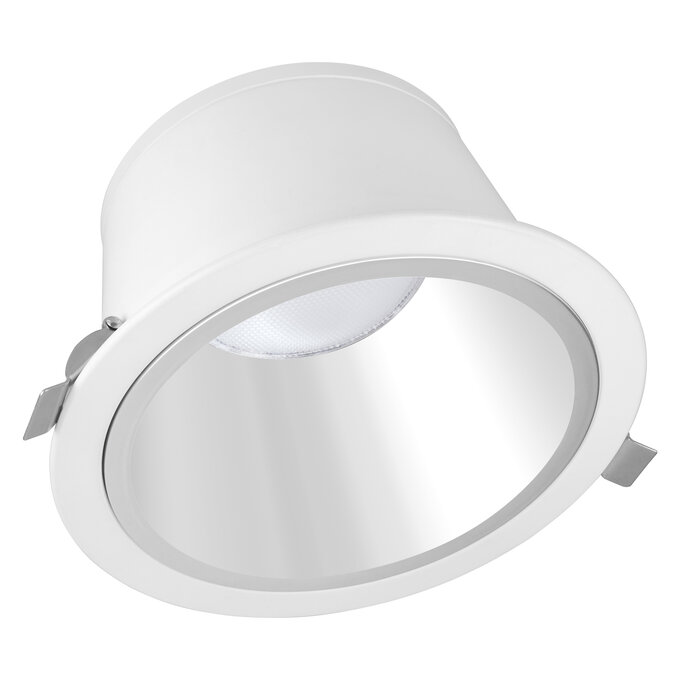

BIOLUX HCL DL DN150 ZB 20W 2700-6500K
4058075400733
Product benefits
- Enables an individual lighting solution in combination with compatible Zigbee HCL lighting controls
- Biologically optimized lighting by adapting artificial light to natural daylight course
- 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
- Can support working with more concentration
- Good glare reduction (UGR ≤ 19)
Areas of application
- Lighting solution for up to 40 BIOLUX HCL luminaires - BIOLUX HCL LED strips combined mit BIOLUX HCL control unit
- Open-plan office solution for up to 200 BIOLUX HCL luminaires combined with VIVARES ZIGBEE control unit
- Hotel and office rooms with little daylight
Product features
- Zigbee 3.0 certified Tunable White luminaires - LED strips for simple integration into partner systems
- Ready for connection to BIOLUX HCL and VIVARES ZIGBEE control unit
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Wireless communication between control unit and luminaries via Zigbee protocol
- Very high color rendering index Ra: > 90
Equipment / Accessories
- LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
- LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
Legal advice
- The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
- Important operating notice and legal disclaimer: This product is exclusively intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
- For Guarantee see
Ambient temperature range
-20…+40 °C
Beam angle
60 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
2700…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Cover material
Polycarbonate (PC)
Diameter
175.40 mm
Dimmable
Yes
Dimming interface
Zigbee 3.0
Flickering metric (Pst LM)
-
GTIN
4058075400733
Height
98.90 mm
Input voltage range
220…240 V
Inrush current
20 A
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminous efficacy
90 lm/W
Luminous flux
1800 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Nominal current
93 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Number of switching cycles
50000
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
550.00 g
Protection class
II
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Standard deviation of color matching
≤3 sdcm
Starting time
< 0.5 s
Stroboscope effect metric (SVM)
-
Suitable for emergency lighting
No
Temperature range in operation
-20…+40 °C
Total harmonic distortion
< 20 %
Type of current
AC
Type of protection
IP20
