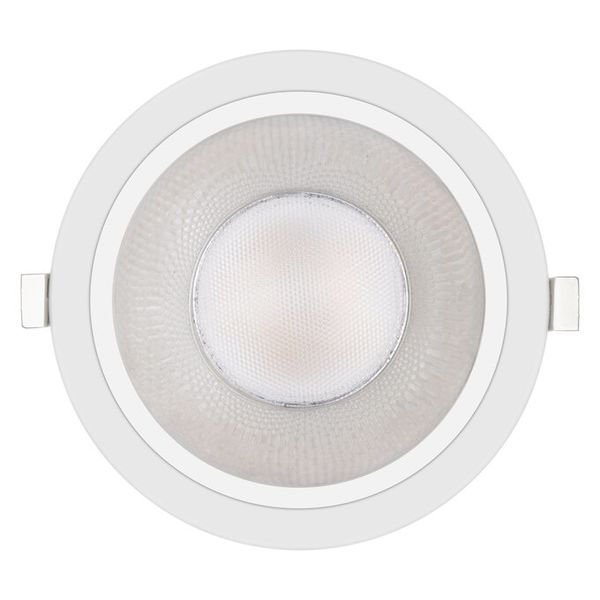

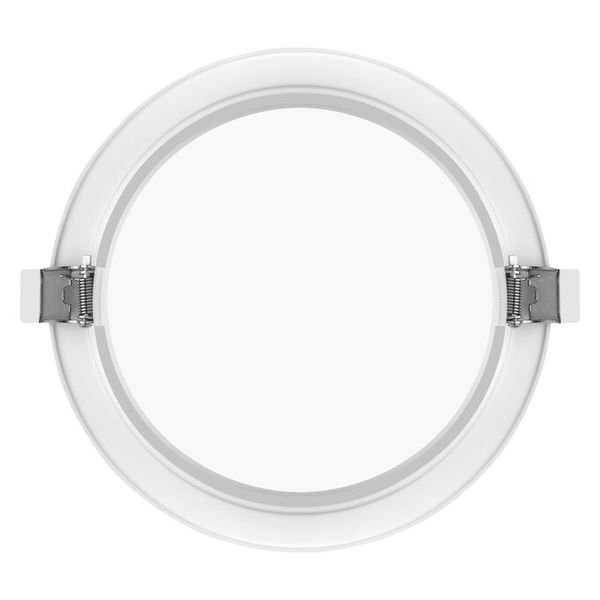

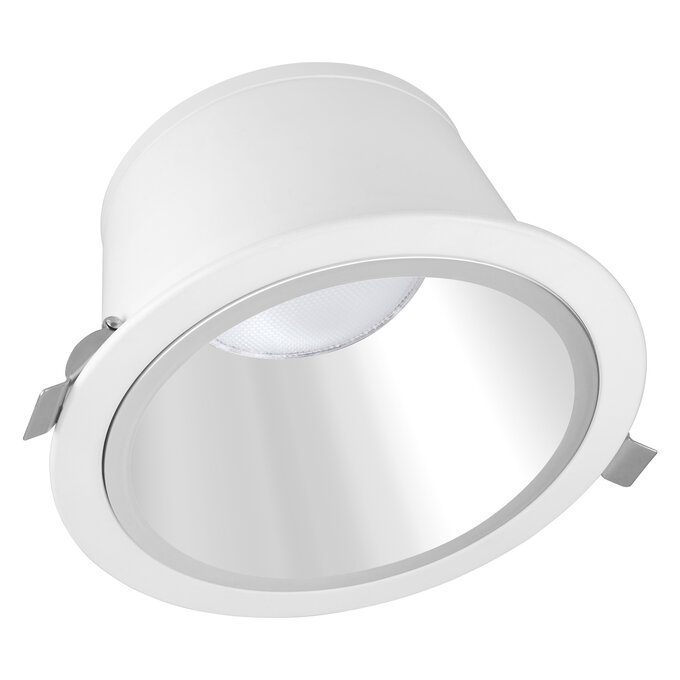

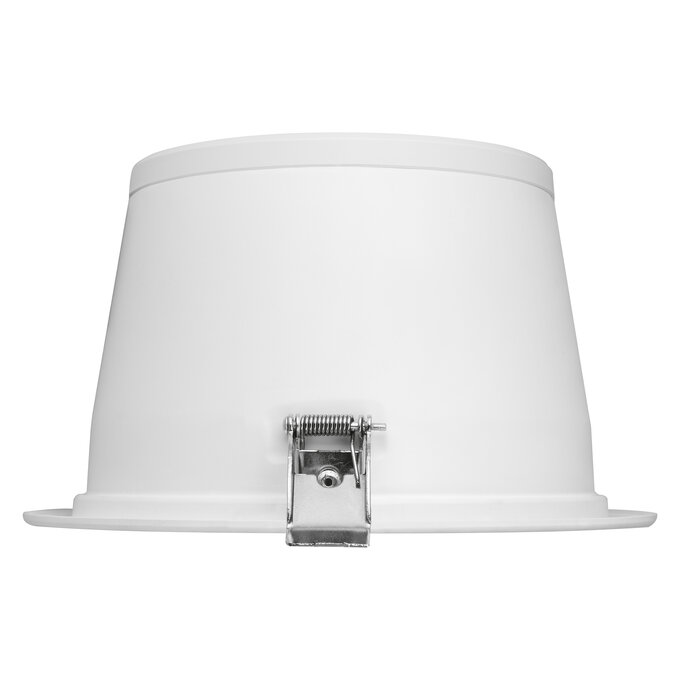

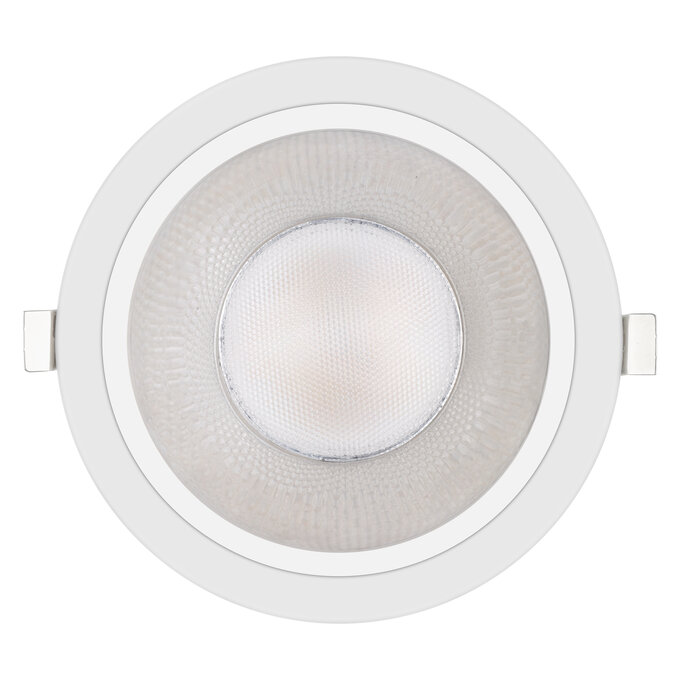

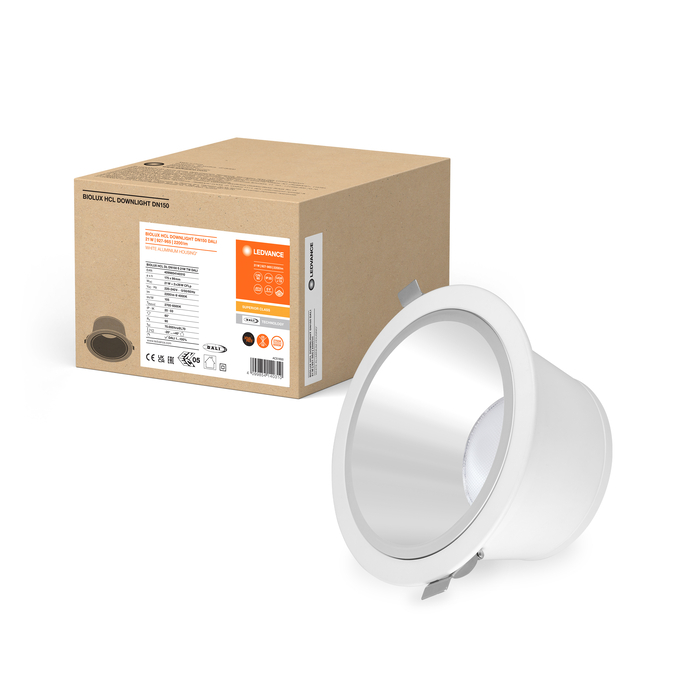

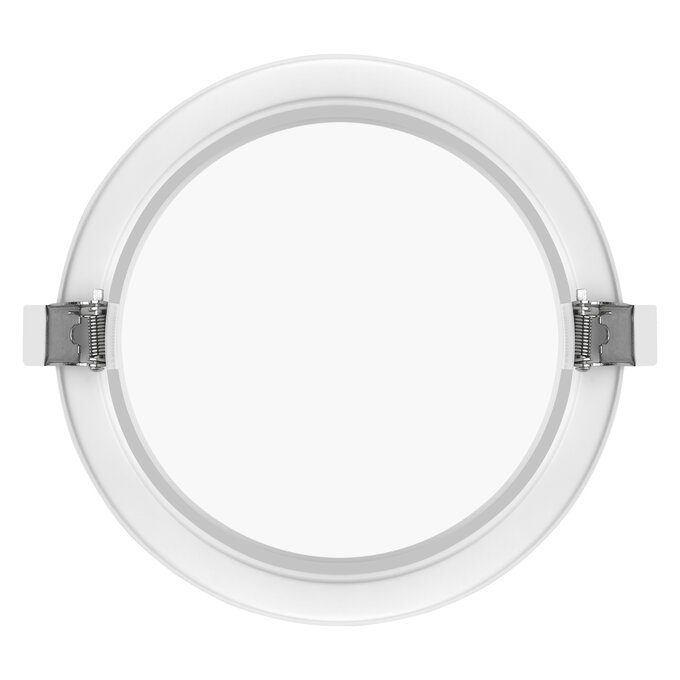

BIOLUX HCL DL DN150 S 21W TW DALI
4099854140310
Product benefits
- Suitable luminaire for VIVARES DALI, VIVARES DALI HCL and other DALI-2 light controls
- Enables an individual Tunable White lighting solution in combination with compatible DALI-2 lighting controls
- Light quality of CRI 90 supports increased well-being in HCL applications
- 7 year system guarantee when operated in a VIVARES DALI system
- Compatible with VIVARES CLOUD SERVICE for energy monitoring
- Through-wiring possible with included cable clamp
- External DALI-2 driver for extended flexibility and easy installation
- Good glare reduction (UGR ≤ 19)
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Offices, conference rooms
- Reception areas, foyers and corridors
Product features
- IoT-ready luminaire with DALI-2 technology
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Very high color rendering index Ra: > 90
- Suitable for central battery emergency installations acc. to EN 60598-2-22
Equipment / Accessories
- External control gear included
- Cable clamp for through wiring preinstalled
References / Links
- For Guarantee see
Added function
VIVAR
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
60 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
2700…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
175.00 mm
Dimmable
Yes
Dimming range
1…100 %
ECG - Height
25 mm
ECG - Length
215 mm
ECG - Output ripple current
< 1 %
ECG - Width
92 mm
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854140310
Height
99.00 mm
Housing color
White
Inrush current
19 A
Inrush current time Th50
200 µs
IoT ready
Support of DALI data type PART 251, 252, 253 1)
Lifespan L70/B50 at 25 °C
70000 h 1)
Lifespan L80/B10 at 25 °C
40000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Tunable White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
105 lm/W
Luminous flux
2200 lm
Mains frequency
0/50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
23
Max. number of luminaires per miniature circuit breaker C10
23
Max. number of luminaires per miniature circuit breaker C16
36
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
125,0 mm
Mounting diameter
160 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
110.000 mA
Nominal voltage
220…240 V
Nominal wattage
21.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
550 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
650.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
3 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of dimming
DALI-2
Type of protection
IP20
UGR
< 19
With light source
Yes
