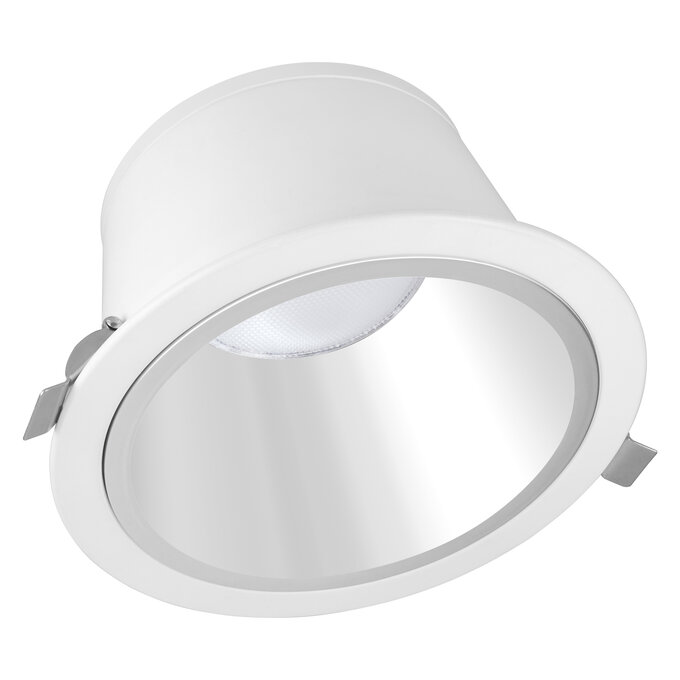

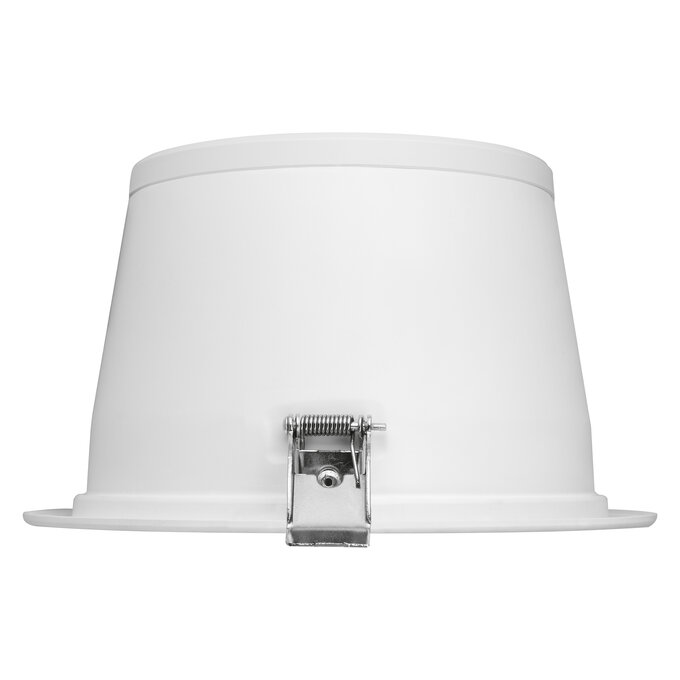

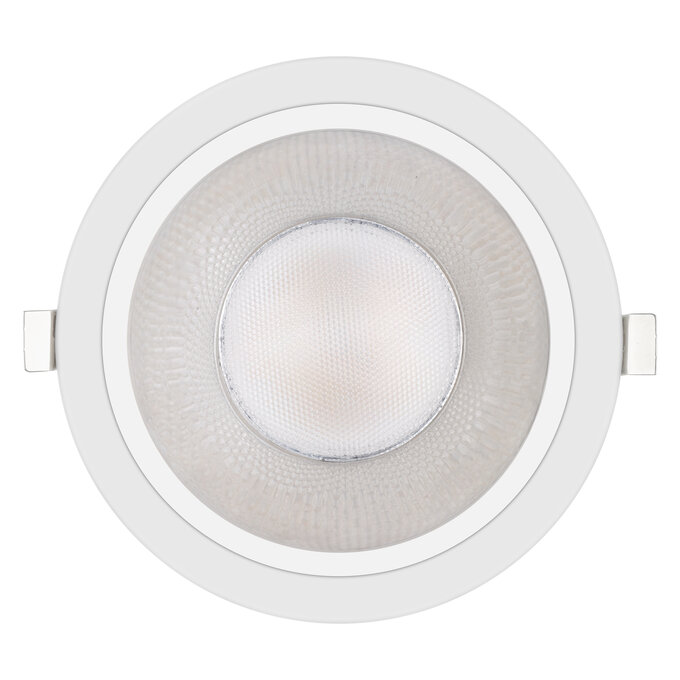

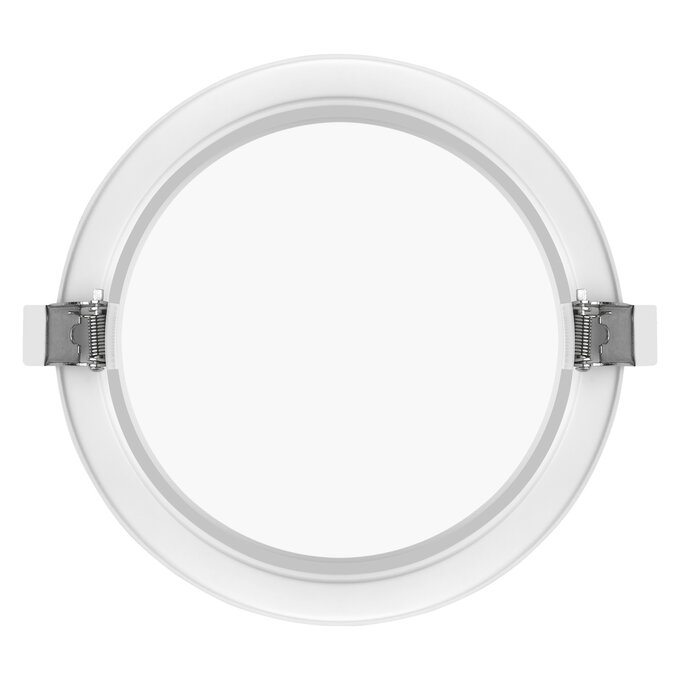

BIOLUX HCL DL DN150 S 20W TW ZB
4058075724600
Product benefits
- Luminaire suitable for VIVARES ZIGBEE, BIOLUX HCL and other Zigbee 3.0 light controls
- Individual Tunable White or HCL light through connection to compatible Zigbee 3.0 controls
- Light quality of CRI 90 supports increased well-being in HCL applications
- 7 year system guarantee when operated in a BIOLUX HCL or VIVARES ZIGBEE system
- Compatible with VIVARES CLOUD SERVICE for energy monitoring
- External Zigbee driver for extended flexibility and easy installation
- Good glare reduction (UGR ≤ 19)
Areas of application
- Direct replacement for luminaires with compact fluorescent lamps
- Offices, conference rooms
- Nursery and elderly homes
- Reception areas, foyers and corridors
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Housing material: Aluminum mirror-finished reflector
- Connector box with push wire terminal for tool-free connection
- Through-wiring possible
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Very high color rendering index Ra: > 90
Equipment / Accessories
- Connector box with 5-pole terminal included
- External control gear included
- LEDVANCE BIOLUX app required for commissioning of the BIOLUX HCL system only (available for Android and iOS)
- LEDVANCE VIVARES app for project planning and required for commissioning of the VIVARES ZIGBEE system only (available for Android and iOS)
Legal advice
- The use of the LEDVANCE BIOLUX- / VIVARES-app is exclusively subject to the LEDVANCE BIOLUX- - VIVARES-app Terms of Use, which are displayed during installation of the app and are available in the app
Safety advice
- Important operating notice and legal disclaimer: This product is intended for operation as part of a BIOLUX HCL system (BIOLUX HCL- or VIVARES ZIGBEE control unit in combination with BIOLUX HCL-Luminaire(s) / BIOLUX HCL LED strips including built-in or supplied firmware/software). LEDVANCE GmbH assumes no responsibility, liability, warranty or guarantee for the operation of the product in combination or conjunction with third-party products or other products that are not BIOLUX HCL- / VIVARES ZIGBEE system products.
References / Links
- For Guarantee see
Added function
VIVAR
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
60 °
Body material
Aluminum
Color rendering index Ra
≥90
Color temperature
2700…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Diameter
175.00 mm
Dimmable
Yes
Dimming range
1…100 %
ECG - Height
33 mm
ECG - Length
160 mm
ECG - Output ripple current
< 20 %
ECG - Width
70 mm
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075724600
Height
99.00 mm
Housing color
White
Inrush current
7.84 A
Inrush current time Th50
91 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
40000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Tunable White
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
105 lm/W
Luminous flux
2100 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
145
Max. number of luminaires per miniature circuit breaker C10
92
Max. number of luminaires per miniature circuit breaker C16
147
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
125 mm
Mounting diameter
160 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
95.000 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Number of switching cycles
50000
Operating mode
External LED driver
Output current
550 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
570.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤3 sdcm
Stroboscope effect metric (SVM)
≤ 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of dimming
ZIGBEE
Type of protection
IP20
UGR
≤ 19
With light source
Yes
