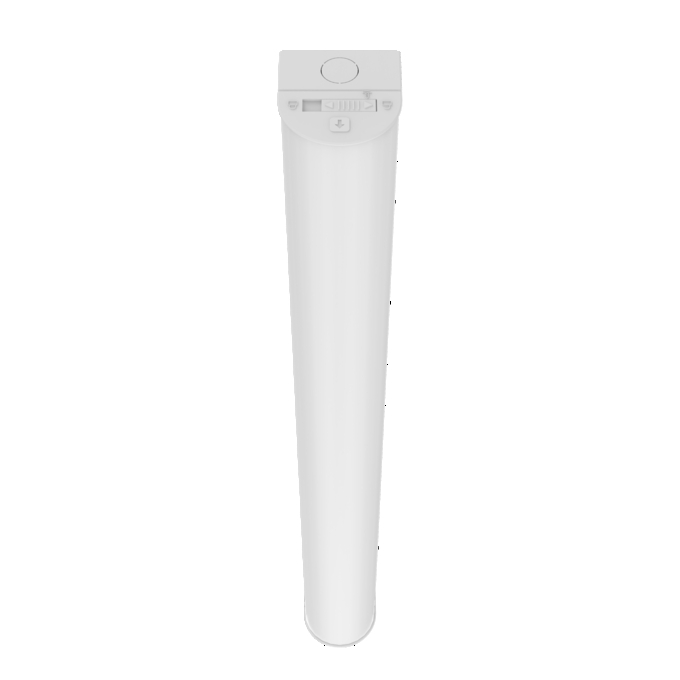

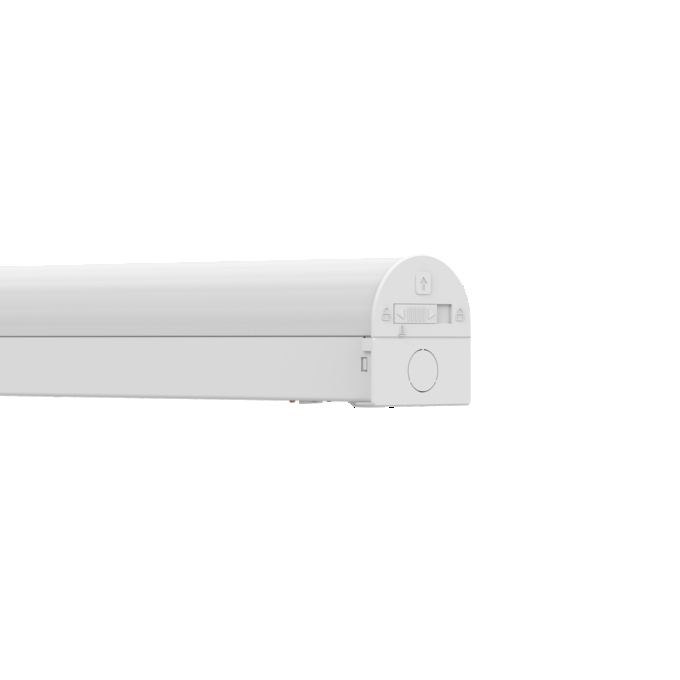

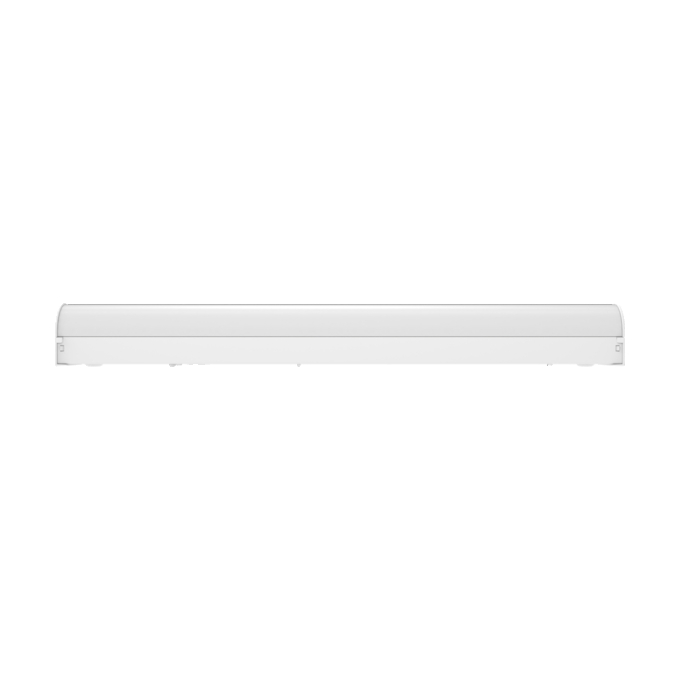

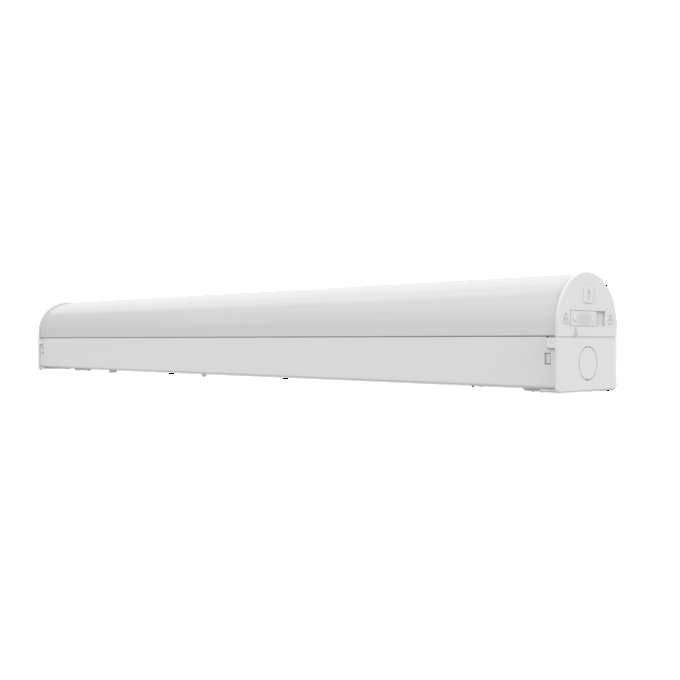

BAT CBO 600 V 18W ML 84065 WT
4099854528910
Product benefits
- Highly versatile due to selectable CCT and lumen steps (Multi Select) on the driver

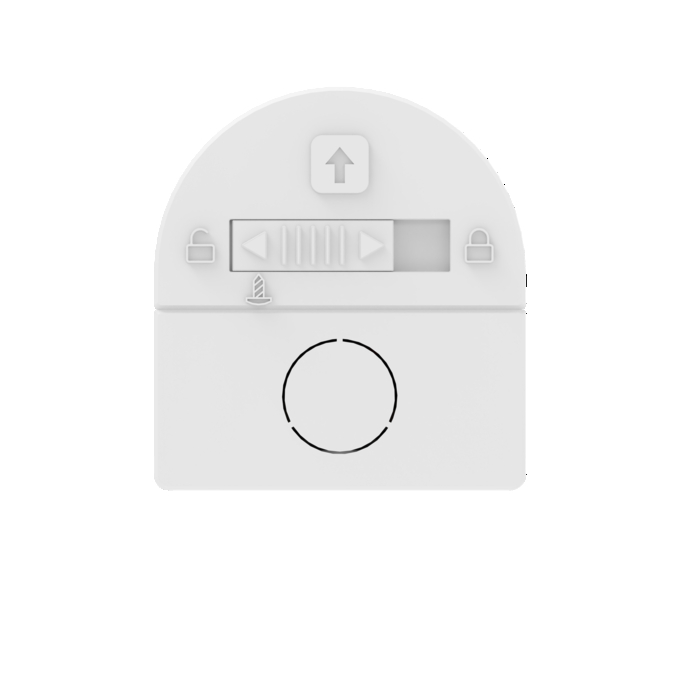

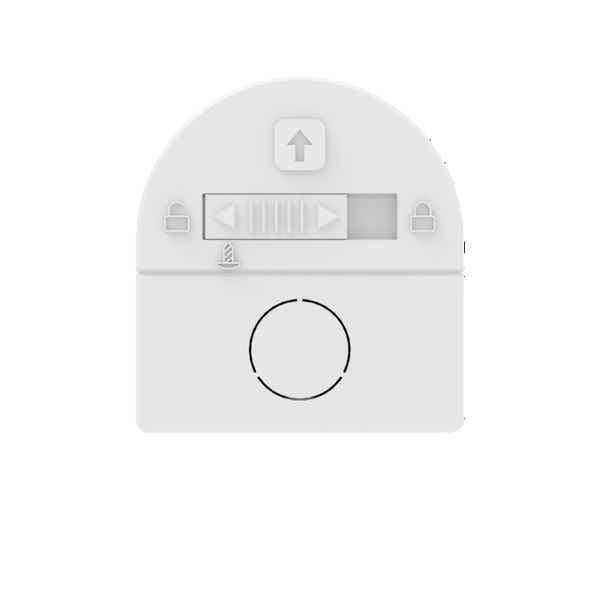

- Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
- Replacement of conventional T8 luminaires with up to 9,750 lm
- Robust structure with IK08
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Corridors, stairwells, basements
- Industrial and storage facilities
- Public areas
- Indoor applications
Product features
- High luminous efficacy: up to 153 lm/W
- Luminous flux: up to 9,750 lm
- Impact resistance: IK08
- Push wire terminal for tool-free connection
- Lifetime (L70/B50): up to 54,000 h (at 25 °C)
- Ambient temperature in operation: -20…+40 °C
- Through wiring possible
Equipment / Accessories
- Plug & Upgrade high frequency sensor and emergency kit separately available
- DP BAT CBO EL KIT only compatible with 1200, 1500 and 1800 versions (not with 600 version)
- Mounting screws and dowels included
Safety advice
- Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
18 W
150 lm/W
9 W
153 lm/W
Added function
MULTI SELECT
Adjustable
No
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
ECG - Output ripple current
< 5 %
EPD
LEDV-00063-V01.01-EN
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854528910
Height
70.00 mm
Housing color
White
Inrush current
9.75 A
Inrush current time Th50
94 µs
Length
618.80 mm
Lifespan L70/B50 at 25 °C
54000 h 1)
Lifespan L80/B10 at 25 °C
42000 h 1)
Lifespan L90/B10 at 25 °C
32000 h
Light color (designation)
Cool Whi
Light emitting surface material
Polycarbonate (PC)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminous efficacy
150 lm/W / 153 lm/W
Luminous flux
2700 lm / 1380 lm
Luminous flux in emergency operation mode
300 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
72
Max. number of luminaires per miniature circuit breaker C10
61
Max. number of luminaires per miniature circuit breaker C16
98
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
90mA / 50 mA
Nominal voltage
220…240 V
Nominal wattage
18 W / 9 W
Number of switching cycles
25000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.70
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
720.00 g
Protection class
I
Protection class IK (shock resistance)
IK08
RAL Color (most similar)
RAL 9003
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Type of connection
Push-in
Type of Emergency Lighting (EL)
Optional EL unit (battery and controller) for decentral operation available separately
Wattage in emergency operation mode
2 W
Width
64.00 mm
With light source
Yes
