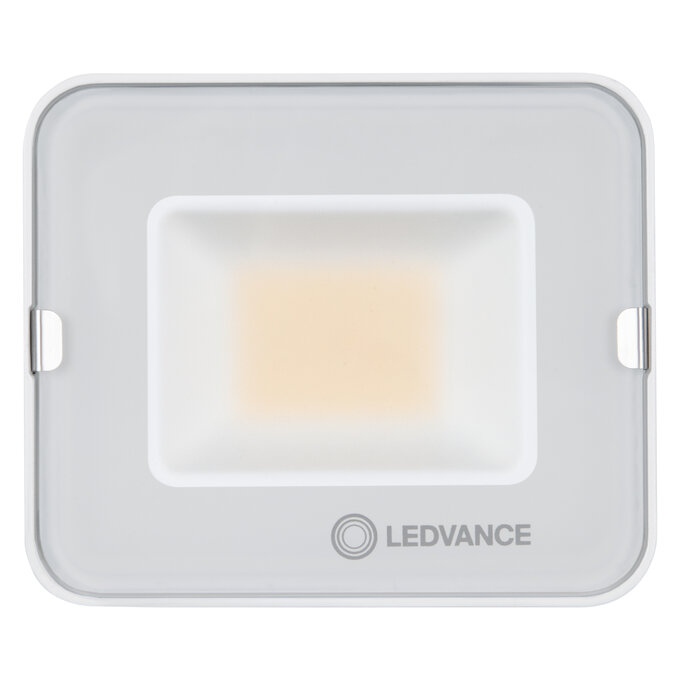

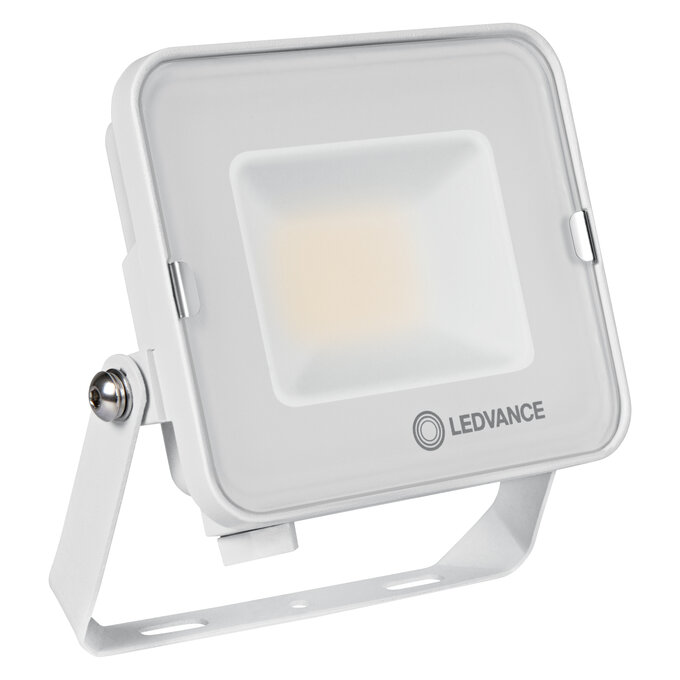

FL COMP V 20W 840 SYM 100 WT
4058075574793
Product benefits
- Robust, yet light and compact design
- Safe and very uniform illumination, due to frosted and tempered glass diffuser
- No upper light output ratio (ULOR 0%) when mounted at 0° tilt
- Energy savings of up to 90 % compared to halogen lamp floodlights
- 3 years guarantee
Areas of application
- Replacement for floodlights with halogen lamps
- Outdoor use (IP65)
- Public areas
- Building facades
- Gardens, balconies and other outdoor areas
- Construction areas
Product features
- Reflector-based, symmetric light distribution with 100° x 100° beam angle

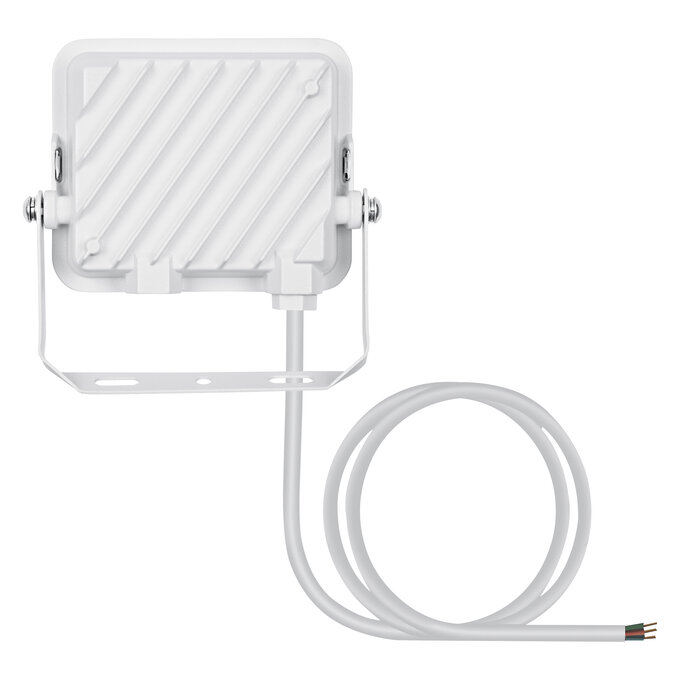

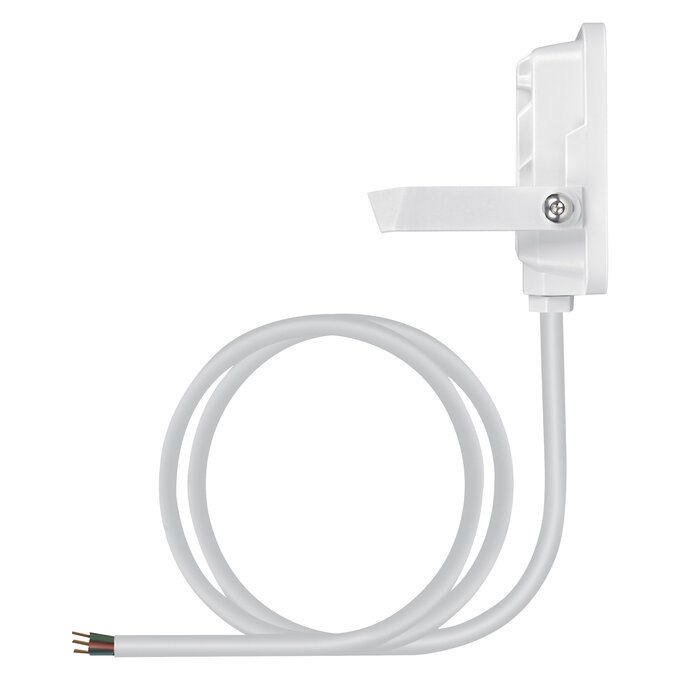

- Mounting bracket with 30° angle and wide rotation area
- Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
Safety advice
- The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire must be disposed of.
- Terminal block not included. Installation must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see
Adjustable
Yes
Ambient temperature range
-30…+45 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
100 ° x 100 °
Body material
Aluminum
Cable length
1000 mm
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Tempered glass
Dimmable
No
EPD
LEDV-00054-V01.01-EN
Flickering metric (Pst LM)
-
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075574793
Height
29.00 mm
Housing color
White
Inrush current
6 A
Inrush current time Th50
1.3 µs
Length
124.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Lifespan L80/B10 at 25 °C
35000 h 1)
Lifespan L90/B10 at 25 °C
25000 h
Light color (designation)
Cool White
Light emitting surface material
Glass
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Low flicker
Yes
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
2000 lm
Luminous intensity
-
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
90
Max. number of luminaires per miniature circuit breaker C10
66
Max. number of luminaires per miniature circuit breaker C16
105
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Po
Mounting type
Surface
Nominal current
97 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
320.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
-
Temperature range at storage
-40…+70 °C
Total harmonic distortion
< 20 %
Type of connection
Cable, 3-pole
Type of protection
IP65
Width
122.00 mm
With light source
Yes
