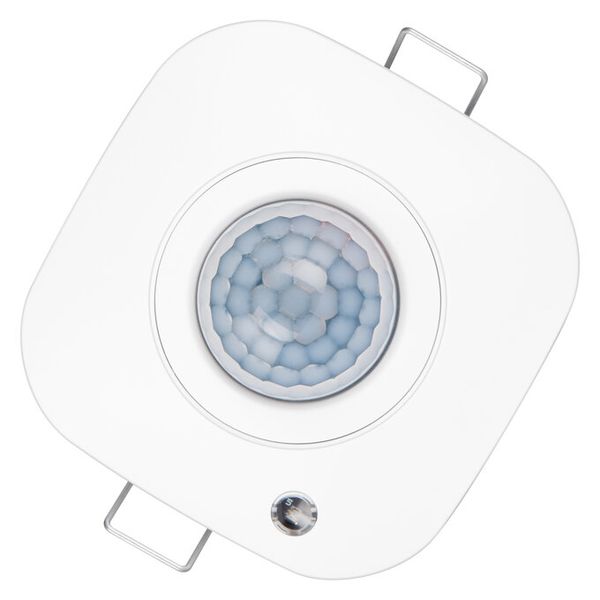

VIVARES ZB L/O SENS 220-240
4058075446182
Product benefits
- Works together with VIVARES ZB Control & Components
- Easy installation and no control wires needed
- 5 years guarantee
Areas of application
- Offices
- Corridors
- Classrooms
- Training rooms
- Stairways
- Sanitary areas
Product features

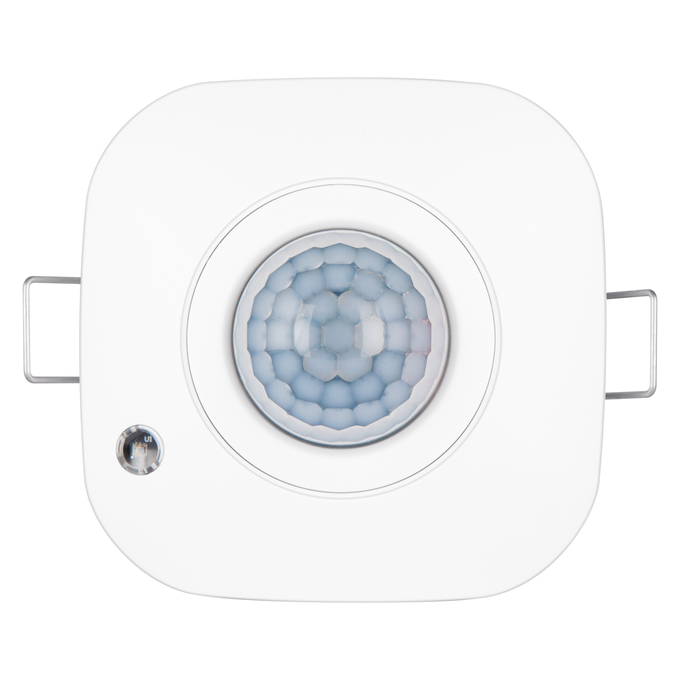

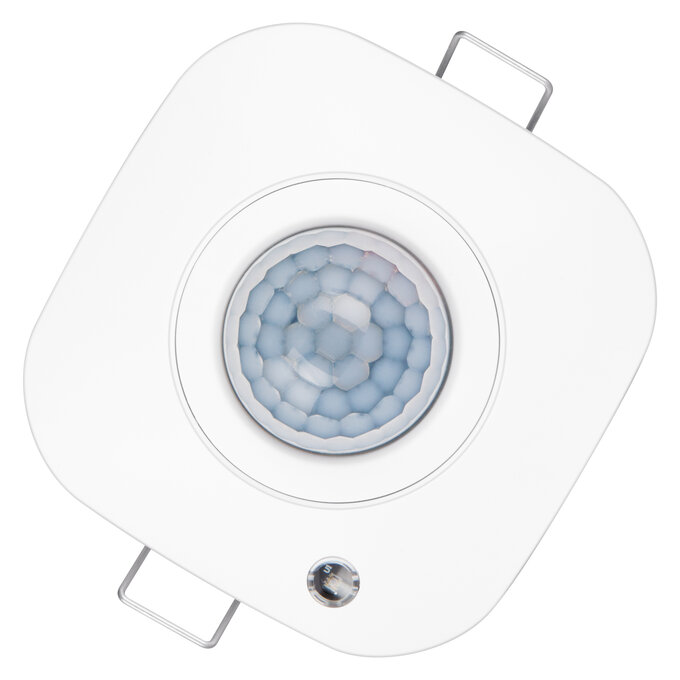

- Wireless Zigbee 3.0 light and presence sensor for ceiling integration
- Perfect fit for office application
- Presence detection via passive IR element
- AC mains powered 220-240 V
- Mounting height: 2…5 m
Ambient temperature range
-20…+50 °C 1)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Detection angle
90 °
Dimmable
No
Dimming interface
Zigbee 3.0
GTIN
4058075446182
Height
64.00 mm
Length
85.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Maximum installation height
2…5 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
220…240 V
Nominal wattage
1.84 W
Operating range, light sensor
10…2000 lx
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…85 %
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
120.00 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 60669
Surge capability (L-N)
2 kV
Temperature range at storage
-10…+65 °C
Temperature range in operation
+10…+35 °C
Transmitter range
10 m 1)
Type of installation
Recessed
Type of protection
IP20
Width
85.00 mm
