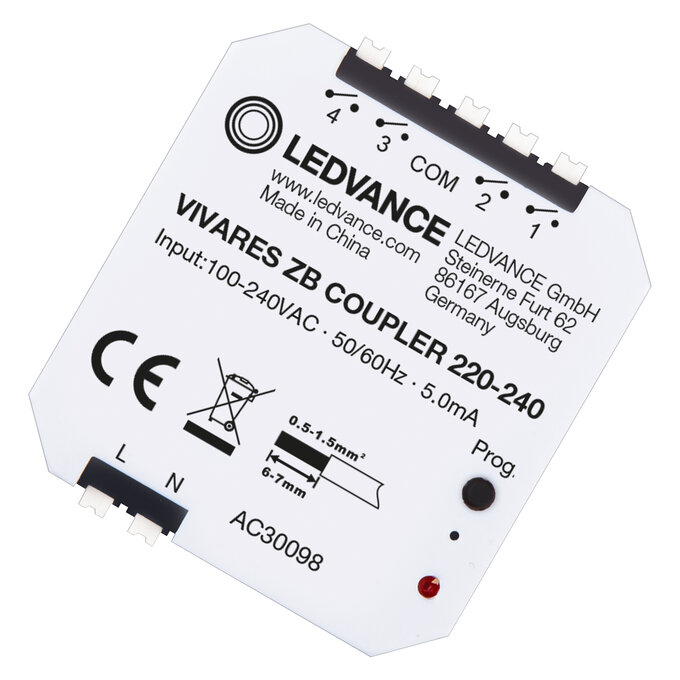

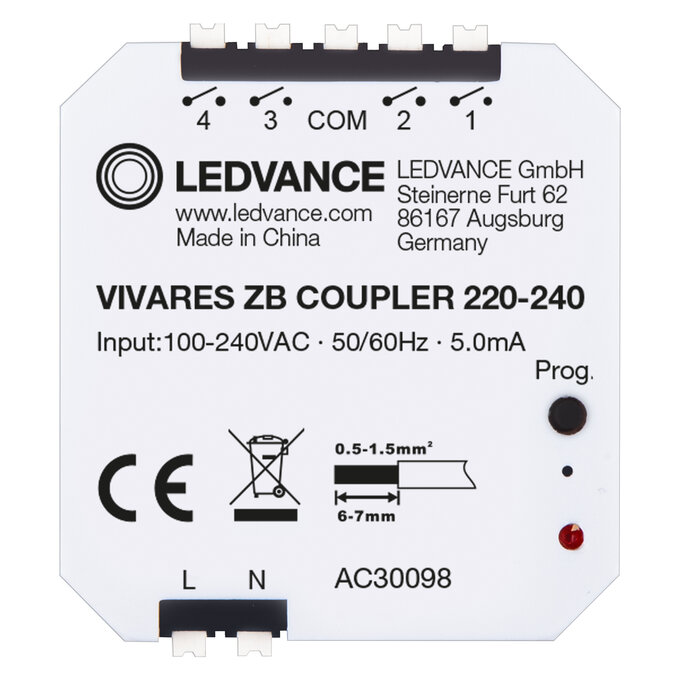

VIVARES ZB COUPLER
4058075463806
Product benefits
- Works together with VIVARES ZB Control & Components
- 4 fully programmable inputs for individual control
- Control rooms, groups, devices and recall scences
- Small dimensions allow mounting in standard flush box
- Quick and easy installation without additional control cables
Areas of application
- Offices
- Corridors
- Classrooms
- Training rooms
- Stairways
- Sanitary areas
Product features
- Pushbutton coupler with wireless Zigbee 3.0 technology
- AC mains or DC operation possible
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
Ambient temperature range
-20…+45 °C
Approval marks – approval
Ro
Cable cross-section, output side
0.5…1.5 mm²
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Dimming interface
Zigbee 3.0
GTIN
4058075463806
Height
15.00 mm
Length
50.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
100…240 V
Nominal wattage
0.30 W
Number of control outputs
4
Packaging recyclability
Mostly recyclable packaging 1)
Permitted rel. humidity during operation
10…95 %
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
23.7 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range in operation
-20…+45 °C
Transmitter range
10 m 1)
Type of installation
Recessed
Type of protection
IP20
Width
43.00 mm
