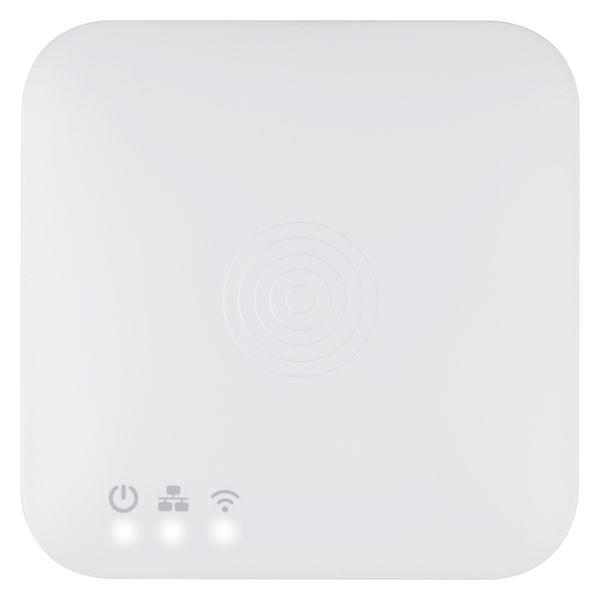

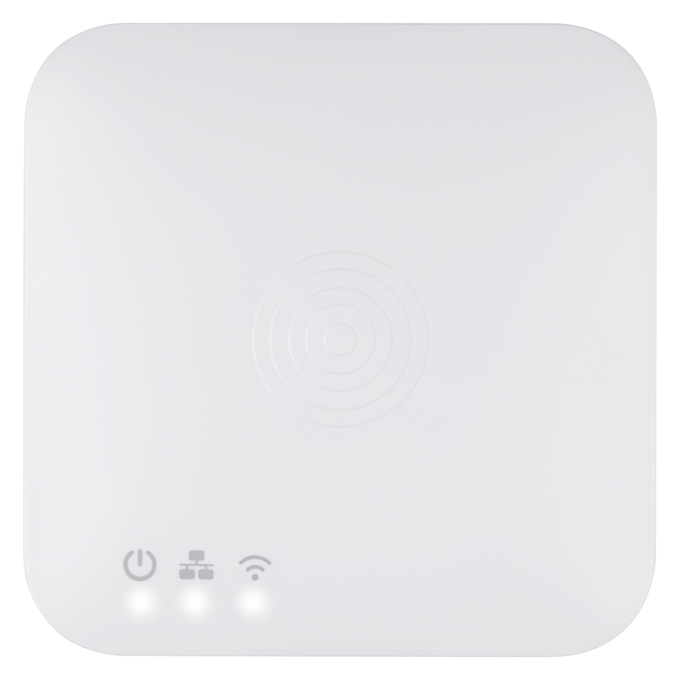

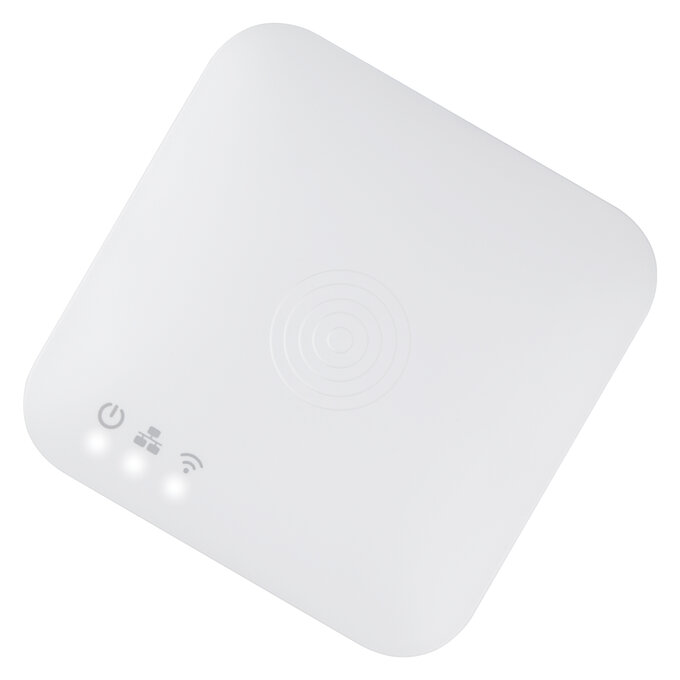

VIVARES ZB CONTROL
4058075427488
Product benefits
- Pre-configuration allows efficient planning & configuration of entire project remotely
- QR-code based commissioning enables automatic configuration of system
- Local operation of system even without active internet connection possible
- Remote access functionality saves time for post-installation adjustments
- Wireless communication avoids re-wireing in case of renovations
- VIVARES cloud services support energy monitoring & system maintenance
- Store and backup system configuration
Areas of application
- Room control, floor control, daylight-dependent control
- Connection of light and presence sensors in ZigBee systems
- Conference rooms
- Offices: Individual and group workplaces
- Suitable for indoor applications
- Corridors
- Classrooms
- VIVARES Portal available on iOS & Android devices as well as PC
Product features
- Lighting control unit based on wireless ZigBee 3.0 technology
- IoT ready thanks to built-in gateway
- Connect up to 200 endpoints in one network
- Built-in Human Centric Lighting control
- QR-Code based commissioning of all lighting system components
- Remote Pre-configuration of rooms, devices & settings
- Web-based VIVARES Portal and mobile commissioning application available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
Ambient temperature range
-20…+45 °C
Commissioning App
App (Android/ iOS)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Dimming interface
Zigbee 3.0
Groups
40
GTIN
4058075427488
Height
26.00 mm
Length
90.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Max. connectable push button couplers / sensors
80
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
5 V
Nominal wattage
2.50 W
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Signal white
Product recyclability
Mostly recyclable product 1)
Product weight
93.2 g
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Standards
Acc. to EN 550
Temperature range at storage
-40…+80 °C 1)
Temperature range in operation
-20…+45 °C 1)

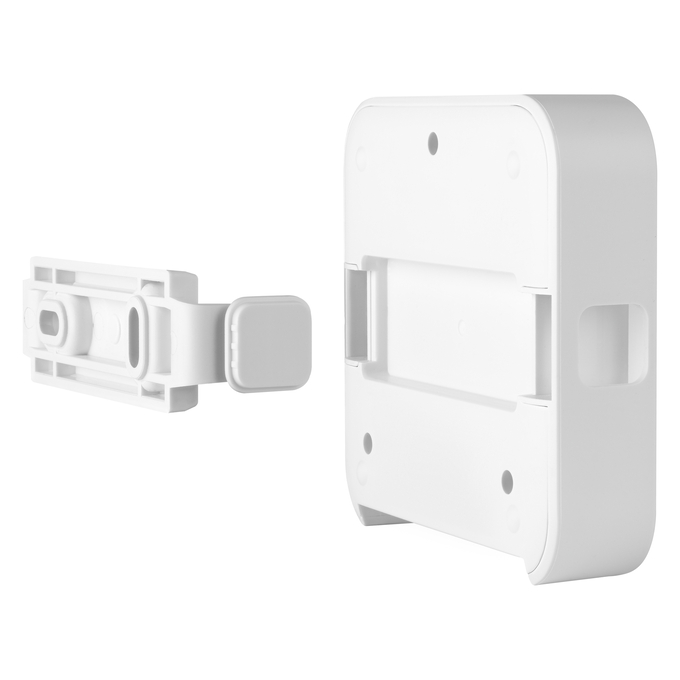

Type of installation
Mounting/Wall/Mounting/Ceiling
Type of protection
IP20
Width
90.00 mm
