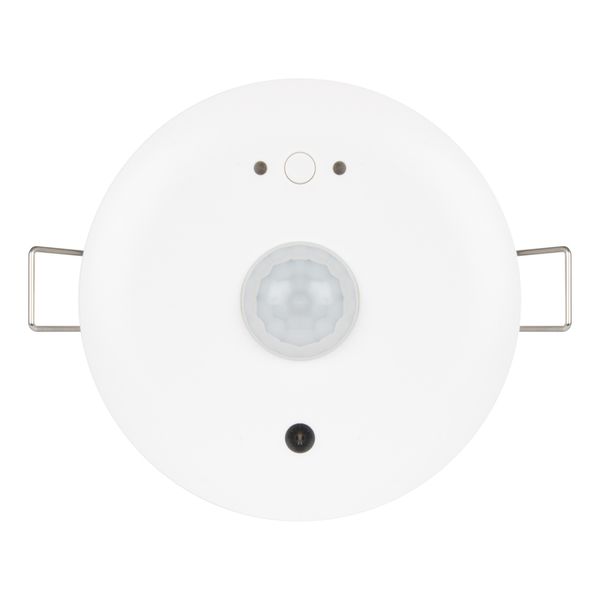

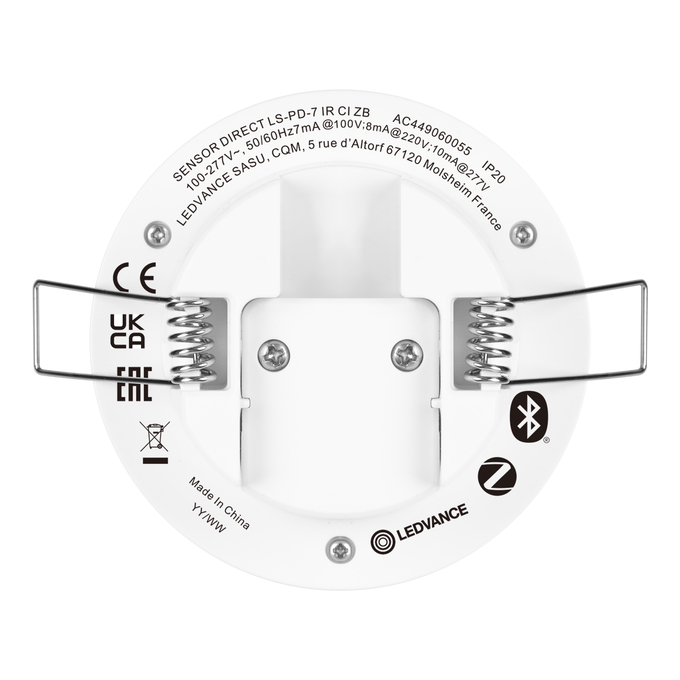

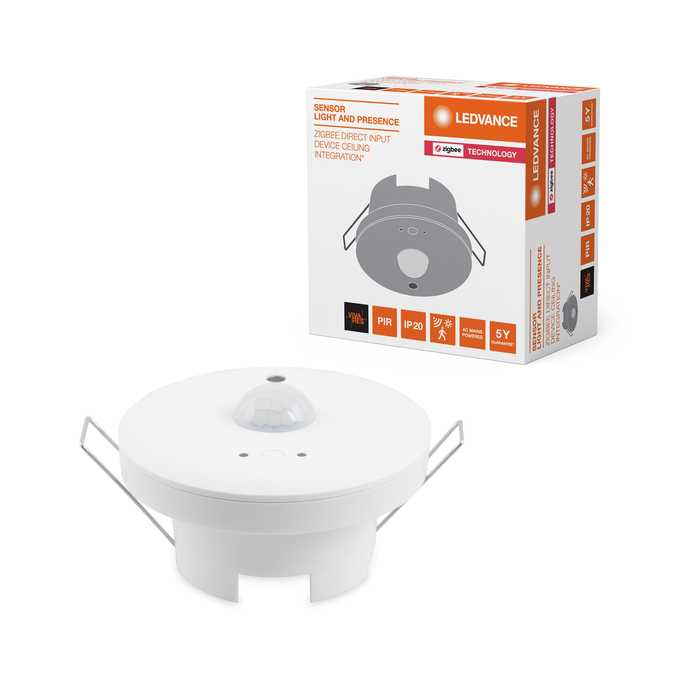

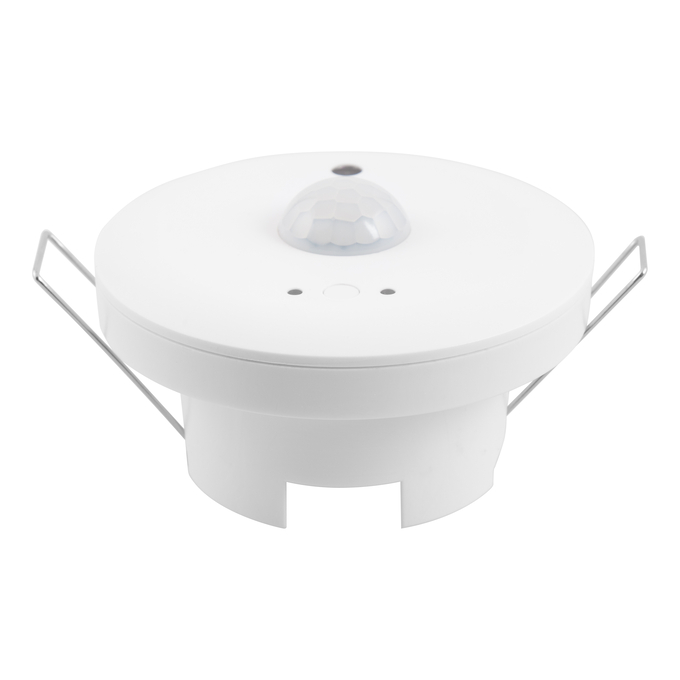

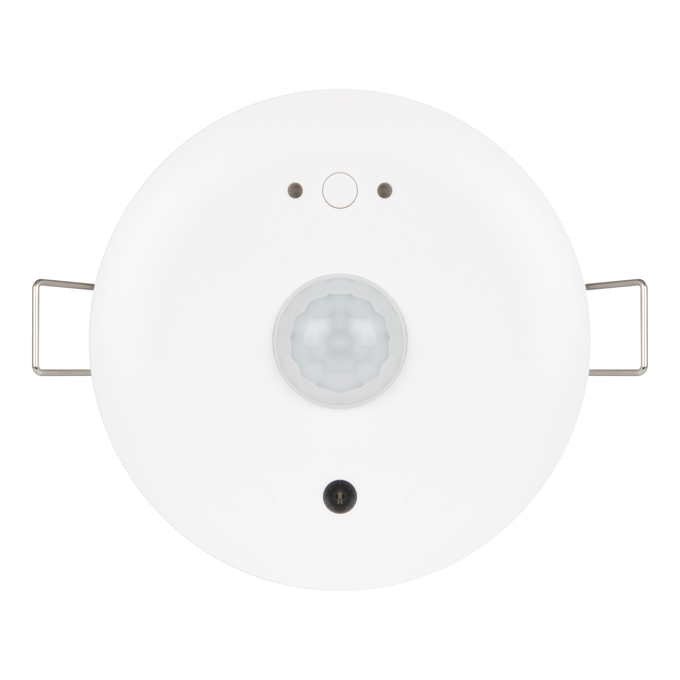

SENSOR DIRECT LS-PD-7 IR CI ZB
4099854476358
Product benefits
- Quick and easy installation using spring clips
- Low maintenance through mains power operation
- Additional energy saving up to 50 % compare to LED On/Off installation
- Zigbee 3.0 certified device for integration to any 3rd party Zigbee Control System
- The right light at the right time at the right moment, fully autonomous
- Compatible with LEDVANCE VIVARES ZIGBEE and DIRECT EASY light management system
Areas of application
- Open office spaces
- Meeting and conference rooms
- Storage and break areas
- Classrooms
- Corridors
- Stairways
Product features
- Zigbee 3.0 certified light and presence sensor for ceiling integration
- Presence detection via passive IR element
- AC mains powered 100 V - 277 V
- Detection height up to 4 m
- Large detection area up to 7 m
- Direct commissioning via bluetooth possible
Equipment / Accessories
- Surface mounting via SENSOR CM KIT
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see
Added function
VIVARES
Ambient temperature range
-20…+50 °C
Body material
Polycarbonate (PC)
Cable cross-section, input side
0.5…1.5 mm²
Commissioning App
DIRECT EA
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Detection angle
360 °
Dimmable
No
Dimming interface
Zigbee Direct
GTIN
4099854476358
Height
55.00 mm
Length
88.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)
Mains frequency
50…60 Hz
Maximum installation height
4 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
100…277 V
Nominal wattage
0.36 W
Packaging recyclability
Mostly recyclable packaging 1)
Power factor λ
0.2
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
210.00 g
Protection class
II
Temperature range at storage
-40…+85 °C
Temperature range in operation
-20…+50 °C
Type of current
AC
Type of installation
Ceiling integration
Type of protection
IP20
Width
88.00 mm
Wire preparation length, input side
6…7 mm
