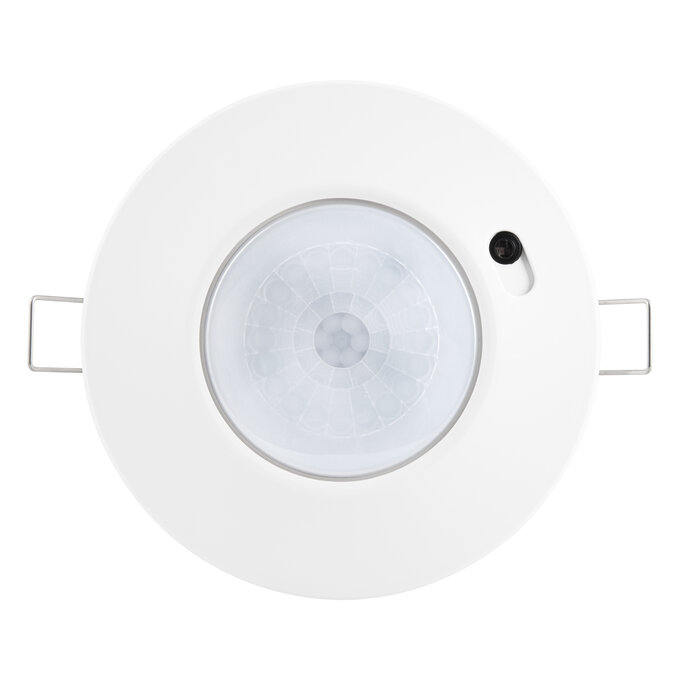

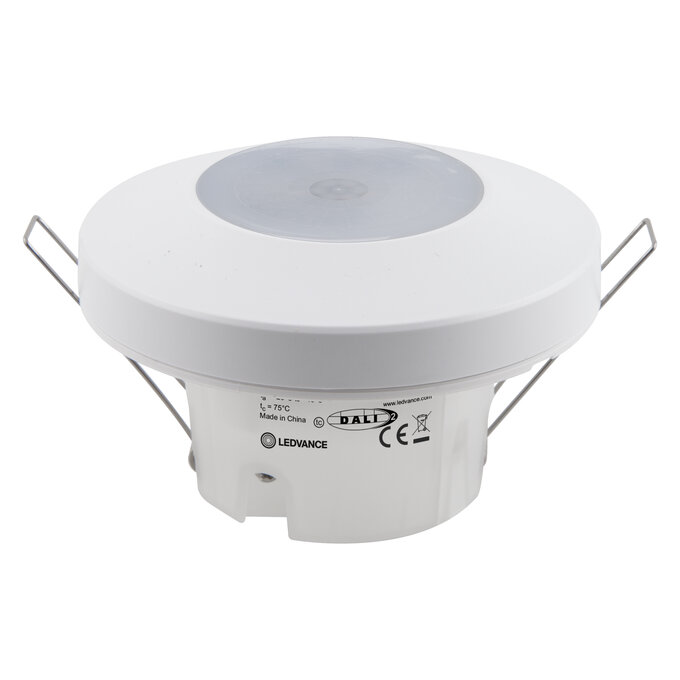

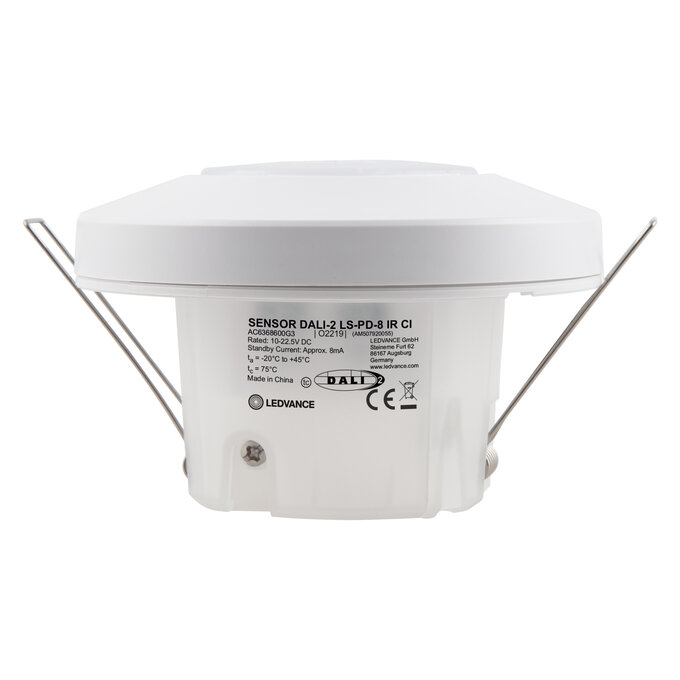

SENSOR DALI-2 LIGHT/PRESENCE-8 INFRARED CEILING INTEGRATION
4058075841949
Product benefits
- Light sensor up-to 2000 lx
- Quick and easy installation using spring clips
- Integrated DALI bus power supply (no mains connection required)
- Several sensors can be connected to a DALI line
- Can be integrated into lighting and building management systems that support DALI-2 sensors
- Compatible with LEDVANCE VIVARES DALI light management system
- Includes shutter accessory to optimize the sensor detection area
Areas of application
- Open office spaces
- Meeting, storage and break rooms
- Classrooms
- Stairways
Product features
- DALI-2 certified light and presence sensor for ceiling installation
- Presence detection via passive IR element
- Detection height up to 4 m
- Large detection area up-to 8 m
- Function display with LED
Equipment / Accessories
- Surface mounting via SENSOR CM KIT
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+45 °C
Approval marks – approval
CE
Cable cross-section, input side
1.0…2.5 mm²
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection angle
360 °
Detection area
8 m
Diameter
105.00 mm
Dimmable
No
Dimming interface
DALI-2
GTIN
4058075841949
Height
67.00 mm
Length
105.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Max. presence detection area
8 m
Maximum installation height
4 m
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting hole spacing, length
66.00 mm
Nominal voltage
10…22,5 V
Nominal wattage
0.10 W
Operating range, light sensor
5…2000 lx
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
116.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range in operation
-20…+45 °C
Type of installation
Ceiling integration
Type of protection
IP20
Width
105.00 mm
Wire preparation length, input side
6…8 mm
