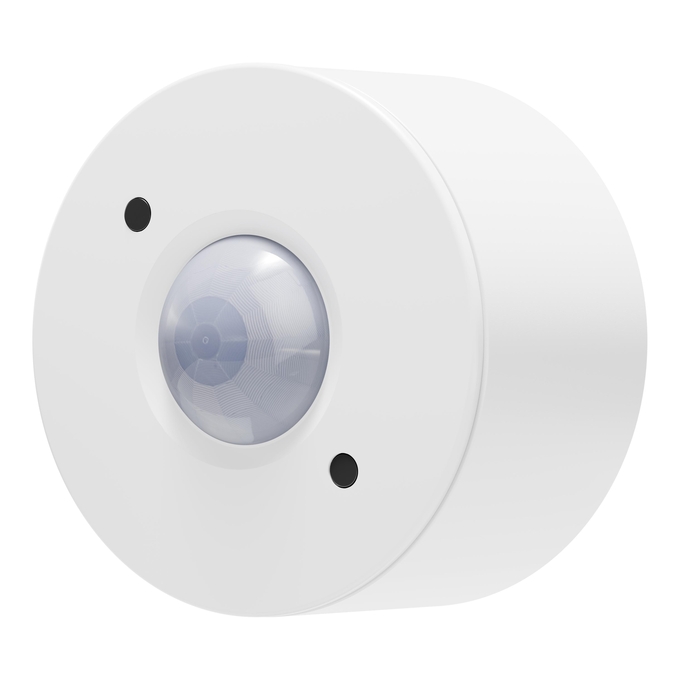

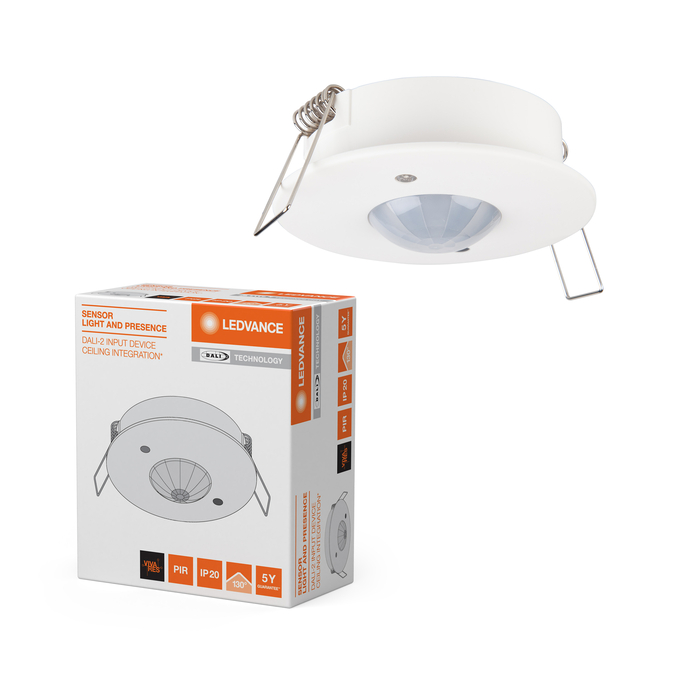

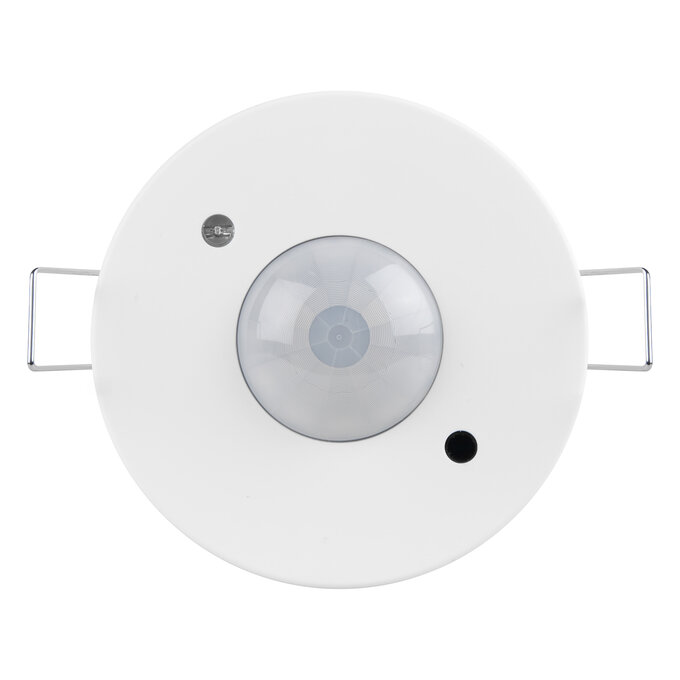

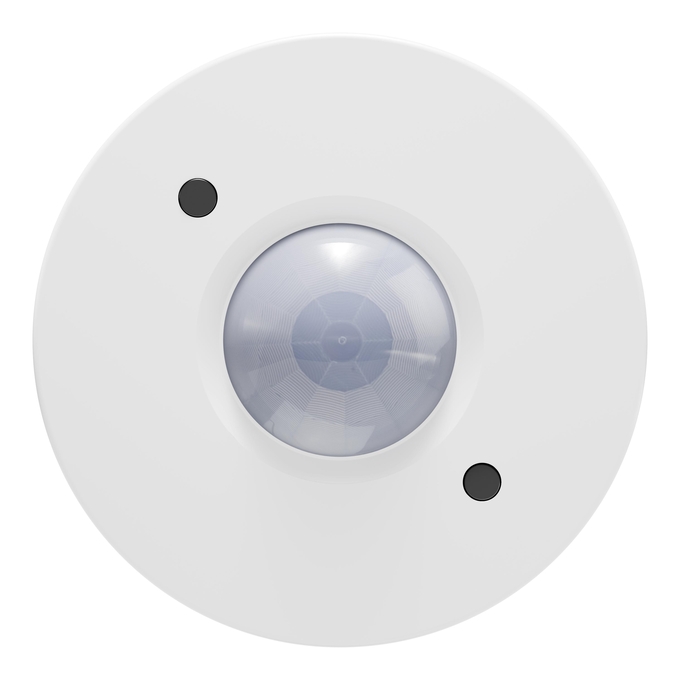

SENSOR DALI-2 LIGHT/PRESENCE-6 INFRARED CEILING INTEGRATION
4058075837621
Product benefits

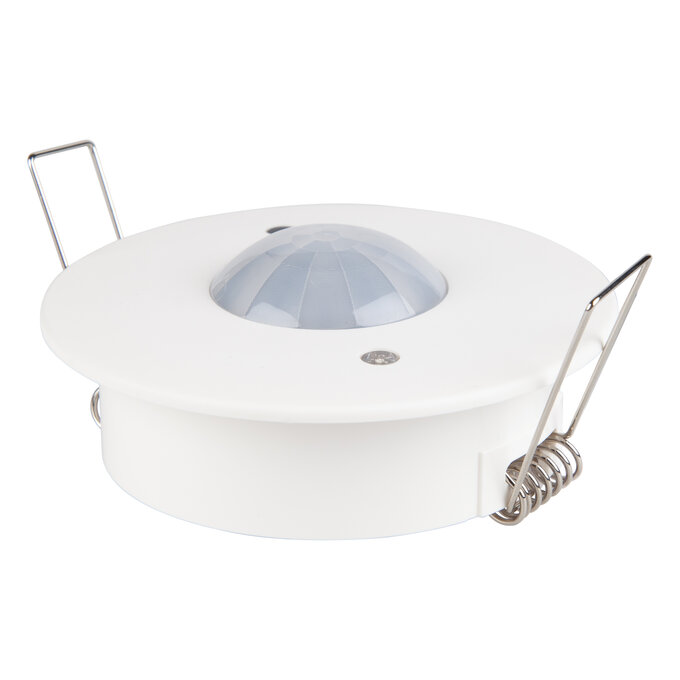

- Quick and easy installation using spring clips

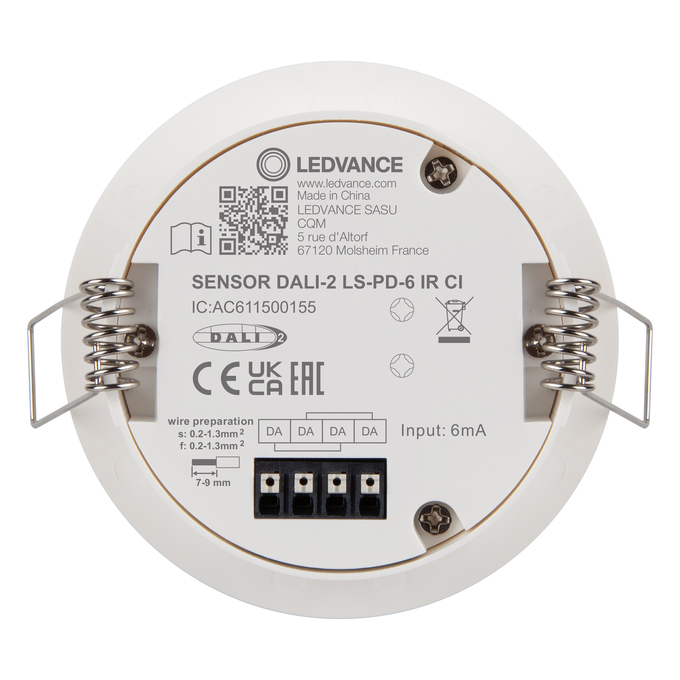

- Through-wiring using pre-assembled cable with WAGO connector
- Integrated DALI bus power supply (no mains connection required)
- Several sensors can be connected to a DALI line
- Can be integrated into lighting and building management systems that support DALI-2 sensors
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Single rooms
- Meeting, storage and break rooms
- Sanitary areas
Product features
- DALI-2 certified light and presence sensor for ceiling installation
- Presence detection via passive IR element
- Detection height up to 3,7 m
- Function display with LED
- Detection area up-to 6 m
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
0…+40 °C
Cable cross-section, input side
0.2…1.3 mm²
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Detection angle
360 °
Detection area
6 m
Diameter
83 mm
Dimmable
No
Dimming interface
DALI-2
GTIN
4058075837621
Height
32.00 mm
Length
83.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Max. presence detection area
6 m
Maximum installation height
3.7 m
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
16 V
Nominal wattage
0.20 W
Operating range, light sensor
5…550 lx
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
80.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range in operation
0…+40 °C
Type of current
DC
Type of installation
Ceiling integration
Type of protection
IP20
Width
83.00 mm
Wire preparation length, input side
7…9 mm
