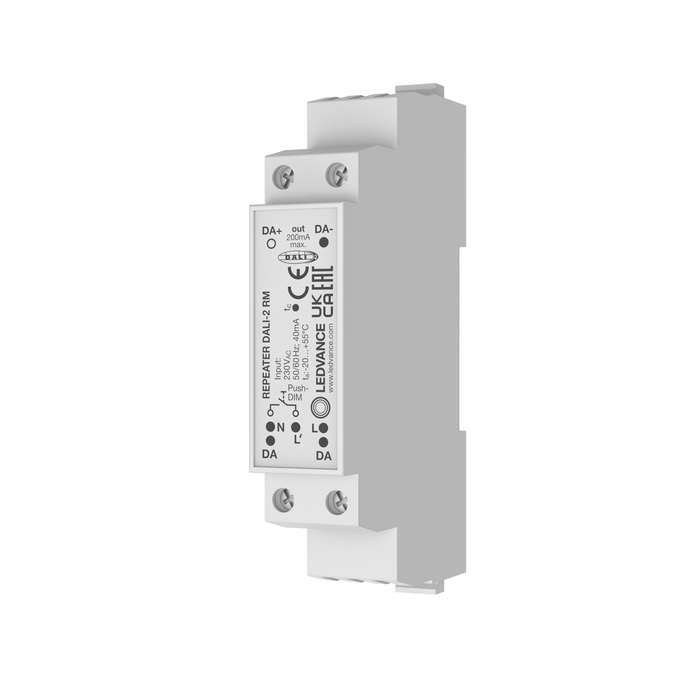

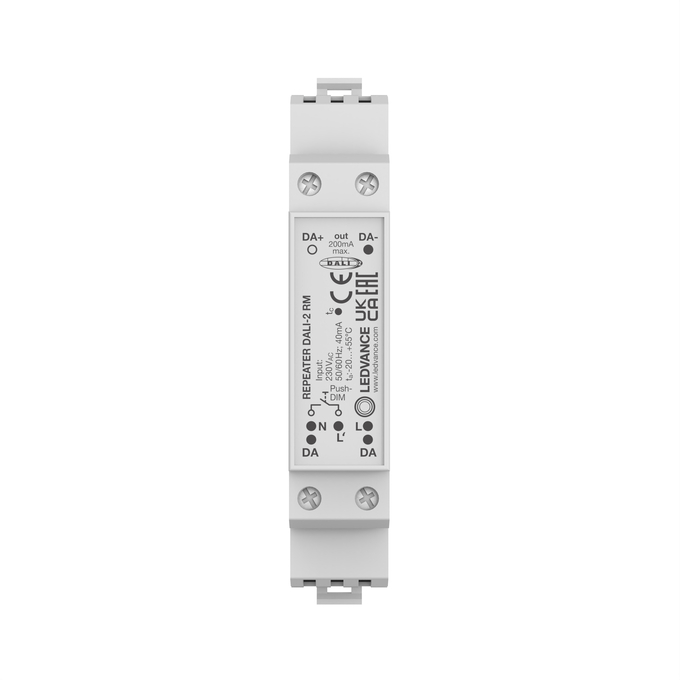

REPEATER DALI-2 RAIL MOUNTING
4099854709111
Product benefits
- Over temperature protection for save operation
- Supports over voltage protection for long product lifetime
- Protects the device's output circuit in case of failures
- Integrated Push DIM function
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Big buildings with long cable distances to luminaires of more than 300m
- Integration of additional DALI devices into DALI systems
Product features
- Installation in electrical cabinets on DIN Rails
- Integrated DALI Power supply for up to 90 DALI drivers
- Enables simple extension of DALI wire length
- Behaves like a DALI ballast with a DALI address
- Plug&Play for DT6 and DT8 applications
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see
Ambient temperature range
-20…+55 °C
Body material
Polycarbonate (PC)
Cable cross-section, input side
0.5…2.5 mm² 1)
Cable cross-section, output side
0.5…2.5 mm² 2)
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
DALI bus supply
200 mA
Dimmable
Yes
Dimming interface
DALI-2
GTIN
4099854709111
Height
56.00 mm
Input current
40 mA
Length
98.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. number of connected drivers
90
Maximum temperature at tc test point
75 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
230 V
Nominal wattage
5.30 W
Number of control outputs
1
Number of switching cycles
5000
Over voltage protection
Yes
Overheating protection
Reversible
Packaging recyclability
Mostly recyclable packaging 1)
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product remark
Available from December 2025
Product weight
50.00 g
Protection class
II
Reverse polarity protection
Yes
Short-circuit protection
Reversible
Temperature range at storage
-20…+75 °C
Type of current
AC
Type of installation
Rail mounting
Type of protection
IP20
Width
17.50 mm
Wire preparation length, input side
7.0 mm
Wire preparation length, output side
7.0 mm
