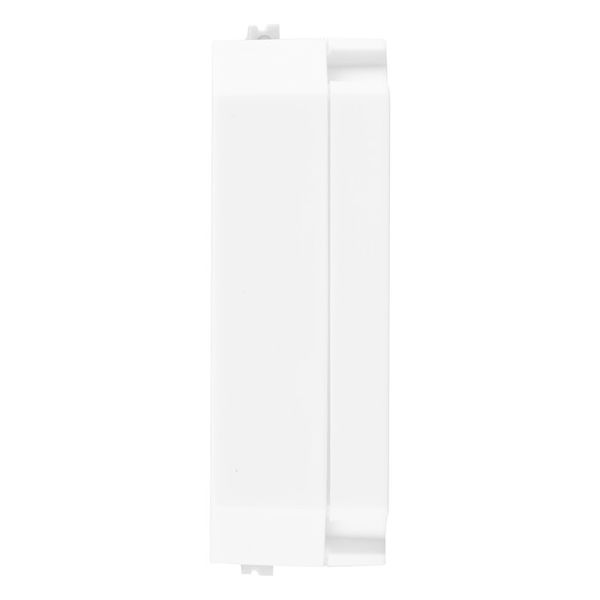

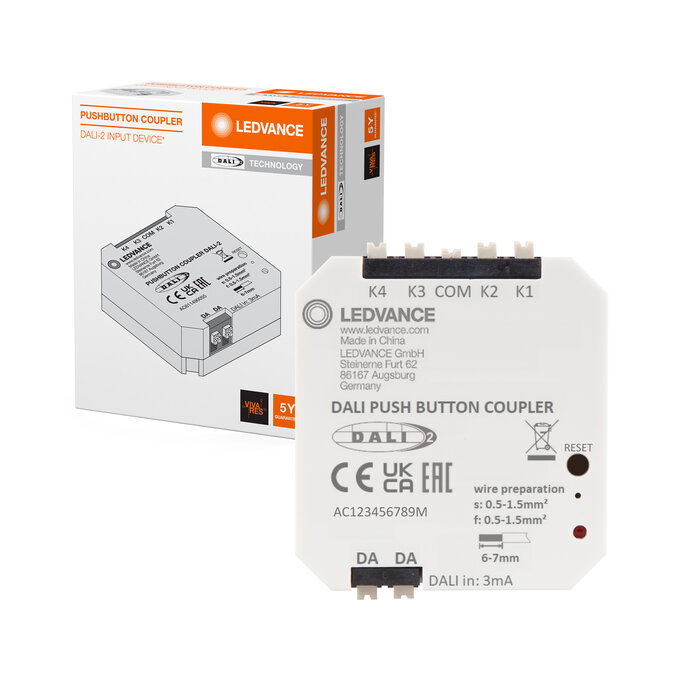

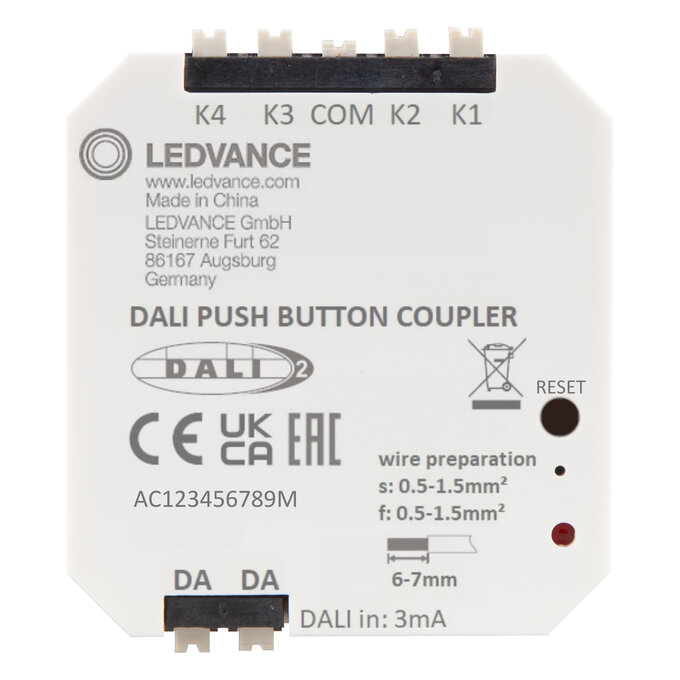

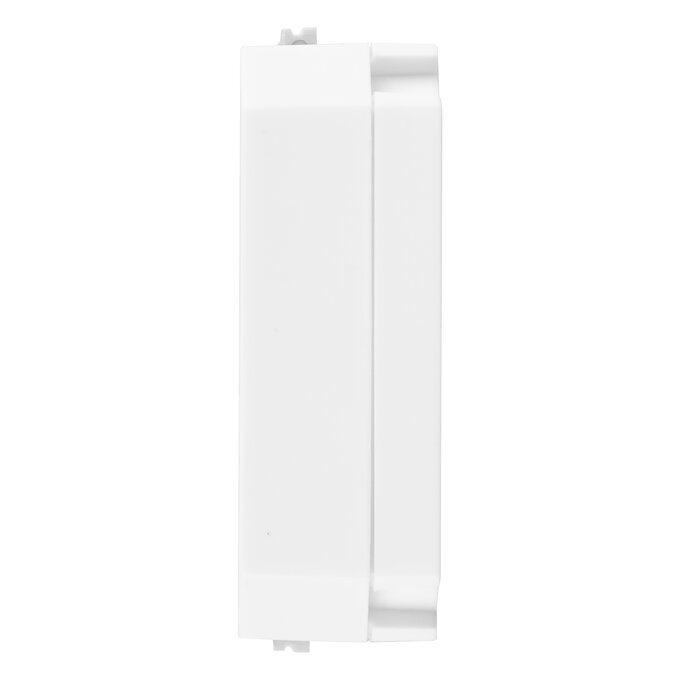

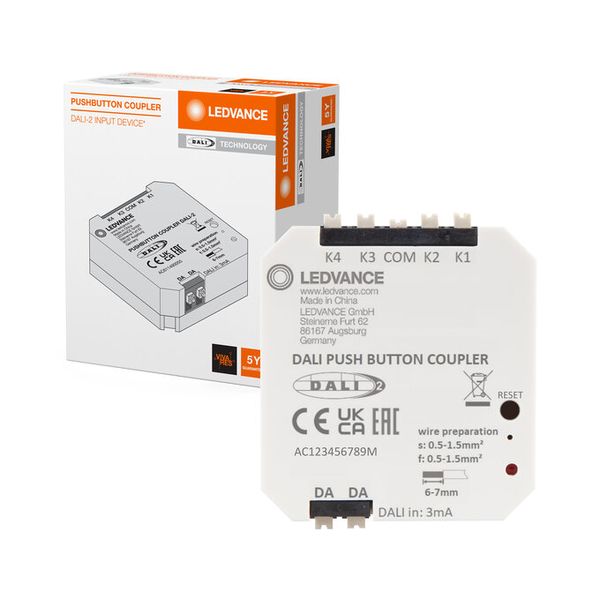

PUSHBUTTON COUPLER DALI-2
4058075837607
Product benefits
- Can be combined with standard light buttons
- Integrated DALI bus power supply (no mains connection required)
- Several couplers can be connected to a DALI line
- Easy installation with pre-assembled connection cable
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Single rooms
- Open office spaces
- Restaurants
- Stairways
- Sanitary areas
- Private homes
Product features
- DALI-2 certified pushbutton coupler
- Installation in standard flush-mounted boxes
- 4 potential-free inputs
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+50 °C
Cable cross-section, input side
0.2…1.5 mm²
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Dimming interface
DALI-2
GTIN
4058075837607
Height
15.00 mm
Length
50.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
0 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
16 V
Nominal wattage
0.20 W
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
19.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Integrated in flush device box
Type of protection
IP20
Width
43.00 mm
Wire preparation length, input side
6…7 mm
