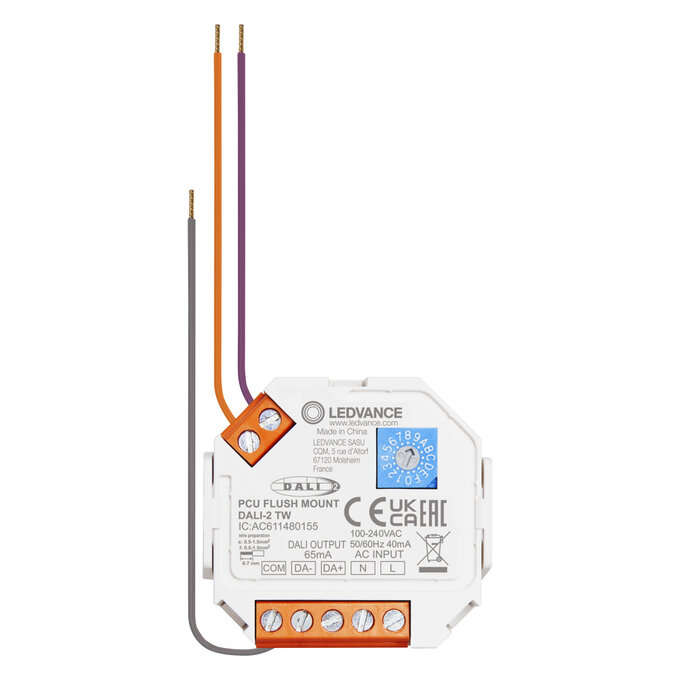

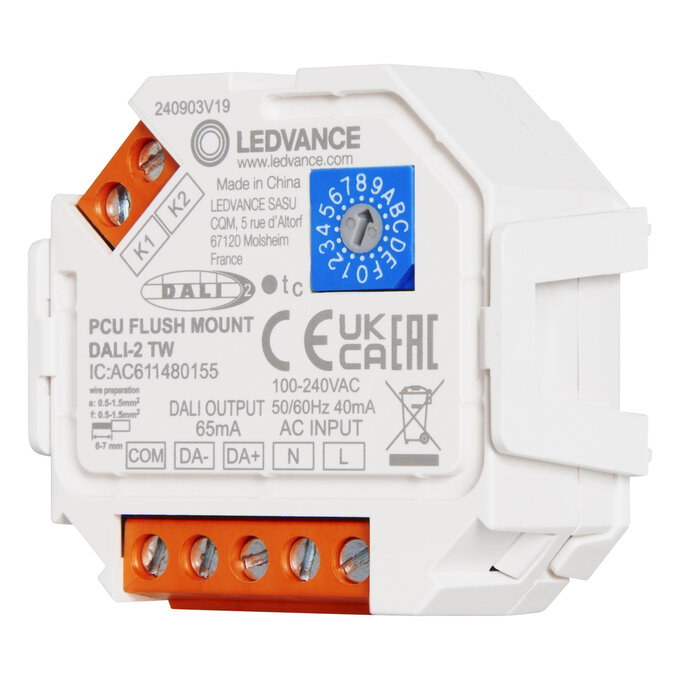

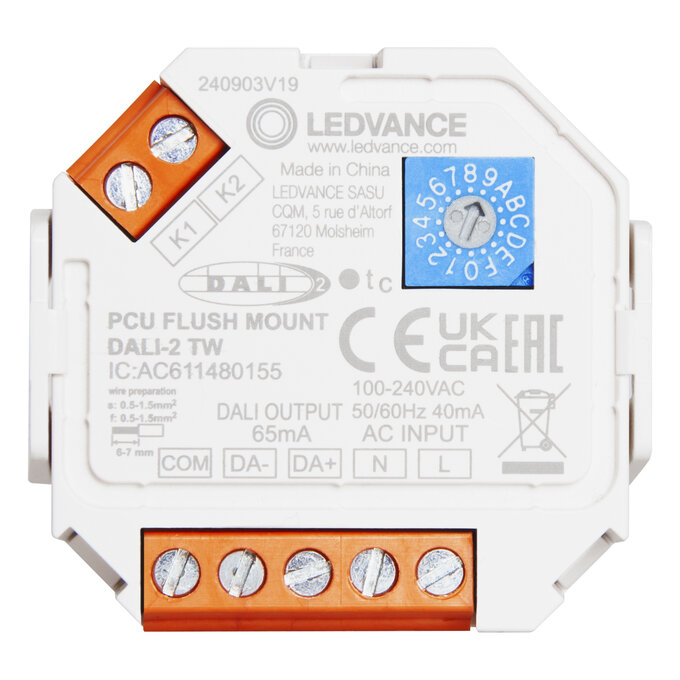

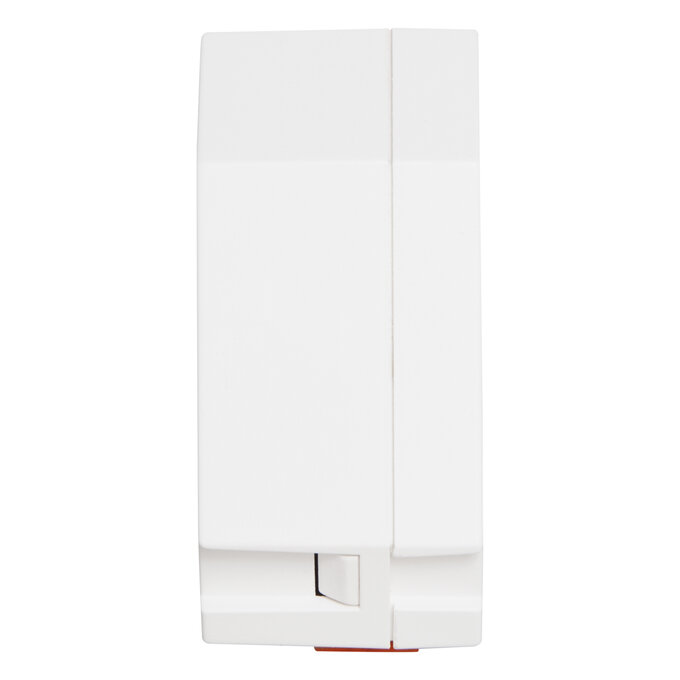

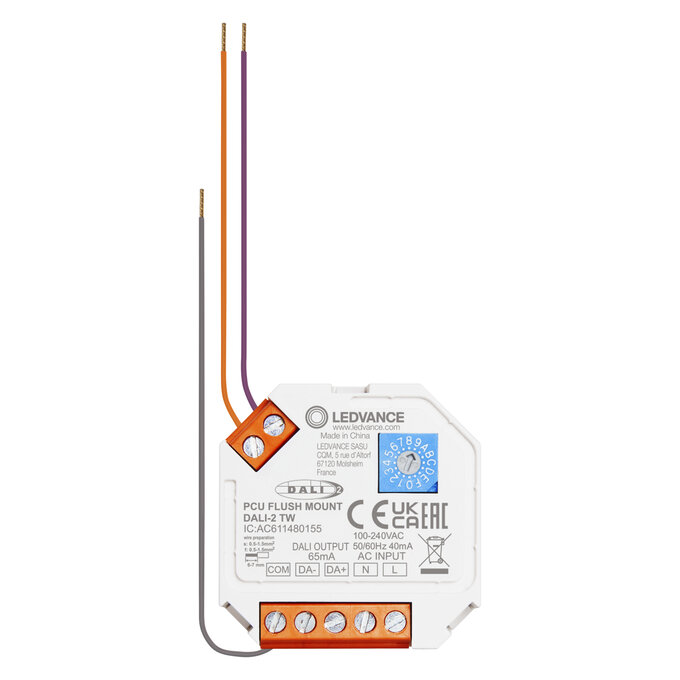

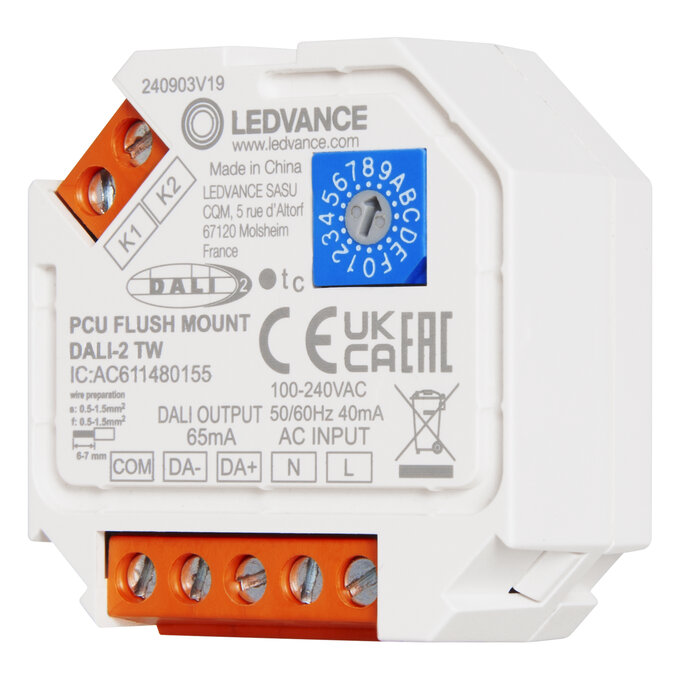

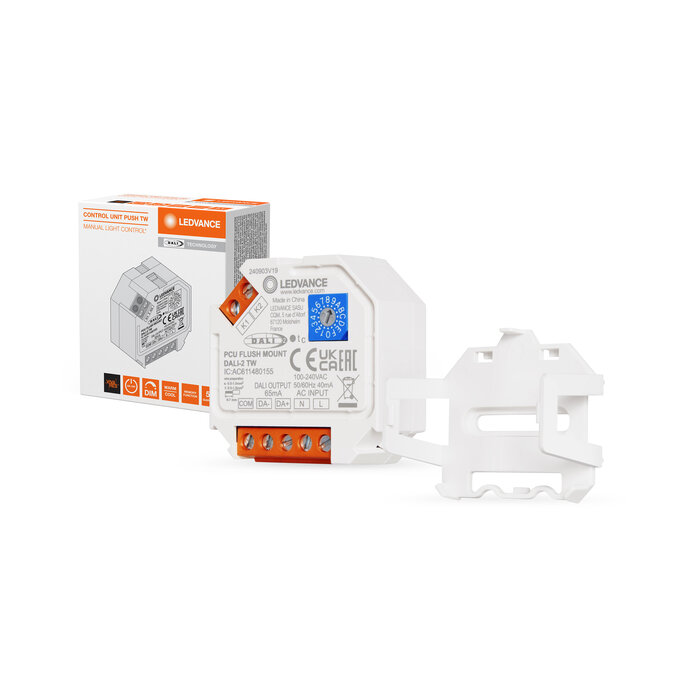

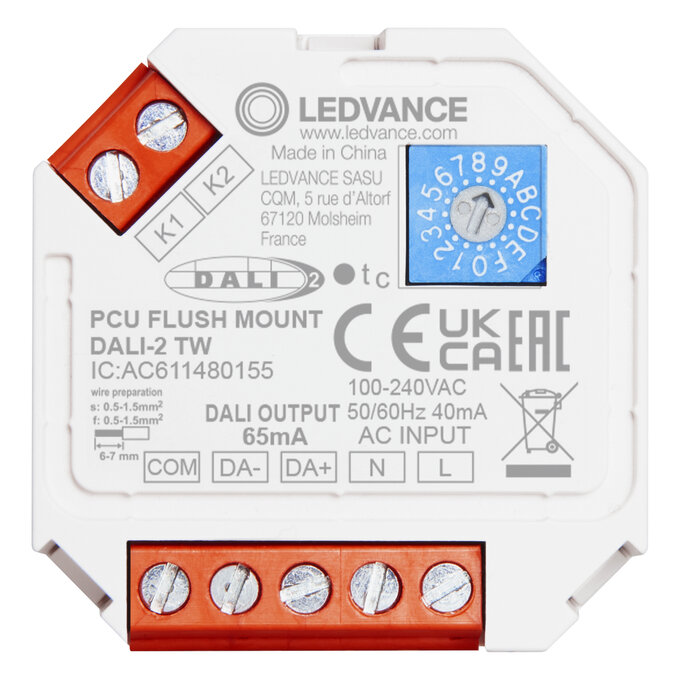

PUSH CONTROL UNIT FLUSH MOUNT DALI-2 TW
4058075837584
Product benefits
- Compatible with all common push button designs
- Simple, intuitive operation
- Manual dimming, switching and saving
- Individual adjustment of the brightness level and color temperature
- Integrated DALI bus power supply (no mains connection required)
- Behavior after power interruption can be set
- Easy installation with pre-assembled connection cable
- Compatible with DALI-2 luminaires; LED strips and lights
Areas of application
- One-room solution for up to 4 access areas
- Meeting and conference rooms
- Restaurants
- Shop lighting
- Private homes
Product features

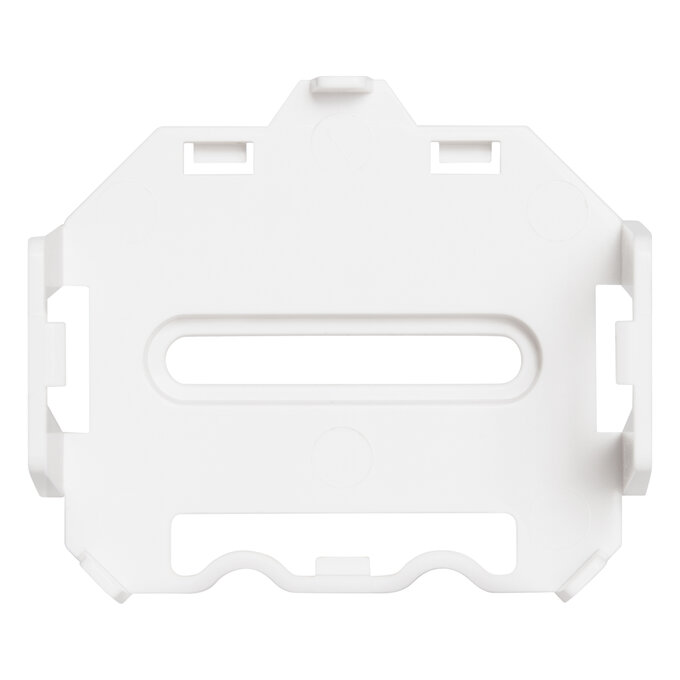

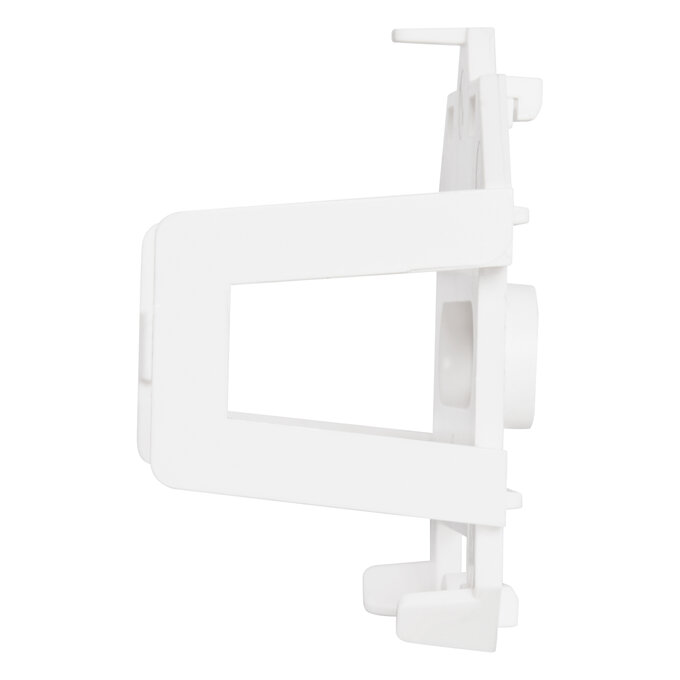

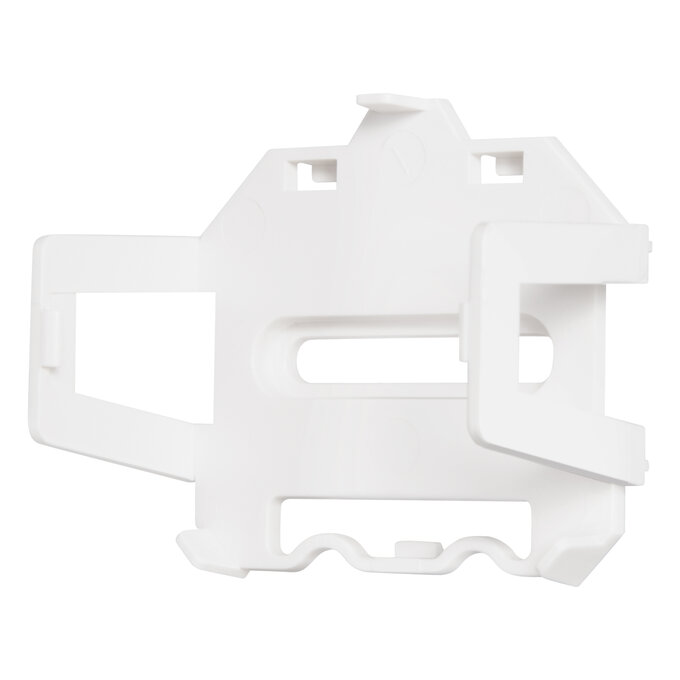

- DALI-2 control device for installation in standard flush-mounted boxes or DIN rails in switch cabinets
- Up to 4 control devices can be connected in parallel to set up several control points
- Automatic synchronization between control points
- Number of DALI lights per control unit: up to 25
- Cable length of the DALI control cable: up to 300 m
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-25…+50 °C
Cable cross-section, input side
0.5…1.5 mm²
Commissioning App
Ready to use
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
DALI-2
Dimming range
1…100 %
Groups
1
GTIN
4058075837584
Height
20.00 mm
Input current
40 mA
Length
45.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Max. number of connected drivers
25
Maximum temperature at tc test point
58 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
65 mA
Nominal voltage
100…240 V
Nominal wattage
2.50 W
Number of connectable sensors (only sensors with mains switching contact)
16
Number of control outputs
1
Number of switching cycles
50000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
44.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Temperature range in operation
-25…+50 °C
Type of installation
Integrated in flush device box
Type of protection
IP20
Width
45.00 mm
Wire preparation length, input side
6…7 mm
