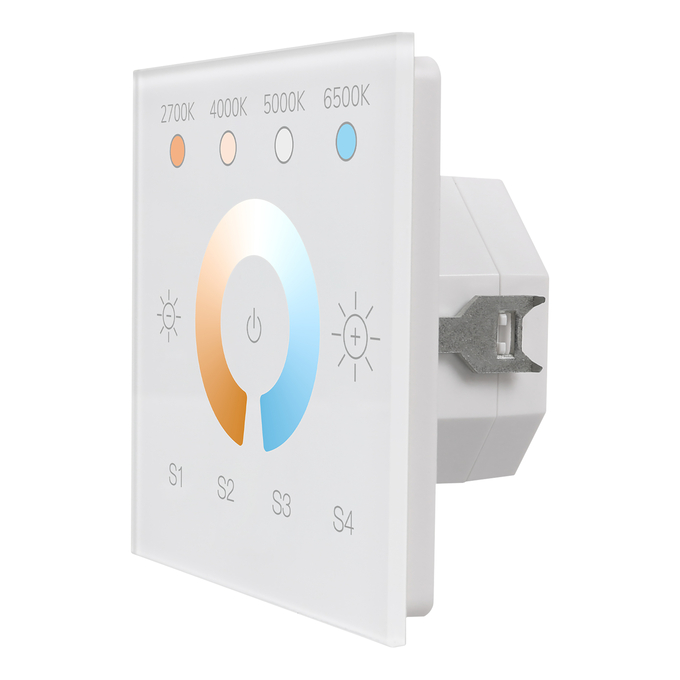

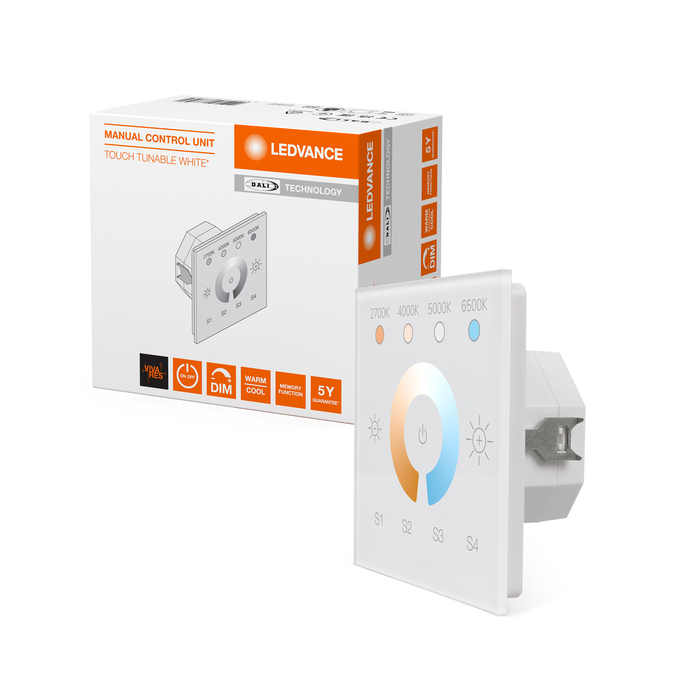

MANUAL CONTROL UNIT TOUCH DALI-2 TW
4058075837560
Product benefits
- Simple, intuitive operation
- Manual dimming, switching and saving of light settings
- Individual adjustment of the brightness level and color temperature

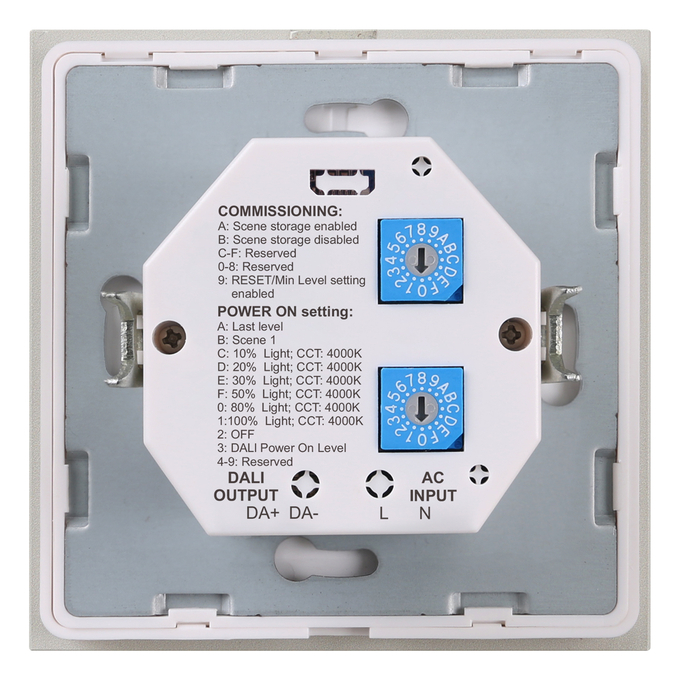

- Behavior after power interruption can be set
- High quality glass cover
- Mains powered (active mode) or DALI powered (passive mode) operation
- Optional surface mount frame available
- Compatible with LEDVANCE VIVARES DALI light management system (LEDVANCE DALI luminaires)
Areas of application
- One-room solution for up to 4 access areas
- Meeting and conference rooms
- Restaurants
- Shop lighting
- Private homes
Product features

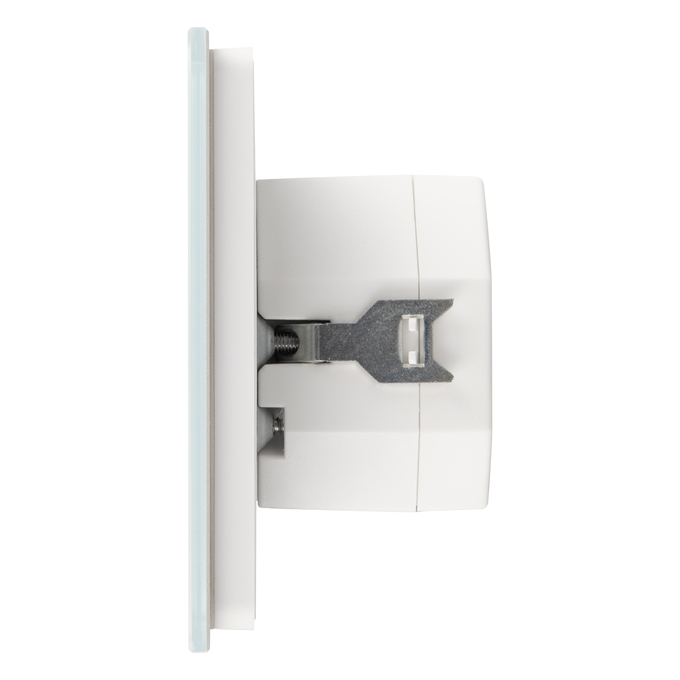

- DALI-2 control device for installation in standard flush-mounted boxes

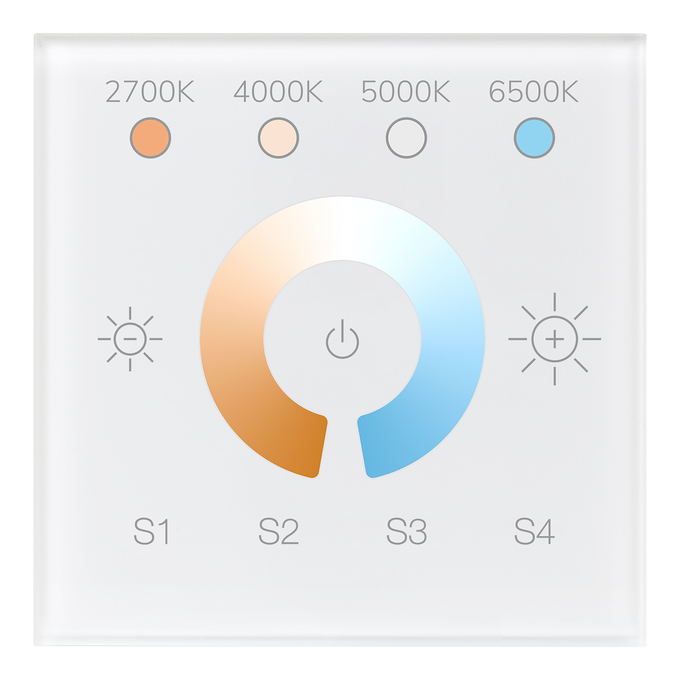

- Touch surface for manual light control
- Up to 4 control devices can be connected in parallel to set up several control points
- Automatic synchronization between control points
- Number of DALI lights per control unit: up to 25
- Cable length of the DALI control cable: up to 300 m
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-20…+50 °C
Cable cross-section, input side
0.5…1.5 mm²
Commissioning App
Ready to use
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Dimming interface
DALI-2
Dimming range
1…100 %
Groups
1
GTIN
4058075837560
Height
41.00 mm
Input current
48 mA
Length
86.00 mm
Light control tool App
No
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Mains frequency
50…60 Hz
Max. number of connected drivers
25
Maximum temperature at tc test point
52 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
65 mA
Nominal voltage
100…240 V
Nominal wattage
2.70 W
Number of connectable sensors (only sensors with mains switching contact)
16
Number of control outputs
1
Number of switching cycles
30000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
200.00 g
Protection class
II
Quantity of precious metals
0 mg
Quantity of rare earths
0 mg
Type of installation
Integrated in flush device box
Type of protection
IP20
Width
86.00 mm
Wire preparation length, input side
6…7 mm
