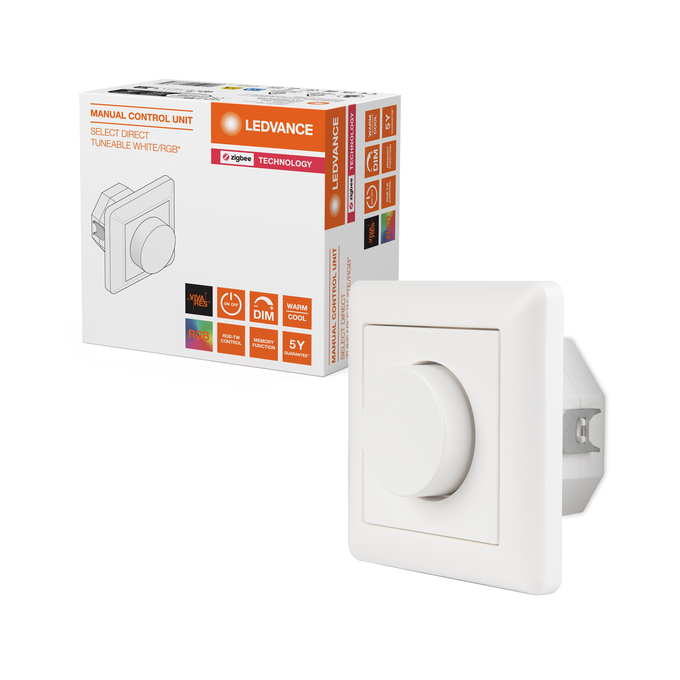

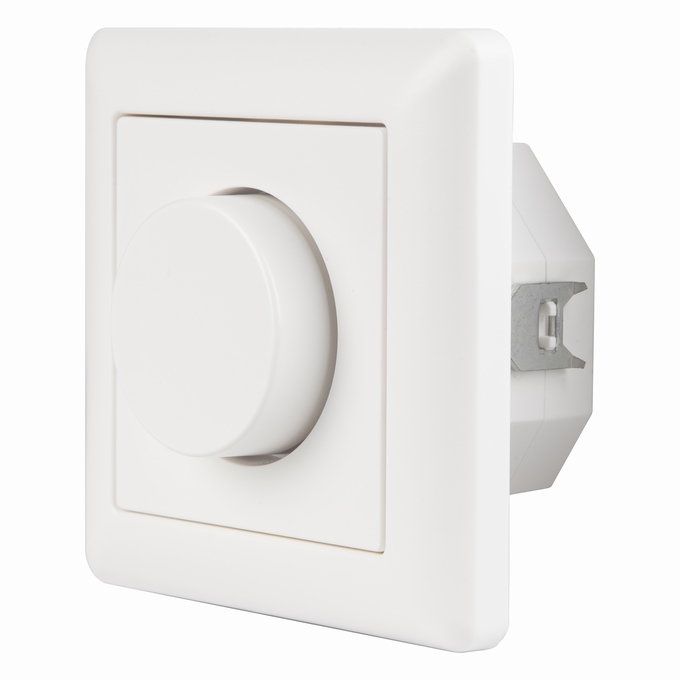

MANUAL CONTROL UNIT SELECT DIRECT 100-240 TW RGB ZB
4099854476334
Product benefits
- Simple, intuitive operation
- Manual dimming, switching and saving of light settings
- Offers combined RGB and TW control
- Zigbee 3.0 certified device for integration to any 3rd party Zigbee Control System
- Individual adjustment of the brightness level and color temperature

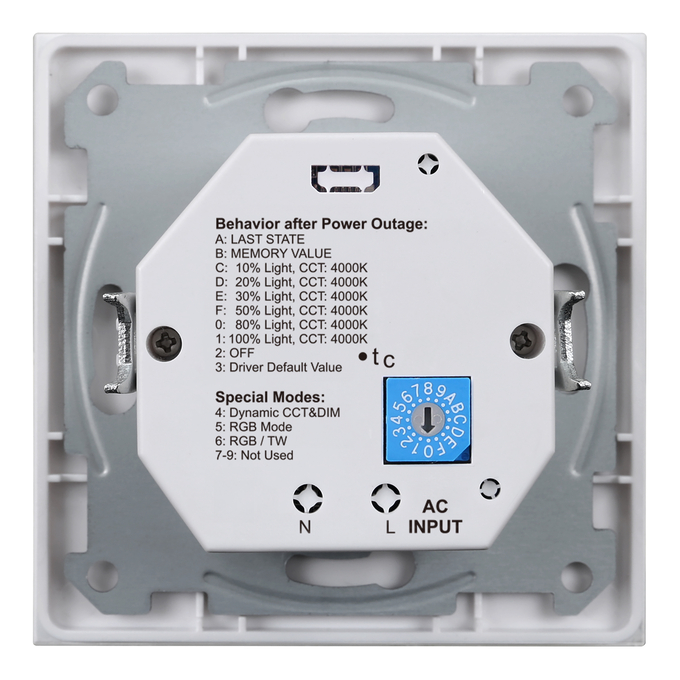

- Behavior after power interruption can be set
- Low maintenance through mains power operation
- Optional surface mount frame available
- Compatible with LEDVANCE VIVARES ZIGBEE and DIRECT EASY light management system
Areas of application
- Meeting and conference rooms
- Open office spaces
- Restaurants
- Shop lighting
- Residential interiors
Product features
- Zigbee 3.0 certified control device for installation in standard flush-mounted boxes

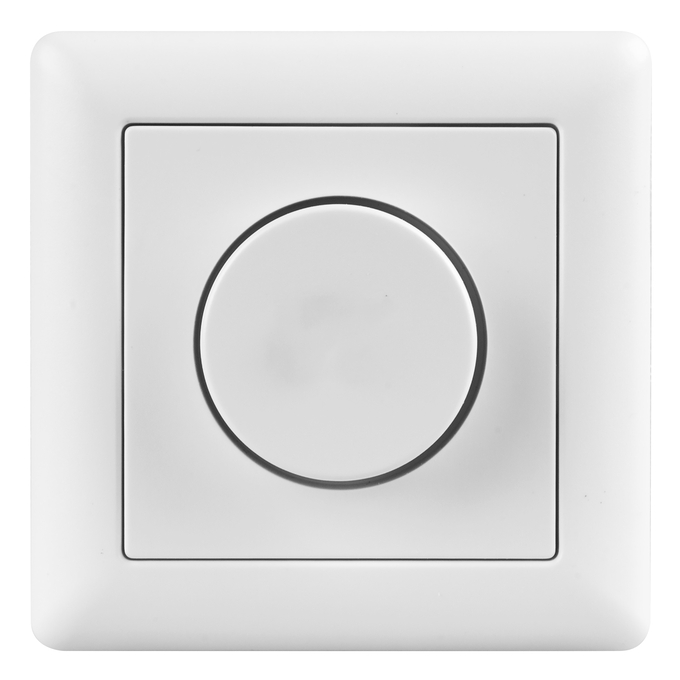

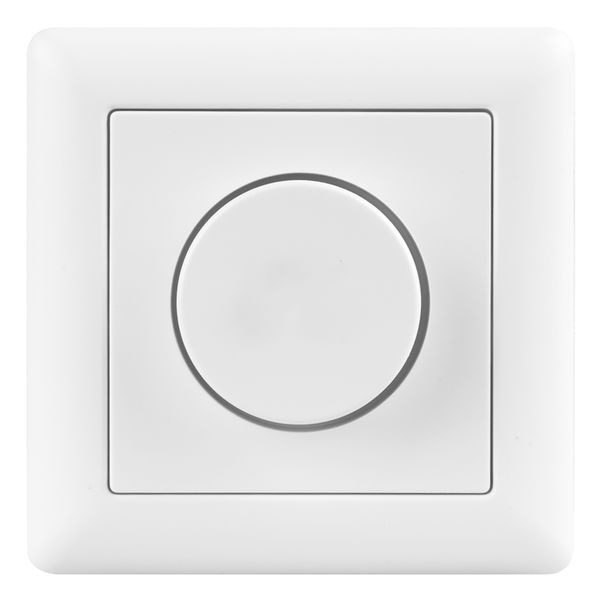

- Rotary knob for manual light control
- Dynamic CCT, RGB and RGB/TW mode adjustable via turn key
- Direct commissioning via bluetooth possible
- Interchangeable front cover compatible with ABB, GIRA, JUNG, SCHNEIDER, BERKER, SIEMENS
Equipment / Accessories
- SURFACE MOUNT FRAME for installation on walls without flush box
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see
Added function
VIVARES
Ambient temperature range
-20…+50 °C
Body material
Polycarbonate (PC)
Cable cross-section, input side
0.5…1.5 mm²
Color temperature
RGB / Tunable White
Commissioning App
DIRECT EA
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
No
Dimming interface
Zigbee Direct
Dimming range
1…100 %
GTIN
4099854476334
Height
53.00 mm
Length
80.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal current
13 mA
Nominal voltage
100…240 V
Nominal wattage
3.12 W
Number of switching cycles
50000
Packaging recyclability
Mostly recyclable packaging 1)
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
122.00 g
Protection class
II
Temperature range at storage
-40…+85 °C
Temperature range in operation
-25…+50 °C
Type of installation
Integrated in flush device box
Type of protection
IP20
Width
80.00 mm
Wire preparation length, input side
6…7 mm
