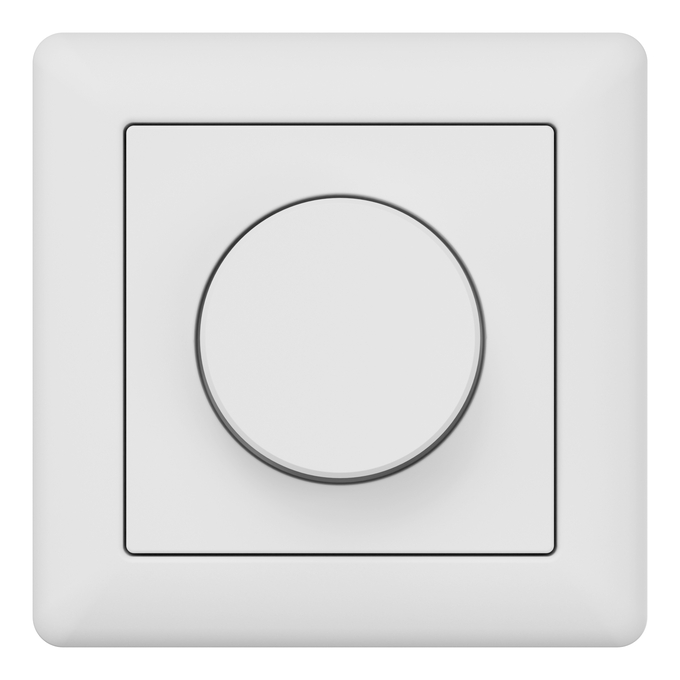

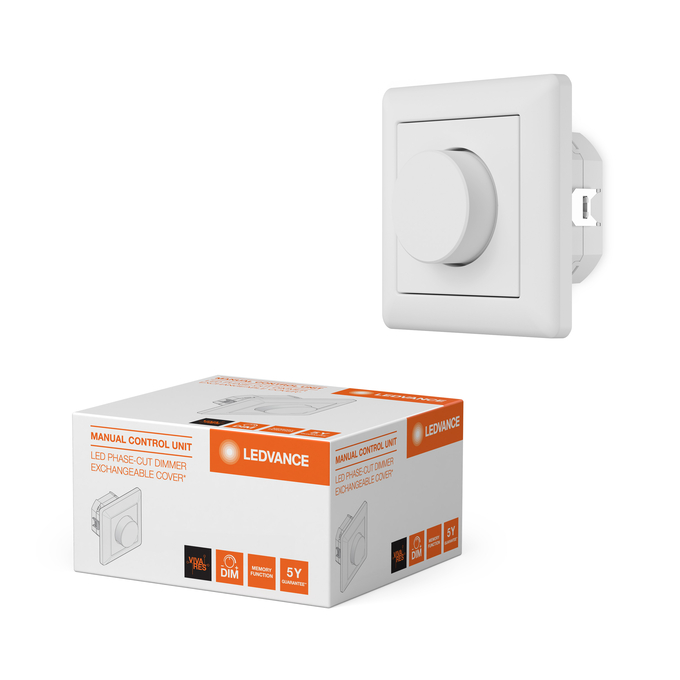

MANUAL CONTROL UNIT SELECT DIM EXCHANGEABLE
4099854846823
Product benefits
- Optimized dimming behavior in combination with lamps and lights in LEDVANCE / OSRAM brands
- Lamp friendly switching on (soft start)
- Memory function for the last set brightness or saved start-up brightness
- Minimum and maximum brightness adjustable
- Electronic reversible short-circuit, over-temperature and overload protection
- High quality front cover with compatible light button covers of BUSCH-JÄGER, GIRA, JUNG, SCHNEIDER, BERKER, SIEMENS

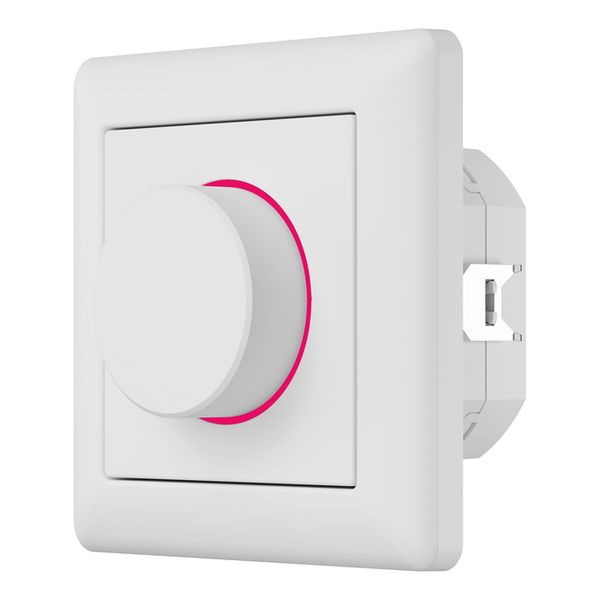

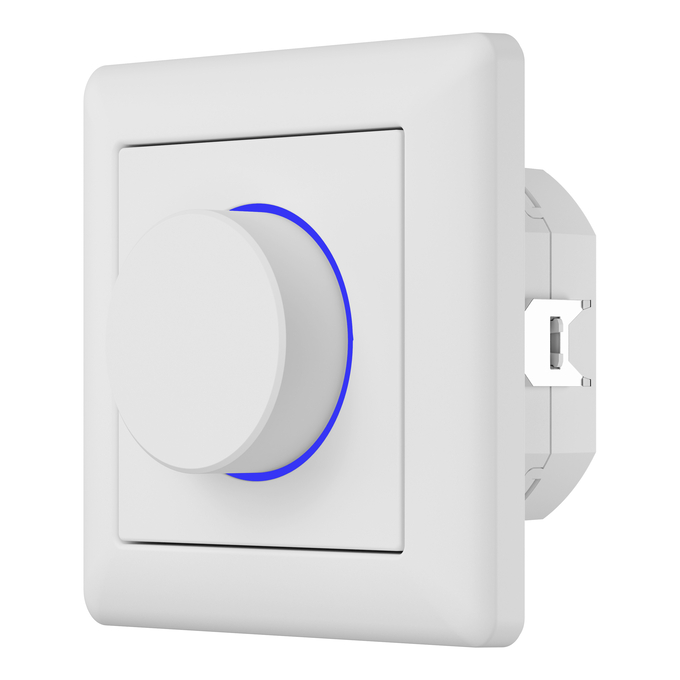

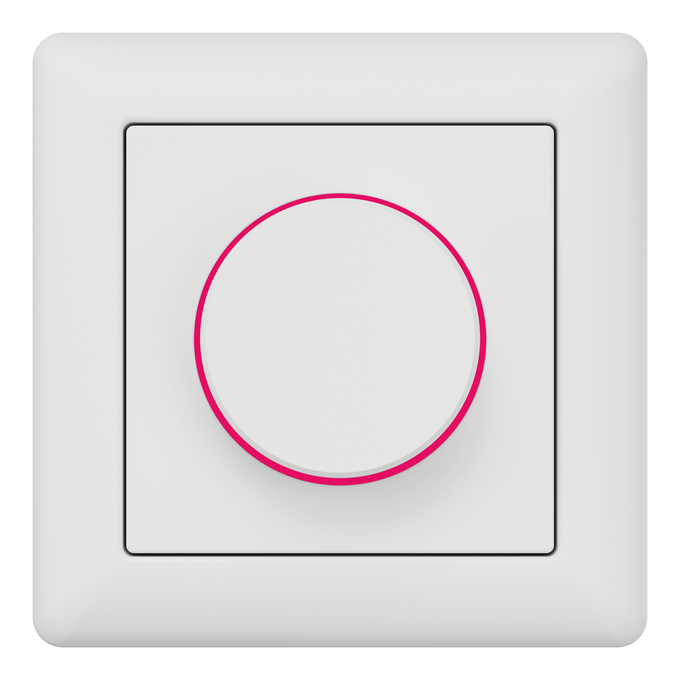

- Adjustable orientation and function lighting around the rotary knob

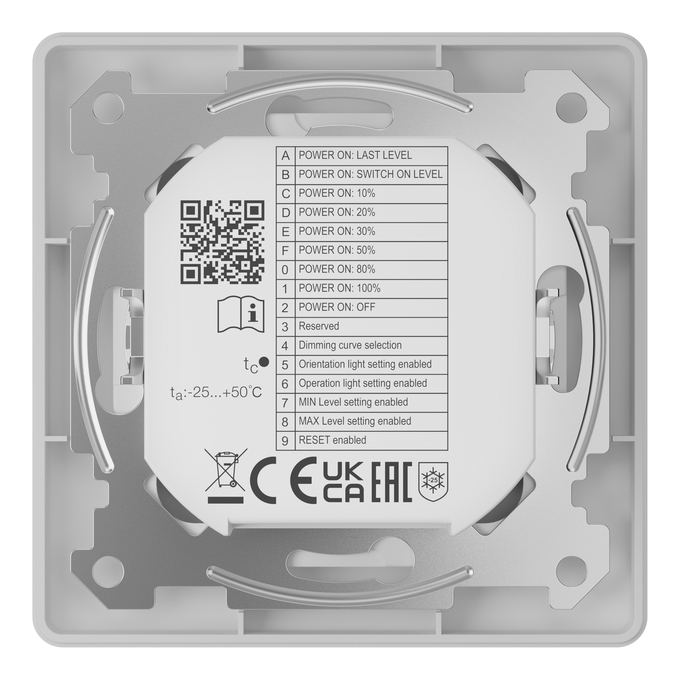

- Configurable behavior after power outage
- Optional surface mount frame available
Areas of application
- Living spaces (living room, bedroom, dining room, study-home office, bathroom)
- Offices
- Shops
- Bars, restaurants
- Hotel rooms
Product features
- Phase cut dimmer for installation in standard switch boxes
- Rotary knob for manual light control
- Switching and dimming of LED lights and LED lamps, Halogen lamps, Incandescent lamps
- Rated power LED lamps und LED luminaires: min. 3 VA / max. 200 VA
- Rated power Halogen lamps and Incandescent lamps: min. 3 VA / max. 400 VA
- Automatic rescaling and optimization of the dimming curve when setting the phase angle range
- Phase cut output wire length: max. 80 m
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
- Compatible with dimmable lamps
Ambient temperature range
-25…+50 °C
Cable cross-section, input side
0.5…1.5 mm²
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming range
1…100 %
GTIN
4099854846823
Height
55.00 mm
Length
80.00 mm
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Maximum temperature at tc test point
53 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal voltage
100…240 V
Nominal wattage
400.00 W 1)
Number of switching cycles
30000
Overheating protection
Reversible
Overload protection
Reversible
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
124.00 g
Protection class
II
Short-circuit protection
Reversible
Temperature range at storage
-40…+85 °C
Temperature range in operation
-25…+50 °C
Type of current
AC
Type of installation

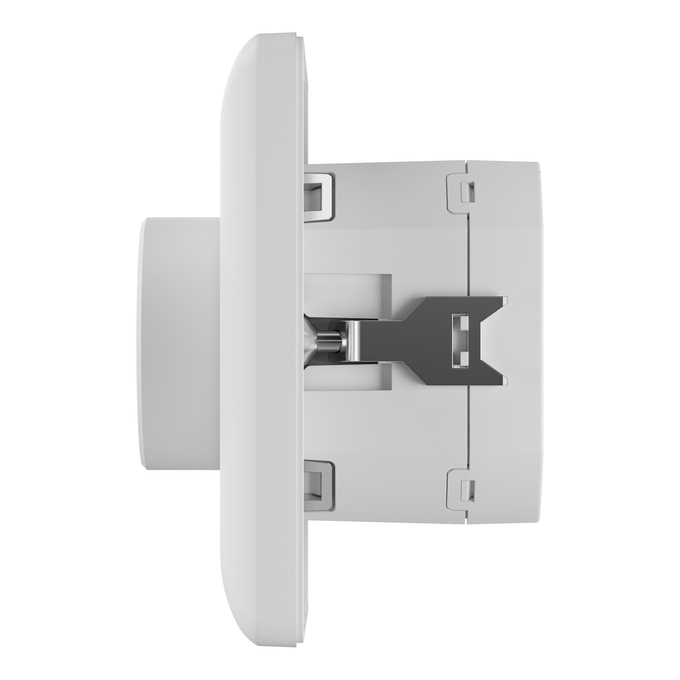

Integrated in flush device box
Type of protection
IP20
Width
80.00 mm
Wire preparation length, input side
6…7 mm
