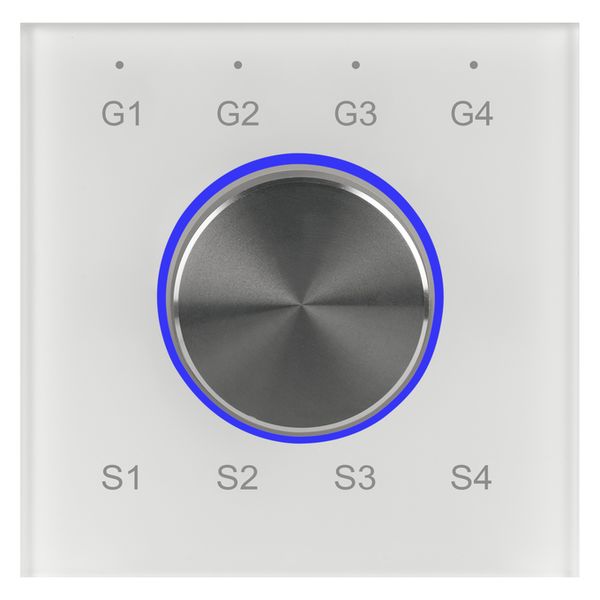

MANUAL CONTROL UNIT GROUP DALI-2 TW
4099854748691
Product benefits
- Easy entry into DALI lighting control
- Flexible creation of up to 4 individually controllable lighting groups and 4 scenes without additional app or software
- Mains powered (active mode) or DALI powered (passive mode) operation
- Individual settings via integrated rotary control
- Compatible with standard motion detectors
- High quality glass cover
- Adjustable orientation and function lighting around the rotary knob
- 7-year system guarantee in combination with LEDVANCE DALI lights without registration
- Optional surface mount frame available
Areas of application
- Rooms with up to 4 entrances/exits
- Meeting and conference rooms
- Bars, restaurants
- Hotel rooms
Product features
- DALI-2 control device for installation in standard switch boxes
- Number of DALI lights per control unit: up to 25
- Rotary knob and touch-sensitive glass cover for manual light control
- Lighting control functions: ON/OFF, DIM, SCENES, GROUPS, TUNABLE WHITE
- Up to 4 control devices can be connected in parallel to set up several control points
- Automatic synchronization between control points
Equipment / Accessories
- Surface Mount Frame
Safety advice
- All electrical connections must be made by a qualified person.
- Disconnect mains before installation.
References / Links
- For current information see
Ambient temperature range
-25…+50 °C
Cable cross-section, input side
0.5…1.5 mm²
Commissioning App
Ready to use
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Dimmable
Yes
Dimming interface
DALI-2
Dimming range
1…100 %
Groups
1
GTIN
4099854748691
Height
56.00 mm
Input current
42 mA
Length
86.00 mm
Light control tool App
No
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Mains frequency
50…60 Hz
Max. number of connected drivers
25
Maximum temperature at tc test point
60 °C
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Nominal output current
65 mA
Nominal voltage
100…240 V
Nominal wattage
2.70 W
Number of connectable sensors (only sensors with mains switching contact)
16
Number of control outputs
1
Number of switching cycles
30000
Packaging recyclability
Mostly recyclable packaging 1)
Product recyclability
Mostly recyclable product 1)
Product remark
Available from June 2026
Product weight
176.00 g
Protection class
II
Short-circuit protection
Reversible
Surge capability (L-N)
1000 V
Temperature range at storage
-40…+85 °C
Temperature range in operation
-25…+50 °C
Type of current
AC
Type of installation
Integrated in flush device box
Type of protection
IP20
Width
86.00 mm
Wire preparation length, input side
6…7 mm
